Toyota A340H – ATSG (Automatic Transmission Service Group)

Toyota A340H – ATSG (Automatic Transmission Service Group) PDF. In the continuing process to keep the technician updated on the four wheel drive vehicles we now introduce the manual on the A350H transfer case which is found in Toyota and Isuzu models. This series of booklets cover the general information, operation tear down and assembly on these units. And in most cases a parts breakdown is shown which helps in ordering replacements parts. Also included in this manual is a breakdown and assembly of the all wheel drive found in the Tercel with the Asian A-55 automatic transmission.

Applications:

  • 1988-1995 4×4 Trucks w/ V6
  • 1988-1995 Toyota 4Runner (4×4) w/ V6 and ECT
  • 1998-2005 Toyota Altezza Gita (GXE15W and JCE15W)
  • 1987-2001 Jeep Cherokee 4.0L (AW4)
  • 1987-1992 Jeep Comanche 4.0L (AW4)
  • 1993-1993.5 Jeep Grand Cherokee 4.0L (AW4)

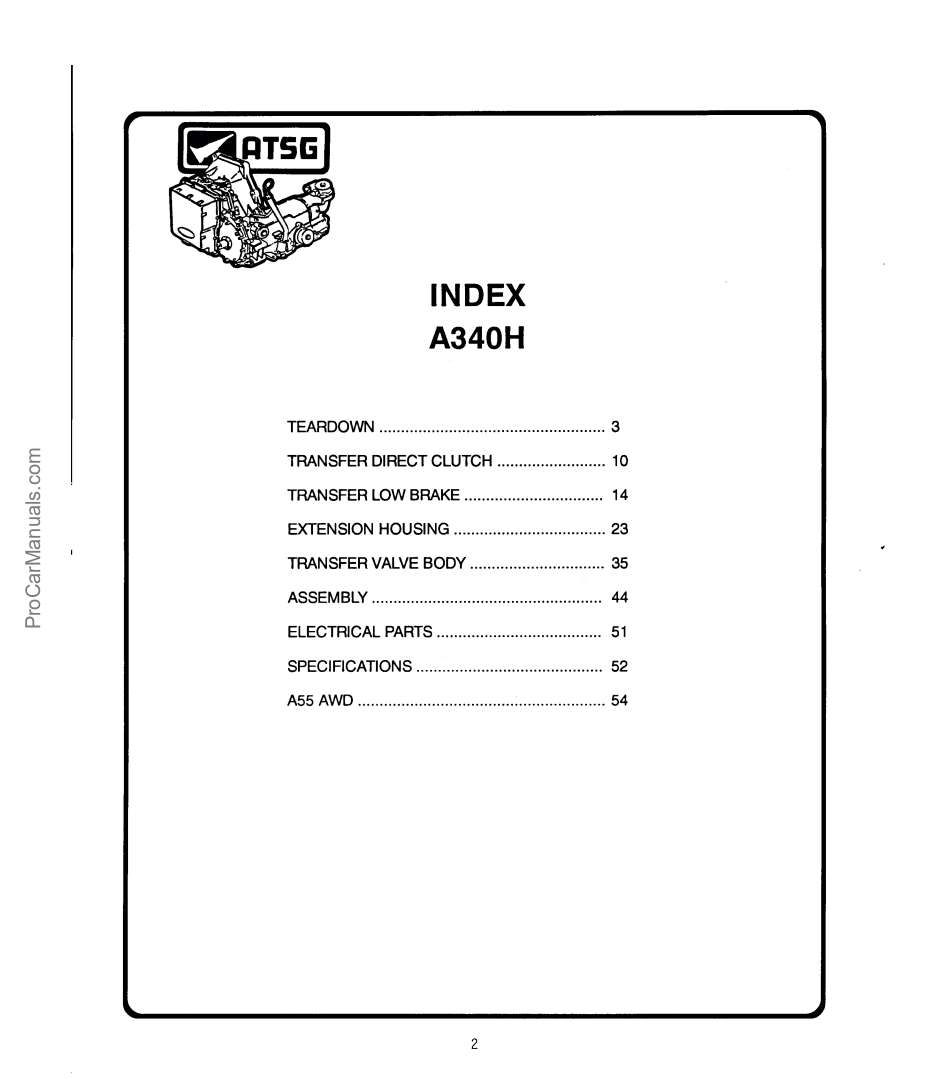

CONTENTS

  • TEARDOWN
  • TRANSFER DIRECT CLUTCH
  • TRANSFER LOW BRAKE
  • EXTENSION HOUSING
  • TRANSFER VALVE BODY
  • ASSEMBLY
  • ELECTRICAL PARTS
  • SPECIFICATIONS
  • A55 AWD

Language: English
Format: PDF
Pages: 64

Toyota A340H – ATSG (Automatic Transmission Service Group) PDF free online
