Volvo MID 136 brake system fault codes

Volvo SID Fault Codes



Fault number. Designation of malfunction. FMI Fault description.
SID 1, 2, 3, 4, 5, 6 Check the drawbar hitch mechanism.
SID 1, 2, 3, 4, 5, 6 Car wheel speed sensor. 1

2

3

4

5

6

7

8

9

10

11

12

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

Car wheel speed sensor. the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

Calibrating speed sensor car wheels. Damaged or defective wiring component itself.

The place has a mechanical failure of the component.

SID 7, 8, 9, 10, 11 Control valve solenoid valve, regulating the braking system of the vehicle. 1

3

5

6

Data checksum is calculated correctly, but the tabular values below standards.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

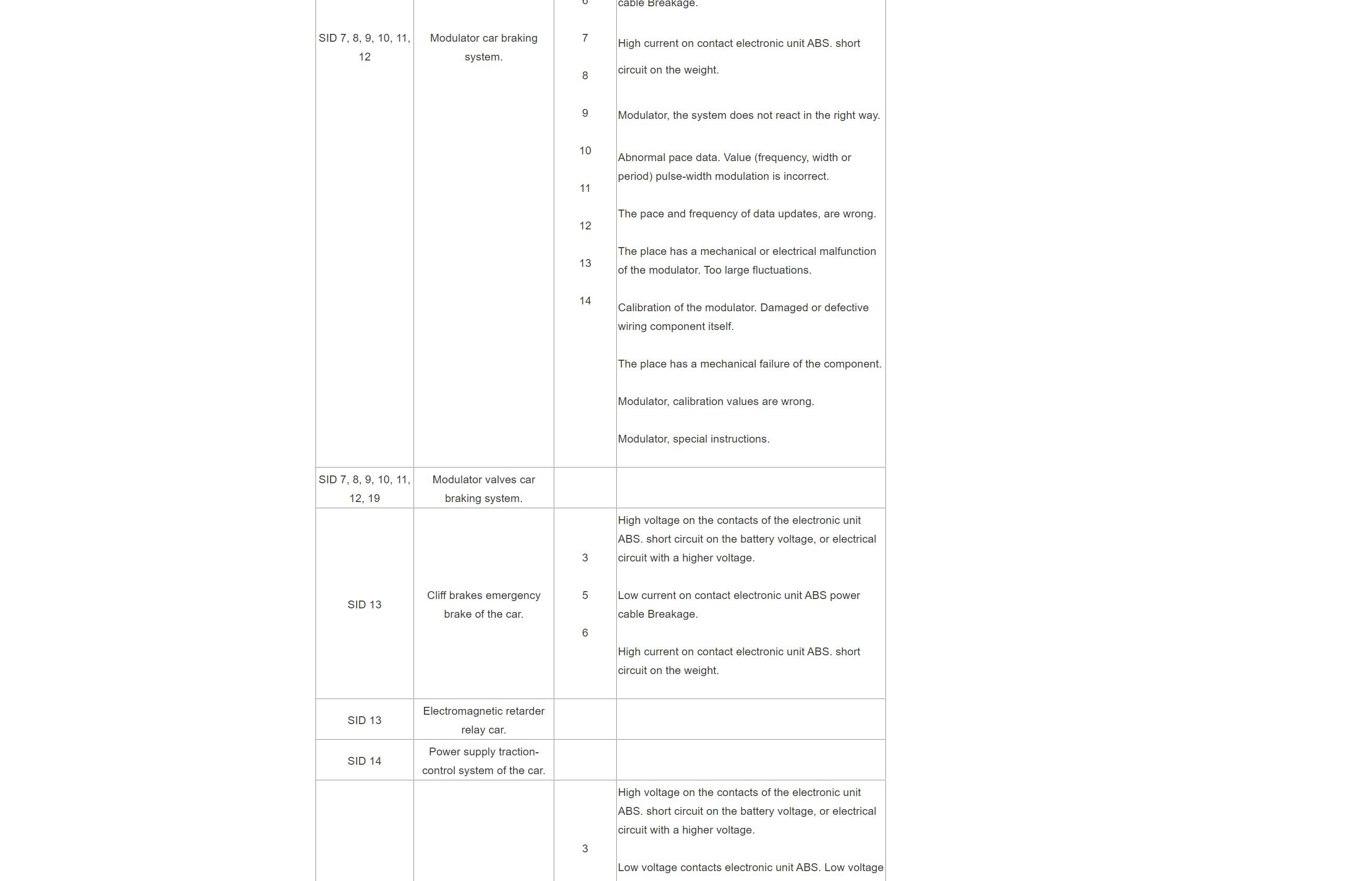

SID 7, 8, 9, 10, 11, 12 Modulator car braking system. 0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Data checksum is calculated correctly, but the values above the norm.

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

Modulator, the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction of the modulator. Too large fluctuations.

Calibration of the modulator. Damaged or defective wiring component itself.

The place has a mechanical failure of the component.

Modulator, calibration values are wrong.

Modulator, special instructions.

SID 7, 8, 9, 10, 11, 12, 19 Modulator valves car braking system.
SID 13 Cliff brakes emergency brake of the car. 3

5

6

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

SID 13 Electromagnetic retarder relay car.
SID 14 Power supply traction-control system of the car.
SID 14 Solenoid valve power supply traction-control system of the car. 3

4

5

6

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

SID 14.15 Check the control unit traction-control system.
SID 15 Solenoid valve power supply traction-control system of the car. 3

4

5

6

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

SID 15 Power supply traction-control system of the car.
SID 18.19 System fault codes ABS block in your program vehicle. Data trouble codes do not impair the functionality of the traction-control system, which continues to operate as usual.
SID 22 Data from the wheel speed sensors on the vehicle. 14 Sensor data the rotational speed of the wheels, special instructions.
SID 23 Signal light acceleration slip regulation system of the car. 5 Low current on contact electronic unit ABS power cable Breakage.
SID 24 Signal light traction control system (TCS). 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

SID 57.60 Comparison between pairs of modulators.
SID 66 Car hitch modulator. 0

2

3

4

6

Data checksum is calculated correctly, but the values above the norm.

Data checksum cannot be calculated or is incorrect, due to interruption of the signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

High current on contact electronic unit ABS. short circuit on the weight.

SID 67 Data from pressure sensor, modulator car hitch. 0

1

7

8

12

14

Data checksum is calculated correctly, but the values above the norm.

Data checksum is calculated correctly, but the tabular values below standards.

Modulator, the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The place has a mechanical failure of the component.

Pressure sensor special instructions.

SID 68 Power supply modulator car hitch. 1

3

4

7

Data checksum is calculated correctly, but the tabular values below standards.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Power modulator system does not react in the right way.

SID 69 The indication of the load on the axle of the car.
SID 70, 71, 72, 73, 74, 75 Indication of wear on brake system of a vehicle.
SID 76 Foot valve brake in the brake system of the car. 2

3

4

12

14

Data checksum cannot be calculated or is incorrect, due to interruption of the signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

The place has a mechanical failure of the component.

Foot brake valve, special instructions.

SID 79 The data in the EEPROME of the electronic control unit of the braking system of the vehicle, tire size.
SID 221 Internal indication of supply voltage in the block of the braking system of the vehicle. 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

SID 231 The control channel data SAE J1939 car. 2

5

6

7

8

9

10

12

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

Data channel, the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

The place has a mechanical failure of the component.

SID 240 Program memory in electronic brake control unit of the car. 2

12

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

The place has a mechanical failure of the component.

SID 251 ABS/EBS powered car. 3 High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.
SID 253 Check the EEPROM of the electronic control unit of the car braking systems. 2

12

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

The place has a mechanical failure of the component.

SID 253 Electronic traction-control system of the car. 1

2

3

5

6

10

12

13

14

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

The place has a mechanical failure of the component.

ECU calibration values are wrong.

ECU, special instructions.

SID 254 Electronic stability control system of the vehicle. 1

2

3

5

6

10

12

13

14

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

The place has a mechanical failure of the component.

ECU calibration values are wrong.

ECU, special instructions.

SID 254 Electronic traction-control system of the car. 1

2

3

5

6

10

12

13

14

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

The place has a mechanical failure of the component.

ECU calibration values are wrong.

ECU, special instructions.

Volvo PSID Fault Codes

Fault number. Designation of malfunction. FMI Fault description.
PSID 1 The weakening of the braking effect of the braking system of the vehicle. 0 Data checksum is calculated correctly, but the values above the norm.
PSID 4 Distribution of braking effort between towing vehicle and trailer brake adjustment. 7 Data channel, the system does not react in the right way.
PSID 21 Braking system hitch of the vehicle. 9

12

The pace and frequency of data updates, are wrong.

The place has a mechanical failure of the component.

PSID 22 Electronic unit powered car. 0

1

2

3

4

Data checksum is calculated correctly, but the values above the norm.

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 23 Check out the channel of communication with trailing device. 2

5

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

Low current on contact electronic unit ABS power cable Breakage.

PSID 24 Check the wheel speed sensor brake system.
PSID 25 Diagnosis and work cannot be activated, go programming. 13 The electronic control unit of the car brake system calibration values are wrong.
PSID 26 Traction control system TCS is disabled. 14 The electronic control unit of the car brake system, the special instructions.
PSID 27 Fixed difference residual lining thickness.
PSID 28 Brake linings in critical condition. 1 Data checksum is calculated correctly, but the tabular values below standards.
PSID 30 The pressure in the pneumatic circuit is critically low. 1 Data checksum is calculated correctly, but the tabular values below standards.
PSID 31 Control channel SAE J1939 engine information. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 34 Vehicle stability control is activated. 12

14

The place has a mechanical failure of the component.

The electronic control unit of the car brake system, the special instructions.

35 PSID Power system stability of the vehicle.
PSID 36 No calibration data steering wheel angle. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 37 Indication of lateral acceleration of the car, the sensor is rambling. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 38 Failure indication system of roadholding.
PSID 41 Stability system, deactivated. 14 The electronic control unit of the car brake system, the special instructions.
PSID 42 Stability control, a logic error within the system.
PSID 43 Power electronic unit high/low.
PSID 44 Component of the system may not be recognized. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 45 Modulator requested reconfiguration from the electronic control unit. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 46 Food at the modulator is fed continuously. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 48 Achieve sufficient braking power could not be performed. 7 Data channel, the system does not react in the right way.
50 PSID Vehicle stability system, the electronic control unit.
PSID 51 Lateral acceleration sensor of the car. 2

10

13

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

The place has a mechanical or electrical malfunction of the car’s lateral acceleration sensor. Too large fluctuations.

Lateral acceleration sensor car calibration values are wrong.

PSID 52 Rotation sensor of the car. 2

8

9

10

12

14

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction of the car’s rotation sensor. Too large fluctuations.

The electronic control unit of the car brake system, the special instructions.

The place has a mechanical failure of the component.

PSID 53 Steering angle display car. 2

9

10

12

13

14

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction of the steering angle indicator car. Too large fluctuations.

The electronic control unit of the car brake system, the special instructions.

Steering angle display car calibration values are wrong.

The place has a mechanical failure of the component.

PSID 59 Protivobkusovochnoj valve system is detected, but not configured. 2

6

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High current on contact electronic unit ABS. short circuit on the weight.

PSID 60, 61, 62, 63 The car’s traction control, solenoid valves. 3

4

5

6

9

10

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction of the traction-control system of the car. Too large fluctuations.

64 PSID The car’s traction control, solenoid valves, General wire supply. 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 65 Modulator, errors in the software of the electronic unit. 13

14

Modulator, calibration values are wrong.

The place has a mechanical failure of the component.

PSID 66, 67, 68, 69 Modulator car braking system. 0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Data checksum is calculated correctly, but the values above the norm.

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, due to interruption of the signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

Modulator, the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction of the modulator. Too large fluctuations.

Calibration of the modulator. Damaged or defective wiring component itself.

The place has a mechanical failure of the component.

Modulator, calibration values are wrong.

Modulator, special instructions.

PSID 70, 71, 72, 73 Car wheel speed sensor. 1

2

3

4

5

6

7

8

9

10

11

12

Data checksum is calculated correctly, but the tabular values below standards.

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

Car wheel speed sensor. the system does not react in the right way.

Abnormal pace data. Value (frequency, width or period) pulse-width modulation is incorrect.

The pace and frequency of data updates, are wrong.

The place has a mechanical or electrical malfunction the wheel speed sensor. Too large fluctuations.

Calibrating speed sensor car wheels. Damaged or defective wiring component itself.

The place has a mechanical failure of the component.

PSID 74, 75, 76, 77 Indication of wear on brake system of a vehicle.
PSID 80 Duplicates the auxiliary valve for braking system of the vehicle. This component is not used by Volvo. This fault code may continue to register in case of failures related to its inputs to the control unit. First check whether the technical configuration of the vehicle and make sure there is no damage to the wires and contacts.
PSID 81 Differential lock the car. 2

3

4

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 83 Activating the brakes the car hitch. 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 85 Activate the function when starting the ascent vehicle. 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 86, 87 The switch, the brake valve in the braking system of the vehicle. 3

4

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

PSID 88, 89, 90 Car hitch modulator. 3

5

6

10

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low current on contact electronic unit ABS power cable Breakage.

High current on contact electronic unit ABS. short circuit on the weight.

The place has a mechanical or electrical malfunction of the modulator car hitch. Too large fluctuations.

PSID 101, 102 Indication of the speed of the wheels, the second front in the brake system of the car.
PSID 103.104 Indication of wear on, the second front axle in the brake system of the car.
PSID 105 Power modulator of the braking system of the vehicle.
PSID 106 Power electronic stability control unit of the car.
PSID 119 Power sensors system of roadholding. 2

3

4

12

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

High voltage on the contacts of the electronic unit ABS. short circuit on the battery voltage, or electrical circuit with a higher voltage.

Low voltage contacts electronic unit ABS. Low voltage circuit, a short circuit on the circuit with a lower voltage.

The place has a mechanical failure of the component.

PSID 121 The car’s traction control system, a logical fallacy. 10 The place has a mechanical or electrical malfunction of the modulator car hitch. Too large fluctuations.
PSID 123 The problem is the communication channel between the block and modulators. 2

9

13

Data checksum cannot be calculated or is incorrect, because the interrupt signal.

The pace and frequency of data updates, are wrong.

ECU calibration values are wrong.

PSID 124 Channel stability system with sensors. 2 Data checksum cannot be calculated or is incorrect, because the interrupt signal.
PSID 130.132, 132, 133, 134, 135, 136, 137, 138, 139 Mechanical wheel brakes braking system of the vehicle. 7 Data channel, the system does not react in the right way.
200 PSID Control channel SAE J1939, electronic engine block of the car. 9 The pace and frequency of data updates, are wrong.
PSID 201 Control channel SAE J1939, e-block car. 9 The pace and frequency of data updates, are wrong.
PSID 202 Control channel SAE J1939, the dashboard of the car. 9 The pace and frequency of data updates, are wrong.
PSID 205 Control channel SAE J1939, electronic block transmission car. 9 The pace and frequency of data updates, are wrong.
PSID 206 Control channel SAE J1939, car retarder unit. 9 The pace and frequency of data updates, are wrong.
PSID 208 Control channel SAE J1939, electronic air suspension car. 9 The pace and frequency of data updates, are wrong.
PSID 210 Control channel SAE J1939, electronic block external lighting of the vehicle. 9 The pace and frequency of data updates, are wrong.
PSID 211 Control channel SAE J1939, electronic block adaptive cruise control car. 9 The pace and frequency of data updates, are wrong.
PSID 214 Control channel SAE J1939, electronic equipment of the vehicle. 9 The pace and frequency of data updates, are wrong.
PSID 227 Control channel SAE J1939, unidentified car unit. 9 The pace and frequency of data updates, are wrong.
