UXXXX OBD-II Codes

The UXXXX OBD-II codes are a range of diagnostic trouble codes (DTCs) that are used to identify specific issues in a vehicle’s network communication system. These codes are part of the On-Board Diagnostic (OBD) system, which is a standardized method for monitoring and reporting vehicle emissions and performance.

When a vehicle’s onboard computer detects a problem within the network communication system, it will generate a specific OBD-II code. These codes are alphanumeric and typically start with the letter U, followed by a four-digit number. The codes within the UXXXX range correspond to various issues or faults within the network communication system, allowing technicians to identify and address the problem more efficiently.

The UXXXX codes specifically relate to issues with the network communication system, including problems with the CAN (Controller Area Network) bus, communication between modules, or other related components.

For example, the U0100 code indicates a problem with the lost communication with the ECM/PCM (Engine Control Module/Powertrain Control Module). This code could be triggered by a faulty module, a wiring issue, or a problem with the CAN bus communication.

On the other hand, the U0423 code points to a problem with the invalid data received from the instrument panel cluster. This code could be caused by a malfunctioning instrument panel cluster, a wiring issue, or a problem with the communication between modules.

It is important to note that while the OBD-II codes can help diagnose the problem, they do not pinpoint the exact cause. Additional diagnostic testing and inspection may be needed to identify the underlying issue accurately. Therefore, it is recommended to consult a qualified technician or use professional diagnostic equipment to interpret and address the specific OBD-II code.

By analyzing and interpreting the UXXXX OBD-II codes, technicians can efficiently troubleshoot and repair issues within the network communication system, ensuring optimal vehicle functionality and performance. These codes play a crucial role in modern automotive diagnostics, helping technicians identify and rectify issues promptly.

Language: English
Format: PDF
Pages: 10

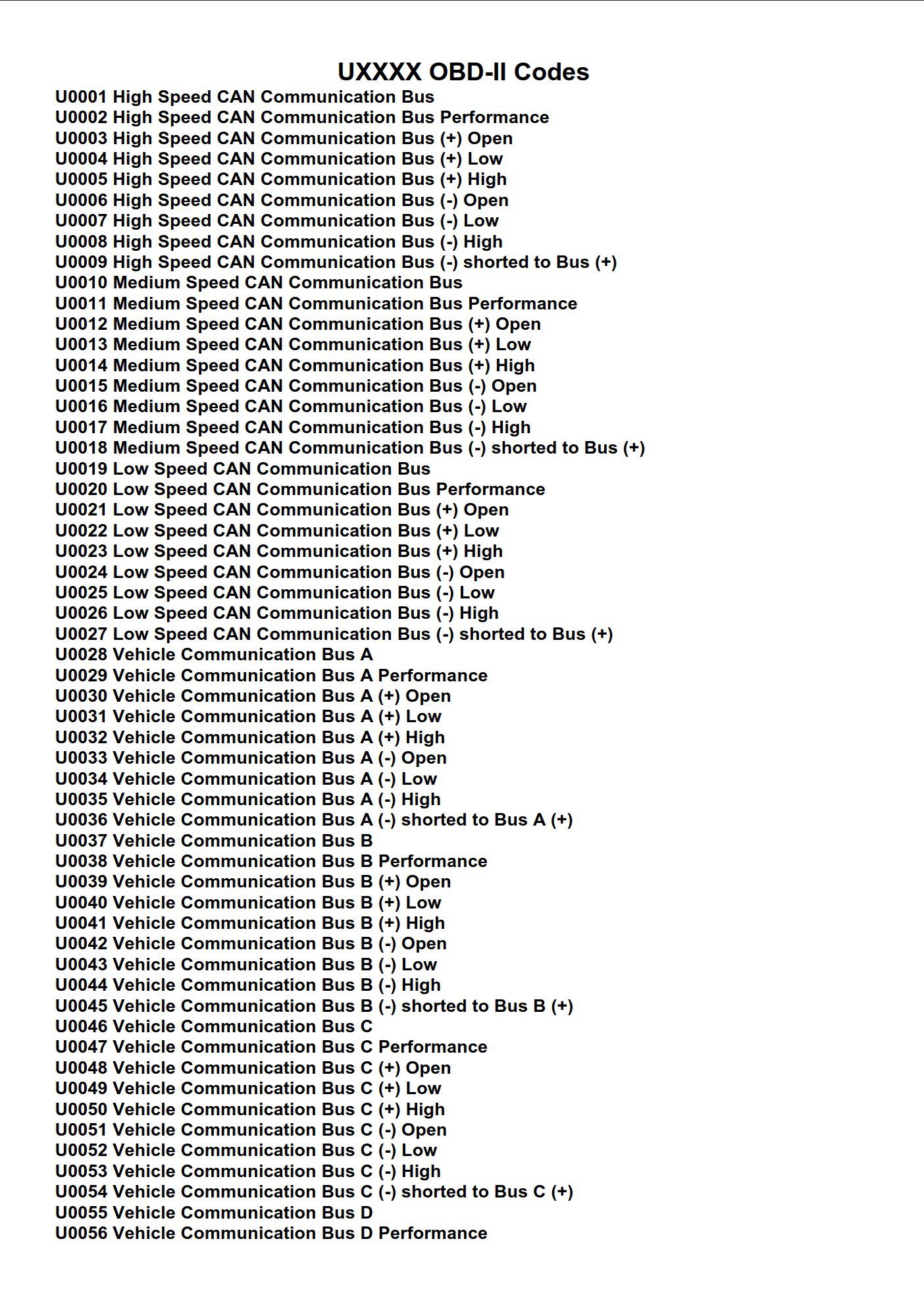

UXXXX OBD-II Codes
