Troubleshooting a Malfunctioning Power Window 🚗💡


Fix Stuck or Slow Windows Yourself—No Mechanic Needed!


1. Why Power Windows Fail (Common Causes) 🔌

Power windows stop working due to electrical or mechanical issues. Top culprits:

  • Blown Fuse: $5 fix (most common!).
  • Faulty Switch: Worn contacts or wiring.
  • Motor Failure: Burned-out motor (replacement: 50–150).
  • Stuck Regulator: Broken cables or gears.
  • Dirty Tracks: Debris jams the window guides.

Key Stat: 60% of power window issues are caused by bad switches or dirt buildup (NHTSA).

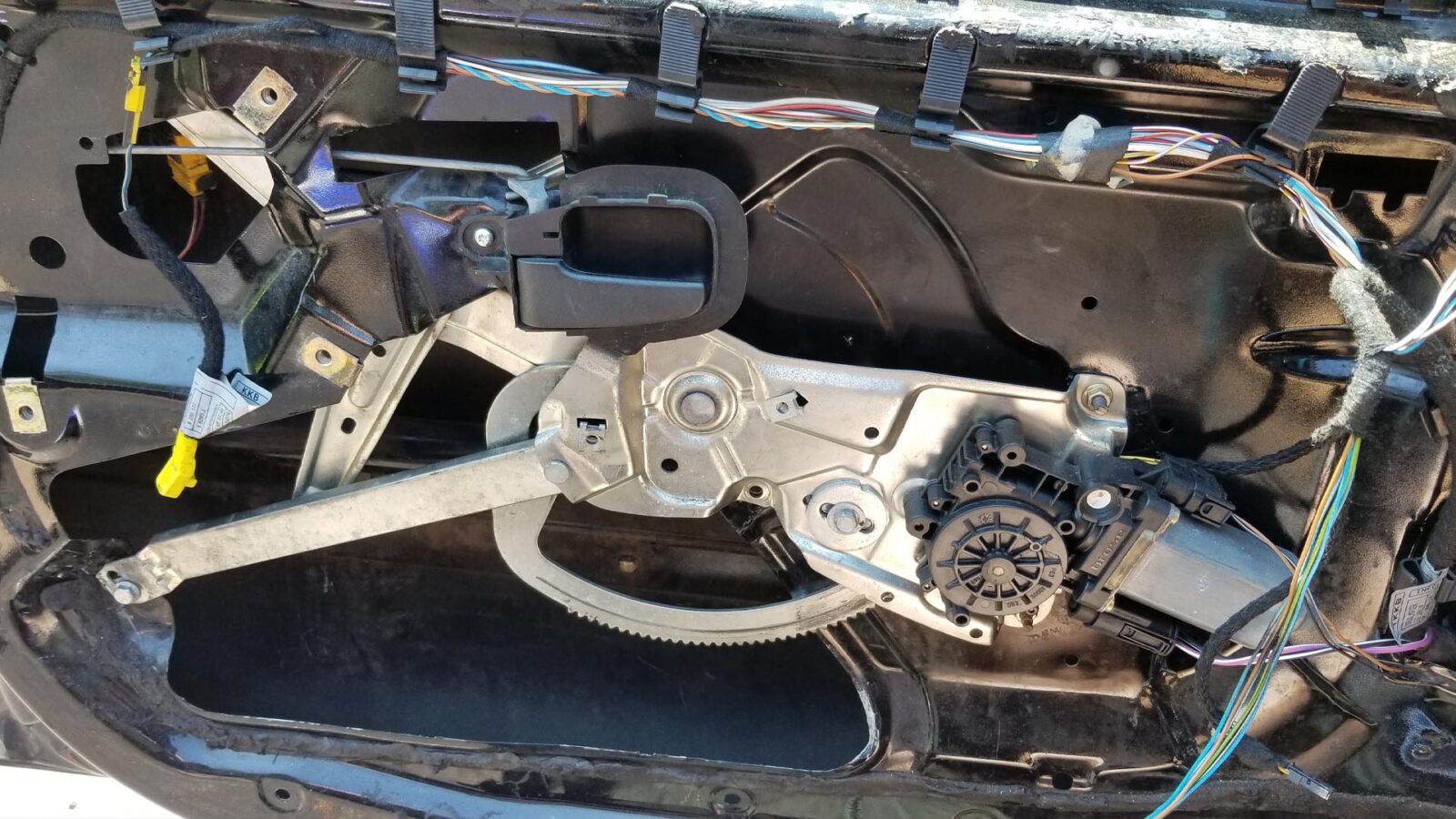

power window system diagram (motor, regulator, switch).

2. Tools You’ll Need 🧰

ToolPurposeCost
MultimeterTest electrical connections$20
Trim removal toolsPry off door panels$10
ScrewdriversRemove screws$5
Silicone sprayLubricate tracks$8
Replacement fuseMatch your car’s amp rating$5

Pro Tip: Disconnect the battery before working on electrical components!


3. Step-by-Step Troubleshooting Guide 📋

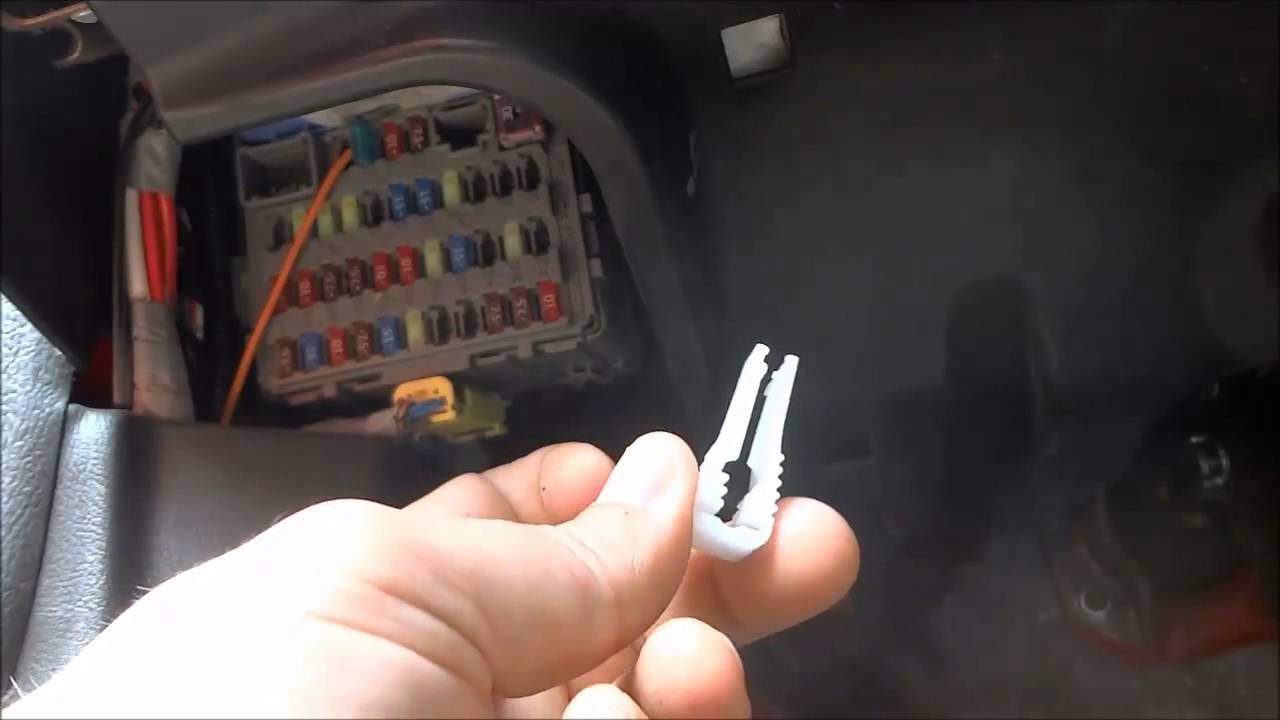

Step 1: Check the Fuse

  1. Locate the fuse box (see owner’s manual).
  2. Find the power window fuse (often labeled “P/W” or “WINDOW”).
  3. Replace if blown. Test the window.
How To Replace Car Fuses-DIY Automotive Maintenance

Step 2: Test the Switch

  1. Remove the door panel with trim tools.
  2. Unplug the switch and test for voltage with a multimeter.
    • No power: Replace the switch (15–50).
    • Power present: Move to the motor.

Step 3: Inspect the Motor

  1. Locate the motor (attached to the regulator).
  2. Tap the motor gently with a wrench while pressing the switch.
    • If the window moves: Motor is dying—replace it.
    • No movement: Check wiring or regulator.

Step 4: Clean and Lubricate Tracks

  1. Spray silicone lubricant into the window tracks.
  2. Wipe away dirt with a cloth.
  3. Test the window—grinding noises mean mechanical issues.

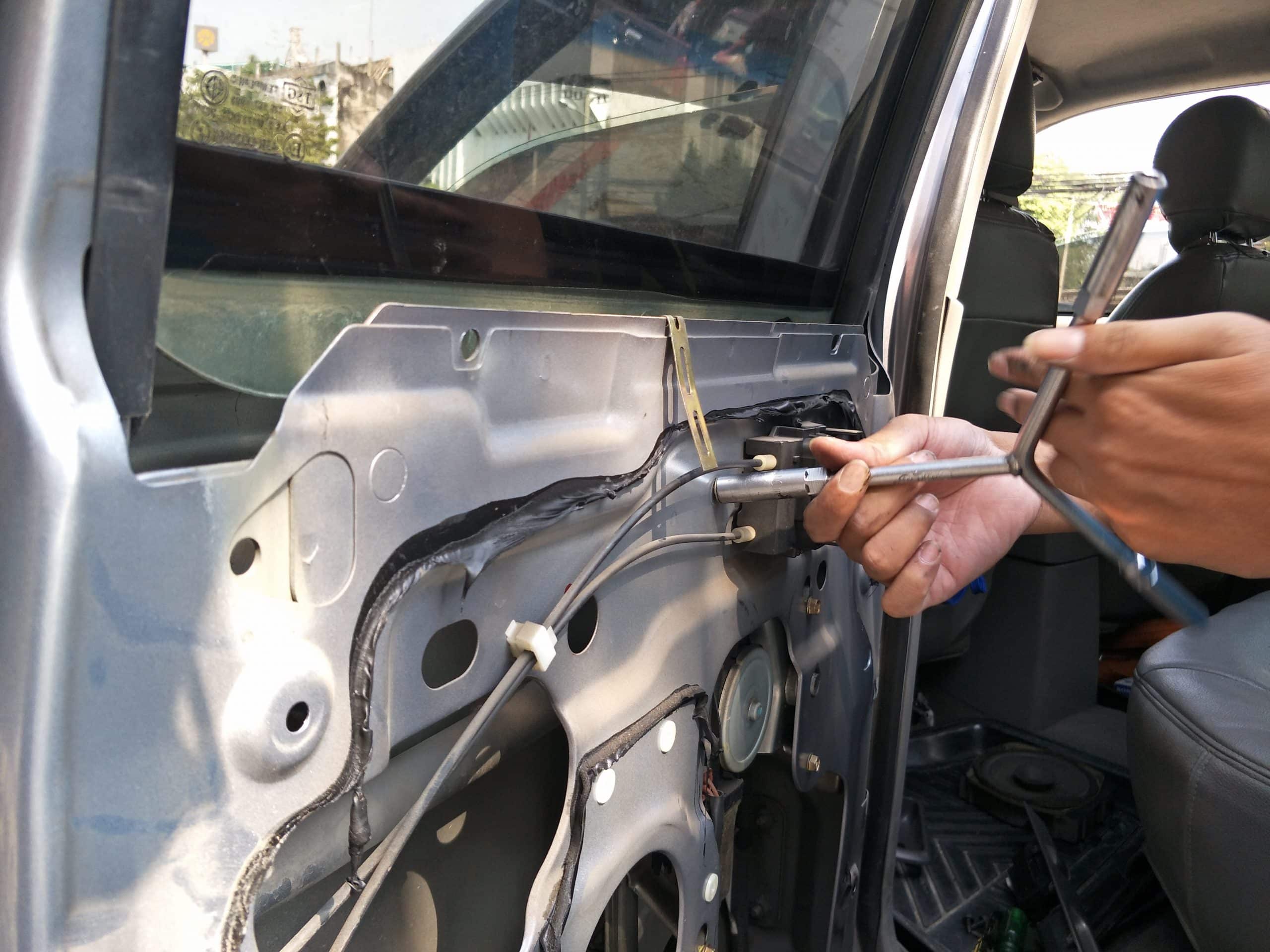

Step 5: Check the Regulator

  1. Manually lift/drop the window.
    • Smooth movement: Electrical issue.
    • Resistance: Broken regulator cables (80–200).

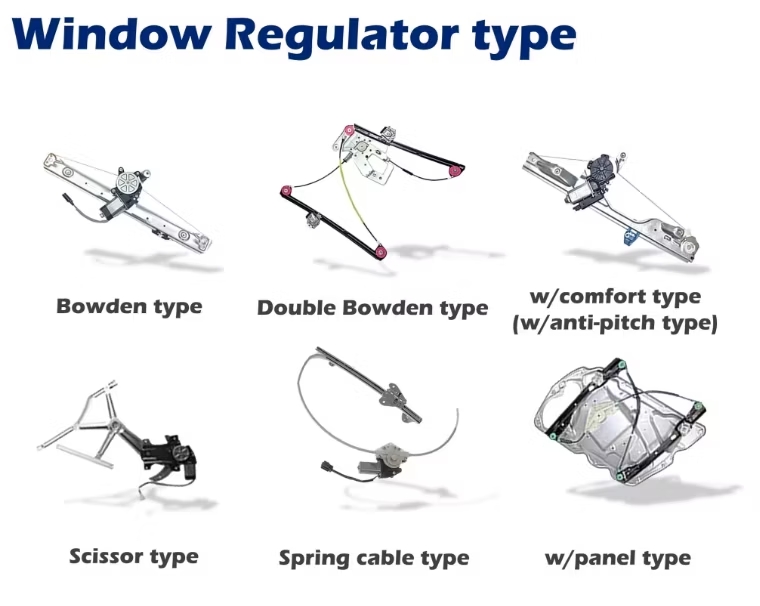

window regulator types (scissor vs. cable).

4. Top 5 Replacement Parts 🛒

PartPriceBest For
Dorman Window Switch$25GM, Ford, Toyota
ACDelco Window Motor$50GM vehicles
Cardone Regulator Assembly$90Universal fit
WD-40 Specialist Silicone Spray$8Track lubrication
Bussmann Fuse Pack$5All car fuses

5. 7 Costly Mistakes to Avoid ❌

  1. Forcing the Window: Breaks the regulator.
  2. Ignoring Wiring Damage: Exposed wires cause shorts.
  3. Using Grease Instead of Silicone: Attracts dirt.
  4. Skipping the Fuse Check: Wastes time on complex fixes.
  5. Overtightening Screws: Strips door panel threads.
  6. Testing Without Battery Disconnect: Risk of shocks/shorts.
  7. Reassembling Incorrectly: Misaligned panels rattle.

6. FAQs ❓🌟

Q1: Why does my window work sometimes?

A: Loose wiring or a failing motor—check connections first.

Q2: Can I manually raise a stuck window?

A: Yes! Remove the door panel and lift the glass carefully.

Q3: How do I reset the window after replacement?

A: Turn the ignition on, press the switch to close, hold for 5 seconds.

Q4: Are aftermarket regulators reliable?

A: Yes—stick to brands like Dorman or ACDelco.

Q5: How often should I lubricate tracks?

A: Every 6 months or if the window slows down.


7. Free Troubleshooting Checklist 📝

[🔗 Download Your Free PDF Here]
Includes:

  • Fuse location guide by car model.
  • Multimeter testing steps.
  • Regulator replacement tutorial.

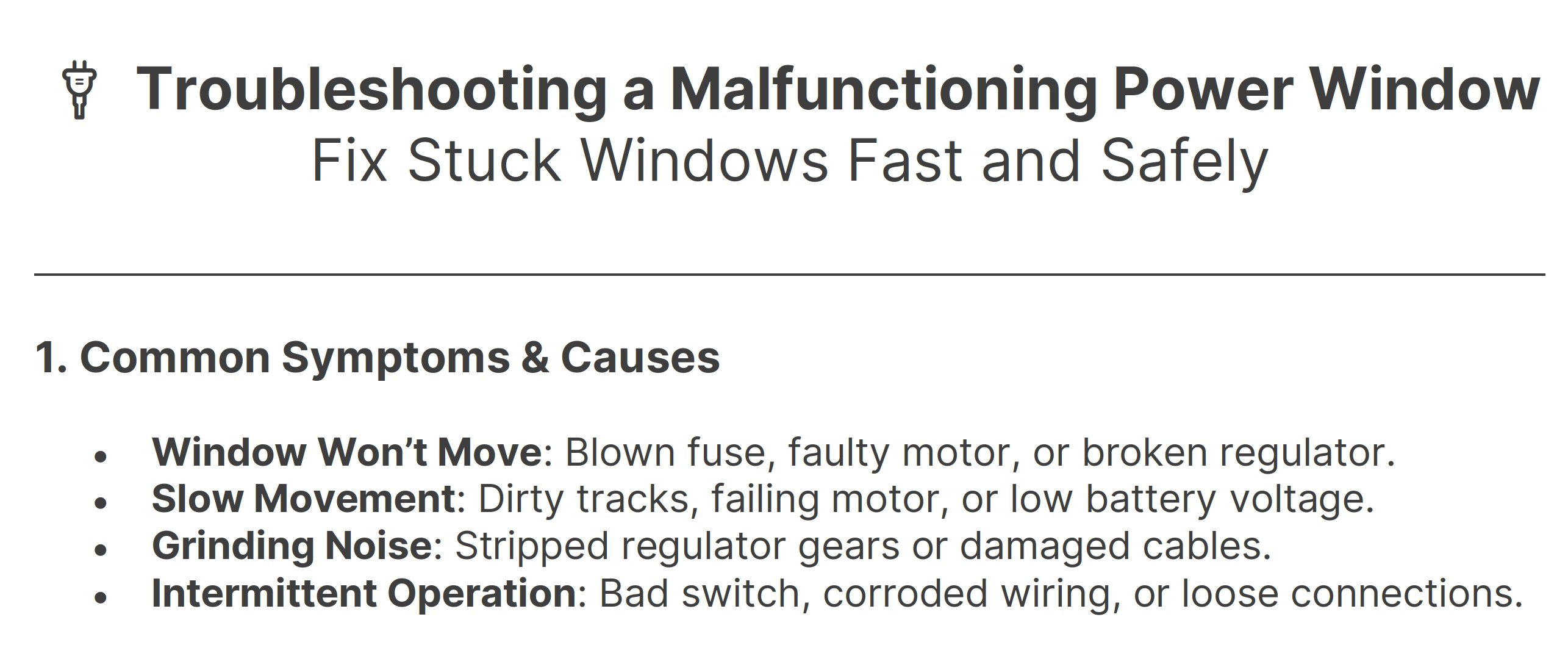

troubleshooting checklist preview
Troubleshooting Checklist preview

Final Pro Tips 🌟

  • Test All Switches: If one window fails, check the master switch.
  • Check for Recalls: Some models (e.g., older Hondas) have known window issues.
  • Use Zip Ties Temporarily: Secure a sagging window until repairs.
