1. Why Timing Chain Replacement Is Critical ⚠️

The timing chain synchronizes your engine’s camshaft and crankshaft, ensuring valves open/close in perfect harmony. A worn or stretched chain can cause:

  • Valve/piston collision: “Interference engines” self-destruct if timing is off by even one tooth.
  • Poor performance: Misfires, rough idling, and power loss.
  • Catastrophic failure: Broken chains destroy engines instantly.

Key Stat: Replacing a timing chain costs 1,000–2,500, but skipping it can lead to $5,000+ engine repairs (AAA).

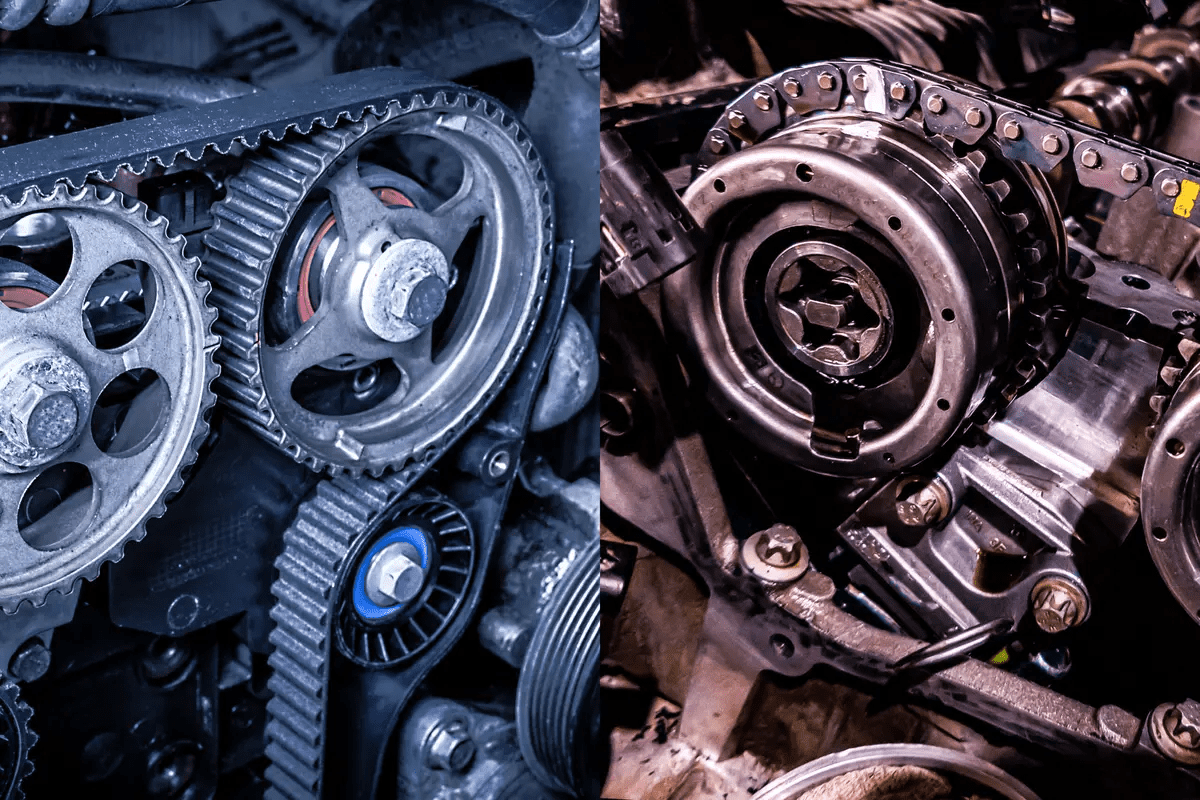

timing chain vs. belt

2. Signs Your Timing Chain Needs Replacement 🚩

  • Rattling noise at startup (worn tensioner/guides).
  • Check engine lights (codes P0008, P0016, P0017).
  • Metal shavings in oil (chain grinding into guides).
  • Difficulty starting or erratic RPMs.

Pro Tip: Chains rarely “snap” suddenly—they stretch over time. Replace every 120,000–150,000 miles or per your manual.

stretched chain diagram

3. Tools You’ll Need 🧰

ToolPurposeCost
Timing KitChain, tensioner, guides, seals200–600
Torque WrenchPrecision bolt tightening50–200
Engine Locking ToolsFreeze crankshaft/camshaft in place50–150
Dial IndicatorVerify cam timing accuracy40–100
Oil Pan & GasketsReplace leaked seals20–50

Red Flag: Never use zip ties or makeshift tools to hold cams—they slip!


4. Step-by-Step Replacement Guide 🔧

Step 1: Prep the Engine

  • Disconnect the battery and drain coolant/oil.
  • Remove accessories (serpentine belt, alternator, etc.) for access.
  • Lock the crankshaft at Top Dead Center (TDC) using a timing pin or tool.
G.M. 2.2L and 2.4L Ecotec Timing Set Tech Info and Diagnostic Tips

Step 2: Remove Old Components

  1. Unbolt the timing cover (often hidden under multiple layers).
  2. Release tensioner and slide off the old chain.
  3. Inspect guides for cracks and sprockets for wear.

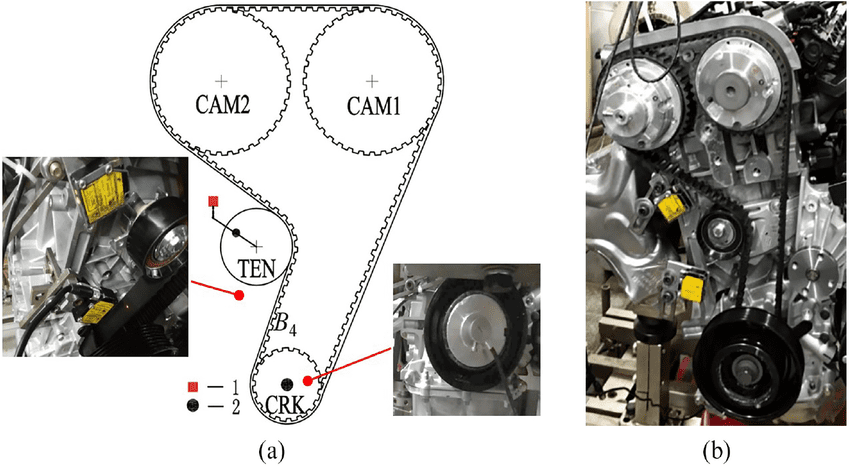

timing component layout

Step 3: Install New Chain

  1. Align timing marks on crankshaft/camshaft sprockets.
  2. Route the chain with zero slack (use the tensioner’s preload setting).
  3. Torque bolts to spec (e.g., BMW N52: 50 Nm + 90° turn).

Pro Tip: Double-check marks with a dial indicator—visual alignment isn’t enough!

Step 4: Reassemble & Test

  1. Replace seals and reinstall the timing cover with fresh RTV.
  2. Refill fluids and start the engine. Listen for abnormal noises.
  3. Use a scan tool to confirm cam/crank correlation (0° deviation).

Case Study: A VW owner saved $3,000 by replacing the chain before it jumped timing.


5. Costly Mistakes to Avoid 🚫

  • Skipping TDC: Misalignment bends valves.
  • Reusing Old Tensioners: New chain + old tensioner = guaranteed failure.
  • Ignoring Guides: Worn plastic guides crumble and jam the chain.
  • Overtightening Bolts: Stripped threads in aluminum blocks cost $500+ to repair.
  • Rushing the Job: Allow 8–12 hours for a first-timer.

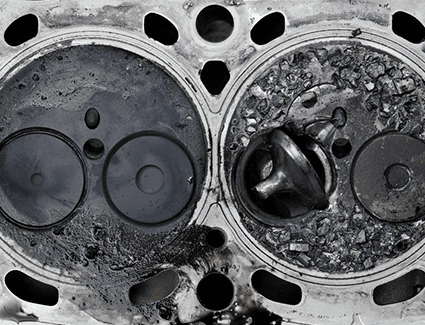

engine damage examples

6. When to Call a Pro 🛑

  • Interference Engines: One wrong move = valve/piston collision.
  • No Factory Service Manual: Each engine has unique specs (e.g., Toyota’s “VVT-i” vs. Ford’s “Ti-VCT”).
  • Lack of Tools: Cam/crank locking kits are model-specific.

Cost Comparison:

  • DIY: 300–800 (parts + tools).
  • Pro: 1,500–2,500.

7. Top 5 Timing Chain Kits for 2024 🛒

KitCompatibilityPros
Cloyes 9-06371SAFord 5.0L CoyoteIncludes hydraulic tensioner
INA 039198119VW/Audi 2.0T TSIOEM-quality guides
Gates TCKWP328Toyota 2GR-FEFull kit with water pump
Melling TCK5GM 3.6L V6Heavy-duty chain
Febi 28043BMW N20/N26Complete with seals

Pro Tip: Avoid eBay kits—opt for INA, Cloyes, or OEM suppliers.


8. FAQs ❓

Q1Can I reuse my old chain if it looks fine?

A: No! Stretching is invisible—replace the chain, tensioner, and guides as a set.

Q2How do I know if my engine is interference?

A: Google “[your engine code] interference”—e.g., Honda K24 = interference.

Q3Why is my new chain rattling?*

A: Improper tensioner preload or misalignment.

Q4Should I replace the water pump too?

A: Yes! 90% of timing jobs require removing the pump—replace it preventively.

Q5Can a scan tool adjust timing?

A: No—physical alignment is mandatory.


9. Free Timing Chain Checklist 📝

[🔗 Download Your Free PDF Here]
Includes:

  • TDC setup steps for 20+ engines.
  • Torque specs for common models.
  • Post-installation test procedures.

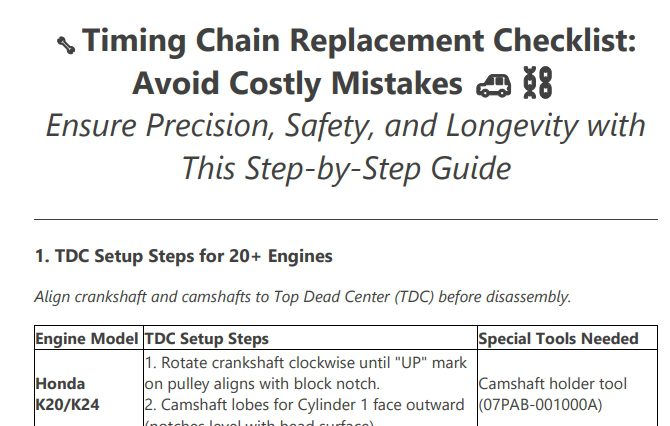

timing chain checklist preview
Timing Chain Checklist preview

10. Final Tips 💡

  • Photograph Everything: Snap pics of timing marks before disassembly.
  • Prime the Tensioner: Soak hydraulic tensioners in oil before installing.
  • Break In Gently: Avoid high RPMs for the first 100 miles.
