Timing Chain Replacement: Avoiding Costly Mistakes 🚗⛓️
Don’t Risk Engine Disaster—Master the Process, Dodge Pitfalls, and Save Thousands!
1. Why Timing Chain Replacement Is Critical ⚠️

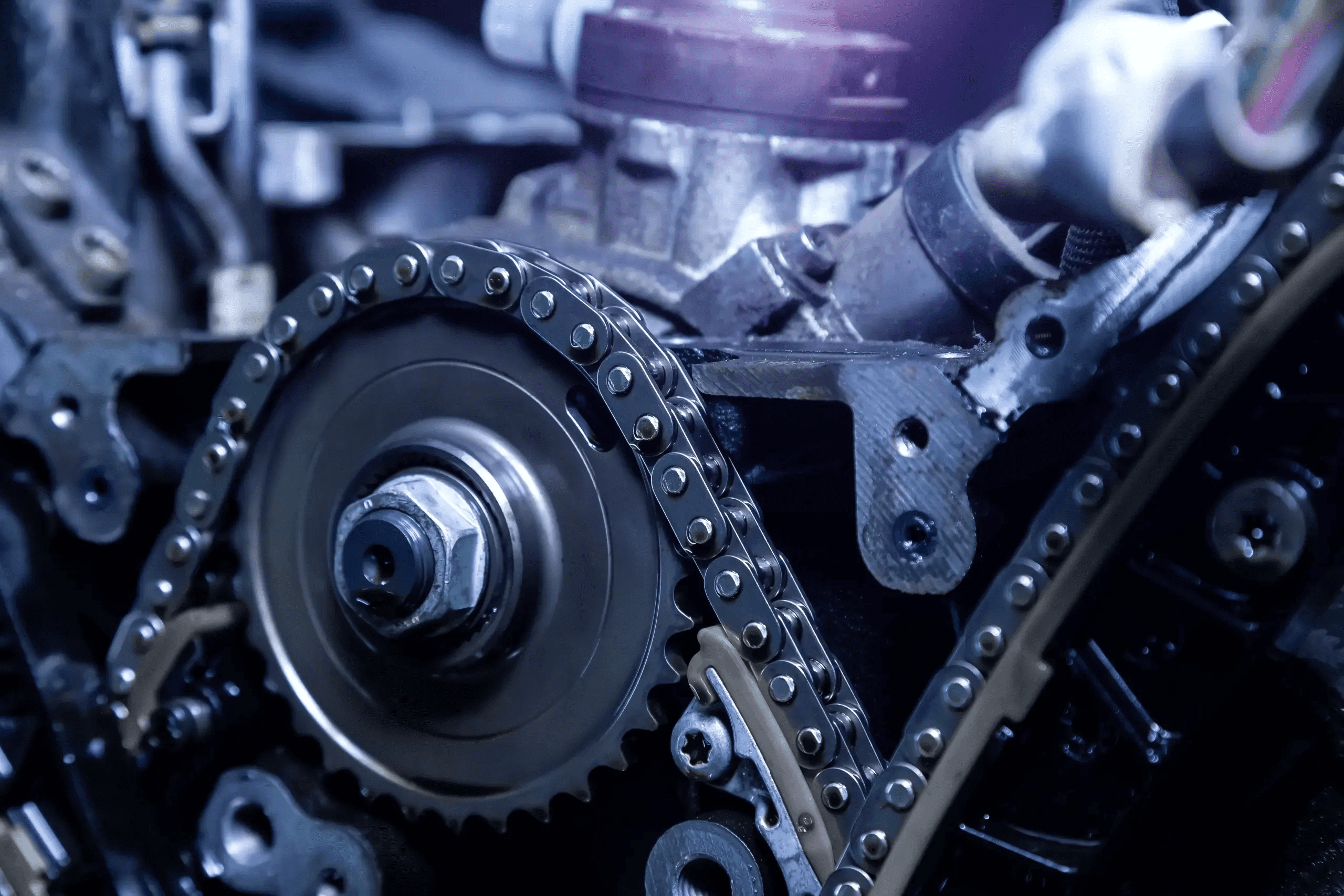

The timing chain synchronizes your engine’s camshaft and crankshaft, ensuring valves open/close in perfect harmony. A worn or stretched chain can cause:

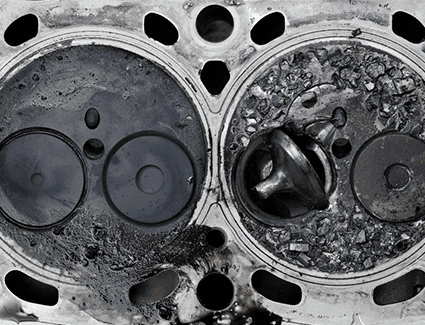

- Valve/piston collision: “Interference engines” self-destruct if timing is off by even one tooth.
- Poor performance: Misfires, rough idling, and power loss.
- Catastrophic failure: Broken chains destroy engines instantly.
Key Stat: Replacing a timing chain costs 1,000–2,500, but skipping it can lead to $5,000+ engine repairs (AAA).

2. Signs Your Timing Chain Needs Replacement 🚩
- Rattling noise at startup (worn tensioner/guides).
- Check engine lights (codes P0008, P0016, P0017).
- Metal shavings in oil (chain grinding into guides).
- Difficulty starting or erratic RPMs.

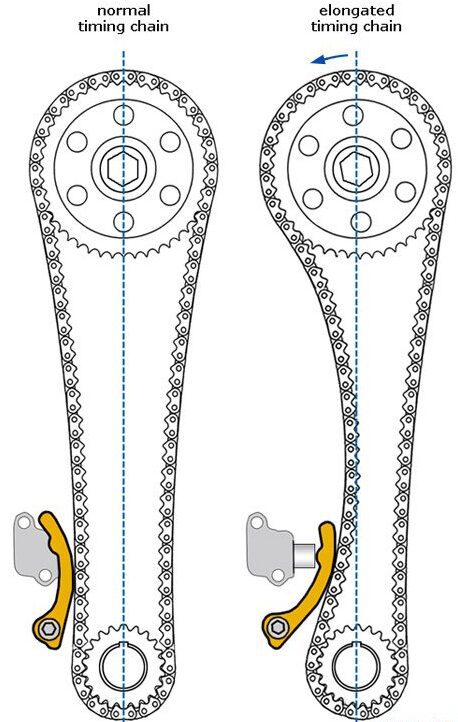

Pro Tip: Chains rarely “snap” suddenly—they stretch over time. Replace every 120,000–150,000 miles or per your manual.

3. Tools You’ll Need 🧰
Tool | Purpose | Cost |
---|---|---|
Timing Kit | Chain, tensioner, guides, seals | 200–600 |
Torque Wrench | Precision bolt tightening | 50–200 |
Engine Locking Tools | Freeze crankshaft/camshaft in place | 50–150 |
Dial Indicator | Verify cam timing accuracy | 40–100 |
Oil Pan & Gaskets | Replace leaked seals | 20–50 |
Red Flag: Never use zip ties or makeshift tools to hold cams—they slip!
4. Step-by-Step Replacement Guide 🔧
Step 1: Prep the Engine
- Disconnect the battery and drain coolant/oil.
- Remove accessories (serpentine belt, alternator, etc.) for access.
- Lock the crankshaft at Top Dead Center (TDC) using a timing pin or tool.
Step 2: Remove Old Components
- Unbolt the timing cover (often hidden under multiple layers).
- Release tensioner and slide off the old chain.
- Inspect guides for cracks and sprockets for wear.

Step 3: Install New Chain
- Align timing marks on crankshaft/camshaft sprockets.
- Route the chain with zero slack (use the tensioner’s preload setting).
- Torque bolts to spec (e.g., BMW N52: 50 Nm + 90° turn).
Pro Tip: Double-check marks with a dial indicator—visual alignment isn’t enough!
Step 4: Reassemble & Test
- Replace seals and reinstall the timing cover with fresh RTV.
- Refill fluids and start the engine. Listen for abnormal noises.
- Use a scan tool to confirm cam/crank correlation (0° deviation).
Case Study: A VW owner saved $3,000 by replacing the chain before it jumped timing.
5. Costly Mistakes to Avoid 🚫
- Skipping TDC: Misalignment bends valves.
- Reusing Old Tensioners: New chain + old tensioner = guaranteed failure.
- Ignoring Guides: Worn plastic guides crumble and jam the chain.
- Overtightening Bolts: Stripped threads in aluminum blocks cost $500+ to repair.
- Rushing the Job: Allow 8–12 hours for a first-timer.

6. When to Call a Pro 🛑
- Interference Engines: One wrong move = valve/piston collision.
- No Factory Service Manual: Each engine has unique specs (e.g., Toyota’s “VVT-i” vs. Ford’s “Ti-VCT”).
- Lack of Tools: Cam/crank locking kits are model-specific.
Cost Comparison:
- DIY: 300–800 (parts + tools).
- Pro: 1,500–2,500.
7. Top 5 Timing Chain Kits for 2024 🛒
Kit | Compatibility | Pros |
---|---|---|
Cloyes 9-06371SA | Ford 5.0L Coyote | Includes hydraulic tensioner |
INA 039198119 | VW/Audi 2.0T TSI | OEM-quality guides |
Gates TCKWP328 | Toyota 2GR-FE | Full kit with water pump |
Melling TCK5 | GM 3.6L V6 | Heavy-duty chain |
Febi 28043 | BMW N20/N26 | Complete with seals |
Pro Tip: Avoid eBay kits—opt for INA, Cloyes, or OEM suppliers.
8. FAQs ❓
Q1: Can I reuse my old chain if it looks fine?
A: No! Stretching is invisible—replace the chain, tensioner, and guides as a set.
Q2: How do I know if my engine is interference?
A: Google “[your engine code] interference”—e.g., Honda K24 = interference.
Q3: Why is my new chain rattling?*
A: Improper tensioner preload or misalignment.
Q4: Should I replace the water pump too?
A: Yes! 90% of timing jobs require removing the pump—replace it preventively.
Q5: Can a scan tool adjust timing?
A: No—physical alignment is mandatory.
9. Free Timing Chain Checklist 📝
[🔗 Download Your Free PDF Here]
Includes:
- TDC setup steps for 20+ engines.
- Torque specs for common models.
- Post-installation test procedures.

10. Final Tips 💡
- Photograph Everything: Snap pics of timing marks before disassembly.
- Prime the Tensioner: Soak hydraulic tensioners in oil before installing.
- Break In Gently: Avoid high RPMs for the first 100 miles.
🚘 Share this guide to save engines and sanity—timing chains wait for no one! 🚘
