Suzuki 4×4 Models SQ416 SQ420 SQ625 Service Manual

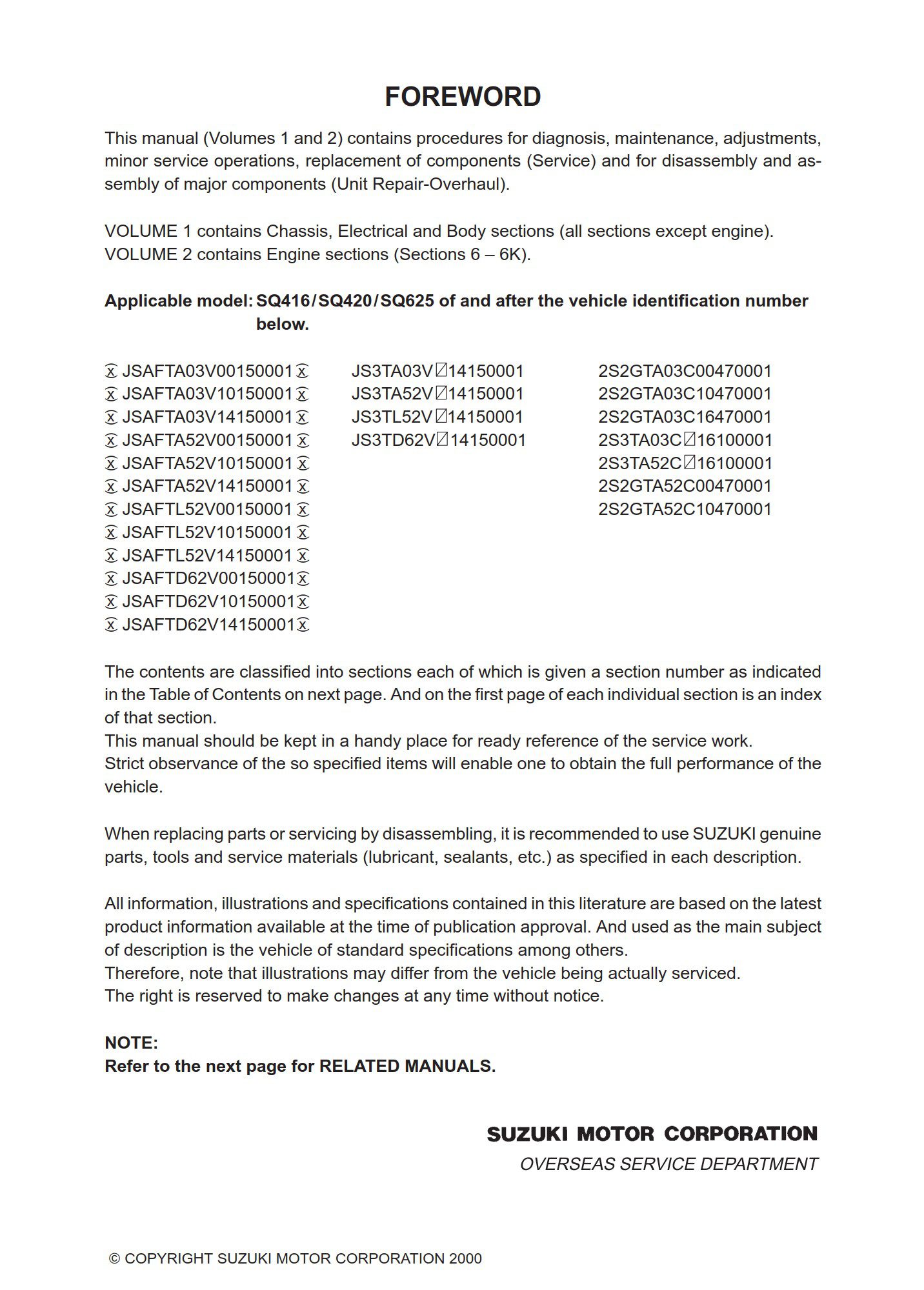

This manual (Volumes 1 and 2) contains procedures for diagnosis, maintenance, adjustments, minor service operations, replacement of components (Service) and for disassembly and assembly of major components (Unit Repair-Overhaul).

  • VOLUME 1 contains Chassis, Electrical and Body sections (all sections except engine).
  • VOLUME 2 contains Engine sections (Sections 6 – 6K).

Applicable model: SQ416/SQ420/SQ625 of and after the vehicle identification number below.

  • JSAFTA03V00150001
  • JS3TA03V 14150001
  • JSAFTA03V10150001
  • JS3TA52V 14150001
  • JSAFTA03V14150001
  • JS3TL52V 14150001
  • JSAFTA52V00150001
  • JS3TD62V 14150001
  • JSAFTA52V10150001
  • JSAFTA52V14150001
  • JSAFTL52V00150001
  • JSAFTL52V10150001
  • JSAFTL52V14150001
  • JSAFTD62V00150001
  • JSAFTD62V10150001
  • JSAFTD62V14150001
  • 2S2GTA03C00470001
  • 2S2GTA03C10470001
  • 2S2GTA03C16470001
  • 2S3TA03C 16100001
  • 2S3TA52C 16100001
  • 2S2GTA52C00470001
  • 2S2GTA52C10470001

The contents are classified into sections each of which is given a section number as indicated in the Table of Contents on next page. And on the first page of each individual section is an index of that section.

This manual should be kept in a handy place for ready reference of the service work. Strict observance of the so specified items will enable one to obtain the full performance of the vehicle.

When replacing parts or servicing by disassembling, it is recommended to use SUZUKI genuine parts, tools and service materials (lubricant, sealants, etc.) as specified in each description. All information, illustrations and specifications contained in this literature are based on the latest product information available at the time of publication approval. And used as the main subject of description is the vehicle of standard specifications among others. Therefore, note that illustrations may differ from the vehicle being actually serviced. The right is reserved to make changes at any time without notice.
