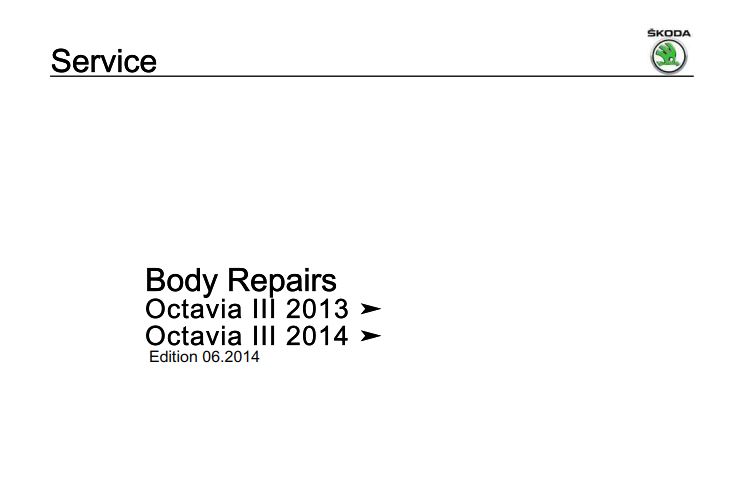

Skoda Octavia III 2013, Octavia III 2014 Body Repairs (Edition 06.2014)

Skoda Octavia III 2013, Octavia III 2014 Body Repairs (Edition 06.2014) PDF free online

Repair Group

  • 00 – Technicaldata
  • 50 – Body – front
  • 51 – Body – centre
  • 53 – Body – rear

Technical information should always be available to the foremen and mechanics, because their careful and constant adherence to the instructions is essential to ensure vehicle road-worthiness and safety. In addition, the normal basic safety precautions for working on motor vehicles must, as a matter of course, be observed.

CONTENTS

  • 00 – Technical data
    • 1 Basic instructions
    • 2 Vehicle identification data
    • 3 Safety measures
    • 4 Moulded foam parts
    • 5 Galvanised body parts, high/ultra high-strength and hot-formed body panels
    • 6 Laser welding
    • 7 Gap sizes
    • 8 Vehicle body dimensions
    • 9 Tools
    • 10 Straightening square set
    • 11 Portal gauge
  • 50 – Body – front
    • 1 Replacing support block (for assembly carrier)
    • 2 Replacing the front bumper holder
    • 3 Replacing outer top frame side rail
    • 4 Replacing the inner top frame side rail
    • 5 Replacing the front wheelhouse
    • 6 Repairing the thread for the attachment of the assembly carrier
    • 7 Replacing the front left frame side rail
    • 8 Front frame side rail – replacing the offcut section
  • 51 – Body – centre
    • 1 Replacing roof without Open Sky tilting sunroof
    • 2 Replacing roof with Open Sky tilting sunroof
    • 3 Replacing roof cross member and roof reinforcement
    • 4 Replacing the A-pillar
    • 5 Replacing reinforcement of A-pillar
    • 6 Replacing pillar B outside
    • 7 Replacing the outside bottom side rail
    • 8 Replacing rear bottom side rail reinforcement
  • 53 – Body – rear
    • 1 Replacing outer rear lateral part – wing -part-
    • 2 Replacing outer rear lateral part on Octavia III – Combi wing -part-
    • 3 Replacing the end cover cross member
    • 4 Replace end cover cross member on Octavia Combi III
    • 5 Replacing the end cover plate
    • 6 Replace end cover plate on Octavia Combi III
    • 7 Replacing the support of the tail light
    • 8 Replace support of the tail light on Octavia Combi III
    • 9 Replacing the reinforcement of the sealing channel
    • 10 Replace strengthening bracket for sealing channel Octavia Combi III
    • 11 Replacing the luggage compartment floor
    • 12 Replacing the CNG luggage compartment floor
    • 13 Replacing the rear bumper holder
    • 14 Replacing rear frame side rail -part-

Language: English
Format: PDF
Pages: 179
