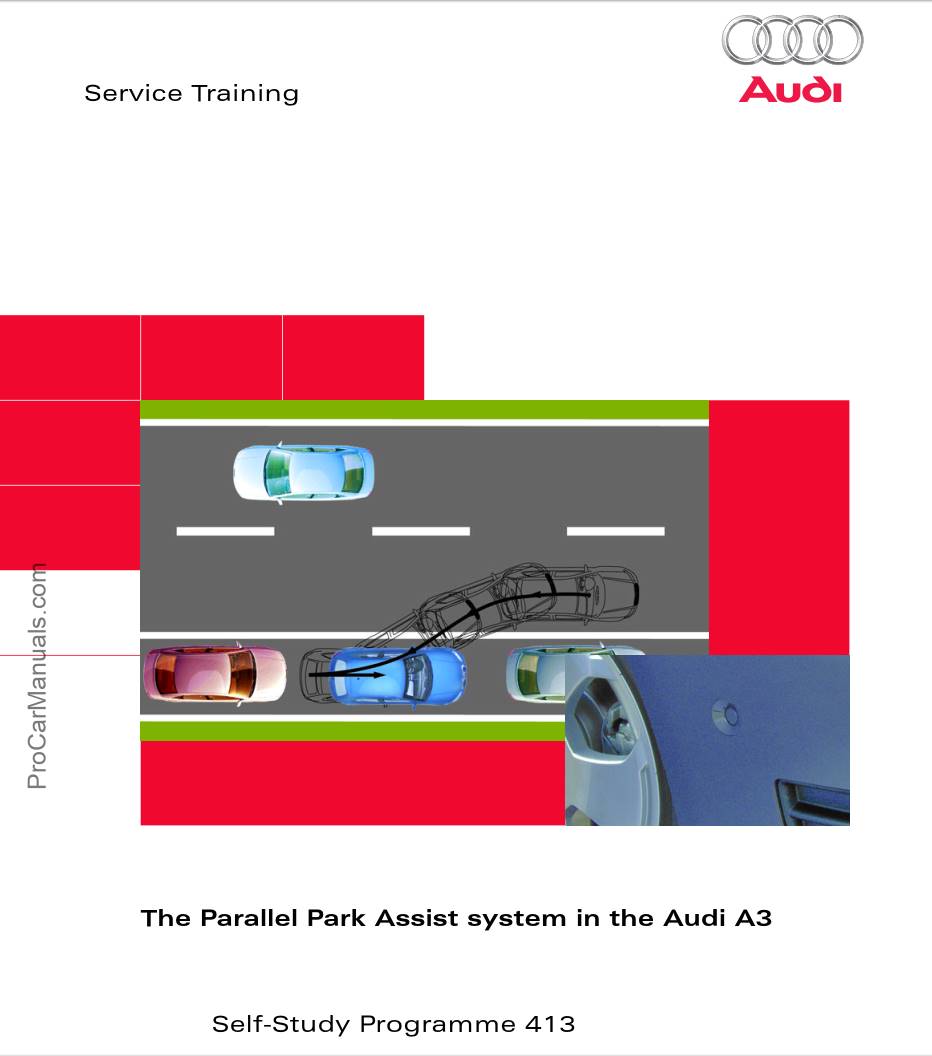

Self Study Program 413 – Parallel Park Assist system in the Audi A3

Self Study Program 413 – Parallel Park Assist system in the Audi A3 PDF free online. Driver assist systems are increasingly gaining a foothold in the world of the automobile. In this sector a multitude of innovations have found their way into motor vehicles in recent years. Even since the launch of the Audi Q7, the product line-up has been significantly diversified to include the Audi Lane Change Assist, Audi Lane Assist and Rear View systems.

Driver assist systems also include the Park Assist system, which is a familiar feature on Audi models. The evolutionary process began with the rear Park Assist system, which led to the front-rear Park Assist system and the Optical Parking System with graphic display of individual distance values on the MMI terminal, culminating in the Audi parking system advanced with rear-view camera.

The rear-view camera provides the driver with a completely distortion-free, colour image of vehicles and objects behind the parking vehicle. The guidance lines projected onto the image make reverse parking very simple for drivers.

However, if you are thinking that this is the ultimate in parking assistance, then you are mistaken! The Parallel Park Assist system supplied with the Audi A3 does all the steering for the driver during a reverse parking manoeuvre. In this way, the vehicle manoeuvres itself directly into the parking space.

CONTENTS

  • Function description
  • Parking manoeuvre
  • System components
  • Communication structure
  • Diagnostics
  • Test yourself

The self-study programme teaches the basics of the design and function of new vehicle models, new vehicle components or new technologies.

The Self-Study Programme is not a Repair Manual.
The values given are for illustration purposes only and refer to the software version valid at the time of preparation of the SSP.

For information about maintenance and repair work, always refer to the current technical literature.

Language: English
Format: PDF
Pages: 28

Self Study Program 413 – Parallel Park Assist system in the Audi A3 PDF free online
