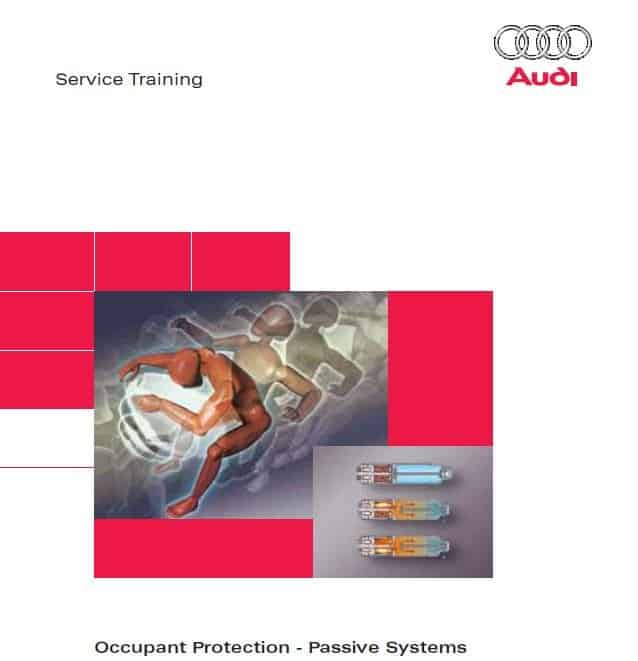

Self Study Program 410 – Occupant Protection – Passive Systems

Self Study Program 410 – Occupant Protection – Passive Systems PDF free online

The technical development of the motor vehicle has also seen a continuing increase in engine performance. This positive development, in combination with increasing vehicle density on roads and traffic congestion, has led to everincreasing demands on driver alertness.

Despite the many improvements that have been made with respect to active motoring safety, especially in recent years, accidents can never be completely ruled out or avoided.
For this reason, current research has been increasingly focusing on technical solutions for the protection of vehicle occupants in an accident. The first step in this direction was taken during the late 1950s with the introduction of seat belts designed to hold vehicle occupants in their seats during a collision. In the early 1980s further progress was made with the introduction of airbags designed to cushion vehicle occupants during a collision. These systems have been the subject of ongoing development and improvement.

Today’s vehicles are very different to the vehicles of earlier generations with respect to their interior equipment. In the above illustrations this is best evidenced by the dash panel and the steering wheel, which today are specially designed to accommodate integral airbags.

CONTENTS

  • Summary
    • The occupant protection system
    • Historical account of the development of belt and airbag systems in automobiles
  • General principles
    • The passive occupant protection system
    • The networking of system components
    • Types of collision
    • Impact situations
    • The time sequence of a head-on collision
    • The time sequence of a side impact
  • Passive occupant protection systems
    • Airbags
    • Belt tensioners
    • Belt force limiters
    • Head restraints
    • Child seats
    • Roll-over protection
    • Battery disconnectors
    • System management
    • Market-specific features
  • Overview of Self-Study Programmes
  • Test yourself

The Self-Study Programme teaches the design and function of new vehicle models, automotive components or technologies.
The Self-Study Programme is not a Repair Manual!
The values given are intended as a guideline only and refer
to the software version valid at the time of publication of the Self-Study Programme.
The images/graphics contained in this Self-Study Programme are basically intended for better comprehension of the context.
For information about maintenance and repair work, always refer to the current technical literature.

Language: English
Format: PDF
Pages: 76
