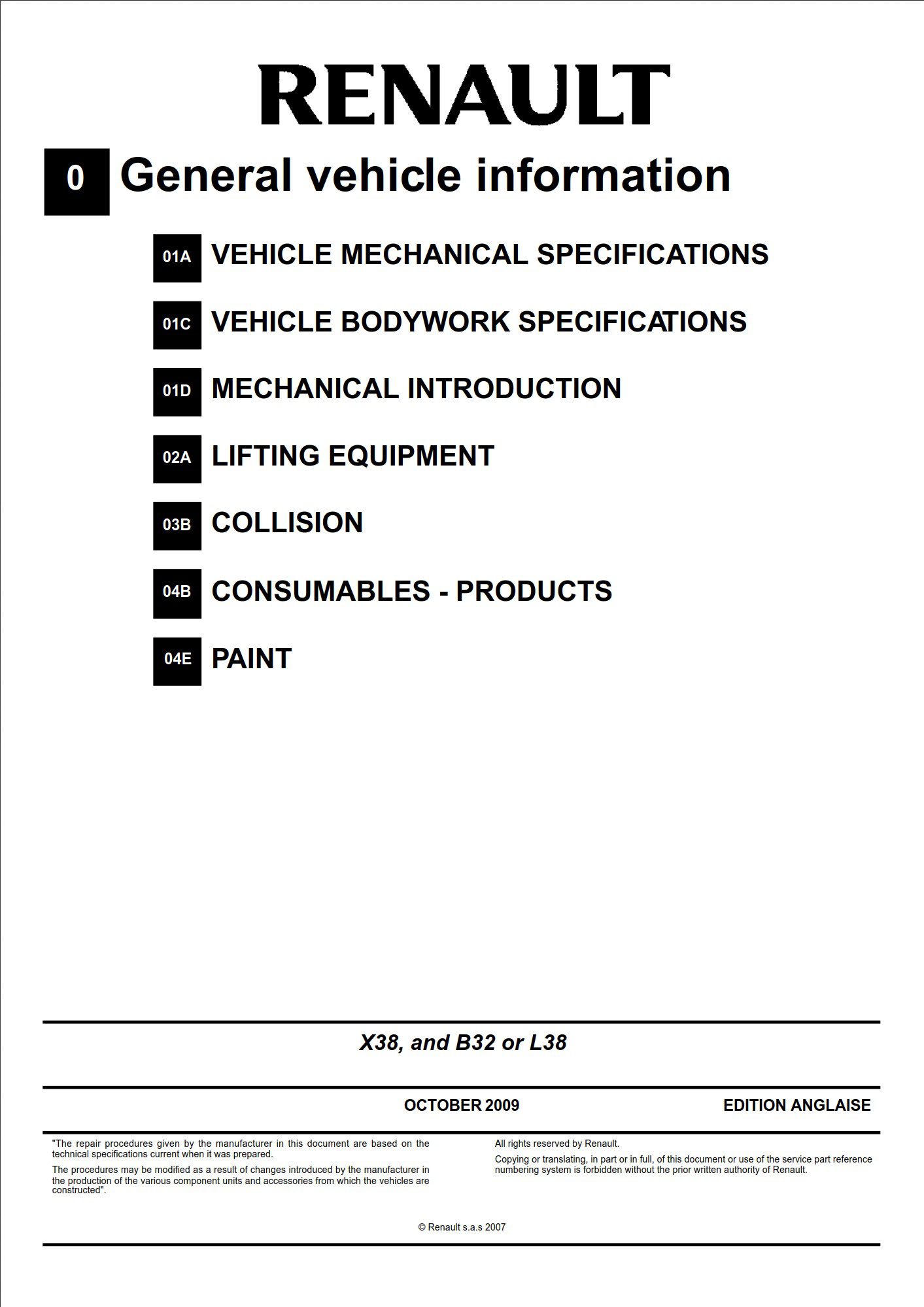

Renault Fluence 2009 Service Repair Manual

Renault Fluence

This comprehensive Renault Fluence 2009 Service Repair Manual provides owners and technicians with the knowledge and guidance needed to maintain and repair their vehicles.

Key Features and Benefits:

Step-by-step instructions for servicing and repairing various systems, including the engine, transmission, suspension, brakes, and electrical system.
Detailed diagrams, illustrations, and schematics that visually depict the various components and systems, aiding in troubleshooting and part identification.
Important specifications and measurements, such as torque values, fluid capacities, and tire pressures, to ensure accurate and efficient repairs.
Tailored specifically for the Renault Fluence 2009, catering to its unique characteristics and requirements.
Empowers users to perform repairs themselves, saving time and money while gaining a deeper understanding of their vehicle.

Technical Specifications and Details:

Engine:

1.6L or 2.0L 4-cylinder gasoline engine
1.5L or 1.9L 4-cylinder diesel engine

Transmission:

Manual transmission
Automatic transmission (optional)

Drivetrain:

Front-engine, front-wheel drive

Suspension:

Front: Independent MacPherson strut suspension
Rear: Semi-independent torsion beam suspension

Brakes:

Front: Disc brakes
Rear: Drum brakes (1.6L gasoline engine) or disc brakes (all other models)

Wheels and Tires:

Standard: 15-inch or 16-inch steel wheels with 195/65R15 or 205/55R16 tires

Maintenance and Repair Information:

Oil Change:

Recommended oil: Renault-approved 5W-30 motor oil
Oil capacity: 4.5 quarts (1.6L gasoline engine), 5.0 quarts (2.0L gasoline engine), 4.0 quarts (1.5L diesel engine), 4.5 quarts (1.9L diesel engine)
Oil change interval: 7,500 miles or 1 year

Spark Plugs:

Recommended spark plugs: NGK BKR6EIX or equivalent
Gap: 0.032 inches
Replacement interval: 30,000 miles

Timing Belt:

Replacement interval: 60,000 miles (1.6L gasoline engine), 75,000 miles (2.0L gasoline engine), 120,000 miles (1.5L diesel engine), 150,000 miles (1.9L diesel engine)

Coolant:

Recommended coolant: Renault-approved G12 antifreeze
Coolant capacity: 8.5 quarts
Replacement interval: 2 years or 20,000 miles

Common Problems and Solutions:

Engine Overheating:

Symptoms: High coolant temperature gauge reading, steam or coolant leaking from the engine bay.
Solution: Check the coolant level, inspect for leaks, and ensure the cooling system is functioning properly.

Transmission Problems:

Symptoms: Difficulty shifting gears, slipping gears, or delayed engagement.
Solution: Check the transmission fluid level and condition, and have the transmission inspected by a qualified technician.

Brake Problems:

Symptoms: Spongy brake pedal, grinding or squealing noises, or poor braking performance.
Solution: Inspect the brake pads and rotors/drums for wear, and have the brake system inspected and repaired as needed.

This comprehensive Renault Fluence 2009 Service Repair Manual provides owners and technicians with the knowledge and resources they need to maintain and repair their vehicles. The detailed technical specifications, maintenance schedules, and common problems and solutions make this manual an invaluable resource for anyone who wants to keep their Renault Fluence in top condition.

Language: English
Format: PDF
Pages: 1634

Renault Fluence 2009 Service Repair Manual
