Pass Book – ATSG (Automatic Transmission Service Group)

This book contains the most frequently used data for quick diagnosis and deals specifically with the electronics found on the transmission itself. For diagnosing specific electrical systems throughout the vehicle relating to the transmission operation, the Inport and Domestic PASS BOOKS complete the series of manuals designed to aid the technician in diagnosing computer controlled transmissions.

This PASS BOOK is the first in a series of books designed to assist the technician in diagnosing computer controlled transmissions. The word PASS stands for Pressures, Applications, Solenoids and Sensors. The purpose of this book is to be a quick reference guide to Pressure specifications, Application charts, Solenoid and Sensor readings for both Domestic and Import computer controlled transmissions.

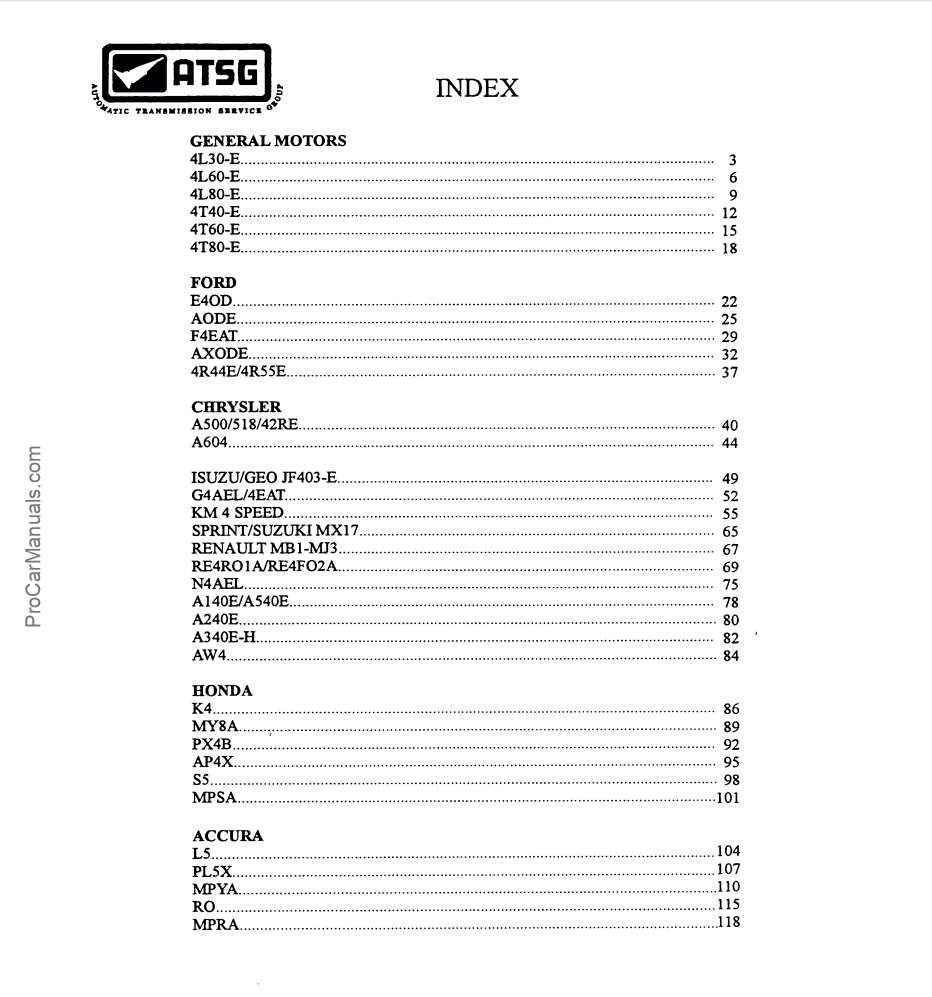

CONTENTS

GENERAL MOTORS

• 4L30-E
• 4L60-E
• 4L80-E
• 4T40-E
• 4T60-E
• 4T80-E

FORD

• E40D
• AODE
• F4EAT
• AXODE
• 4R44E/4R55E

CHRYSLER

• A500/518/42RE
• A604

• ISUZU/GEO JF403-E
• G4AEL/4EAT
• KM 4 SPEED
• SPRINT/SUZUKI
• MX17
• RENAULT MB 1-MJ3
• RE4R01A/RE4F02A
• N4AEL
• A140E/A540E
• A240
• A340E-H
• AW4

HONDA

• K4
• MY8A
• PX4B
• AP4X
• S5
• MPSA

ACCURA

• L5/PL5X
• MPYA
• RO/MPRA

Language: English
Format: PDF
Pages: 120
