Nissan RL4R02A Transmission Repair Manual – ATSG (Automatic Transmission Service Group)
This manual contains the procedures necessary to disassemble, rebuild all components, reassemble and diagnos this unit. The RL4F02A is a four speed front wheel drive, hydraulic controlled, automatic transaxle with an electronic controlled torque converter clutch solenoid and overdrive cancel solenoid.
No part of any ATSG publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means, including but not limited to electronic, mechanical, photocopying, recording or otherwise, without written permission of Automatic Transmission Service Group. This includes all text illustrations, tables and charts.
CONTENTS
- REPAIR NOTES
- ON-VEHICLE SERVICE
- REMOVAL & INSTALLATION
- DISASSEMBLY
- COMPONENTS

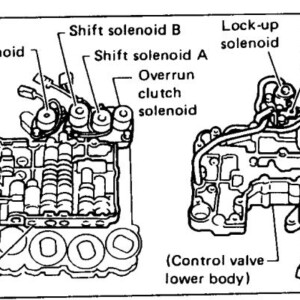

- VALVE BODIES
- ASSEMBLY
- TROUBLE SHOOTING DIAGNOSIS
- INSPECTION
- SPECIFICATIONS
- BULLETINS
Language: English
Format: PDF
Pages: 98
