NISSAN PATHFINDER MODEL R51 SERIES 2005 SERVICE MANUAL
Publication No. SM5E-1R51U2. This manual contains maintenance and repair procedures for the 2005 NISSAN PATHFINDER. All information in this manual is based an the latest product information at the time of publication. The right is reserved to make changes in specifications and methods at any time without notice.
In order to assure your safety and the efficient functioning of the vehicle, this manual should be read thoroughly. It is especially important that the PRECAUTIONS in the Gl section be completely understood before starting any repair task.
The proper performance of service is essential for both the safety of the technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a manner that the service may be performed safely and accurately. Service varies with the procedures used, the skills of the technician and the tools and parts available. Accordingly, anyone using service procedures, tools or parts which are not specifically recommended by NISSAN must first completely satisfy himself that neither his safety nor the vehicle’s safety will be jeopardized by the service method selected.

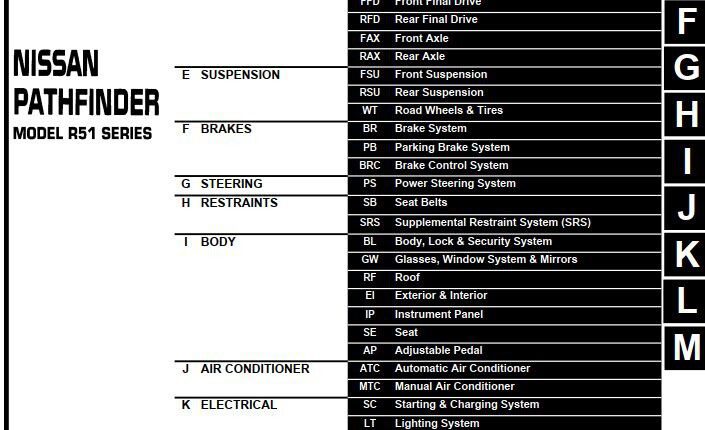

CONTENTS
- General Information
- Engine Mechanical
- Engine Lubrication System
- Engine Cooling System
- Engine Control System
- Fuel System
- Exhaust System
- Accelerator Control System
- Automatic Transmission
- Transfer
- Propeller Shaft
- Front Final Drive
- Rear Final Drive
- Front Axle
- Rear Axle
- Front Suspension
- Rear Suspension
- Road Wheels & Tires
- Brake System
- Parking Brake System
- Brake Control System
- Power Steering System
- Seat Belts
- Supplemental Restraint System (SRS)
- Body, Lock & Security System
- Glasses, Window System & Mirrors
- Roof
- Exterior & Interior
- Instrument Panel
- Seat
- Adjustable Pedal
- Automatic Air Conditioner
- Manual Air Conditioner
- Starting & Charging System
- Lighting System
- Driver Information System
- Wiper, Washer & Horn
- Body Control System
- LAN System
- Audio Visual, Navigation & Telephone System
- Auto Cruise Control System
- Power Supply, Ground & Circuit Elements
- Maintenance
- Alphabetical Index
Language: English
Format: PDF
