Nissan P11 Sedan Hatchback Body Repair Manual

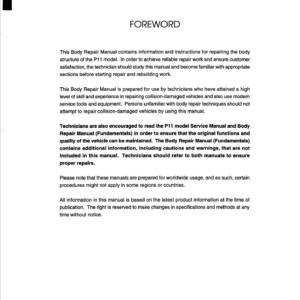

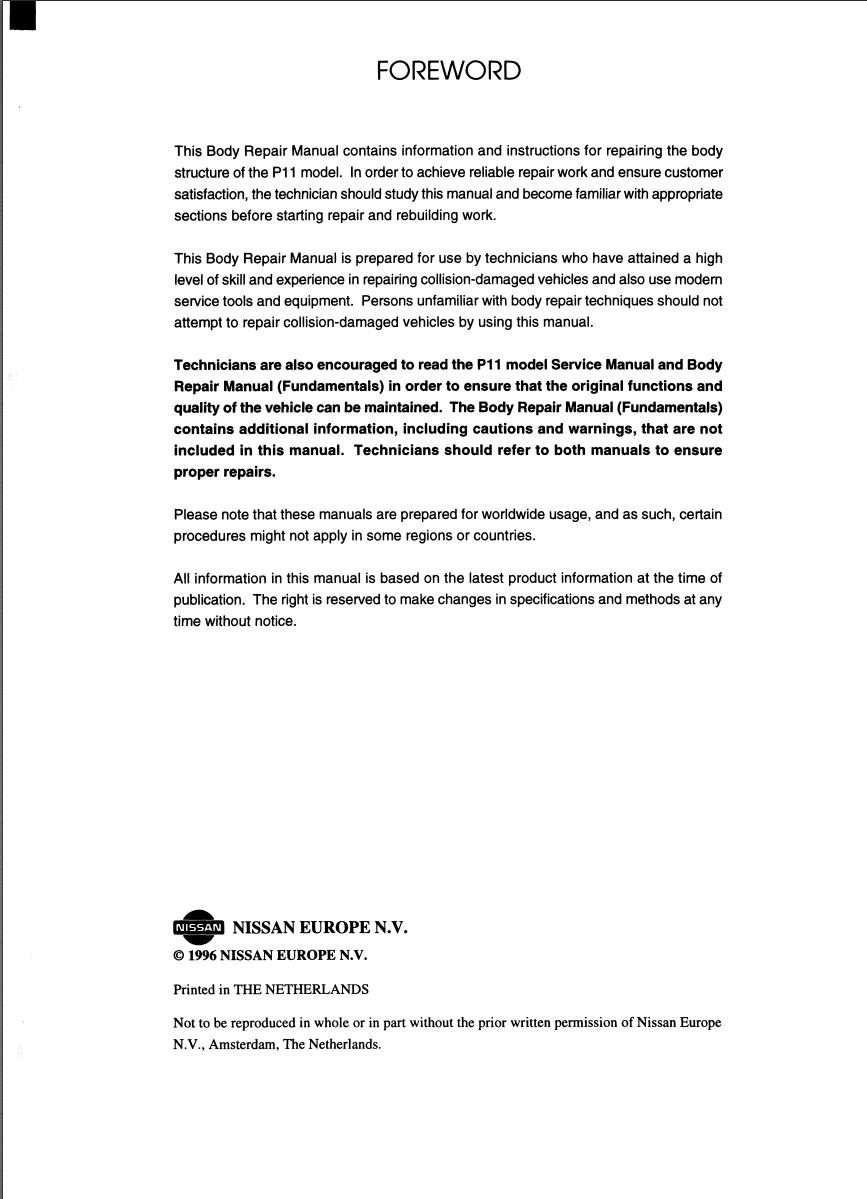

This Body Repair Manual contains information and instructions for repairing the body structure of the P11 model. In order to achieve reliable repair work and ensure customer satisfaction, the technician should study this manual and become familiar with appropriate sections before starting repair and rebuilding work.

This Body Repair Manual is prepared for use by technicians who have attained a high level of skill and experience in repairing collision-damaged vehicles and also use modem service tools and equipment. Persons unfamiliar with body repair techniques should not attempt to repair collision-damaged vehicles by using this manual.

Technicians are also encouraged to read the P11 model Service Manual and Body Repair Manual (Fundamentals) in order to ensure that the original functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals) contains additional information, including cautions and warnings, that are not included in this manual. Technicians should refer to both manuals to ensure proper repairs.

Please note that these manuals are prepared for worldwide usage, and as such, certain procedures might not apply in some regions or countries.

All information in this manual is based on the latest product information at the time of publication. The right is reserved to make changes in specifications and methods at any time without notice.

CONTENTS

  • GENERAL INFORMATION
  • Identification Number
  • BODY COMPONENT PARTS
  • Underbody Component Parts
  • Body Component Parts
  • CORROSION PROTECTION
  • Description
  • Anti-Corrosive Wax
  • Undercoating
  • Stone Guard Coat
  • BODY CONSTRUCTION
  • Body Construction
  • BODY ALIGNMENT
  • Body Center Marks
  • Panel Parts Matching Marks
  • Description
  • Engine Compartment
  • Underbody
  • Passenger Compartment (Sedan • Hatchback)
  • Rear Body (Sedan)
  • Rear Body (Hatchback)
  • HANDLING PRECAUTIONS FOR PLASTICS
  • Handling Precautions for Plastics
  • Location of Plastic Parts
  • REPLACEMENT OPERATIONS
  • Description
  • Radiator Core Support (Partial Replacement)
  • Hoodledge (Partial Replacement)
  • Front Side Member (Partial Replacement)
  • Front Pillar
  • Center Pillar
  • Rear Fender (Sedan)
  • Rear Fender (Hatchback)
  • Rear Floor Rear
  • Rear Side Member Extension

Language: English
Format: PDF
Pages: 34

Nissan P11 Sedan Hatchback Body Repair Manual
