Mitsubishi Eclipse 1991 Service Manuals

This Service Manual has been prepared with the A latest service information available at the time of publication. It is subdivided into various group categories and each section contains diagnosis, disassembly, repair, and installation procedures along with complete specifications and tightening references. Use of this manual will aid in properly performing any servicing necessary to maintain or restore the high levels of performance and reliability designed into these outstanding vehicles.

Chrysler Corporation reserves the right to make changes in design or to make additions to or improvements in its products without imposing any obligations upon itself to install them on its products previously manufactured.

CONTENTS
The preceding page contains GROUP INDEX which lists the group title and group number.

PAGE NUMBERS
All page numbers consist of two sets of digits separated by a dash. The digits preceding the dash identify the number of the group. The digits following the dash represent the consecutive page number within the group. The page numbers can be found on the top left or right of each page.

TEXT
Unless otherwise specified, each service procedure covers all models. Procedures covering specific models are identified by the model codes, or similar designation (engine type, transaxle type, etc.). A description of these designations is covered in this unit under “VEHICLE IDENTIFICATION”.

TROUBLESHOOTING
are classified into master troubleshooting and group troubleshooting and located as follows:
The master troubleshooting is prepared when the trouble symptom relates to two or more groups and given in MASTER TROUBLESHOOTING.
The group troubleshooting guide is prepared for causes of problems related to that individual group only; a troubleshooting guide is prepared for each appropriate group.

SERVICE PROCEDURES
The service steps are arranged in numerical order and attentions to be paid in performing vehicle service are described in detail in SERVICE POINTS.

DEFINITION OF TERMS
STANDARD VALUE
Indicates the value used as the standard for judging the quality of a part or assembly on inspection or the value to which the part or assembly is corrected and adjusted. It is given by tolerance.

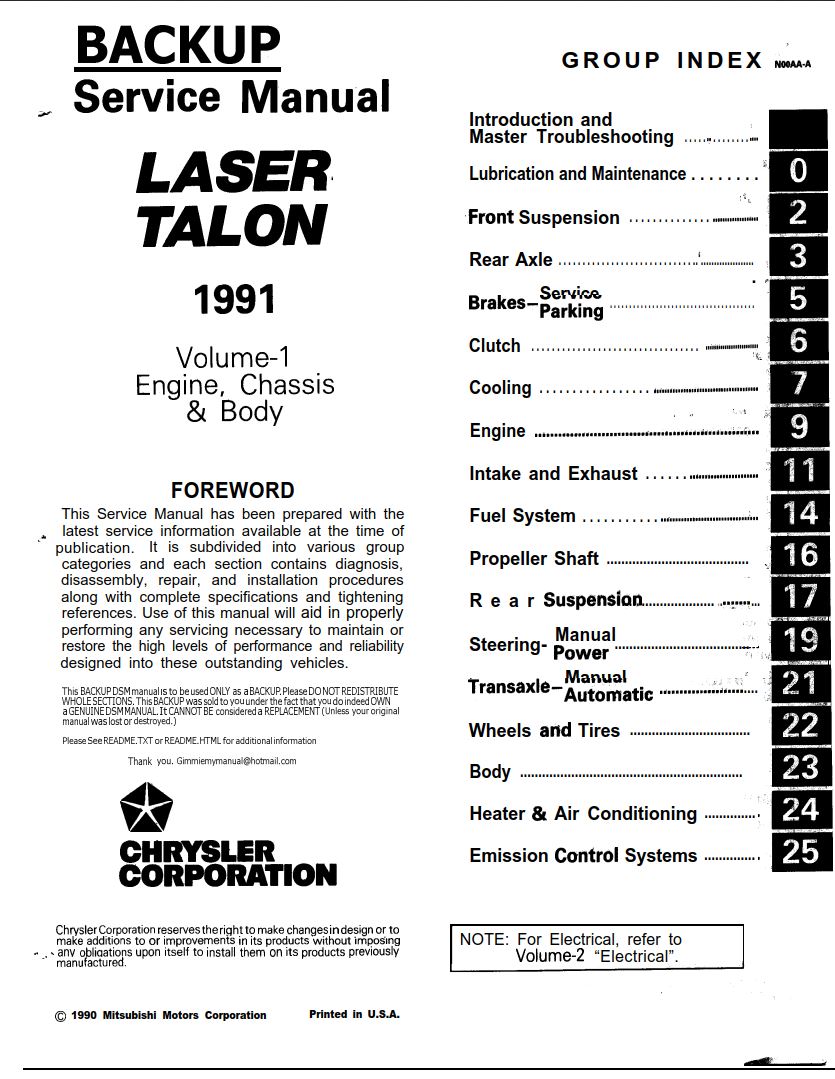

CONTENTS

  • Introduction and Master Troubleshooting
  • Lubrication and Maintenance
  • Front Suspension
  • Rear Axle
  • Brakes- Service Parking
  • Clutch
  • Cooling
  • Engine
  • Intake and Exhaust
  • Fuel System
  • Propeller Shaft
  • Rear Suspension
  • Steering- Manual Power
  • Manual Transaxie-Automatic
  • Wheels and Tires
  • Body
  • Heater & Air Conditioning
  • Emission Control Systems

Language: English
Format: PDF
Pages: 1216

Mitsubishi Eclipse 1991 Service Manuals
