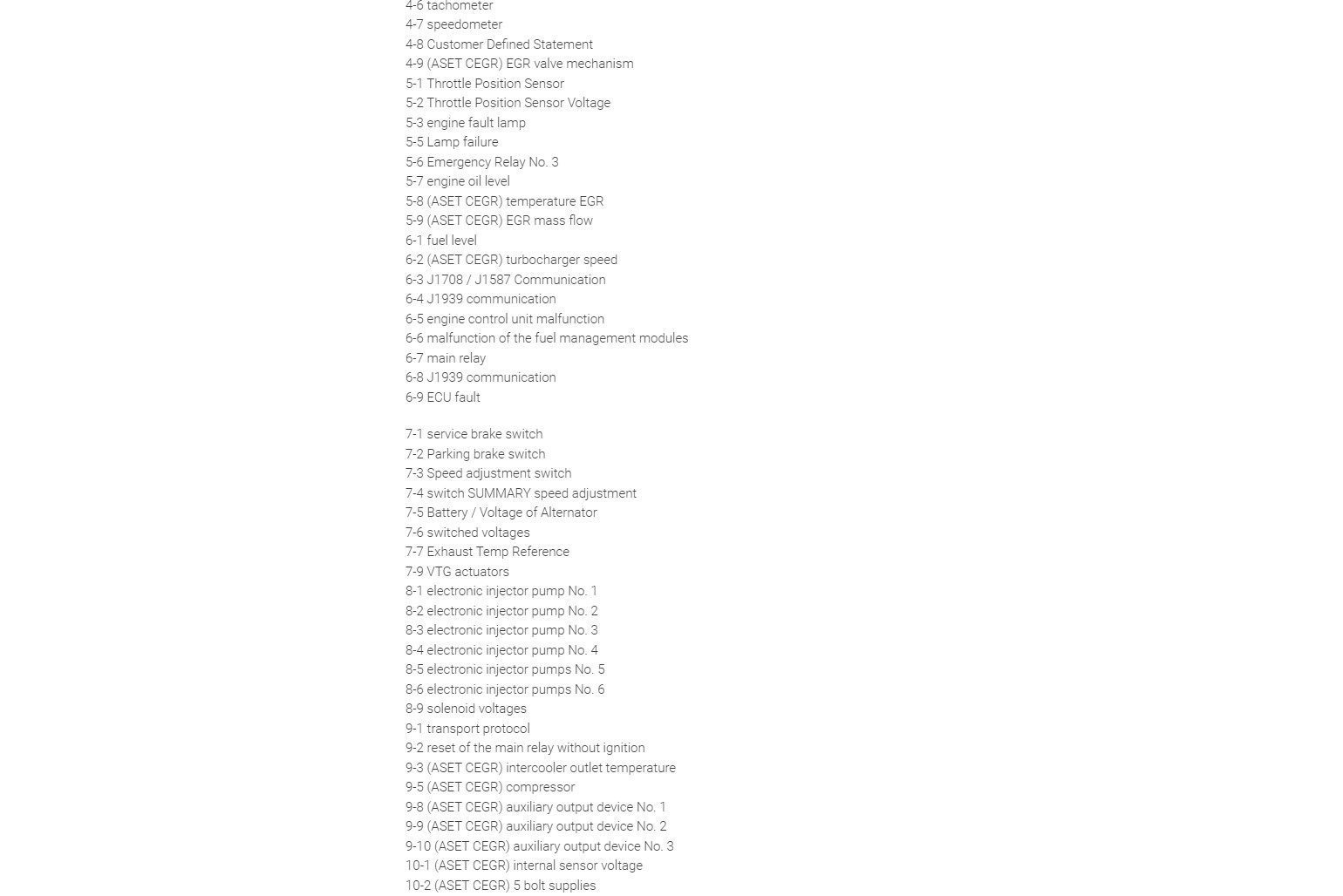

Mack Truck Fault codes identification – VMACIII-since 1998 of release
1-1 oil pressure switch
1-2 atmospheric pressure sensors
1-3 fuel temperature sensor
1-4 sensors of atmospheric air
1-6 there is no start of the starter
1-7 level of a cooling liquid
1-8 (ASET CEGR) Estimated fan speed%
1-10 fan relay relay
2-1 engine coolant sensor
2-2 (ASET IEGR) air pressure sensor level high
2-2 (ASET CEGR) air pressure high
2-3 low air sensor
2-4 oil level sensor low
2-5 oil sensor
2-6 oil sensor
2-7 oil sensor
2-8 (ASET CEGR) temperature sensor
2-9 (ASET CEGR) temperature sensor
3-1 exhaust temperature sensor
3-2 engine speed sensor
3-3 high speed motor
3-4 engine position sensors
3-5 engine brake position number 1
3-6 engine brake position number 2
3-8 position of separator
3-10 (ASET CEGR) engine brake position No. 3
4-1 speed sensor (VSS)
4-2 cooling fan
4-3 of auxiliary products No. 1
4-4 of auxiliary products No. 2
4-5 (ASET IEGR) position Wastegate
4-5 (ASET CEGR) position transmitter VTG
4-6 tachometer
4-7 speedometer
4-8 Customer Defined Statement
4-9 (ASET CEGR) EGR valve mechanism
5-1 Throttle Position Sensor
5-2 Throttle Position Sensor Voltage
5-3 engine fault lamp
5-5 Lamp failure
5-6 Emergency Relay No. 3
5-7 engine oil level
5-8 (ASET CEGR) temperature EGR
5-9 (ASET CEGR) EGR mass flow
6-1 fuel level
6-2 (ASET CEGR) turbocharger speed
6-3 J1708 / J1587 Communication
6-4 J1939 communication
6-5 engine control unit malfunction
6-6 malfunction of the fuel management modules
6-7 main relay
6-8 J1939 communication
6-9 ECU fault
7-2 Parking brake switch
7-3 Speed adjustment switch
7-4 switch SUMMARY speed adjustment
7-5 Battery / Voltage of Alternator
7-6 switched voltages
7-7 Exhaust Temp Reference
7-9 VTG actuators
8-1 electronic injector pump No. 1
8-2 electronic injector pump No. 2
8-3 electronic injector pump No. 3
8-4 electronic injector pump No. 4
8-5 electronic injector pumps No. 5
8-6 electronic injector pumps No. 6
8-9 solenoid voltages
9-1 transport protocol
9-2 reset of the main relay without ignition
9-3 (ASET CEGR) intercooler outlet temperature
9-5 (ASET CEGR) compressor
9-8 (ASET CEGR) auxiliary output device No. 1
9-9 (ASET CEGR) auxiliary output device No. 2
9-10 (ASET CEGR) auxiliary output device No. 3
10-1 (ASET CEGR) internal sensor voltage
10-2 (ASET CEGR) 5 bolt supplies
10-3 (ASET CEGR) sensor voltage No. 1
10-4 (ASET CEGR) Sensor supply voltage No. 2
10-5 (ASET CEGR) Fuel differential pressure filter
10-6 (ASET CEGR) fuel pressure
10-7 (ASET CEGR) odometer
10-8 (ASET CEGR) GPS position data not received
10-9 (ASET CEGR) Reset Timer
