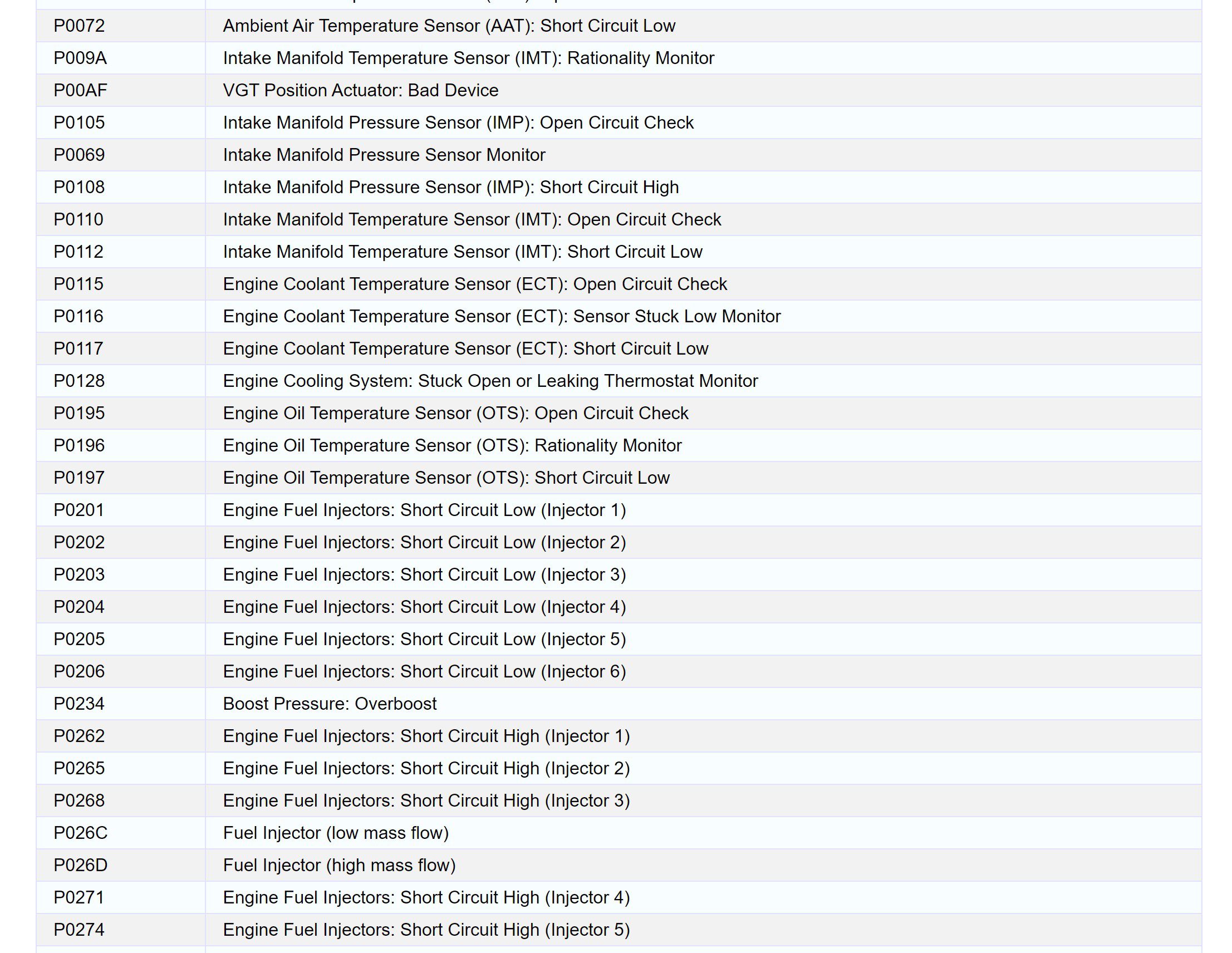

MACK OBD 2013 DTC Fault Codes
| ERROR CODES | EXAPTATION |
|---|---|
| P0016 | Camshaft Position Sensor: Rationality Low |
| P0046 | VGT Position Actuator: VGT Mechanical Fault |
| P006E | VGT Position Actuator: Low Supply Voltage |
| P0070 | Ambient Air Temperature Sensor (AAT): Open Circuit |
| P0072 | Ambient Air Temperature Sensor (AAT): Short Circuit Low |
| P009A | Intake Manifold Temperature Sensor (IMT): Rationality Monitor |
| P00AF | VGT Position Actuator: Bad Device |
| P0105 | Intake Manifold Pressure Sensor (IMP): Open Circuit Check |
| P0069 | Intake Manifold Pressure Sensor Monitor |
| P0108 | Intake Manifold Pressure Sensor (IMP): Short Circuit High |
| P0110 | Intake Manifold Temperature Sensor (IMT): Open Circuit Check |
| P0112 | Intake Manifold Temperature Sensor (IMT): Short Circuit Low |
| P0115 | Engine Coolant Temperature Sensor (ECT): Open Circuit Check |
| P0116 | Engine Coolant Temperature Sensor (ECT): Sensor Stuck Low Monitor |
| P0117 | Engine Coolant Temperature Sensor (ECT): Short Circuit Low |
| P0128 | Engine Cooling System: Stuck Open or Leaking Thermostat Monitor |
| P0195 | Engine Oil Temperature Sensor (OTS): Open Circuit Check |
| P0196 | Engine Oil Temperature Sensor (OTS): Rationality Monitor |
| P0197 | Engine Oil Temperature Sensor (OTS): Short Circuit Low |
| P0201 | Engine Fuel Injectors: Short Circuit Low (Injector 1) |
| P0202 | Engine Fuel Injectors: Short Circuit Low (Injector 2) |
| P0203 | Engine Fuel Injectors: Short Circuit Low (Injector 3) |
| P0204 | Engine Fuel Injectors: Short Circuit Low (Injector 4) |
| P0205 | Engine Fuel Injectors: Short Circuit Low (Injector 5) |
| P0206 | Engine Fuel Injectors: Short Circuit Low (Injector 6) |
| P0234 | Boost Pressure: Overboost |
| P0262 | Engine Fuel Injectors: Short Circuit High (Injector 1) |
| P0265 | Engine Fuel Injectors: Short Circuit High (Injector 2) |
| P0268 | Engine Fuel Injectors: Short Circuit High (Injector 3) |
| P026C | Fuel Injector (low mass flow) |
| P026D | Fuel Injector (high mass flow) |
| P0271 | Engine Fuel Injectors: Short Circuit High (Injector 4) |
| P0274 | Engine Fuel Injectors: Short Circuit High (Injector 5) |
| P0277 | Engine Fuel Injectors: Short Circuit High (Injector 6) |
| P0299 | Boost Pressure: Underboost |
| P02CD | Single Cylinder High Mass Flow Monitor (Cylinder 1) |
| P02CF | Single Cylinder High Mass Flow Monitor (Cylinder 2) |
| P02D1 | Single Cylinder High Mass Flow Monitor (Cylinder 3) |
| P02D3 | Single Cylinder High Mass Flow Monitor (Cylinder 4) |
| P02D5 | Single Cylinder High Mass Flow Monitor (Cylinder 5) |
| P02D7 | Single Cylinder High Mass Flow Monitor (Cylinder 6) |
| P0300 | Misfire Multiple Cylinders |
| P0301 | Single Cylinder Low Mass Flow Monitor (Cylinder 1) |
| P0301 | Misfire Single Cylinder (Cylinder 1) |
| P0302 | Single Cylinder Low Mass Flow Monitor (Cylinder 2) |
| P0302 | Misfire Single Cylinder (Cylinder 2) |
| P0303 | Single Cylinder Low Mass Flow Monitor (Cylinder 3) |
| P0303 | Misfire Single Cylinder (Cylinder 3) |
| P0304 | Single Cylinder Low Mass Flow Monitor (Cylinder 4) |
| P0304 | Misfire Single Cylinder (Cylinder 4) |
| P0305 | Single Cylinder Low Mass Flow Monitor (Cylinder 5) |
| P0305 | Misfire Single Cylinder (Cylinder 5) |
| P0306 | Single Cylinder Low Mass Flow Monitor (Cylinder 6) |
| P0306 | Misfire Single Cylinder (Cylinder 6) |
| P0335 | Crankshaft Position Sensor: Open Circuit |
| P0336 | Crankshaft Position Sensor: Rationality High |
| P0339 | Crankshaft Position Sensor: Rationality Low |
| P0340 | Camshaft Position Sensor: Open Circuit |
| P0341 | Camshaft Position Sensor: Rationality High |
| P0401 | EGR System (Low Flow) |
| P0402 | EGR System (High Flow) |
| P0403 | EGR Valve Actuator: Open Circuit1 |
| P0406 | EGR Differential Pressure Sensor: Short Circuit High |
| P0409 | EGR Differential Pressure Sensor: Open Circuit Check |
| P040A | EGR Temperature Sensor: Open Circuit Check |
| P040B | EGR Temperature Sensor: Rationality Monitor |
| P040C | EGR Temperature Sensor: Short Circuit Low |
| P20EE | NOx Catalyst: Conversion Efficiency |
| P0420 | NOx Catalyst: Missing SCR |
| P0420 | NOx Catalyst: Reductant Delivery Performance |
| P0420 | NMHC Catalyst: Conversion Efficiency |
| P0421 | NMHC Catalyst: Missing Substrate |
| P046C | EGR Differential Pressure Sensor: DP Sensor Rationality |
| P0489 | EGR Valve Actuator: Short Circuit Low |
| P04DB | Crankcase Ventilation: Disconnected Pipe/Separator Monitor |
| P04D9 | EGR System: Feedback Control (Saturated Low) |
| P04DA | EGR System: Feedback Control (Saturated High) |
| P0500 | Wheel Based Vehicle Speed: Vehicle Speed Sensor (VSS): Open Circuit |
| P0502 | Wheel Based Vehicle Speed: Vehicle Speed Sensor (VSS): Short Circuit Low |
| P0506 | Idle Engine Speed Rationality: Idle Speed Low |
| P0507 | Idle Engine Speed Rationality: Idle Speed High |
| P051A | Crankcase Pressure Sensor (CPS): Open Circuit Check |
| P051B | Crankcase Pressure Sensor (CPS): Rationality Monitor |
| P051D | Crankcase Pressure Sensor (CPS): Short Circuit High |
| P0520 | Engine Oil Pressure Sensor (OPS): Open Circuit Check |
| P0521 | Engine Oil Pressure Sensor: Rationality Monitor |
| P0523 | Engine Oil Pressure Sensor (OPS): Short Circuit High |
| P0544 | Pre-DOC Temperature Sensor: Open Circuit Check |
| P0545 | Pre-DOC Temperature Sensor: Short Circuit Low |
| P054E | Idle Engine Fuel Rationality: Fuel Rationality Low |
| P054F | Idle Engine Fuel Rationality: Fuel Rationality High |
| P05E4 | Parking Brake Switch: Short Circuit Low |
| P0652 | Idle Validation Switch (IVS): Short Circuit Low |
| P0657 | Actuator Supply #1 ACM: Open Circuit |
| P0658 | Actuator Supply #1 ACM: Short Circuit Low |
| P0659 | Actuator Supply #1 ACM: Short Circuit High |
| P06B1 | ACM Sensor Supply #1: Below Range |
| P06B1 | ECM Supply #1: Below Range |
| P06B2 | ACM Sensor Supply #1: Above Range |
| P06B2 | ACM Sensor Supply #1: Above Range |
| P06B4 | ECM Supply #2: Below Range |
| P06B4 | ACM Sensor Supply #2: Below Range |
| P06B5 | ACM Sensor Supply #2: Above Range |
| P06B5 | ECM Supply #2: Above Range |
| P06E7 | ECM Supply #3: Below Range |
| P06E8 | ECM Supply #3: Above Range |
| P1080 | Actuator Supply #2 ACM: Open Circuit |
| P1095 | Actuator Supply #2 ACM: Short Circuit Low |
| P1096 | Actuator Supply #2 ACM: Short Circuit High |
| P1131 | Aftertreatment Hydrocarbon Air Purge Valve: Short Circuit Low |
| P1134 | Aftertreatment Hydrocarbon Air Purge Valve: Open Circuit |
| P2002 | PM Filter Efficiency Monitor |
| P2031 | Post-DOC Temperature Sensor: Open Circuit Check |
| P2032 | Post-DOC Temperature Sensor: Short Circuit Low |
| P2047 | Aftertreatment SCR Dosing Valve: Open Circuit |
| P2048 | Aftertreatment SCR Dosing Valve: Short Circuit Low |
| P2049 | Aftertreatment SCR Dosing Valve: Short Circuit High |
| P204A | Aftertreatment DEF Pump Pressure Sensor: Open Circuit |
| P204B | Aftertreatment DEF Pump Pressure Sensor: Rationality |
| P204C | Aftertreatment DEF Pump Pressure Sensor: Short Circuit Low |
| P205A | Aftertreatment DEF Tank Temperature Sensor: Open Circuit |
| P205B | Aftertreatment DEF Tank Temperature Sensor: Rationality Low |
| P205C | Aftertreatment DEF Tank Temperature Sensor: Short Circuit Low |
| P2080 | Exhaust Gas Temperature Sensors: Pre-DOC Rationality Check |
| P2084 | Exhaust Gas Temperature Sensor: Post-DOC Rationality Check |
| P208A | Aftertreatment DEF Pump: Open Circuit |
| P208C | Aftertreatment DEF Pump: Short Circuit Low |
| P208D | Aftertreatment DEF Pump: Short Circuit High |
| P208E | Aftertreatment SCR Dosing Valve: Functional Check |
| P209F | Aftertreatment DEF Tank Temperature Sensor: Rationality High |
| P20A0 | Aftertreatment DEF Pump Direction Valve: Open Circuit |
| P20A1 | Aftertreatment DEF Pump Direction Valve: Functional Check |
| P20A2 | Aftertreatment DEF Pump Direction Valve: Short Circuit Low |
| P20A3 | Aftertreatment DEF Pump Direction Valve: Short Circuit High |
| P20D7 | Aftertreatment Hydrocarbon Doser Solenoid: Open Circuit |
| P20D9 | Aftertreatment Hydrocarbon Doser Solenoid: Short Circuit Low |
| P20DD | Aftertreatment Hydrocarbon Doser Fuel Pressure Sensor: Open Circuit |
| P20E0 | Aftertreatment Hydrocarbon Doser Fuel Pressure Sensor: Short Circuit High |
| P20E8 | Aftertreatment DEF Pump: Pump Pressure Build Up |
| P2109 | Accelerator Pedal Position Sensor: Rationality Low |
| P2136 | Idle Validation Switch (IVS): IVS Does Not Match Accelerator Pedal Position 5 |
| P215A | Wheel Based Vehicle Speed: Vehicle Speed Sensor (VSS): Rationality |
| P2163 | Accelerator Pedal Position Sensor: Rationality High |
| P218F | Aftertreatment DEF Pump: Functional Check |
| P2200 | NOx Sensor #1: Open Circuit |
| P2201 | NOx Sensor #1: Rationality Monitor |
| P2203 | NOx Sensor #1: Short Circuit Low |
| P220A | NOx Sensor #1: Supply Voltage Out of Range |
| P220B | NOx Sensor #2: Supply Voltage Out of Range |
| P220E | NOx Sensor #1: Sensor Start Up Monitor |
| P220F | NOx Sensor #2: Sensor Start Up Monitor |
| P221A | NOx Sensors: NOx Sensor Measurement Rationality Monitor |
| P2226 | Barometric Pressure Sensor (BPS): Open Circuit Check |
| P2227 | Barometric Pressure Sensor (BPS): Rationality Monitor |
| P2229 | Barometric Pressure Sensor (BPS): Short Circuit High |
| P225C | Inlet and Outlet NOx Sensor Stuck High |
| P225E | NOx Sensor #2: Rationality High Monitor |
| P226C | Boost Pressure Slow Response |
| P229E | NOx Sensor #2: Open Circuit |
| P229F | NOx Sensor #2: Rationality Low Monitor |
| P22A1 | NOx Sensor #2: Short Circuit Low |
| P22FB | NOx Sensor #1: Bad Device Monitor |
| P22FE | NOx Sensor #2: Bad Device Monitor |
| P240F | EGR System Slow Response |
| P242A | Post-DPF Temperature Sensor: Open Circuit Check |
| P242B | Exhaust Gas Temperature Sensors: Post-DPF Rationality Check |
| P242C | Post-DPF Temperature Sensor: Short Circuit Low |
| P244A | PM Filter: Missing Substrate |
| P2452 | Aftertreatment Differential Pressure Sensor (DPS): Open Circuit Check |
| P2453 | Aftertreatment Differential Pressure Sensor (DPS): DPS Differential Pressure Sensor |
| P2454 | Aftertreatment Differential Pressure Sensor (DPS): Short Circuit Low |
| P249D | NOx Catalyst: Feedback Control (Saturated Low Monitor) |
| P249E | NOx Catalyst: Feedback Control (Saturated High Monitor) |
| P2578 | Turbocharger Speed Sensor (TSS): Missing Signal Monitor |
| P2581 | Turbocharger Speed Sensor (TSS): Rationality High |
| P2697 | Aftertreatment Hydrocarbon Dosing Valve: Open Circuit |
| P2698 | Aftertreatment Hydrocarbon Dosing Valve: Functional |
| P2699 | Aftertreatment Hydrocarbon Dosing Valve: Short Circuit Low |
| U0001 | CAN Link: Missing Signal on Backbone |
| U0010 | CAN Link: SAE J1939-1 Missing Signal |
| U0080 | CAN Link: Powertrain CAN Missing Signal |
| U010C | VGT Position Actuator: Missing Signal |
| U0141 | CAN Link: Missing Signal from the VECU |
| U0155 | Ambient Air Temperature Sensor (AAT): Missing Signal |
| U029D | NOx Sensor #1: Missing Signal |
| U029E | NOx Sensor #2: Missing Signal |
| U116F | CAN Link: Missing ACM at Engine Subnet |
