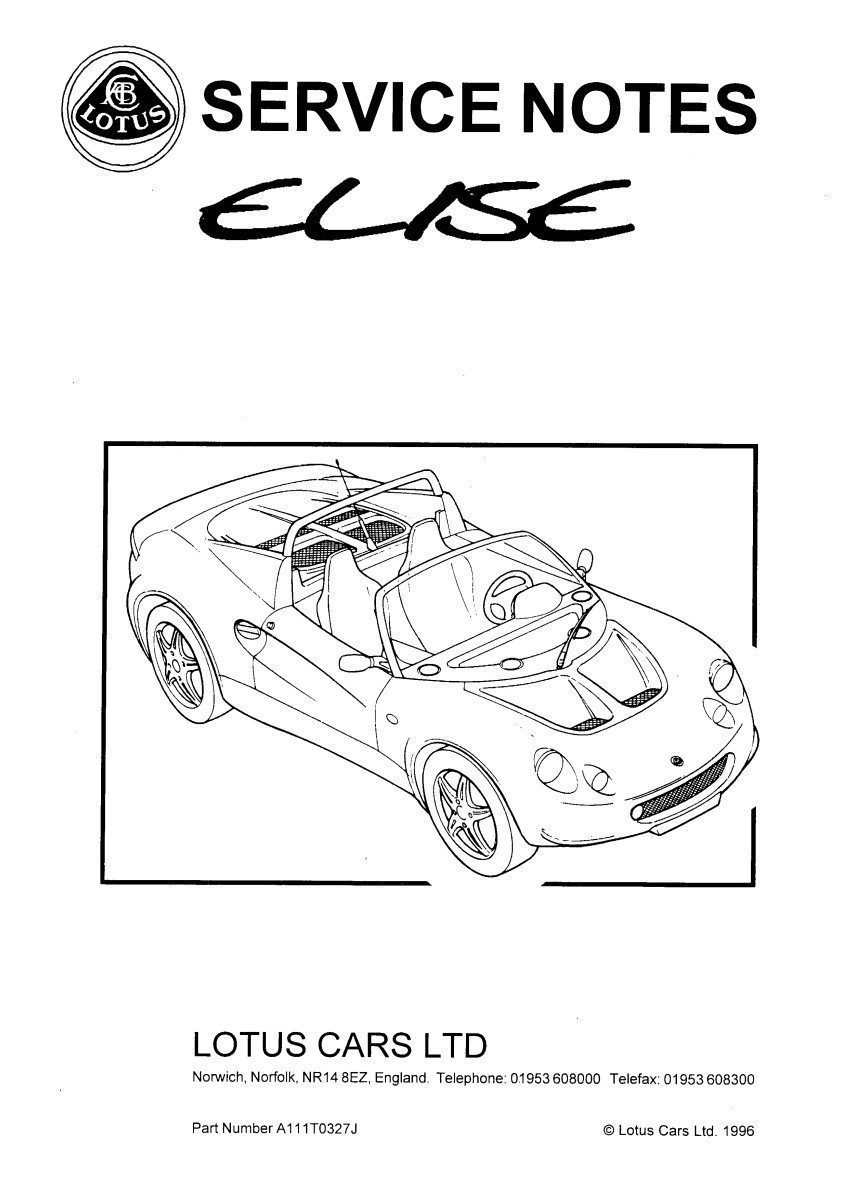

Lotus Elise Workshop Manual A111T0327J

This manual handles procedures on how to disassemble certain areas or how to assemble them again. You will also find the torque tables for suspension parts, an engine and gearbox section etc. etc. The first version of the service manual was issued in July 1996. Since then, updates have been issued. There are three types of update – one contains just a few pages from a section, another replaces an entire section and the last type is where a completely new section is issued.

CONTENTS:

  • Introduction
  • Technical Data – Engine
  • Technical Data – Vehicle
  • Chassis
  • Bodycare & Repair
  • Body Fittings
  • Front Suspension
  • Rear Suspension
  • Engine
  • Transmission
  • Steering
  • Brakes
  • Engine Cooling
  • Fuel System
  • Electrics
  • Maintenance & Lubrication
  • Heating & Ventilation
  • Air Conditioning. Heating & Ventilation
  • Motorsport
  • 340R Supplement
  • Exige Supplement

Introduction – Update 2000/03

  • TDL – Technical Data (Engine) – Update 2000/02
  • TDM – Technical Data (Vehicle) – Update 2000/02
  • AF – Chassis – Update 2000/02
  • BM – Bodycare & Repair – Update 1997/03
  • BN – Body Fittings – Update 1998/01 & 1996/03
  • CG – Front Suspension – Update 1998/03 & 1998/02
  • DE – Rear Suspension – Update 1999/01 & 1998/03 & 1998/02
  • EE – Engine – Original issue
  • EMN – Engine Management – Update 2000/01
  • FH – Transmission – Original issue
  • GF – Wheels & Tyres – Update 1999/02
  • HE – Steering – Update 1997/01
  • JH – Brakes – Update 1998/03
  • KF – Engine Cooling – Update 1997/01
  • LH – Fuel System – Update 1997/02
  • MN – Electrics – Update 1997/03 & 1996/04
  • OG – Maintenance & Lubrication – Update 1998/03 & 1996/03
  • PF – Heating & Ventilation – Update 1997/01
  • PH – Air Conditioning – Update 2000/04
  • QF – Clutch – Update 1998/02
  • XA – Motorsport – Update 2000/03 & 2000/02 & 1999/01 & 1998/01
  • 340R – Update 2000/02 & 2000/01
  • Exige – Update 2000/03

The individual updates that have been issued (NB not all of these are present as PDF files – the early ones are not) are listed below describing when the update occurred and what was included.

July 1996
Initial issue including:
– Intro
– Section TDL
– Section TDM
– Section CG
– Section DE
– Section EE
– Rover engine section
– Rover transmission section
– Section GF
– Section JH
– Section OG

August 1996
– Section EMN
– Section FH

October 1996
Update 1996/03
– Intro pages 1/2, 3/4
– Section BN
– Section OG page 5/6

December 1996
Update 1996/04
– Section MN

February 1997
Update 1997/01
– Section HE
– Section KF
– Section PF

February 1997
Update 1997/02
– Intro pages 1 – 4
– Section LH

December 1997
Update 1997/03
– Intro pages 1 – 6
– Section BM
– Section MN pages 1 – 37 + circuit diagrams

March 1998
Update 1998/01
– Section BN pages 13 – 16d
– Section XA

July 1998
Update 1998/02 – Part no. A111T0327/1
– Intro pages 1 – 6
– Section CG pages 1 – 11
– Section DE pages 1 – 12
– Section QF

October 1998
Update 1998/03 – Part no. A111T0327/3
– Section TDM pages 1 – 4
– Section CG pages 9 – 12
– Section DE pages 1/2, 7/8, 11 – 13
– Section GF pages 1 – 5
– Section JH pages 3 – 6, 15/16
– Section OG pages 1 – 8

February 1999
Update 1999/01 – Part no. A111T0327/99/01
– Intro pages 1 – 7
– Section DE pages 1 – 7
– Section XA pages 1/2, 17 – 20, 33/34

May 1999
Update package 1999/02 – part no. A111T0327/99/02
– Section GF pages 1 – 5
– Section XA pages 1/2, 35

February 2000
Update 2000/01 – Part no. A111T0327/00/01
– Intro complete
– Section EMN pages 1 – 25
– 340R Supplement

April 2000
Update 2000/02 – Part no. A111T0327/00/02
– Section TDL pages 1 – 4
– Section TDM pages 1 – 5
– Section AF
– Section XA pages 35 – 51
– Section 340R pages 1/2, 5 – 8, 17/18

June 2000
Update 2000/03 – Part no. A111T0327/00/03
– Intro complete
– Section XA page 1/2
– Exige Supplement

November 2000
Update 2000/04 – Part no. A111T0327/00/04
– Section PH

Language: English
File: PDF
Pages: 1862
