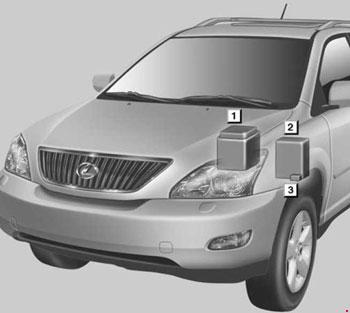

- Engine compartment fuse box
- Dashboard fuse box
- Additional fuse box in the instrument panel
The fuse box in the dashboard
| No. | Name | A | Purpose |
| 1 | RR DOOR RH | 20 | Rear Right Power Window |
| 2 | RR DOOR LH | 20 | Rear Left Power Window |
| 3 | FUELOPN | 7.5 | Fuel filler flap |
| 4 | FR FOG | 15 | Front fog lights |
| 5 | OBD | 7.5 | Diagnostic connector |
| 6 | FR DEF | 25 | Wiper, fuse: “MIR HTR” (No. 32 – 10A – mirror heating) |
| 7 | STOP | 10 | Side lights, additional brake light, ABS, vehicle stabilization system, traction control, brake assist system, engine electronics, air suspension, gearbox selector lock, lamp malfunction block |
| 8 | TI&TE | 30 | Steering column adjustments |
| 9 | MPX-B | 7.5 | Anti-theft system |
| 10 | AM1 | 7.5 | Starter |
| 11 | RRFOG | 7.5 | Rear fog light |
| 12 | BACK | 7.5 | Air suspension |
| 13 | BY NO. 2 | 25 | Multiplex unit |
| 14 | S/ROOF | 30 | Luke |
| 15 | TAIL | 10 | Front fog lamps, instrument cluster lights, instrument panel lights, side lights, license plate lights, trailer connector |
| 16 | PANEL | 7.5 | Instrument panel lights, instrument cluster lights, audio system, glove box lighting, armrest compartment lighting, power socket, automatic transmission control unit, headlight washer, air suspension control unit, seat heater, boot door, steering wheel buttons, garage door remote control, power outlet |
| 17 | ECU-IG NO.1 | 7.5 | Mirror control unit, sunroof, multiplex unit, navigation, selector lever lock, driver settings memory, wiper, automatic transmission control unit, seat heater, electric seats, steering column adjustment, tailgate, air suspension control unit, vehicle stabilization system, traction control the control |
| 18 | ECU-IG NO. 2 | 10 | Automatic headlight range control, car stabilization system, headlight washer, adaptive lighting system, dynamic cruise control |
| 19 | HEATER | 7.5 | Cooling fan, air conditioning, rear window heating, ignition switch, wiper |
| 20 | WASHER | 20 | Glass washer |
| 21 | SEAT HTR | 20 | Heated seats |
| 22 | GAUGE NO.1 | 7.5 | Reverse lamps, instrument cluster lights, instrument panel lights, alarms, seat belt indicator, power outlet, engine electronics, lamp malfunction |
| 23 | FR WIP | 30 | Wiper |
| 24 | RR W1P | 15 | Rear wiper |
| 25 | IG2 | 7.5 | Engine electronics |
| 26 | IGN | 10 | Brake lights, SRS (airbags), engine electronics, front passenger mass detection control unit |
| 27 | GAUGE NO. 2 | 7.5 | Instrument cluster |
| 28 | ECU-ACC | 7.5 | Navigation, mirror control unit, gear selector lock, multiplex unit |
| 29th | CIG | 15 | Cigarette lighter socket |
| 30 | PWR OUTLET NO.1 | 15 | Power socket |
| 31 | RADIO NO. 2 | 7.5 | Instrument panel lights, instrument cluster lights, navigation, audio system |
| 32 | ME HTR | 10 | Heated mirrors |
| 33 | P/SEAT | 30 | Power seats |
| 34 | PWR | 30 | Power Windows, Multiplex Unit, Power Mirrors |

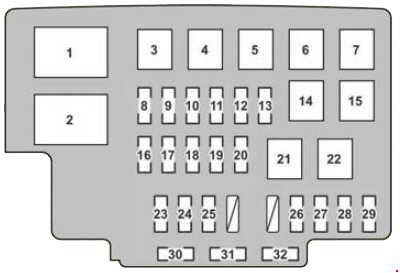

Fuse box in the engine compartment
| No. | Name | A | Purpose |
| 1 | AIRSUS | 60 | With air suspension : Air suspension |
| INP-J / B | 100 | Without air suspension : Fuses: HEATER, TAIL, PANEL, FR FOG, CIG, RADIO NO. 2, ECU-ACC, PWR OUTLET NO. 1, GAUGE NO. 1, ECU-IG NO. 1, FRWIP, RRWIP, WASHER, SEAT HTR, ECU-IG NO. 2, P / SEAT, PWR, TI&TE, RR DOOR LH, RR DOOR RH, MPX-B, AM1, DOOR NO.2, STOP, OBD, FUEL OPN, AIRSUS (7.5 A), S / ROOF, FR DEF, RR FOG | |
| 2 | ALT | 140 | Fuses: INP-J / B, AIRSUS (60 A), ABS NO. 1, ABS NO. 2, RDI FAN, RR DEF, HEATER, PBD, H-LP CLN / MSB, H-LP CLN, POWER OUTLET NO. 2, TOWING, TAIL, PANEL, FR FOG, CIG, RADIO NO. 2, ECU-ACC, PWR OUTLET NO. 1, GAUGE NO. 1, ECU-IG NO. 1, FRWIP, RR WIP, WASHER, HEATER, SEAT HTR, ECU-IG NO. 2, P / SEAT, PWR, CRT, TI&TE, RR DOOR LH, RR DOOR RH, MPX-B, AM1, DOOR NO. 2, STOP, OBD, FUEL OPN, AIRSUS (7.5 A), S / ROOF, FR DEF, RR FOG |
| 3 | PBD | 30 | Tailgate lock |
| 4 | H-LPCLN / MSB | 30 | headlight washer |
| H-LPCLN | 30 | headlight washer | |
| 5 | ABSNO.1 | 30 | ABS, vehicle stabilization system, tracking control, brake assist |
| 6 | Rrddef | 40 | Rear window defogger |
| 7 | HEATER | 50 | Air conditioning, rear window heating |
| 8 | DRL / WIP-S | 7.5 | Daytime Running Lights |
| 9 | H-LPLLWR | 50 | Dipped left light |
| 10 | H-LPLUPR | 50 | Far left light |
| 11 | H-LPRUPR | 50 | Far right light |
| 12 | TOWING | 30 | Trailer lighting |
| 13 | CRT | 7.5 | Audio system |
| 14 | ABSNO.2 | 50 | ABS, vehicle stabilization system, tracking control, brake assist |
| 50 | RDI FAN | 50 | Cooling fans |
| 60 | Haz | 50 | Direction indicators |
| 17 | A / f | 25 | Engine electronics |
| eighteen | ALT-S | 7.5 | Charging system |
| nineteen | Ects | 10 | Engine electronics |
| twenty | Horn | 10 | Horns |
| 21 | MAIN | 40 | Daytime running lights, left headlight, right headlight, fuses: “H-LP R LWR”, “H-LP R UPR”, “H-LP L UPR”, “H-LP L LWR” and “DRL” |
| 22 | AM2 | thirty | Tarter , fuses: GAUGE NO. 2, IGN, IG2 |
| 23 | RADIO NO. one | fifteen | Audio system, navigation |
| 24 | ECU-B | 7.5 | Power windows, instrument cluster, air conditioning, navigation display, sunroof, power seats, steering column adjustment, wiper, monochrome rearview mirror, multiplex unit, instrument panel lights, remote control for garage doors, doors, tailgate, driver settings memory |
| 25 | DOME | 7.5 | Instrument cluster, interior lighting, visor mirror illumination, ignition lock illumination, luggage compartment illumination, license plate illumination, interior door handle illumination, legroom lighting, threshold lighting, door lamps |
| 26 | Amp | thirty | Audio system |
| 27 | DOOR NO. one | 25 | Multiplex unit |
| 28 | INJ | 10 | Engine electronics |
| 29th | EFI NO. one | 25 | Engine Electronics, fuse: EFI NO. 2 |
| thirty | H-LP R LWR | fifteen | Dipped right |
| 31 | PWR OUTLET NO. 2 | twenty | Power socket |
| 32 | EFI NO. 2 | 10 | Engine electronics |
