Kia Carnival 2006 Body Shop Manual

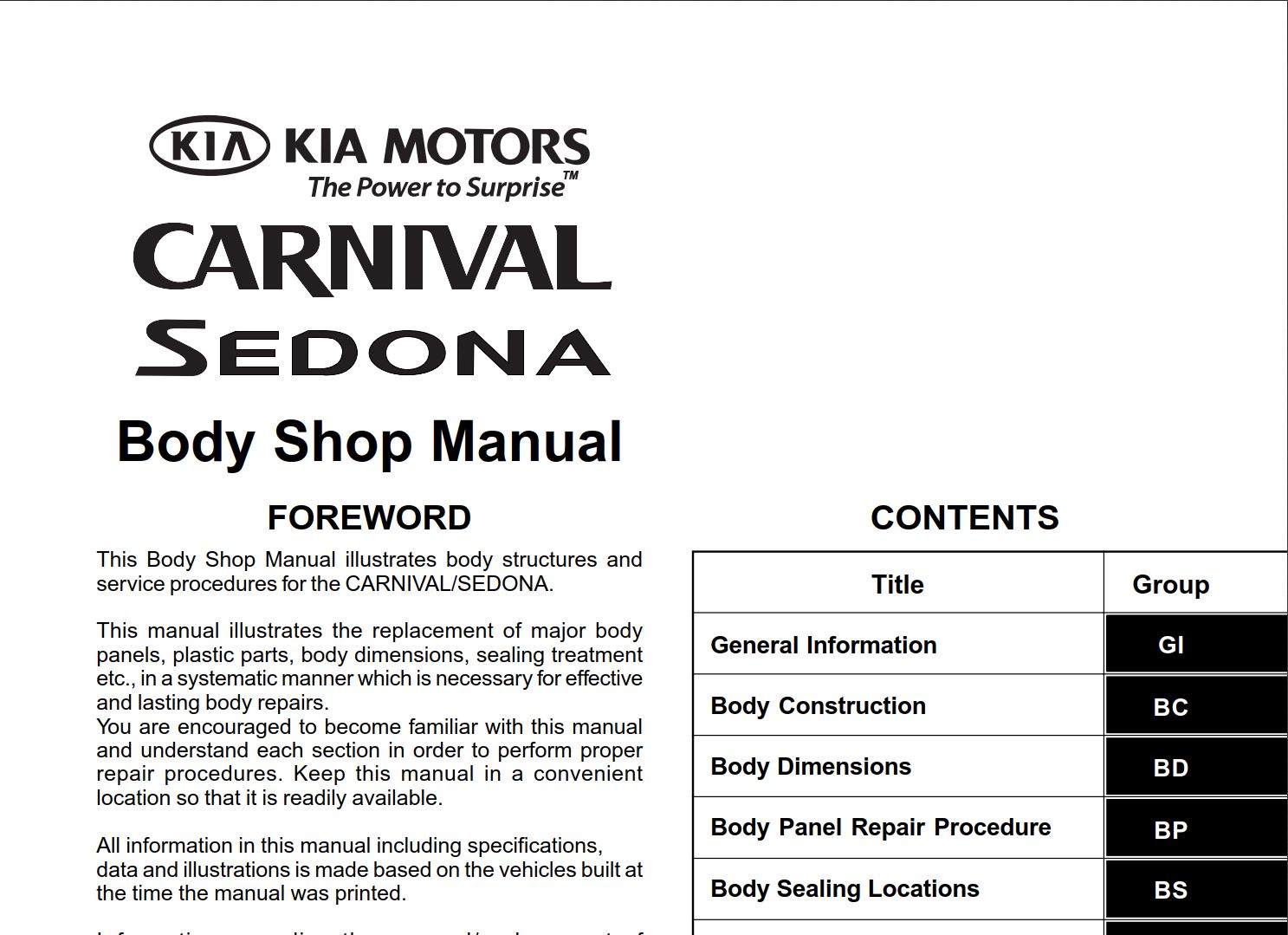

This Body Shop Manual illustrates body structures and service procedures for the CARNIVAL/SEDONA.

This manual illustrates the replacement of major body panels, plastic parts, body dimensions, sealing treatment etc., in a systematic manner which is necessary for effective and lasting body repairs.

You are encouraged to become familiar with this manual and understand each section in order to perform proper repair procedures. Keep this manual in a convenient location so that it is readily available.

All information in this manual including specifications, data and illustrations is made based on the vehicles built at the time the manual was printed.

Information regarding the removal/replacement of components not specifically covered in this manual can be found in the CARNIVAL/SEDONA Service Manual. Information regarding electrical harness routing/
connections, etc. can be found in the CARNIVAL/SEDONA Electrical Troubleshooting Manual.

The descriptions and specifications contained in this manual were in effect at the time this manual was approved for printing. Kia Motors Corporation reserves the right to discontinue models at any time, or change specifications or design without notice and without incurring obligation.

CONTENTS

  • General Information
  • Body Construction
  • Body Dimensions
  • Body Panel Repair Procedure
  • Body Sealing Locations
  • Corrosion Protection
  • Body Modification Tools
  • Plastic Parts

Language: English
Format: PDF
Pages: 128

Kia Carnival 2006 Body Shop Manual
