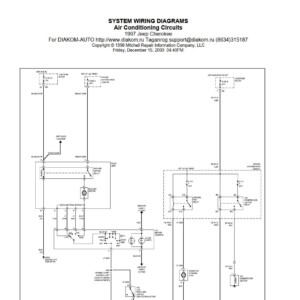

Jeep XJ Cherokee 1998 System Wiring Diagrams
Information regarding the vehicles wiring content. In order to effectively use Chrysler wiring diagrams to diagnose and repair a Chrysler vehicle, it is important to understand all of their features and characteristics.
Diagrams are arranged such that the power (B+) side of the circuit is placed near the top of the page, and the ground (B-) side of the circuit is placed near the bottom of the page.
All switches, components, and modules are shown in the at rest position with the doors closed and the key removed from the ignition.
Components are shown two ways. A solid line around a component indicates that the component is complete. A dashed line around a component indicates that the component being shown is not complete. Incomplete components have a reference number to indicate the page where the component is shown complete.
It is important to realize that no attempt is made on the diagrams to represent components and wiring as they appear on the vehicle. For example, a short piece of wire is treated the same as a long one. In
addition, switches and other components are shown as simply as possible, with regard to function only.
CONTENTS
- AIR CONDITIONING/HEATER
- AIRBAG SYSTEM
- ALL-WHEEL ANTI-LOCK BRAKES
- AUDIO SYSTEM
- CHARGING SYSTEM
- COMPONENT INDEX
- CONNECTOR LOCATIONS
- CONNECTOR PIN-OUTS
- FRONT LIGHTING
- FUEL/IGNITION SYSTEMS
- GENERAL INFORMATION
- GROUND DISTRIBUTION
- HORN/CIGAR LIGHTER
- INSTRUMENT CLUSTER
- INTERIOR LIGHTING
- JUNCTION BLOCK
- OVERHEAD CONSOLE
- POWER DISTRIBUTION
- POWER DOOR LOCKS
- POWER MIRRORS
- POWER SEAT
- POWER WINDOWS
- REAR LIGHTING
- REAR WINDOW DEFOGGER
- SPLICE INFORMATION
- SPLICE LOCATIONS
- STARTING SYSTEM
- TRAILER TOW
- TRANSMISSION CONTROL SYSTEM
- TURN SIGNALS
- VEHICLE SPEED CONTROL
- VEHICLE THEFT SECURITY SYSTEM
- WIPERS
