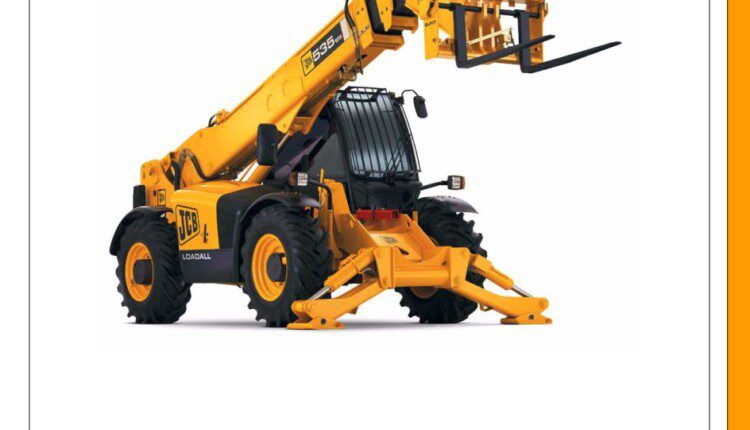

JCB 540, 550, 535 Side Engine Loadalls Service Manual

Publication No. 9803/3750-05. This manual contains topics that relate to some or all JCB Loadall machines in the 5A group. There are several machine model codes in the family.

Model Name:

  • 540-170
  • 550-140
  • 540-140
  • 550-170
  • 535-125 Hi Viz
  • 535-140 Hi Viz

Machine variants: There are different machine variants within the same model name. This happens because of market requirements, or when the machine specification changes after a period of time. Information relating specifically to different variants of the same model is given in the applications tables and in the Topics throughout the manual where applicable.

This publication is designed for the benefit of JCB Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.

These personnel should have a sound knowledge of workshop practice, safety procedures, and general
techniques associated with the maintenance and repair of hydraulic earthmoving equipment. Finally, please  remember above all else SAFETY MUST COME FIRST!

CONTENTS

  • Section 1 – General Information
  • Section 2 – Care and Safety
  • Section 3 – Routine Maintenance
  • Section B – Body and Framework
  • Section C – Electrics
  • Section E – Hydraulics
  • Section F – Transmission
  • Section G – Brakes
  • Section H – Steering
  • Section K – Engine
  • Section M – Electronic Data Systems

Language: English
Format: PDF
Pages: 149
