Installing LED Headlights: A Step-by-Step Guide 💡🚗


Upgrade Your Night Driving—Brighter Light, Longer Life, and DIY Savings!


1. Why Switch to LED Headlights? 🌟

LED headlights outperform halogens and xenon bulbs with:

  • Brightness: 3x more lumens for clearer visibility.
  • Efficiency: 80% less power draw, saving your alternator.
  • Longevity: 30,000–50,000 hours vs. 500–1,000 for halogens.
  • Style: Crisp white/blue light for a modern look.

Key Stat: 60% of drivers report fewer nighttime accidents after upgrading to LEDs (NHTSA).

led vs. halogen beam comparison

2. Tools & Materials You’ll Need 🧰

ItemPurposeCost
LED bulb kit (H4, H7, etc.)Match your car’s bulb size30–150
Trim removal toolsPry headlight covers/clips$10
Safety glovesProtect bulbs from oils$5
Torx/socket setRemove headlight assemblies$15
CAN bus decoder/resistorPrevent error codes (if needed)$15
Rubbing alcohol & microfiber clothClean bulb sockets$5

Pro Tip: Check your owner’s manual for bulb size (e.g., H11, 9005).

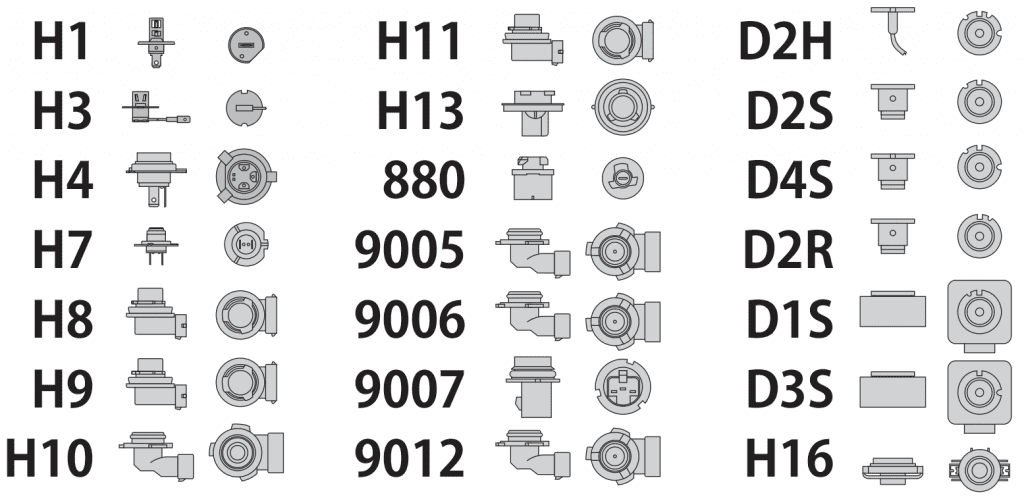

bulb size chart (h4, h7, 9006)

3. Step-by-Step Installation Guide 📋

Step 1: Prep Your Car

  1. Turn off the engine and disconnect the negative battery terminal.
  2. Clean headlight lenses with soapy water to maximize output.

Step 2: Access the Headlight Bulb

  1. Remove the headlight assembly (if required):
    • Pop the hood and unscrew bolts around the headlight.
    • Disconnect wiring and gently pull out the assembly.
  2. Open the bulb cover: Twist or unclip the rear access panel.

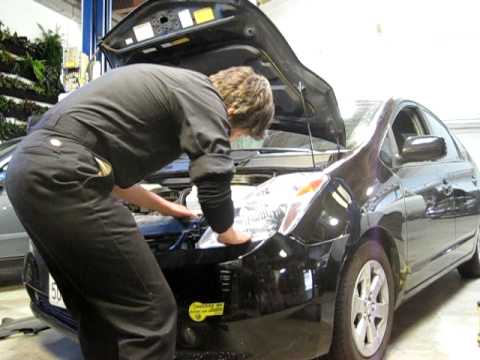

Pulling Prius Headlight Assembly in under 5 minutes

Step 3: Swap the Bulbs

  1. Remove the old bulb:
    • Unplug the connector.
    • Release the bulb retaining clip/spring.
  2. Install the LED bulb:
    • Avoid touching the LED with bare hands (use gloves).
    • Align the bulb’s tabs with the socket (check rotation marks).
    • Secure with the clip/spring.
  3. Attach the driver/ballast (if included) and tuck it safely.

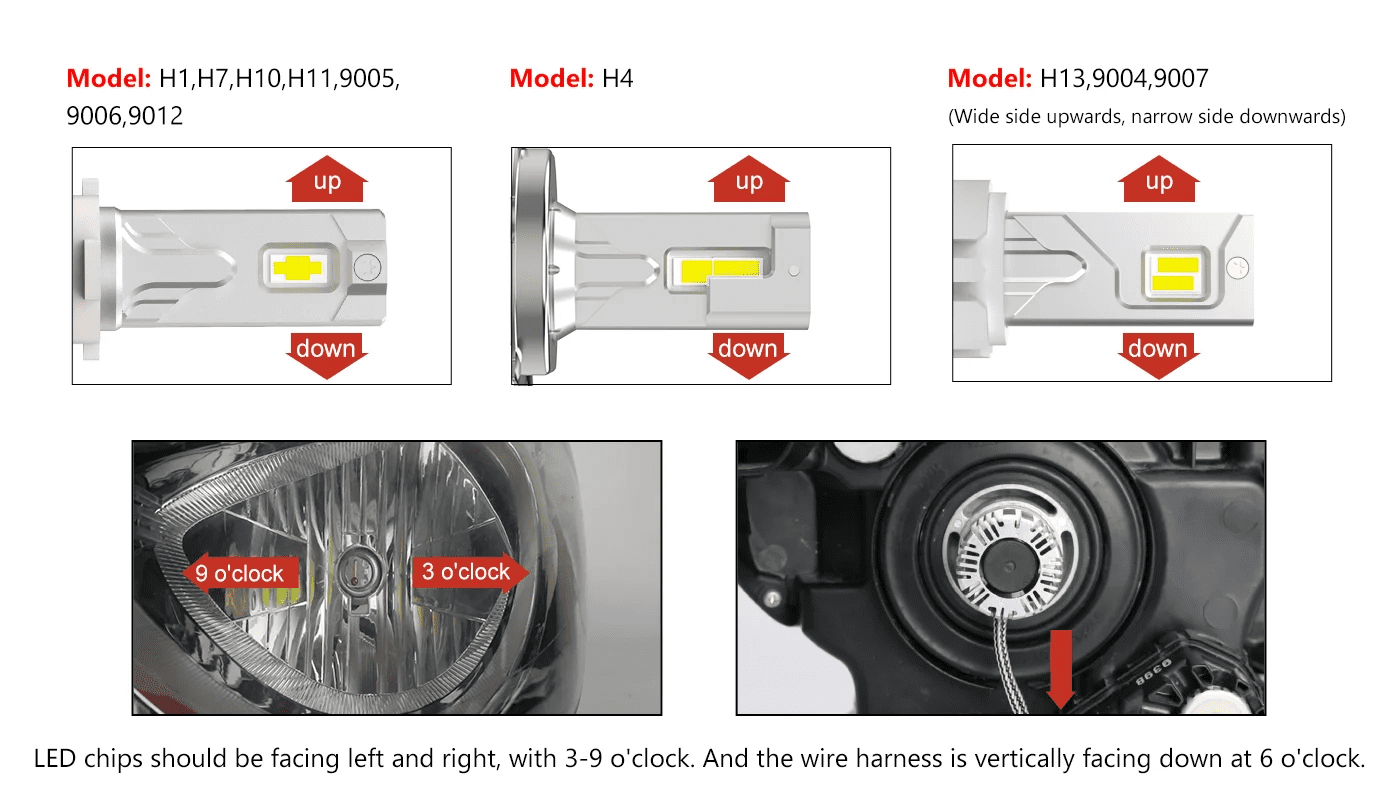

led bulb orientation diagram

Step 4: Add CAN Bus Decoders (If Needed)

  • Symptoms of CAN bus errors: Flickering, dashboard warnings, or bulb-out alerts.
  • Fix: Connect decoders/resistors between the bulb and wiring harness.

Step 5: Reassemble and Test

  1. Reattach the bulb cover and headlight assembly.
  2. Reconnect the battery and test the headlights on low/high beams.
  3. Adjust the beam alignment (see Step 6).

4. Adjusting Headlight Alignment ⚙️

Misaligned LEDs blind other drivers! Use this method:

  1. Park on a flat surface 10–25 feet from a wall.
  2. Mark the horizontal/vertical beam centers on the wall with tape.
  3. Adjust screws on the headlight housing until beams sit 2–4 inches below marks.

5. Top 5 LED Headlight Kits for 2024 🏆

Brand/ModelBulb SizeFeaturesPrice
Auxbeam H7H720,000LM, fan cooling$40
SEALIGHT H11H11Plug-and-play, CAN bus ready$50
BEAMTECH 90059005Compact design, 6,000K color$35
Philips X-tremeUltinonH4200% brighter, 12-year warranty$150
Cougar Motor H13H13Dual high/low beam, waterproof$60

6. 7 Costly Mistakes to Avoid ❌

  1. Ignoring Bulb Size: Mismatched bulbs won’t fit or focus poorly.
  2. Touching LEDs with Bare Hands: Oils reduce lifespan.
  3. Skipping Decoders: Error codes disable auto features (e.g., cruise control).
  4. Overlooking Heat Management: Ensure fans/heat sinks aren’t blocked.
  5. Forgetting Beam Adjustment: Illegal alignment = fines + danger.
  6. Using Cheap Bulbs: Poor heat dissipation = melted housings.
  7. Rushing Reassembly: Water leaks damage electrical systems.

7. FAQs ❓🌟

Q2: Why do my LEDs flicker?

A: Install resistors or a CAN bus decoder.

Q3: Can I install LEDs in halogen housings?

A: Yes, but projectors work best. Reflectors may scatter light.

Q4: How long do LED bulbs last?

A: 5–10 years with proper cooling.

Q5: Do LEDs drain the battery?

A: No—they use less power than halogens.


8. Free Installation Checklist 📝

[🔗 Download Your Free PDF Here]
Includes:

  • Bulb size guide by car model.
  • Beam alignment steps.
  • Decoder wiring diagram.

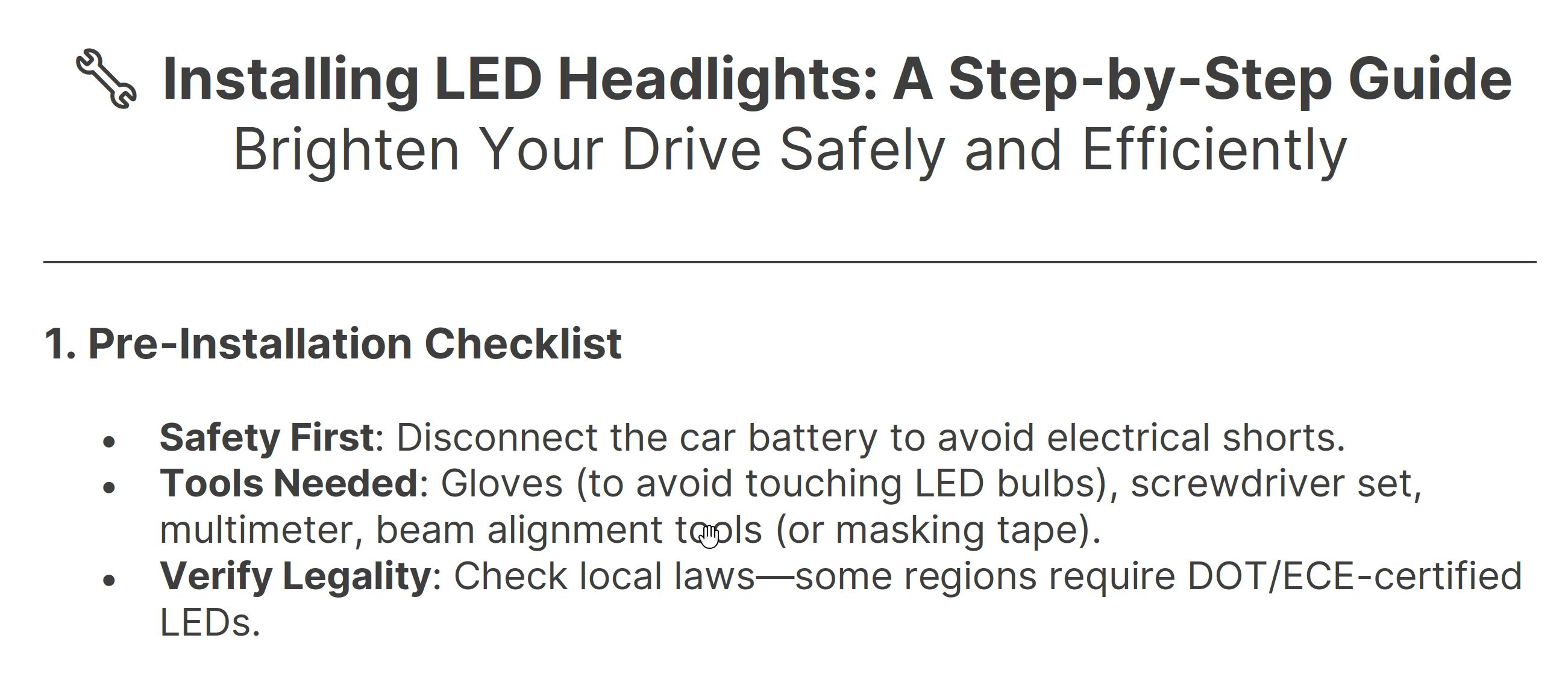

installation checklist preview
Installation Checklist preview

Final Pro Tips 🌟

  • Opt for Fanless Designs: Quieter and more durable (e.g., Philips).
  • Check Local Laws: Some states ban blue-tinted LEDs.
  • Upgrade Fog Lights: Match color temperature (e.g., 6,000K).

🚗 Share this guide to help others light up the road safely! 🚗
