Hyundai Staria, Car Fuse Box, Hyundai

Hyundai Staria 2022-2023 Fuse Layout

By Todd Mitchell

On: Monday, September 15, 2025 2:29 PM

The minivan Hyundai Staria is available from 2021 to the present. In this article, you will find diagrams of the fuse box for the Hyundai Staria 2022 and 2023. You can also find information about the location of the fuse panels inside the car, and about the assignment of each fuse (fuse layout) and relay.

Passenger Compartment Fuse Box

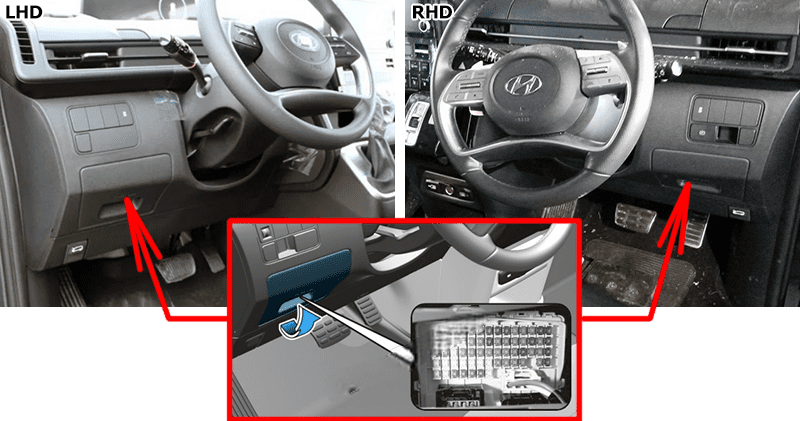

Fuse Box Location

Open the fuse panel cover to access.

hyundai staria 2022 2023 fuse layout 1 2025 01 13 22 32 14

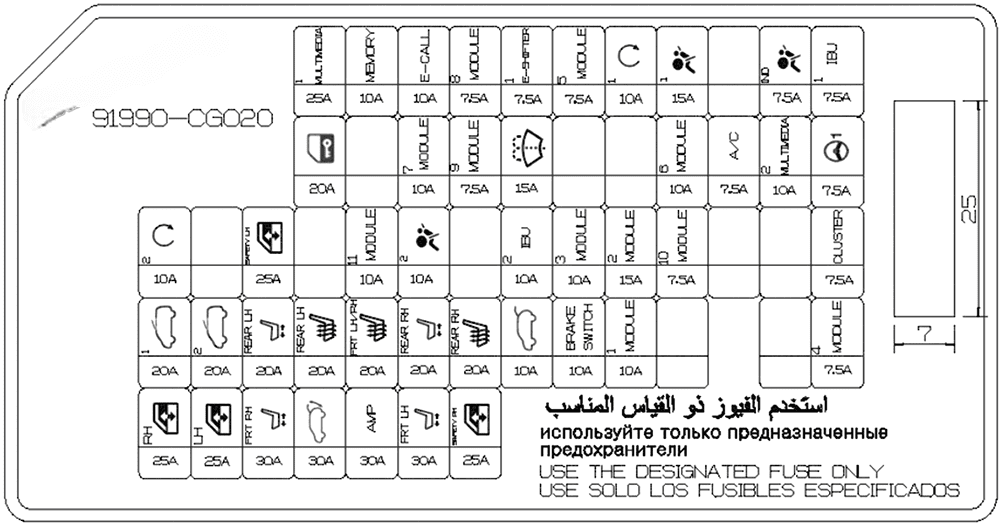

Fuse Box Diagram

hyundai staria 2022 2023 fuse layout 2 2025 01 13 22 32 25

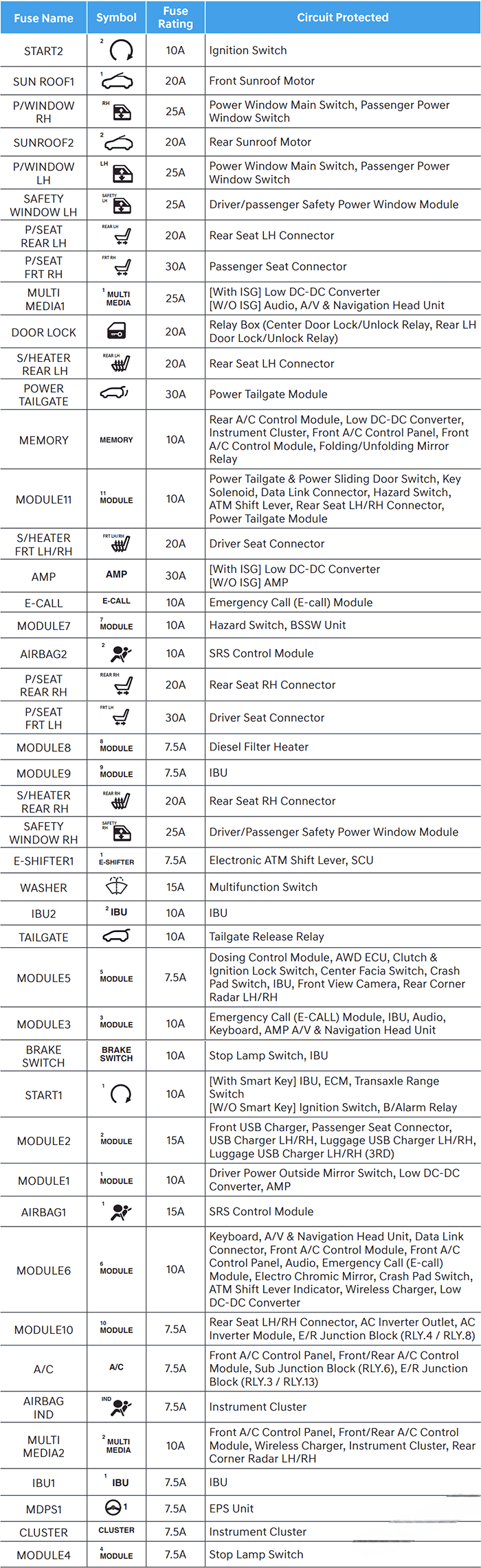

Assignment of the fuses in the instrument panel

hyundai staria 2022 2023 fuse layout 3 2025 01 13 22 32 46

Engine Compartment Fuse Boxes

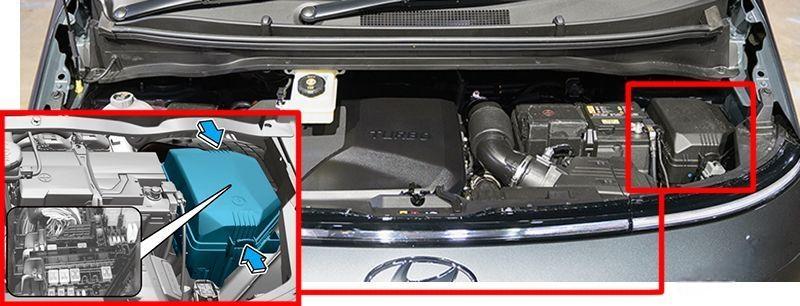

Fuse Box Location

Remove the fuse panel cover by pressing the tap and pulling up.

hyundai staria 2022 2023 fuse layout 4 2025 01 13 22 32 55

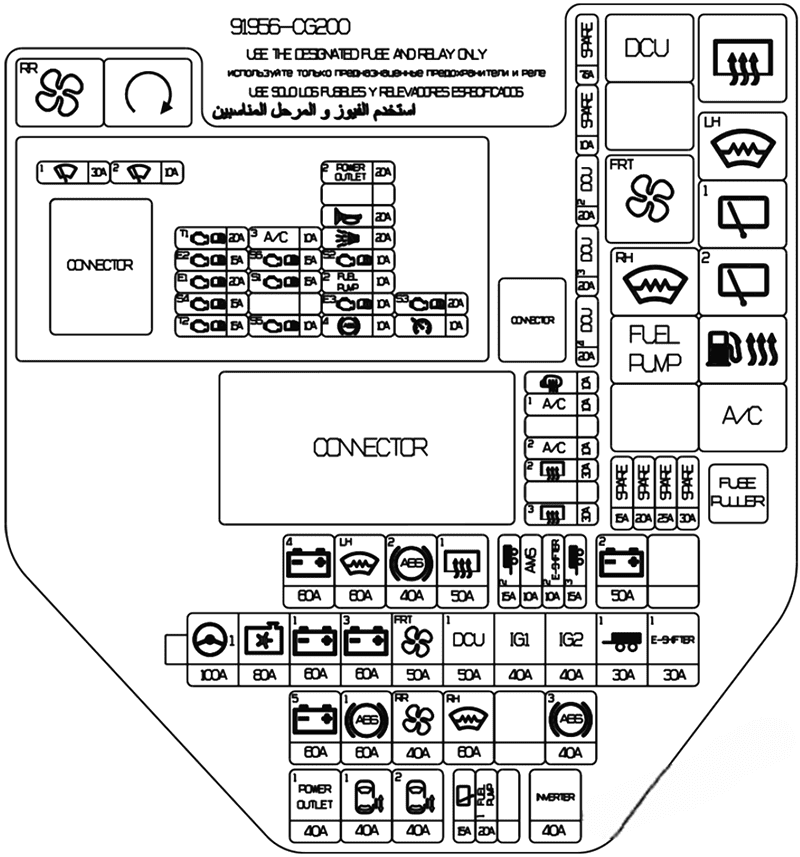

Fuse Box Diagram

hyundai staria 2022 2023 fuse layout 5 2025 01 13 22 33 04

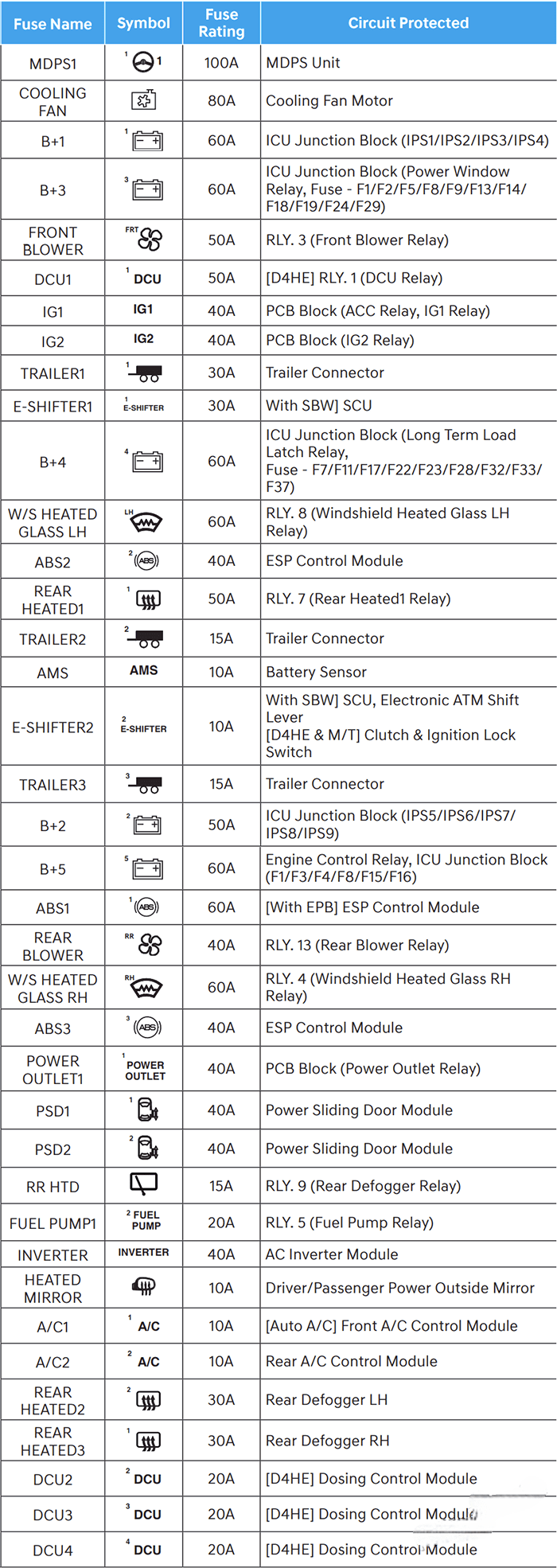

Assignment of the fuses in the engine compartment

hyundai staria 2022 2023 fuse layout 6 2025 01 13 22 33 22

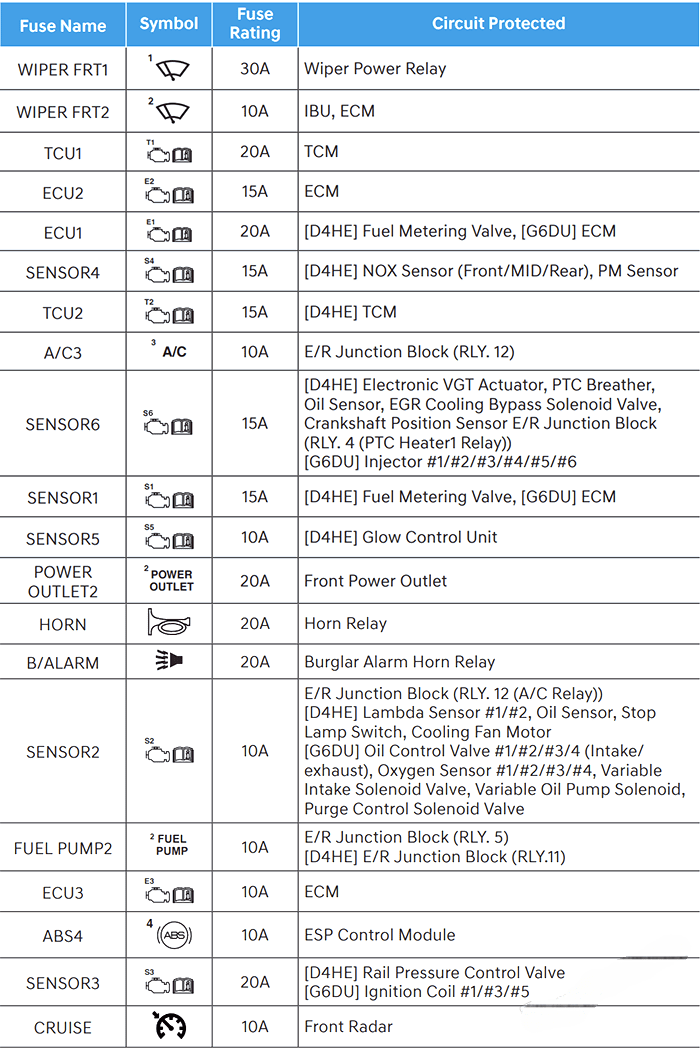

PCB Block

hyundai staria 2022 2023 fuse layout 7 2025 01 13 22 33 35

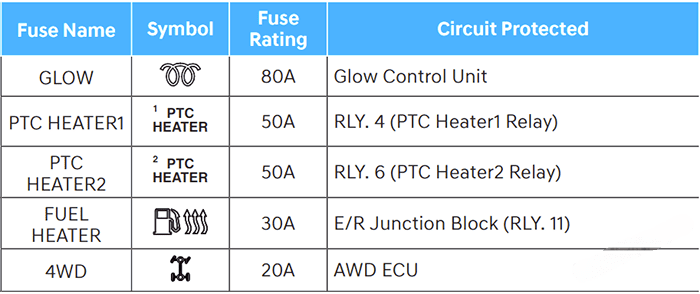

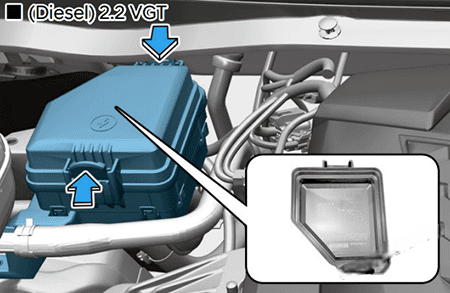

Sub Junction Block (diesel)

hyundai staria 2022 2023 fuse layout 8 2025 01 13 22 33 44

hyundai staria 2022 2023 fuse layout 9 2025 01 13 22 33 53

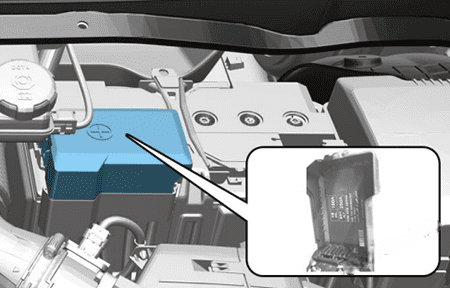

Battery terminal cover

hyundai staria 2022 2023 fuse layout 10 2025 01 13 22 34 03

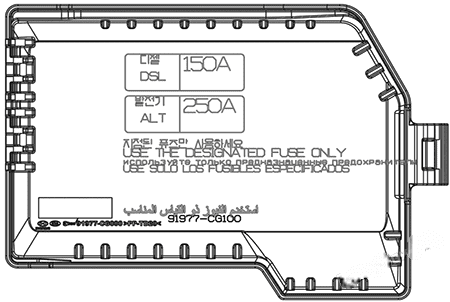

Smartstream G3.5

hyundai staria 2022 2023 fuse layout 11 2025 01 13 22 34 15

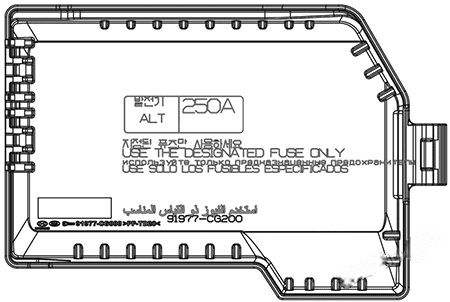

Diesel 2.2 VGT

hyundai staria 2022 2023 fuse layout 12 2025 01 13 22 34 26
