How to Wire a Trailer Hitch: DIY Electrical Connections 🚛🔌
Master the Wiring for Safe Towing—No Mechanic Needed!
1. Why Proper Trailer Wiring Matters ⚠️
Faulty wiring can lead to accidents, ticket fines, or damaged trailer lights. DIY benefits:
- Safety: Ensure brake lights, turn signals, and brakes work.
- Compliance: Meet DOT requirements for road legality.
- Cost Savings: Avoid 150–300 mechanic fees.
Key Stat: 25% of trailer accidents involve electrical failures (NHTSA).
2. Tools & Materials You’ll Need 🧰
| Item | Purpose | Cost |
|---|---|---|
| Wiring harness kit | Vehicle-specific plug-and-play | 30–80 |
| Wire strippers/crimpers | Prepare and connect wires | $15 |
| Heat shrink tubing | Weatherproof connections | $10 |
| Circuit tester | Verify power at each pin | $20 |
| Zip ties | Secure loose wires | $5 |
| Electrical tape | Insulate splices | $5 |
| Total | 85–135 |
Pro Tip: Buy a T-connector harness for non-invasive installation.
3. Step-by-Step Wiring Guide 📋

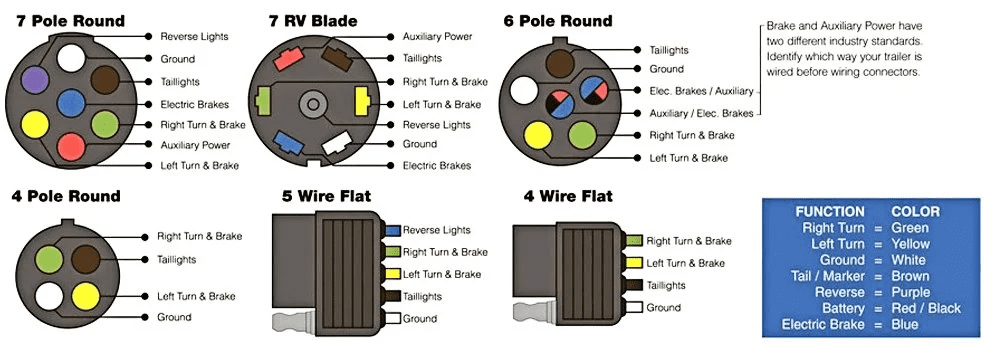

Step 1: Choose the Right Connector
- 4-Pin Flat: Basic (tail, brake, turn signals, ground).
- 7-Pin Round: Adds electric brakes, reverse, and 12V power.
Step 2: Locate Your Vehicle’s Wiring
- Find the taillight assembly: Remove trim or access panels.
- Identify wires using a circuit tester:
- Brown: Tail lights
- Yellow: Left turn/brake
- Green: Right turn/brake
- White: Ground
Step 3: Install the Wiring Harness

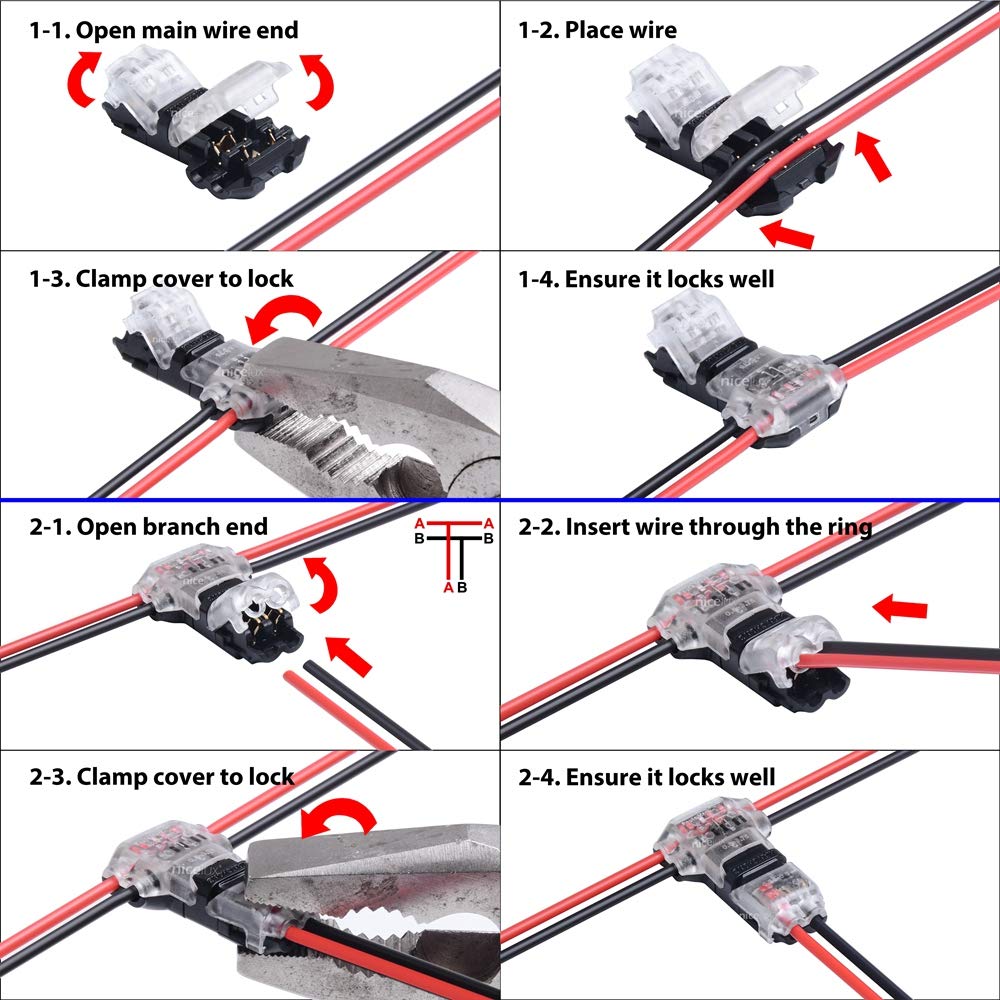

- Connect the T-connector:
- Splice into vehicle wires using crimp connectors.
- Match colors (harness to vehicle).

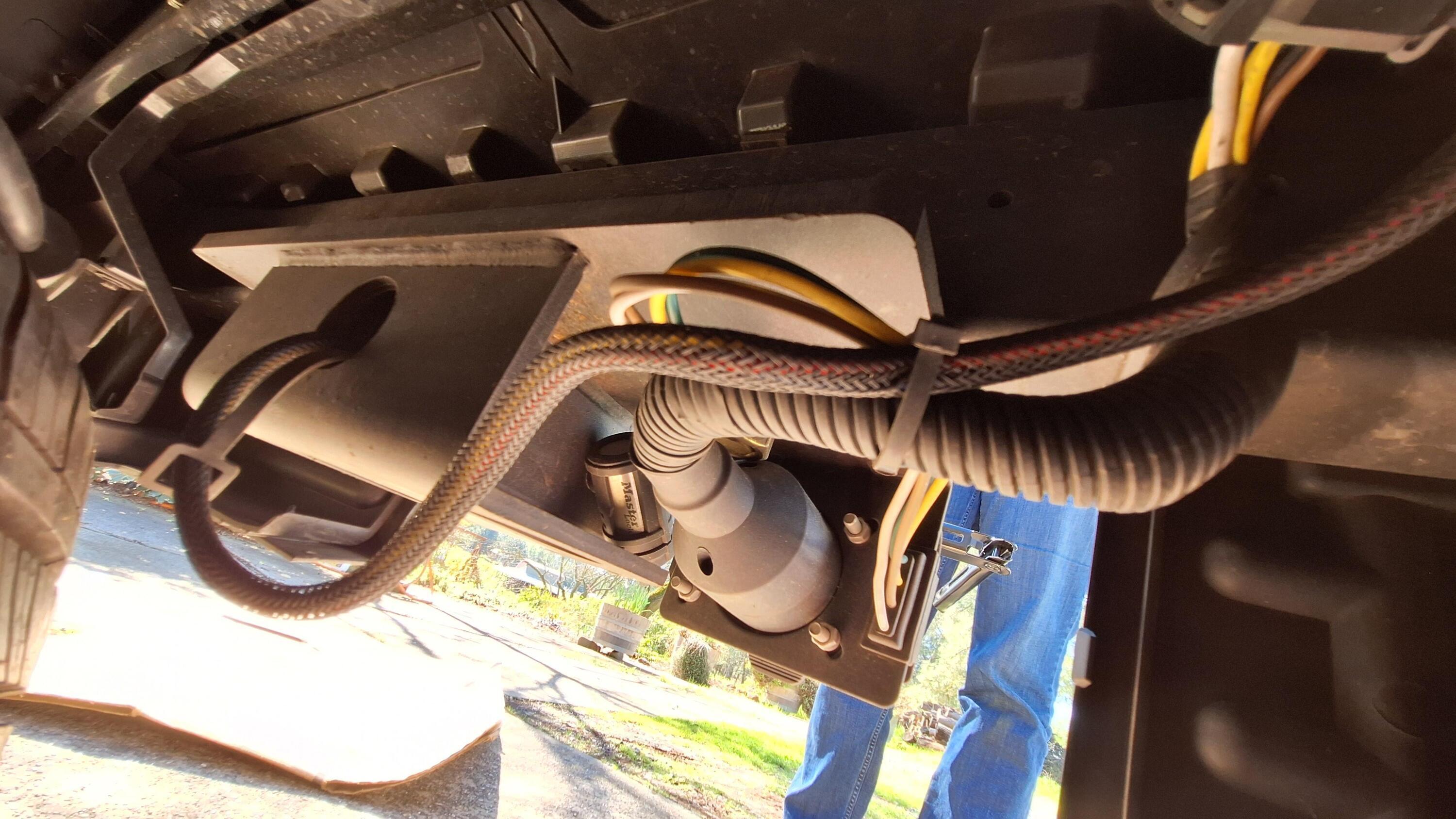

- Run wires to the hitch:
- Route along the frame, avoiding exhaust/moving parts.
- Secure with zip ties.
- Ground the white wire: Attach to bare metal on the chassis.
Step 4: Test All Connections
- Plug in the trailer and turn on vehicle lights.
- Check each function:
- Brake lights
- Turn signals
- Running lights
- Electric brakes (7-pin only)
- Fix issues: Recheck splices or grounds if a light fails.
4. Troubleshooting Common Issues 🛠️
| Problem | Solution |
|---|---|
| No Power to Trailer | Check fuses, ground connection, and tester voltage. |
| Lights Flicker | Secure loose wires or corroded connectors. |
| One Side Doesn’t Work | Re-splice the affected wire (e.g., yellow/green). |
| Brakes Overheat | Adjust brake controller settings (7-pin only). |
5. Top 5 Trailer Wiring Kits 🏆
| Product | Connector Type | Features | Price |
|---|---|---|---|
| Curt 56425 | 4-Pin | Plug-and-play, universal | $35 |
| Hopkins 48505 | 7-Pin | Built-in converter, LED ready | $75 |
| Tekonsha 118315 | 4-Pin | Heavy-duty, corrosion-proof | $40 |
| Reese 74324 | 7-Pin | Brake controller compatible | $65 |
| Curt 56330 | Customizable | Modular 4/5/6/7-pin | $80 |
6. 7 Deadly Mistakes to Avoid ❌
- Ignoring Grounding: Poor ground = flickering/no lights.
- Mixing Wire Colors: Reversed turn signals confuse drivers.
- Skipping Weatherproofing: Moisture causes corrosion.
- Using Scotchlocks: Crimp connectors are more reliable.
- Forgetting Fuse Checks: Blown fuses cut power to trailer.
- Routing Wires Near Heat: Melts insulation.
- Overloading Circuits: 7-pin brakes need a brake controller.
7. FAQs ❓🌟
Q1: Can I convert a 4-pin to a 7-pin connector?
A: Yes! Use an adapter ($20) or install a 7-pin harness.
Q2: Why does my trailer battery drain?
A: The 12V pin stays live—install a disconnect switch.
Q3: Do I need a brake controller?
A: Required for electric brakes (7-pin).
Q4: How do I protect wiring from corrosion?
A: Apply dielectric grease and use heat shrink tubing.
Q5: Are magnetic trailer lights reliable?
A: Temporary fix—hardwired systems are safer.
8. Free Wiring Checklist 📝
[🔗 Download Your Free PDF Here]
Includes:
- Wire color code guide.
- Connector compatibility chart.
- Post-installation test steps.
Final Pro Tips 🌟
- Label Wires: Avoid confusion during repairs.
- Upgrade to LED Lights: Brighter and more efficient.
- Check Local Laws: Some states require breakaway systems.
