How to Use an OBD2 Scanner: Interpreting Common Codes Like a Pro
Table of Contents
1. Why Every Driver Needs an OBD2 Scanner 🚗
An OBD2 scanner is a car owner’s best friend. Here’s why:
- Save Money: Skip the $100+ diagnostic fee at the shop.
- DIY Repairs: Fix minor issues like a loose gas cap yourself.
- Pass Emissions Tests: Clear “not ready” statuses for inspections.
Key Stat: 60% of Check Engine lights are caused by minor issues you can fix at home.

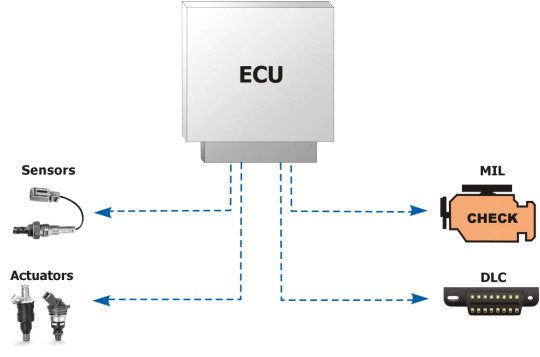

2. What Is OBD2? A Quick History 📜
OBD1 vs. OBD2:
- OBD1 (1980s): Manufacturer-specific, limited codes.
- OBD2 (1996+): Standardized system across all cars.
Code Types:
- P Codes: Powertrain (engine/transmission).
- B Codes: Body (AC, airbags).
- C Codes: Chassis (ABS, suspension).
- U Codes: Network/communication errors.
3. Choosing the Right Scanner 💡
| Type | Best For | Price | Example |
|---|---|---|---|
| Basic Bluetooth | Beginners, quick scans | 10–10–30 | FIXD Sensor, Veepeak |
| Advanced | Mechanics, full diagnostics | 100–100–500 | Autel MaxiCOM, Launch |
| App-Based | Real-time data tracking | Free–$20 | Torque Pro (Android) |
Pro Tip: Ensure compatibility with your car’s make/model (e.g., CAN protocol for post-2008 cars).
4. Step-by-Step: How to Use Your Scanner 🔌
Step 1: Locate the OBD2 Port
- Common spots: Under the steering wheel, near the fuse box, or behind the glove compartment.
- Graphic 4: Photos of OBD2 ports in a Toyota, Ford, and BMW.
Step 2: Connect the Scanner
- Plug in the device and turn the ignition to “ON” (don’t start the engine).

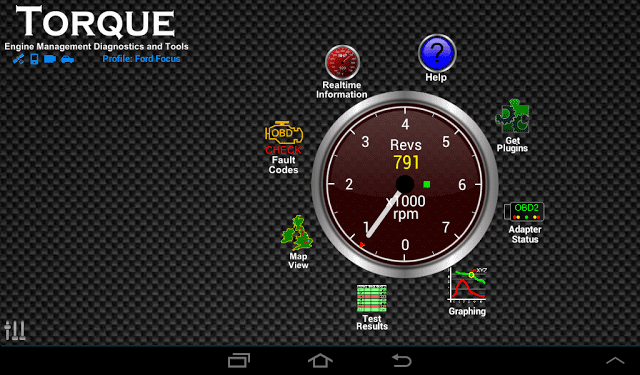

Step 3: Read Codes
- Open your app (e.g., Torque Pro) and tap “Scan.” Codes like P0171 will appear.

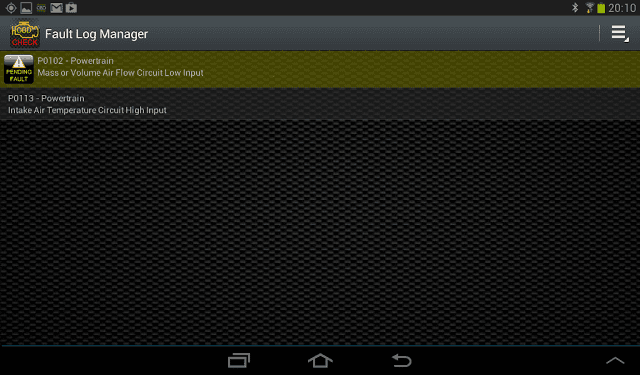

Step 4: Interpret Codes
- Example: P0420 = Catalyst System Efficiency Below Threshold.

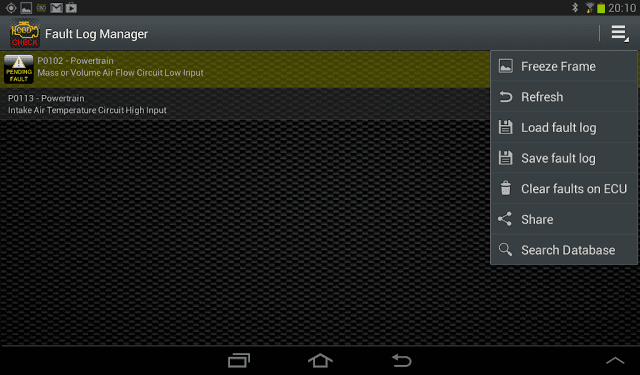

Step 5: Clear Codes
- Tap “Erase Codes”—but only after fixing the issue!
5. Top 10 Common OBD2 Codes Explained 🚨
| Code | Description | Common Causes | Fix |
|---|---|---|---|
| P0420 | Low catalytic converter efficiency | Faulty catalytic converter, O2 sensors | Replace cat or O2 sensors. |
| P0171 | System Too Lean (Bank 1) | Vacuum leak, dirty MAF sensor | Inspect hoses, clean MAF. |
| P0300 | Random/Multiple Cylinder Misfire | Bad spark plugs, fuel injectors | Replace plugs, check coils. |
| P0442 | Small EVAP Leak | Loose gas cap, cracked hose | Tighten cap, inspect EVAP system. |
| U0100 | Lost Communication with ECM | Wiring issues, faulty ECU | Check fuses, wiring harness. |
6. Real-World Diagnostic Scenarios 🛠️
Case 1: Code P0455 (Large EVAP Leak)
- Symptoms: Gas smell, Check Engine light.
- Fix: Replace cracked fuel cap or purge valve.

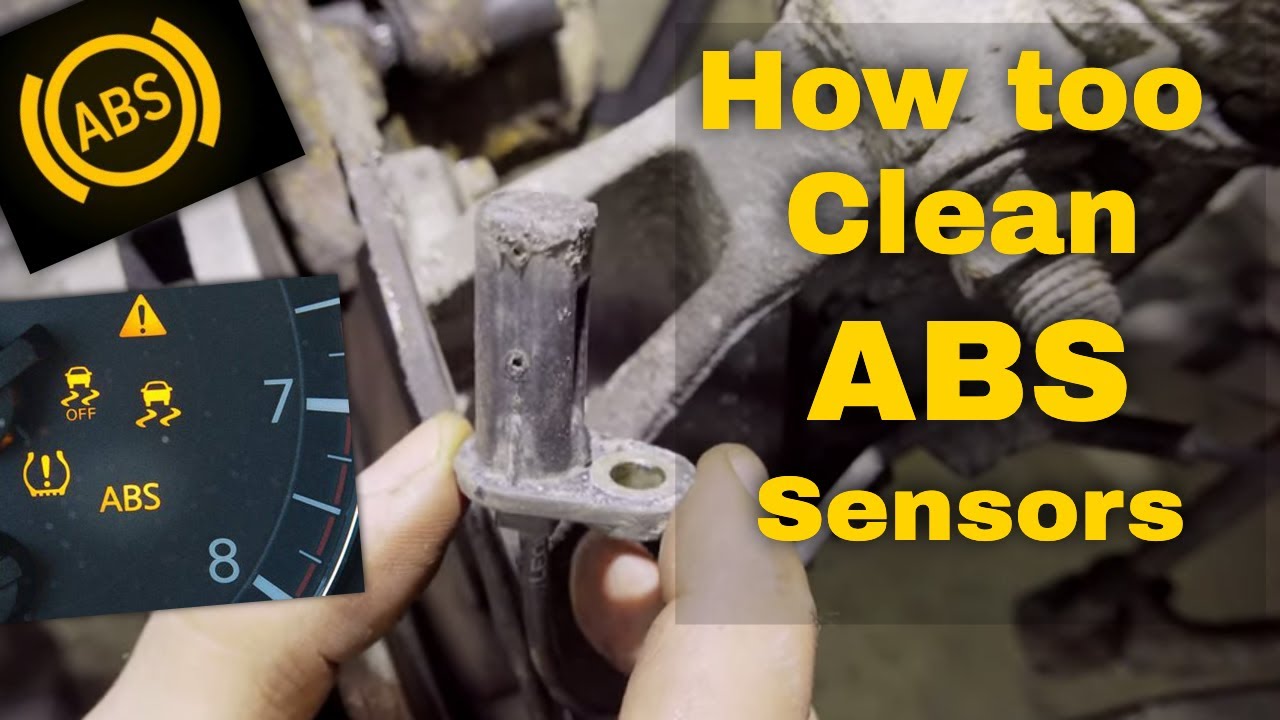

Case 2: Code C1234 (ABS Wheel Speed Sensor)
- Symptoms: ABS light on, erratic braking.
- Fix: Clean sensor or replace damaged wiring.
7. Mistakes to Avoid ❌
- Clearing Codes Without Fixing Issues: The light will return!
- Ignoring Pending Codes: Address them before they trigger a Check Engine light.
- Using Cheap Scanners for Advanced Diagnostics: They can’t read ABS/SRS codes.
Graphic 8: Meme: “When you clear a code and think you’re a mechanic.”
8. Best OBD2 Apps & Software 📱
Torque Pro (Android, $5):
- Live data logging, custom dashboards.
Car Scanner (iOS/Android, Free):
- Battery monitoring, DPF regeneration.
FORScan (Windows, Free):
- Advanced coding for Fords, Mazdas, and Lincolns.
9. When to Call a Mechanic ⚠️
Critical Codes:
- P0016 (Camshaft/Crankshaft Misalignment): Requires timing belt repair.
- P0700 (Transmission Fault): Needs professional transmission diagnostics.
Safety Systems:
- SRS Airbag Codes: Never DIY—faulty repairs can disable airbags.
10. FAQs ❓
Q: Can an OBD2 scanner damage my car?
A: No—it only reads data, but avoid cheap, uncertified scanners.
Q: Why won’t my scanner connect?
A: Check the OBD2 fuse or try a different app.
Q: What’s a “pending code”?
A: A potential issue that hasn’t triggered the Check Engine light yet.

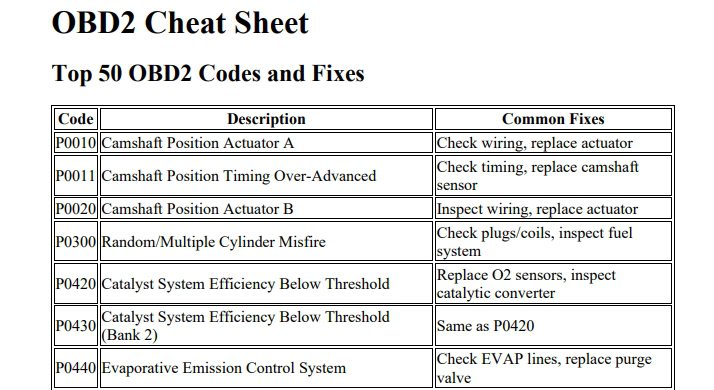

11. Free OBD2 Cheat Sheet 📝
Download Your Free Cheat Sheet [đź”— Link]
Includes:
- Top 50 OBD2 codes and fixes.
- Step-by-step troubleshooting flowchart.
- Recommended tools and apps.
Final Tips
- Keep Your Scanner in the Glovebox: For quick diagnostics on the go.
- Learn Basic Codes: P0101 (MAF) and P030X (misfires) are common DIY fixes.
- Join Forums: Sites like Reddit’s r/MechanicAdvice offer code-specific help.
🌟 Share this guide to empower fellow drivers! 🌟
