How to Test and Replace a Faulty Alternator ⚡🚗


Don’t Get Stranded—Diagnose and Fix Charging System Issues Yourself!


1. Why Alternators Fail (and Why It’s Urgent) 🔋

The alternator charges your battery and powers electrical systems. Ignoring failure signs risks:

  • Dead Battery: Alternators last 80,000–150,000 miles.
  • Stranded Breakdowns: No power for spark plugs or fuel pumps.
  • Costly Repairs: Towing + shop labor = 400–1,000.

Key Stat: 50% of “dead batteries” are actually caused by failing alternators (AAA).

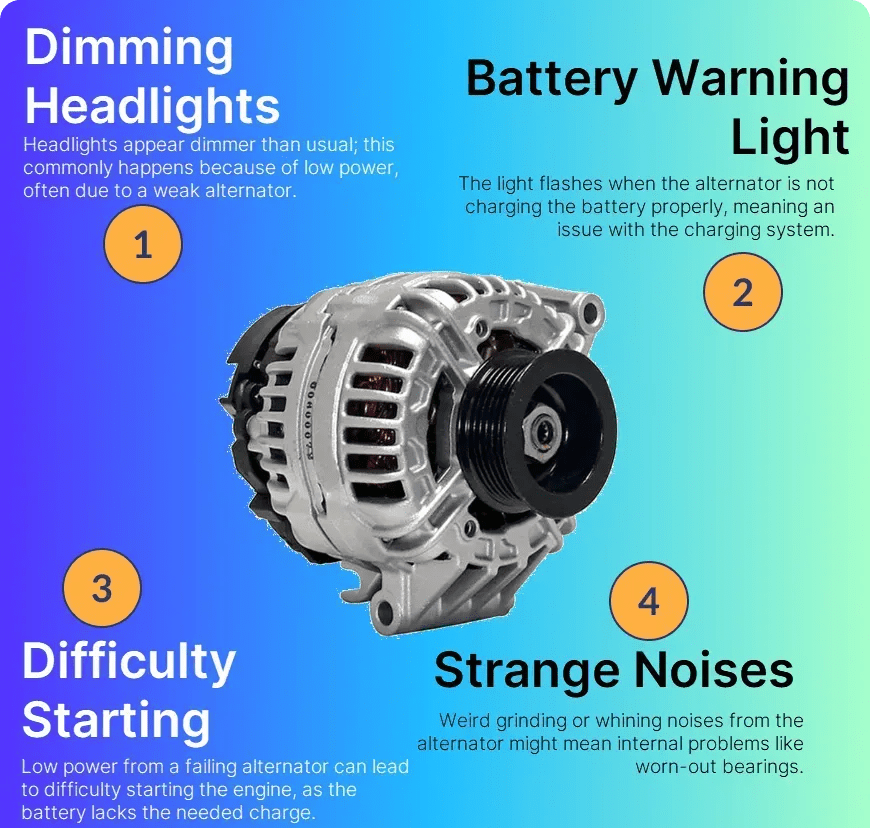

alternator vs. battery failure symptoms

2. Signs of a Bad Alternator 🚨

  • Dim or flickering headlights at idle.
  • Battery warning light on the dashboard.
  • Whining/growling noises from the engine bay.
  • Electrical glitches (radio resets, slow windows).
  • Burning rubber smell (slipping serpentine belt).

3. Tools You’ll Need 🧰

ToolPurposeCost
MultimeterTest voltage$20
Socket/wrench setRemove alternator$30
Serpentine belt toolRelease belt tension$15
Breaker barLoosen tight bolts$25
Replacement alternatorNew or remanufactured150–400

Pro Tip: Buy a remanufactured alternator for OEM reliability at 50% off.


4. How to Test the Alternator 🔍

A. Multimeter Test

  1. Test Battery Voltage (Engine Off):
    • Healthy: 12.4V–12.6V.
    • Low: Below 12.2V = weak battery or charging issue.
  2. Test Alternator Output (Engine Running):
    • Rev to 2,000 RPM: Should read 13.8V–14.8V.
    • Below 13V = Bad alternator.
    • Above 15V = Faulty voltage regulator.

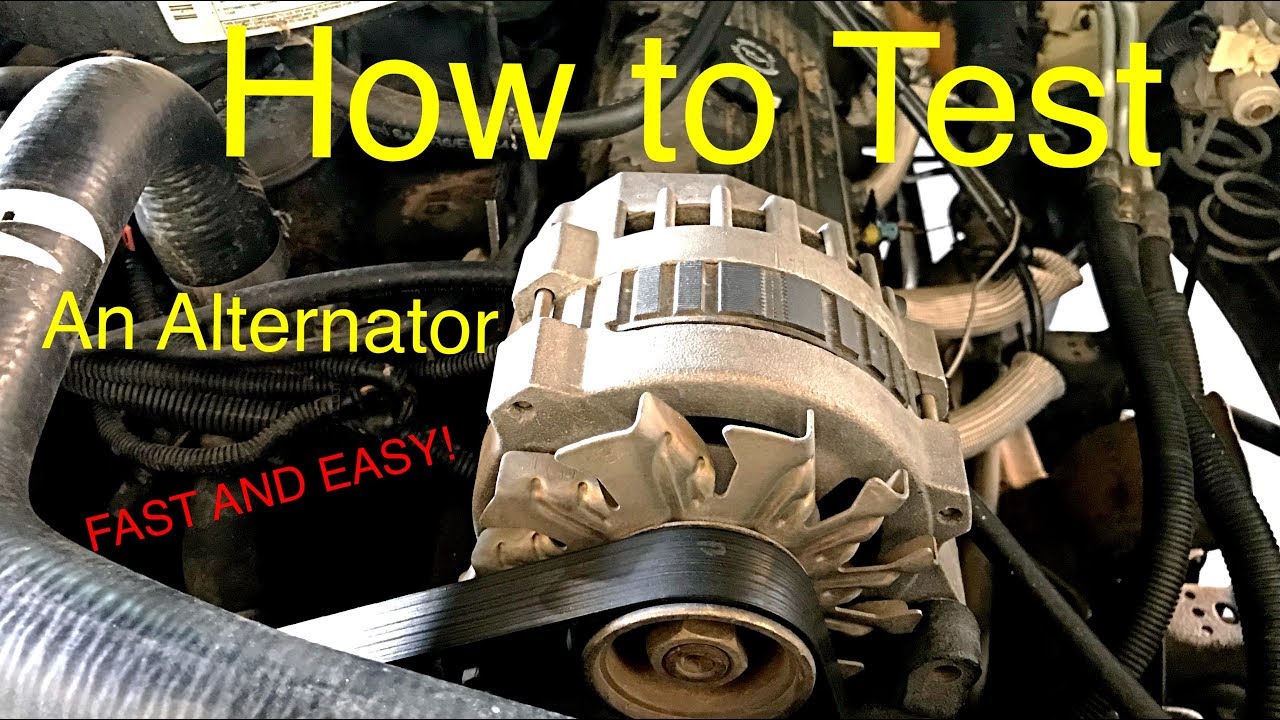

How to Test an Alternator (fast and simple)

B. Headlight Test

  1. Start the car, turn on headlights.
  2. Rev the engine:
    • Brightness increases = Alternator works.
    • No change or dimming = Alternator failing.

5. Step-by-Step Alternator Replacement 🔧

Step 1: Disconnect the Battery

  • Remove the negative (-) terminal first to prevent sparks.

Step 2: Remove the Serpentine Belt

  1. Locate the belt routing diagram (under the hood).
  2. Use a belt tool or breaker bar to relieve tension on the tensioner pulley.
  3. Slide the belt off the alternator pulley.

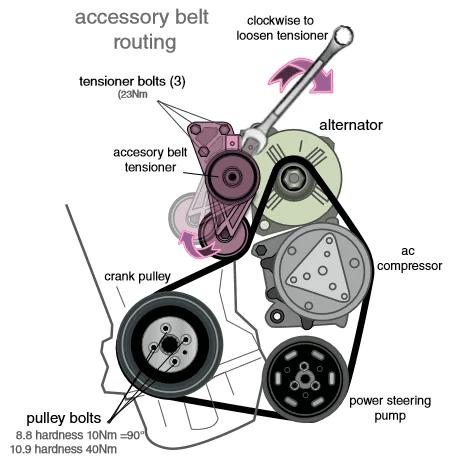

serpentine belt routing diagram

Step 3: Unbolt the Alternator

  1. Disconnect the electrical connector and power cable.
  2. Remove mounting bolts (usually 2–3).
  3. Lift out the old alternator.

Step 4: Install the New Alternator

  1. Position the new alternator and secure bolts (snug, not overtightened).
  2. Reconnect the electrical plug and power cable.
  3. Reinstall the serpentine belt using the routing diagram.

Step 5: Test the System

  1. Reconnect the battery.
  2. Start the car and check voltage (13.8V–14.8V).
  3. Listen for unusual noises.

6. Top 5 Alternator Brands 🏆

BrandPrice RangeBest ForWarranty
Denso200–400Toyota, Honda1–3 years
Bosch150–300European cars2 years
ACDelco180–350GM vehicles1 year
Remy160–280Trucks/SUVs18 months
DB Electrical100–200Budget builds1 year

7. 7 Costly Mistakes to Avoid ❌

  1. Ignoring Belt Tension: A loose belt squeals and slips.
  2. Mixing Up Bolts: Alternator bolts are often different lengths.
  3. Forgetting the Voltage Regulator: Built-in vs. external—check your model!
  4. Reusing Old Belt: Cracks/glazing cause slippage.
  5. Skipping Dielectric Grease: Prevents corrosion on terminals.
  6. Overtightening Mounting Bolts: Strips threads in the block.
  7. Testing Without a Load: Turn on headlights/AC during voltage checks.

8. FAQs ❓🌟

Q1: Can I drive with a bad alternator?

A: Only until the battery dies (10–30 minutes).

Q2: How long does alternator replacement take?

A: 1–2 hours for most cars.

Q3: Why does my new alternator whine?

A: Poor belt alignment or a defective unit—double-check installation.

Q4: Are refurbished alternators reliable?

A: Yes, if from a reputable brand (e.g., Bosch, Denso).

Q5: Can a bad alternator kill a new battery?

A: Yes! Under/overcharging destroys batteries.


9. Free Alternator Replacement Checklist 📝

[🔗 Download Your Free PDF Here]
Includes:

  • Torque specs for common cars.
  • Belt tension guidelines.
  • Post-installation test steps.
alternator replacement checklist preview
Alternator Replacement Checklist preview

Final Pro Tips 🌟

  • Upgrade Your Belt: Use Gates FleetRunner ($25) for longevity.
  • Check Pulley Alignment: Misalignment wears belts faster.
  • Keep Spare Bolts: Metric and SAE bolts get lost easily.

🚗 Share this guide to help friends avoid $500 repair bills! 🚗
