How to Replace a Blown Head Gasket (Without a Mechanic) 🛠️🚗

Q: Q1: Can I drive with a blown head gasket?

A: No! Immediate repair prevents engine seizure.

Q: Q2: How do I know if my head is warped?

A: Use a straightedge and feeler gauge—gaps >0.003” mean machining.

Q: Q3: Can I use sealants like K-Seal?

A: Temporary fix only—replacement is unavoidable long-term.

Q: Q4: What causes head gasket failure?

A: Overheating, poor maintenance, or age (80,000–150,000 miles).

Q: Q5: How long does a replacement last?

A: 60,000–100,000+ miles if done correctly.

Advanced Repairs

Save $1,500+ in Labor Costs—Learn Step-by-Step Repairs, Avoid Costly Mistakes, and Revive Your Engine!

1. Why a Blown Head Gasket Is a Crisis ⚠️

The head gasket seals the engine block and cylinder head, preventing coolant, oil, and combustion gases from mixing. A failure leads to:

Overheating: Coolant leaks into combustion chambers or oil passages.
White exhaust smoke: Burning coolant.
Milky oil: Coolant mixing with oil (a.k.a. “mayonnaise” under the oil cap).
Loss of power: Compression leaks between cylinders.

Key Stat: Ignoring a blown head gasket can destroy your engine in under 50 miles (AAA).

2. Tools You’ll Need 🧰

Tool	Purpose	Cost
Torque Wrench	Precise bolt tightening	50–200
Cylinder Head Bolts	New bolts (never reuse old ones!)	30–100
Straightedge/Feeler Gauge	Check head warping	20–50
Gasket Scraper	Remove old gasket material	10–20
Engine Hoist/Jack	Lift the cylinder head (if needed)	150–300 (rent)
Head Gasket Kit	Includes gasket, seals, and bolts	100–300
Dial Indicator	Check head flatness (optional)	40–100

Pro Tip: Rent tools like hoists from AutoZone’s Loan-A-Tool program.

3. Step-by-Step Replacement Guide 🔧

Step 1: Prep the Engine

Safety First: Disconnect the battery, drain coolant/oil, and let the engine cool.
Remove Obstructions: Take off the intake manifold, exhaust manifold, timing belt, and valve cover.

How to Flush Coolant: Step-By-Step Instructions from Kyle Lindsey

Step 2: Remove the Cylinder Head

Label and disconnect fuel lines, sensors, and wiring harnesses.
Unbolt the head in the reverse of the torque sequence (usually outside-in).
Lift the head gently—avoid prying (use a rubber mallet if stuck).

Red Flag: If the head won’t budge, double-check for missed bolts!

Step 3: Inspect for Damage

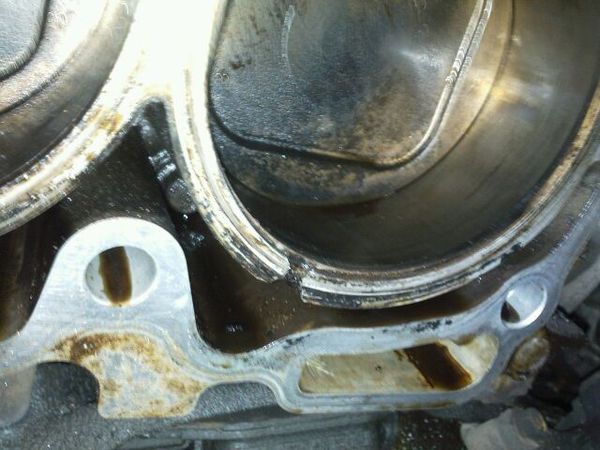

Check Warping: Place a straightedge on the head. Gaps >0.003” (0.076mm) mean machining is needed.
Crack Inspection: Look for hairline cracks near coolant passages (use dye penetrant if unsure).

Case Study: A warped Honda Civic head costs $200 to machine—cheaper than a $1,200 replacement.

Step 4: Clean Surfaces

Scrape Gasket Residue: Use a plastic scraper to avoid scratching aluminum heads.
Degrease: Brake cleaner or acetone for oil/carbon buildup.

Pro Tip: Cover oil/coolant passages with rags to prevent debris entry.

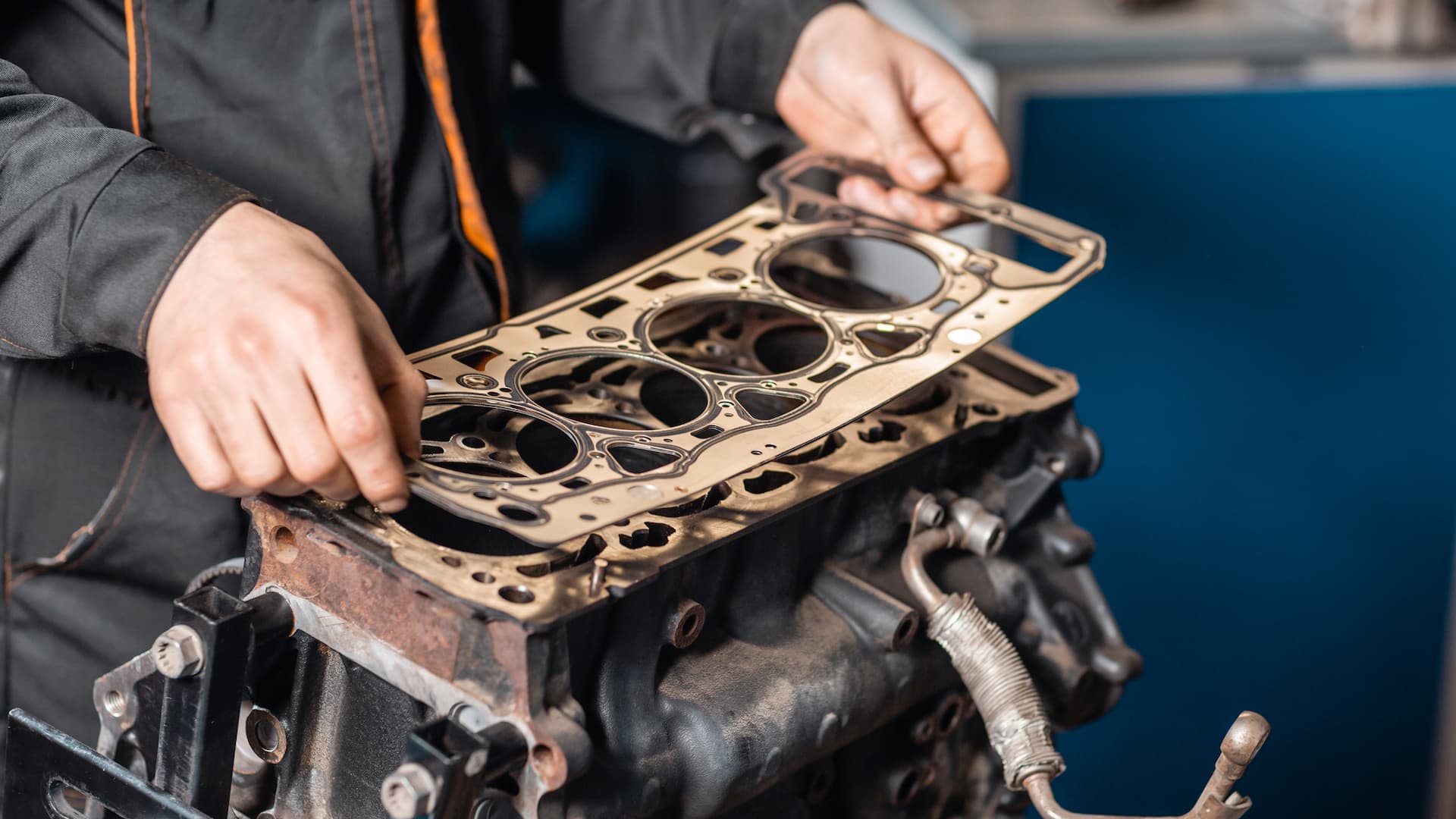

Step 5: Install the New Head Gasket

Lay the gasket dry (no sealant) unless specified by the manufacturer.
Align with dowel pins and bolt holes.

Step 6: Reassemble the Engine

Install new head bolts (lubricate threads if required).
Torque bolts in 3 stages (e.g., 30 ft-lbs → 60 ft-lbs → 90° turn).
Reattach manifolds, timing components, and refill fluids.

Step 7: Test for Leaks

Refill coolant and oil.
Start the engine and check for:
- Bubbles in the coolant reservoir (combustion leak).
- White smoke or overheating.
- Oil/coolant mixing.

4. Common Mistakes to Avoid 🚫

Reusing Old Bolts: Torque-to-yield (TTY) bolts stretch—always replace them.
Skipping Machining: A warped head will blow the new gasket.
Wrong Torque Sequence: Uneven pressure causes head warping.
Rushing the Job: Allow 10–15 hours for a first-time DIYer.

5. Cost Breakdown: DIY vs. Mechanic 💸

Expense	DIY Cost	Mechanic Cost
Head Gasket Kit	100–300	200–500
Machining	150–300	150–300
Tools (rental)	50–100	–
Labor	$0	1,500–2,500
Total	300–700	1,850–3,300

Pro Tip: Save old bolts to cross-reference length when buying replacements.

6. Top 5 Head Gasket Kits for 2024 🛒

Kit	Compatibility	Includes	Price
Fel-Pro HS26258PT	Honda Civic (D-Series)	Bolts, seals, gasket	$120
MLS 9116PT	Ford 5.0L V8	Multi-layer steel gasket	$250
Victor Reinz 5767SE	BMW N52/N54	Rubber-coated gasket	$180
Cometic C5781-040	Subaru EJ25 Turbo	High-performance MLS	$300
OEM Toyota 11115-31010	Toyota Camry	Factory-grade reliability	$150

7. FAQs ❓

Q1: Can I drive with a blown head gasket?

A: No! Immediate repair prevents engine seizure.

Q2: How do I know if my head is warped?

A: Use a straightedge and feeler gauge—gaps >0.003” mean machining.

Q3: Can I use sealants like K-Seal?

A: Temporary fix only—replacement is unavoidable long-term.

Q4: What causes head gasket failure?

A: Overheating, poor maintenance, or age (80,000–150,000 miles).

Q5: How long does a replacement last?

A: 60,000–100,000+ miles if done correctly.

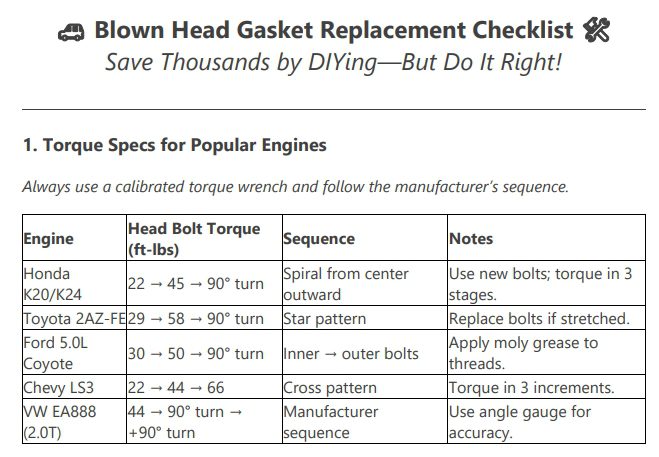

8. Free Head Gasket Replacement Checklist 📝

[🔗 Download Your Free PDF Here]
Includes:

Torque specs for popular engines.
Step-by-step disassembly guide.
Post-rebuild testing protocol.

head gasket replacement checklist — **Head Gasket Replacement** Checklist

9. Final Tips 💡

Label Bolts: Use egg cartons or zip-lock bags to organize fasteners.
Pressure Test: Check the cooling system for leaks before starting.
Replace Timing Components: Prevent future failures while the engine is apart.
