How to Diagnose and Fix a Rough Idling Engine: A Step-by-Step Guide for Beginners

Table of Contents


1. Why Rough Idling Is a Red Flag ⚠️

A rough idle isn’t just annoying—it’s a symptom of deeper issues:

  • Engine Damage: Misfires wear down pistons and catalytic converters.
  • Safety Risks: Stalling in traffic can lead to accidents.
  • Fuel Waste: Poor combustion increases gas consumption by 10–20%.

Did You Know?

  • 40% of rough idle cases are caused by dirty fuel injectors or faulty spark plugs.
  • Ignoring a P0300 code can lead to a $2,000+ repair bill.

2. Tools You’ll Need 🧰

Beginner Essentials:

  • OBD2 Scanner: FIXD (60)orBlueDriver(60)orBlueDriver(100).
  • Spark Plug Socket: 5/8” or 13/16” size.
  • Multimeter: For testing sensors and coils.

Advanced Tools:

  • Fuel Pressure Gauge: Tests pump health (e.g., OEM 25085, $30).
  • Smoke Machine: Detects vacuum leaks ($150+).

3. Step 1: Scan for OBD2 Codes 🔍

Common Codes:

  • P0300: Random misfire.
  • P0171/P0174: System too lean (vacuum leak or bad MAF).
  • P0507: High idle RPM (sticky throttle body).

How to Scan:

  1. Plug the scanner into the OBD2 port (under the dashboard).
  2. Turn the ignition to “ON” (don’t start the engine).
  3. Record codes and research them using an OBD2 code database.
screenshot of obd2 scanner showing a p0300 code.

4. Step 2: Inspect Spark Plugs & Wires ⚡

Signs of Trouble:

  • Worn Plugs: Cracked porcelain, eroded electrodes.
  • Faulty Wires: Cracks or burns (test resistance with a multimeter).

Fix:

  • Replace plugs with OEM-recommended type (e.g., NGK Laser Iridium).
  • Use dielectric grease on wire boots to prevent corrosion.

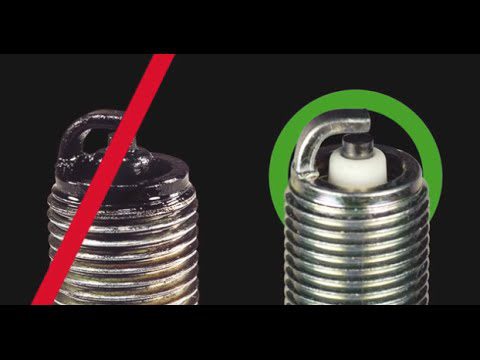

side by side photos healthy vs. fouled spark plugs.

5. Step 3: Check the Fuel System ⛽

Test Fuel Pressure:

  1. Locate the Schrader valve on the fuel rail.
  2. Attach a pressure gauge. Normal range: 35–45 PSI for most gas engines.
  3. Low pressure? Replace the fuel filter or pump.

Clean Injectors:

  • Use Techron Complete Fuel System Cleaner ($15) in the gas tank.

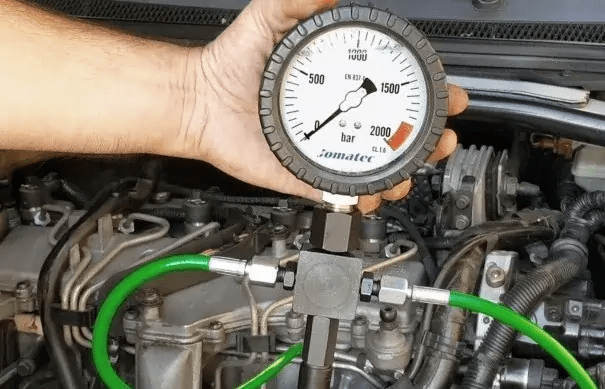

fuel pressure gauge attached to a fuel rail.

6. Step 4: Hunt for Vacuum Leaks 🌬️

DIY Leak Detection:

  1. Spray carb cleaner around hoses and intake manifold.
  2. If RPMs spike, you’ve found a leak.

Common Leak Points:

  • Cracked PCV hoses.
  • Loose intake manifold gasket.

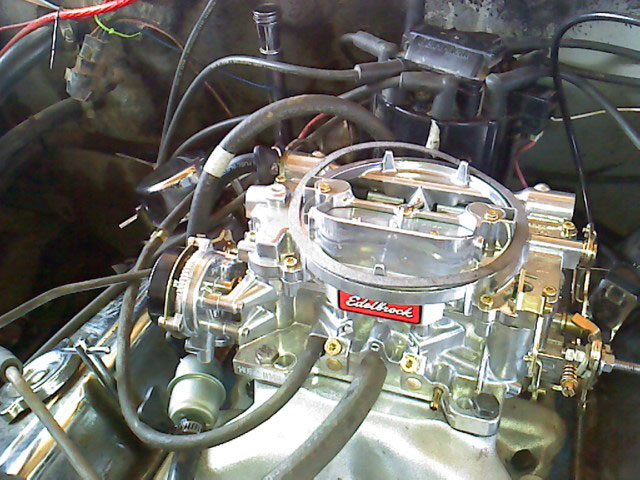

vacuum hose routing in a typical engine.

7. Step 5: Test Critical Sensors 📡

MAF Sensor:

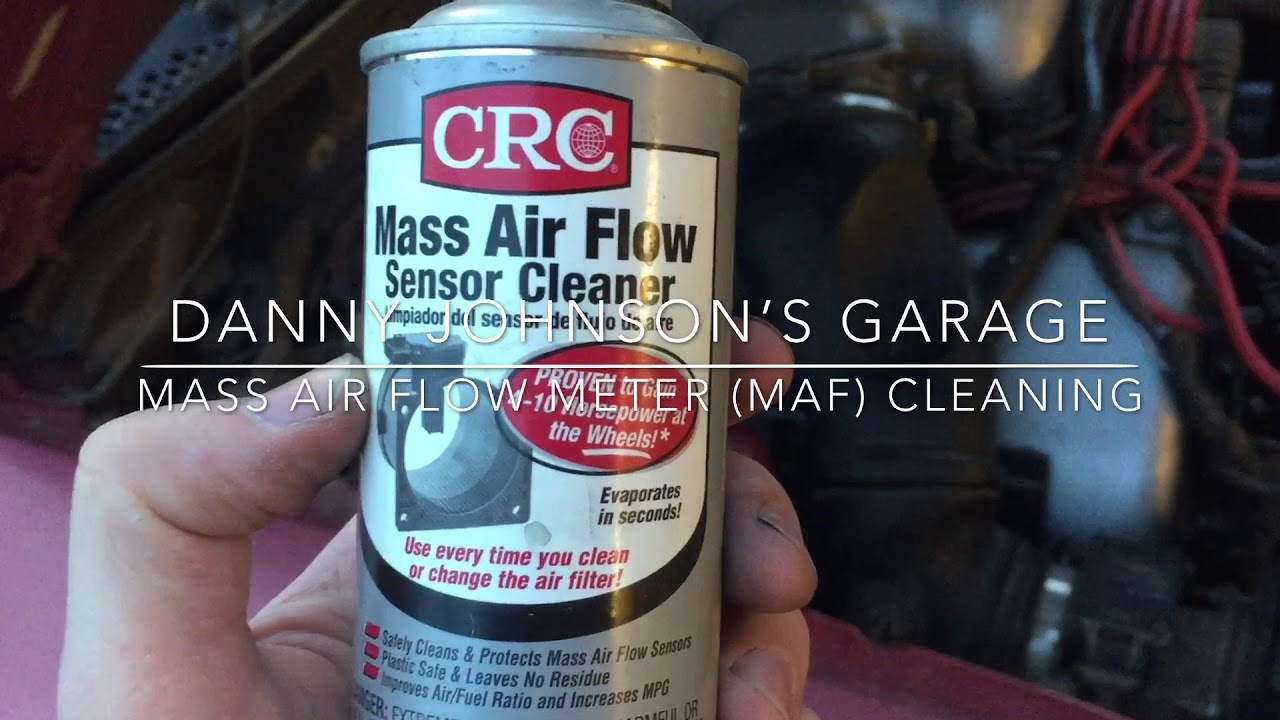

  • Unplug it. If idle improves, clean it with MAF cleaner ($10).

Throttle Position Sensor (TPS):

  • Test voltage with a multimeter (should rise smoothly from 0.5V to 4.5V).

Oxygen (O2) Sensor:

  • Replace if readings are sluggish (use a scan tool to monitor).
YouTube video player

8. Step 6: Diagnose Ignition Components 🔥

Test Ignition Coils:

  1. Measure primary resistance (0.5–2.0 ohms).
  2. Swap coils between cylinders—if the misfire moves, replace the coil.

Check Distributor Cap & Rotor (Older Cars):

  • Look for carbon tracks or corrosion.

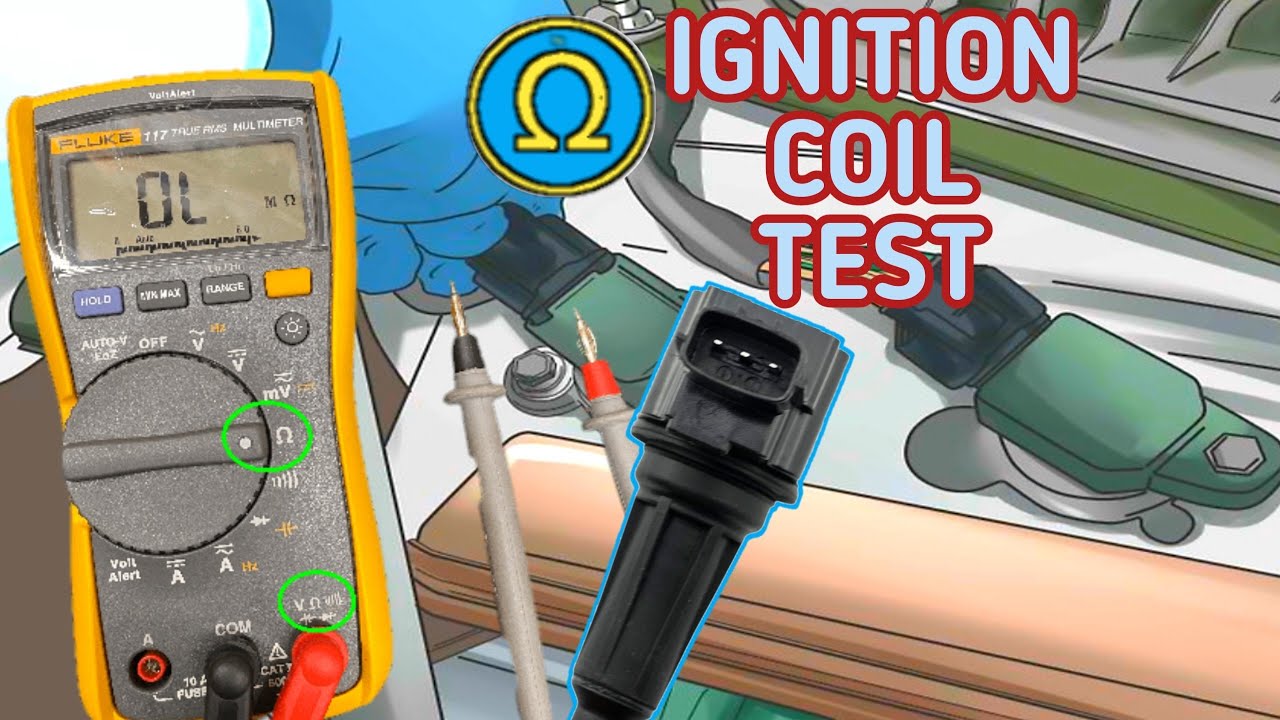

multimeter testing an ignition coil.

9. Top 5 Causes & Fixes 🛠️

CauseSymptomsFix
Dirty Throttle BodyStalling, surging RPMClean with throttle body cleaner.
Faulty EGR ValveRough idle, knockingReplace or clean the EGR valve.
Clogged Fuel InjectorsMisfires, poor accelerationUse injector cleaner or replace.
Bad IAC ValveErratic idle, stallingReplace the idle air control valve.
Worn Spark PlugsVibrations, check engine lightInstall new plugs.

10. Common DIY Mistakes ❌

MistakeRiskSmart Fix
Over-tightening plugsStripped threads in the headUse a torque wrench.
Ignoring vacuum leaksWorsening fuel economyFix leaks ASAP with silicone hose.
Using wrong fuelDetonation, engine damageFollow the manual’s octane guidelines.

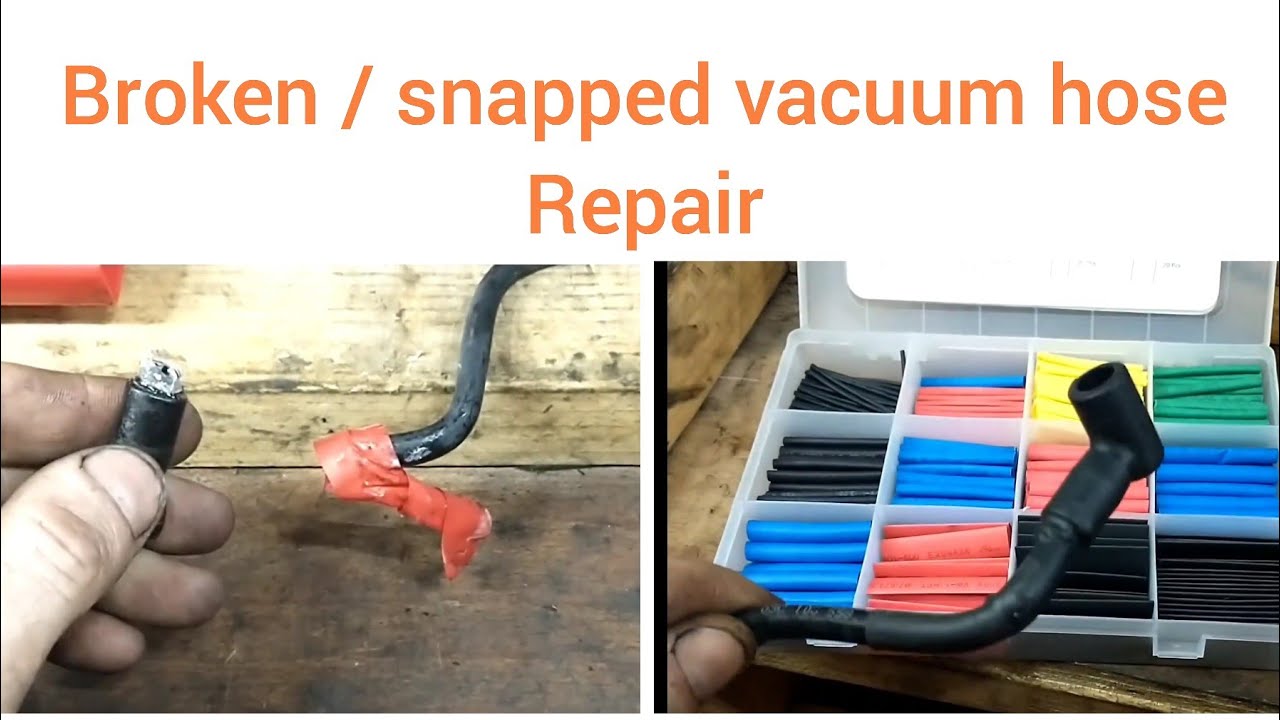

cracked vs. repaired vacuum hose.

11. Prevent Future Issues 🛡️

  • Replace Air Filters: Clogged filters starve the engine of air.
  • Use Fuel Additives: Clean injectors every 5,000 miles.
  • Check Engine Mounts: Worn mounts cause excessive vibrations.

12. When to Call a Mechanic 👨🔧

Seek Help If:

  • Codes like P0016 (camshaft timing) or P0340 (cam sensor) appear.
  • You smell gasoline inside the cabin (fire hazard).
  • Rough idle persists after basic fixes.

13. FAQs ❓

Q: Can a bad battery cause rough idle?

A: Yes! Weak batteries strain the alternator, disrupting sensors.

Q: Why does my car idle rough when AC is on?

A: The AC compressor loads the engine—check the serpentine belt and idle control valve.

Q: How much does it cost to fix a rough idle?

A: 20(cleaningthrottlebody)to20(cleaningthrottlebody)to1,000+ (replacing fuel injectors).


14. Free Diagnostic Checklist 📝

Download Your Free Checklist [đź”— Link]
Includes:

  • Step-by-step diagnostic flow.
  • OBD2 code cheat sheet.
  • Emergency repair contacts.

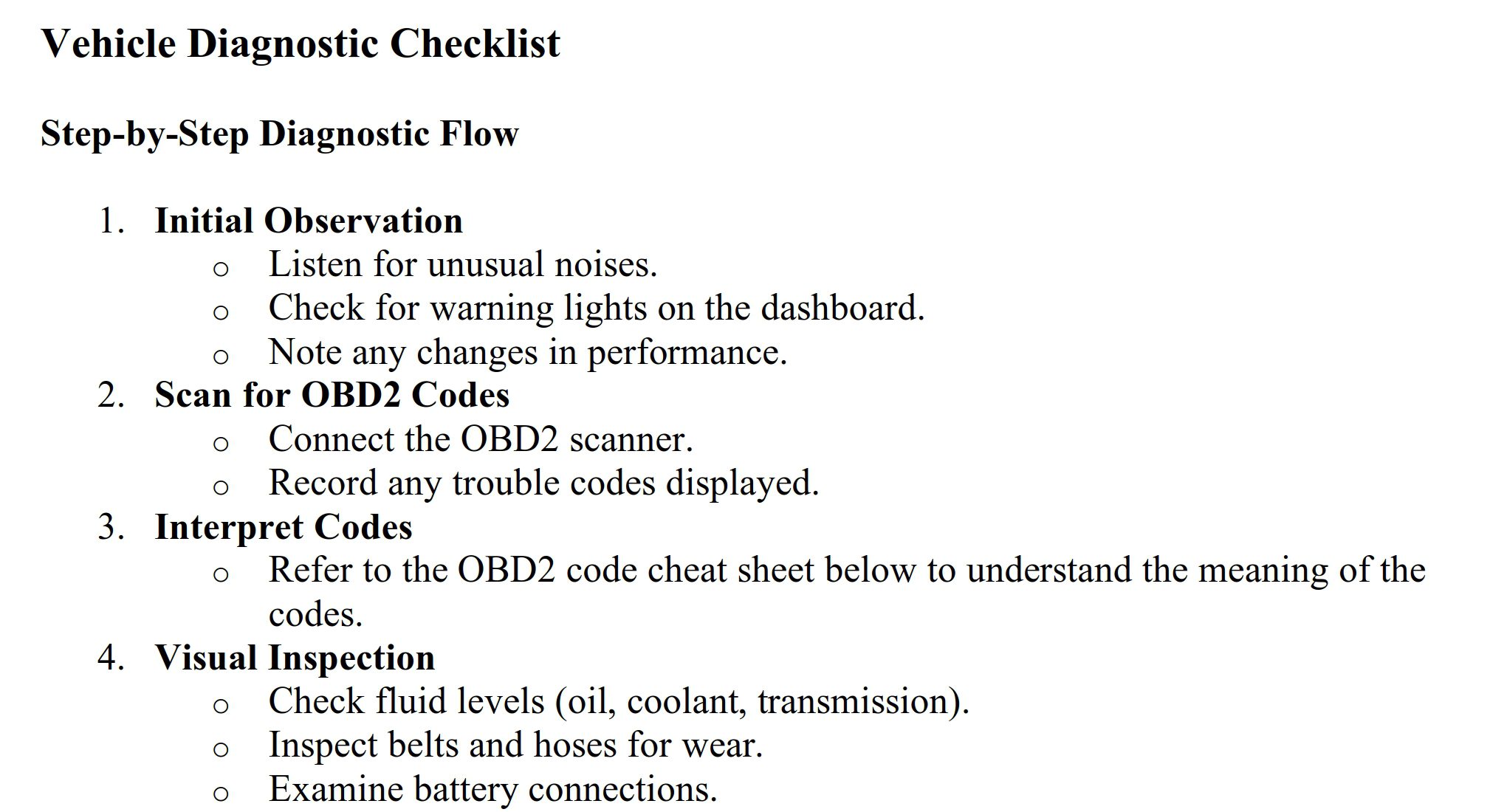

vehicle diagnostic checklist
Checklist preview

Final Pro Tips

  • Start Simple: 70% of rough idle fixes are plugs, filters, or cleaning.
  • Document Repairs: Helps mechanics diagnose faster.
  • Stay Calm: Most fixes are DIY-friendly with the right tools!
