Holden Trax, Car Fuse Box, Holden

Holden Trax 2017-2020 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Tuesday, August 5, 2025 12:58 PM

In this article we take a look at the first-generation Holden Trax (TJ, facelift) produced from 2017 to 2020. Here you will find the fuse box diagrams for the 2017, 2018, 2019 and 2020 Holden Trax, get information on the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay.

Passenger Compartment Fuse Box

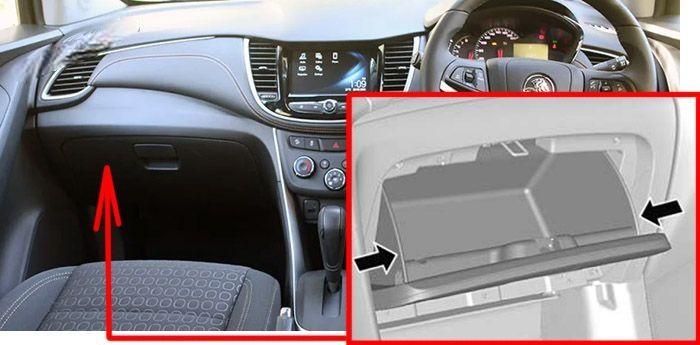

Fuse Box Location

The interior fuse block is located in the glove box.

holden trax 2017 2020 fuse layout 1 2024 12 16 13 47 11

Open the glove box.
Squeeze the top outer edges of the glove box towards the centre and lower downwards.
Release the damper on the left side of the glovebox.

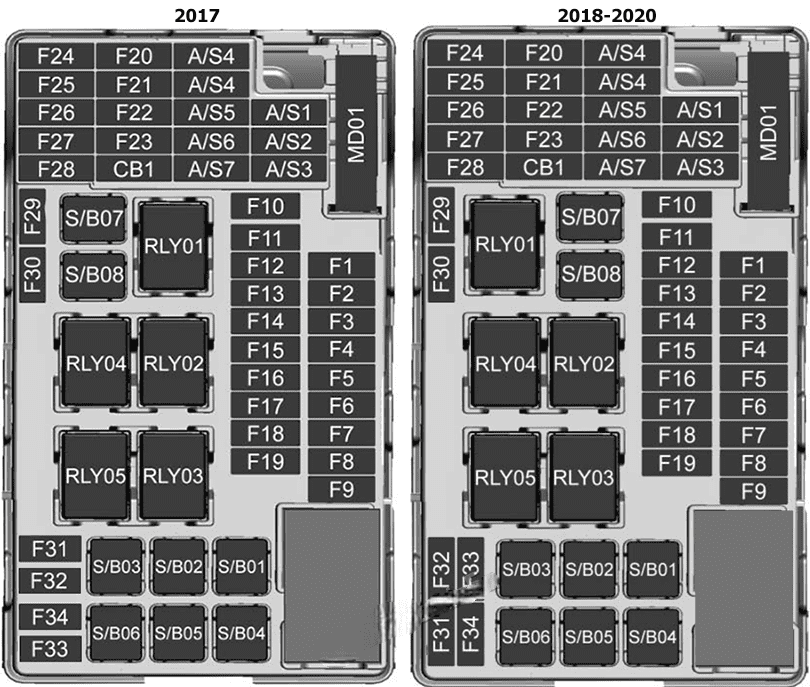

Fuse Box Diagram

holden trax 2017 2020 fuse layout 2 2024 12 16 13 47 25

Assignment of the fuses in the dashboard

№	Description
F1	BCM 1
F2	BCM 2
F3	BCM 3
F4	BCM 4
F5	BCM 5
F6	BCM 6
F7	BCM 7
F8	BCM 8
F9	DLIS
F10	SDM B+
F11	DLC
F12	HVAC MDL
F13	L/GATE RLY
F14	CGM
F15	2018-2020: LDW Gentex
F16	–
F17	ESCL B+
F18	2017: UPA B+ / SBZA BT 2018-2020: PAS / SBZA
F19	BCM RVC
F20	Clock Spring
F21	2017: AC APO 2018-2020: APO AC / PRNDL
F22	2017: DC APO 2018-2020: APO DC FRT
F23	–
F24	–
F25	2018: OnStar
F26	2018: EVP
F27	2017: IPC 2018-2020: IPC PTC RLAD
F28	2018-2020: TRLR Feed2
F29	–
F30	–
F31	IPC B+
F32	Audio / Nav
F33	2018-2020: TRLR Feed1
F34	PEPS Module
S/B01	2018-2020: PTC 1
S/B02	2018-2020: PTC 2
S/B03	PWR WNDW MTR FRT
S/B04	PWR WNDW REAR
S/B05	Logistic Mode RLY
S/B06	2018-2020: PWR Seat DR
S/B07	–
S/B08	Trailer Interface Module
Relays
RLY1	ACC/RAP
RLY2	L/GATE
RLY3	–
RLY4	Blower
RLY5	Logistic Mode

Engine Compartment Fuse Box

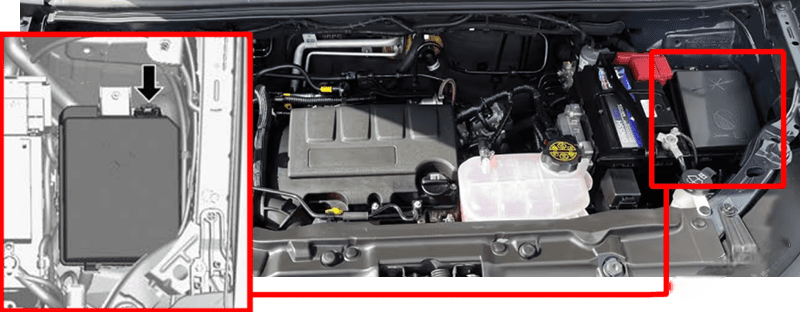

Fuse Box Location

To disengage the cover, lift upwards and remove.

holden trax 2017 2020 fuse layout 3 2024 12 16 13 47 38

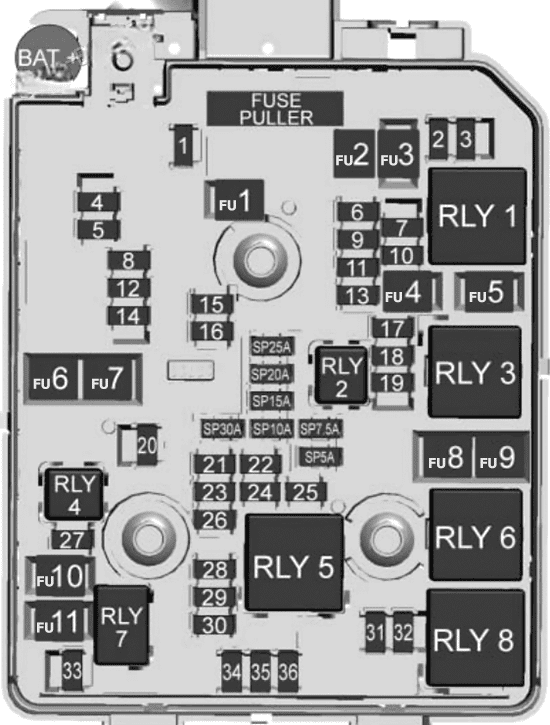

Fuse Box Diagram

holden trax 2017 2020 fuse layout 4 2024 12 16 13 47 49

Assignment of the fuses in the engine compartment

№	Description
F1	Sunroof
F2	OSRVM SW, Rain Sensor, PWR Window Driver
F3	–
F4	–
F5	EBCM Valve
F6	–
F7	ESCL
F8	TCM B+
F9	–
F10	HDLP Leveling SW, HDLP Leveling MTR LH/RH, Rear Vision Camera ISRVM
F11	Rear Wiper
F12	RR WDW Defog
F13	–
F14	OSRVM Heat
F15	–
F16	Heated Seat Module
F17	2017: Compass Module, TIM R/C 2018: Compass Module, TIM DC/DC Converter FSCM R/C 2019-2020: TIM
F18	ECM R/C, TCM R/C, FICM R/C
F19	Fuel Pump
F20	–
F21	Fan RLY (AUX BEC)
F22	–
F23	Ignition Coil, Injector Coil
F24	Washer Pump
F25	–
F26	2017: Canister Purge SOL, Water Valve SOL, Turbo Wastegate SOL, Turbo Bypass SOL, O2 Sensor Pre/Post 2018-2020: EMS Var-1
F27	–
F28	–
F29	ECM PT IGN-1, IGN-2
F30	2017: MAF Sensor 2018-2020: EMS Var-2
F31	High Beam LH
F32	High Beam RH
F33	ECM B+
F34	Horn
F35	A/C Clutch
F36	Front Fog Lamp
FU1	EBCM Pump
FU2	FRT Wiper
FU3	Blower
FU4	IEC R/C
FU5	–
FU6	–
FU7	–
FU8	Cooling Fan Low/Mid
FU9	Cooling Fan High
FU10	EVP
FU11	Starter SOL
SP	Spare Fuses
Relays
1	Run Crank
2	Fuel Pump
3	2018-2020: Cooling Fan Mid
4	–
5	PT Relay
6	Cooling Fan High
7	Starter
8	Cooling Fan Low

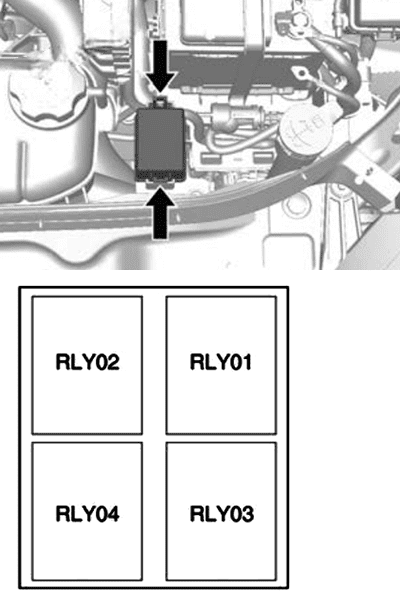

Auxiliary relay box

To disengage the cover, lift upwards and remove.

holden trax 2017 2020 fuse layout 5 2024 12 16 13 47 57

№	Relays
RLY01	ELECTRIC VACUUM PUMP
RLY02	COOLING FAN 1
RLY03	COOLING FAN 2
RLY04	–

Luggage Compartment Fuse Box

Fuse Box Location

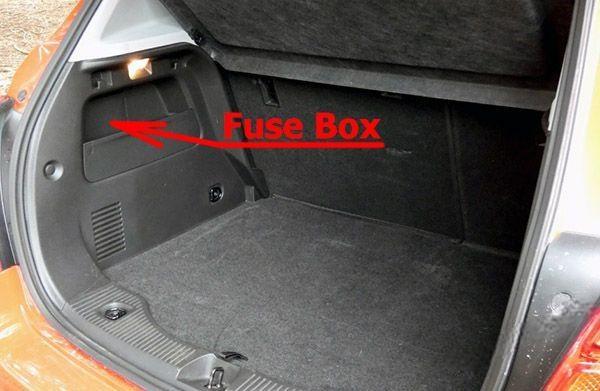

The rear compartment fuse box is located in the passenger side of the rear compartment. To remove the cover, pull outwards.

holden trax 2017 2020 fuse layout 7 2024 12 16 13 48 34

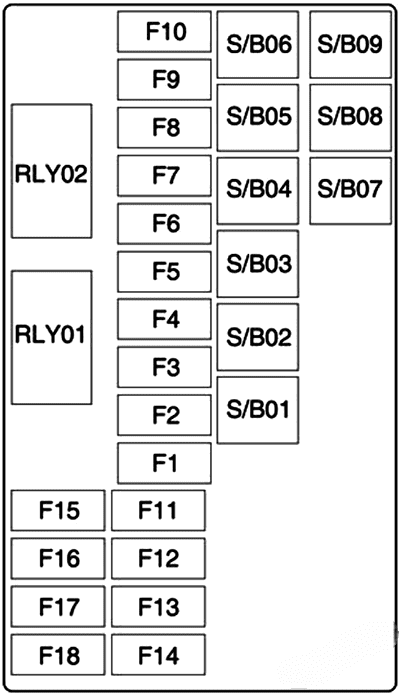

Fuse Box Diagram (2017)

holden trax 2017 2020 fuse layout 8 2024 12 16 13 48 41

Assignment of the fuses in the trunk (2017)

№	Description
F1	–
F2	–
F3	–
F4	–
F5	–
F6	–
F7	–
F8	–
F9	–
F10	–
F11	–
F12	–
F13	–
F14	–
F15	–
F16	–
F17	Spare
F18	–
S/B01	–
S/B02	–
S/B03	–
S/B04	AC DC INV
S/B05	–
S/B06	–
S/B07	–
S/B08	–
Relays
RLY1	–
RLY2	–

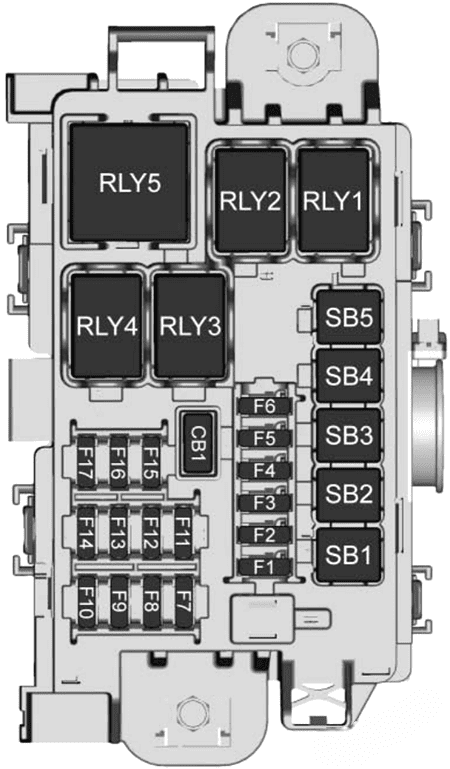

Fuse Box Diagram (2018-2020)

holden trax 2017 2020 fuse layout 9 2024 12 16 13 48 49

Assignment of the fuses in the trunk (2018-2020)

№	Description
F1	2018: Amplifier
F2	2018: RDCM
F3	–
F4	2018: NOX Soot
F5	2018: NOX Soot/Heater Pipe
F6	2018: SCRPM
F7	2018: SCRPM
F8	–
F9	–
F10	–
F11	–
F12	–
F13	–
F14	–
F15	–
F16	–
F17	–
SB1	2018: DC/DC
SB2	2018: DC/DC
SB3	DC/AC Inverter
SB4	2018: NOX Heater Pipe
SB5	–
Relays
RLY1	–
RLY2	–
RLY3	2018: ECM/NOX Soot
RLY4	2018: ECM/NOX Heater Pipe
RLY5	–
