Holden Caprice WN / Holden Statesman WN 2013-2017 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Monday, May 5, 2025 12:33 PM

holden caprice wn holden statesman wn 2013 2017 fuse layout

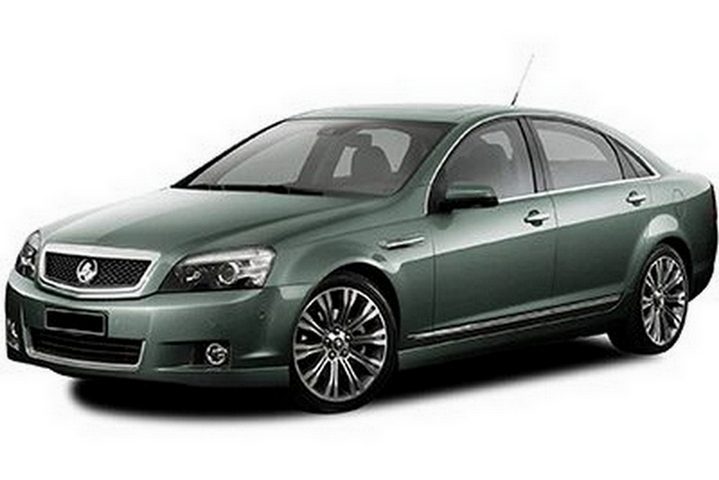

In this article we focus on the facelifted third generation Holden Caprice / Statesman (WN) produced from 2013 to 2017. Here you will find Holden Caprice / Holden Statesman 2013, 2014, 2015, 2016 and 2017 fuse box diagrams, information on the location of the fuse boxes in the vehicle and the allocation of the individual fuses (fuse layout) and relays.

Passenger Compartment Fuse Box

Fuse Box Location

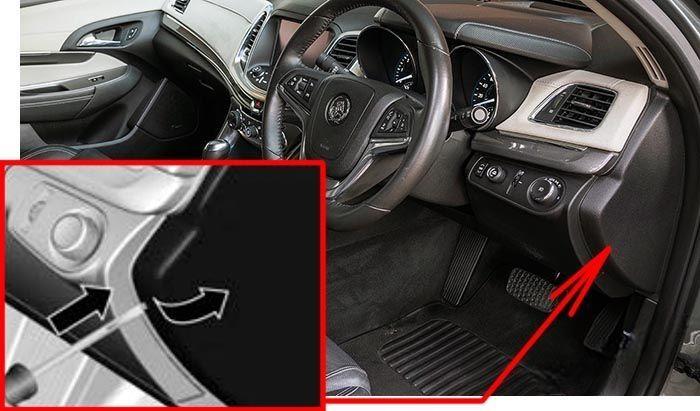

Insert a screwdriver in the slot indicated and lever off the fuse panel cover.

holden caprice wn holden statesman wn 2013 2017 fuse layout 1 2024 12 13 09 57 19

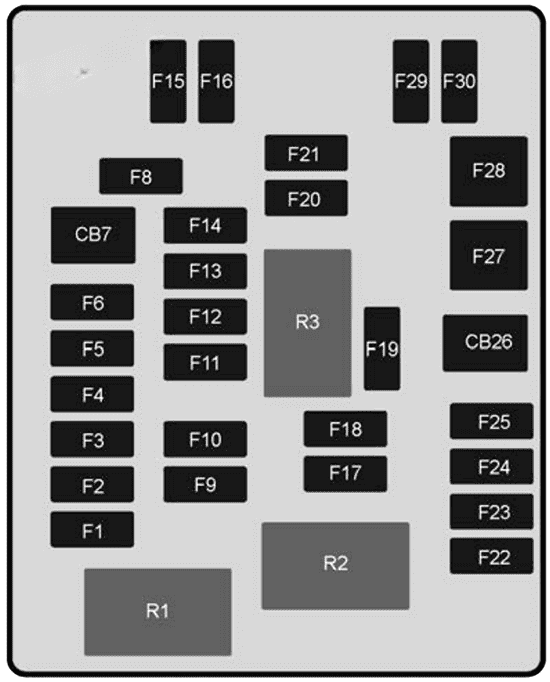

Fuse Box Diagram

holden caprice wn holden statesman wn 2013 2017 fuse layout 2 2024 12 13 09 57 27

Assignment of the fuses in the dashboard

№	Amps	Description
F1	15A	BODY CONTROL MODULE 1
F2	10A	DIAGNOSTIC LINK CONNECTOR
F3	30A	2013-2015: LPG SHUT-OFF SOLENOID
F4	15A	BODY CONTROL MODULE 2
F5	2A	IGNITION SWITCH
F6	15A	ELECTRIC STEERING CONTROL LOCK
CB7	–	–
F8	–	–
F9	–	–
F10	–	–
F11	30A	SHUNT 1
F12	10A	AIRBAG / AOS
F13	15A	INSTRUMENT CLUSTER
F14	15A	HVAC CONTROL MODULE
F15	10A	RAIN SENSOR
F16	15A	BODY CONTROL MODULE 3
F17	15A	2013-2015: LPG SHUT-OFF SOLENOID
F18	–	–
F19	2A	SWC BACKLIGHT
F20	–	–
F21	–	–
F22	30A	SHUNT 2
F23	15A	BODY CONTROL MODULE 4
F24	15A	BODY CONTROL MODULE 5
F25	10A	BODY CONTROL MODULE 6
CB26	–	–
F27	30A	BODY CONTROL MODULE 8
F28	40A	BLOWER FAN
F29	15A	ACCESSORIES
F30	15A	BODY CONTROL MODULE 7
Relays
R1		LOGISTICS MODE
R2		2013-2015: LPG SHUT-OFF SOLENOID
R3		2013-2015: LPG SHUT-OFF SOLENOID

Engine Compartment Fuse Box

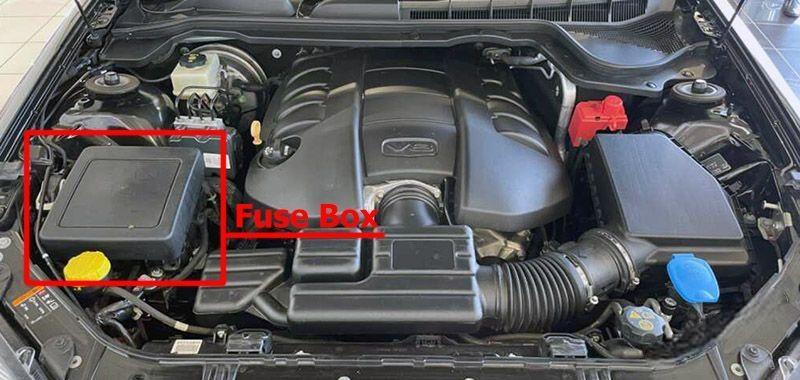

Fuse Box Location

Remove the clip-on cover to access.

holden caprice wn holden statesman wn 2013 2017 fuse layout 3 2024 12 13 09 57 36

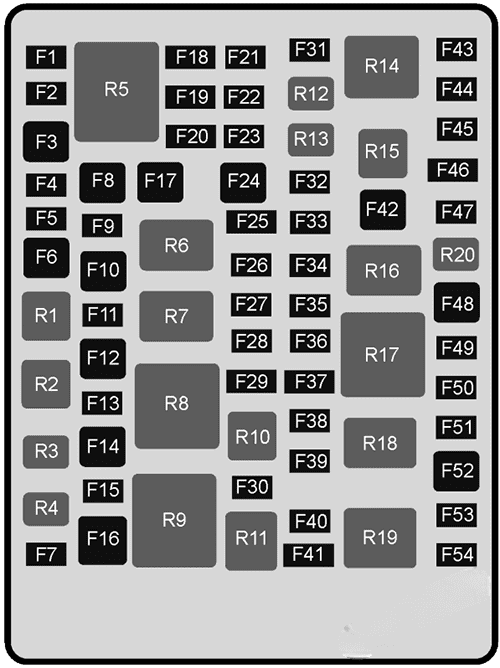

Fuse Box Diagram

holden caprice wn holden statesman wn 2013 2017 fuse layout 4 2024 12 13 09 57 45

Assignment of the fuses in the engine compartment

№	Amps	Description
F1	10A	HEATED MIRRORS
F2	–	–
F3	30A	REAR DEMISTER
F4	–	–
F5	15A	SPOT LAMP RH
F6	30A	DRIVER POWER SEAT
F7	20A	WASHER PUMP
F8	30A	PASSENGER POWER SEAT
F9	15A	EMER / VEH / FT / LP
F10	–	–
F11	20A	DRIVING LAMPS
F12	25A	HEADLAMP WASHER
F13	15A	SPOT LAMP LH
F14	60A	ABS PUMP
F15	30A	ABS VALVES
F16	–	–
F17	–	–
F18	15A	HEATED FRONT SEATS
F19	–	–
F20	–	–
F21	7.5A	FRONT PASSENGER WINDOW SWITCH
F22	20A	REAR WIPER
F23	20A	SUNROOF
F24	30A	FRONT WIPERS
F25	5A	AOS IGN / IPC IGN
F26	20A	LRBEC IGN
F27	–	–
F28	20A	IGN / INJ EVEN (V8)
F29	15A	ECM (V8), IGN ODD (V6) / EMIS 1
F30	–	–
F31	–	–
F32	15A	FOG LAMPS
F33	10A	IGNITION-IP / BODY
F34	10A	FUEL SYSTEM CONTROL MODULE IGNITION
F35	–	–
F36	5A	ESCL
F37	15A	EMIS 2 / IGN EVEN (V6)
F38	20A	ECM (V6), INJ / IGN ODD (V8)
F39	10A	INCLR PUMP
F40	–	–
F41	15A	TRANSMISSION CONTROL MODULE / ELECTRIC POWER STEERING
F42	30A	STARTER MOTOR
F43	–	–
F44	15A	LH HID HEADLAMP
F45	15A	RH HID HEADLAMP
F46	10A	LH & RH HI BEAM HEADLAMP
F47	15A	HORN
F48	60A	ENGINE COOLING FAN
F49	10A	AUTOMATIC HEADLAMP LEVELLING
F50	15A	TRANSMISSION CONTROL MODULE IGN
F51	15A	ENGINE CONTROL MODULE IGN
F52	30A	BRAKE VACUUM PUMP
F53	10A	AIR CONDITIONING COMPRESSOR CLUTCH
F54	10A	VAPORISER CONTROL MODULE
Relays
R1		DRIVING LAMPS
R2		HEADLAMP WASHER
R3		REAR WASHER PUMP
R4		FRONT WASHER PUMP
R5		REAR DEMISTER
R6		FRONT WIPER CONTROL
R7		WIPER SPEED
R8		ENGINE CONTROL MODULE
R9		–
R10		INCLR PUMP
R11		–
R12		REAR WIPER CONTROL
R13		FOG LAMPS
R14		LOW BEAM HEADLAMPS
R15		HIGH BEAM HEADLAMPS
R16		STARTER
R17		RUN / CRANK
R18		BRAKE VACUUM PUMP
R19		AIR-CONDITIONING CONTROL
R20		HORN

Note: Relays R3, R4, R12, R13 and R20 are PCB mounted relays.

Luggage Compartment Fuse Box

Fuse Box Location

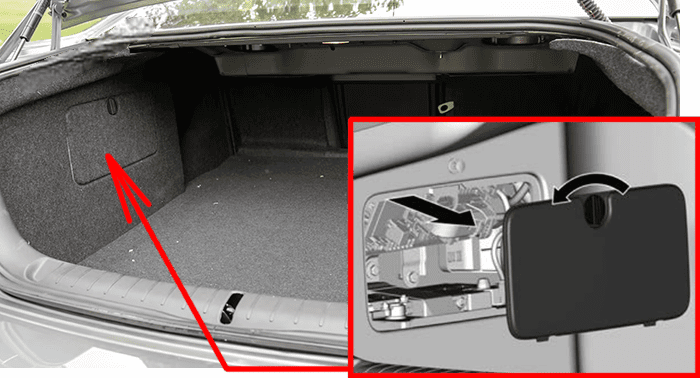

The fuse panel is located on the left side of the boot, above the battery. Rotate the catch anticlockwise to unlatch the cover.

holden caprice wn holden statesman wn 2013 2017 fuse layout 5 2024 12 13 09 57 53

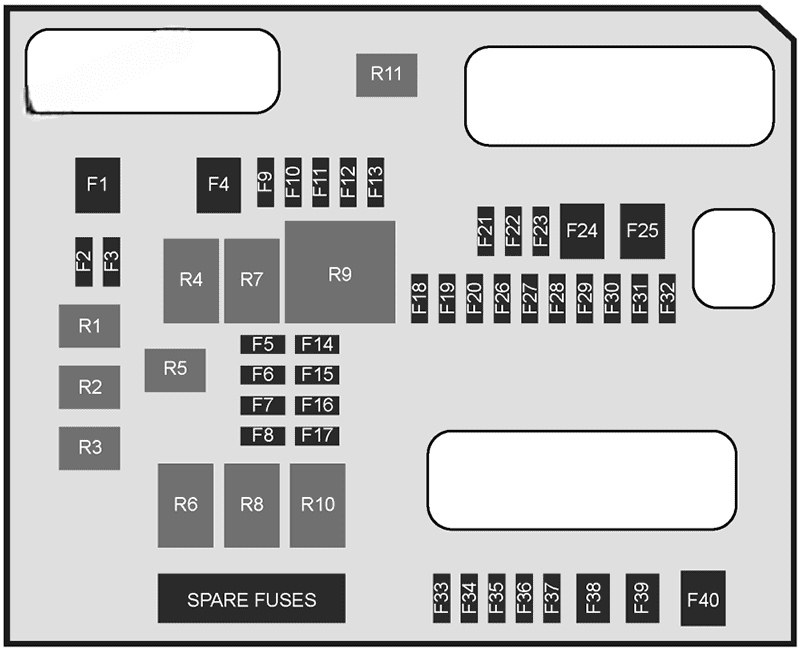

Fuse Box Diagram

holden caprice wn holden statesman wn 2013 2017 fuse layout 6 2024 12 13 09 58 04

Assignment of the fuses in the trunk

№	Amps	Description
F1	30A	DRIVER FRONT / LH REAR WINDOW
F2	10A	EMER / VEH / ACCY
F3	15A	BOOT RELEASE
F4	30A	PASSIVE ENTRY PASSIVE START-BATT 2
F5	15A	RADIO
F6	–	–
F7	–	–
F8	20A	FUEL SYSTEM CONTROL MODULE
F9	30A	MRTD
F10	20A	DECKLID FLASHING LAMPS / EDI MODULE
F11	10A	AUXILIARY BATTERY
F12	–	–
F13	–	–
F14	10A	REAR SEAT ENTERTAINMENT
F15	15A	AUTOMATIC HEADLAMP LEVELLING
F16	–	–
F17	20A	2015-2017: EXHAUST VALVE
F18	10A	ONSTAR
F19	5A	MIRROR / WINDOW MODULE
F20	10A	CANISTER VENT SOLENOID
F21	5A	PASSIVE ENTRY PASSIVE START – BATT 1
F22	10A	MEMORY SEAT MODULE
F23	30A	AMPLIFIER
F24	30A	PASSENGER FRONT / RH REAR WINDOW
F25	30A	ELECTRIC PARK BRAKE
F26	10A	TAILGATE MODULE
F27	10A	CAMERA IGN
F28	15A	FRT VENT SEAT IGN
F29	10A	TRAILER MODULE IGN
F30	15A	ADVANCED PARK ASSIST / SIDE BLIND ZONE ALERT
F31	10A	ENGINE CONTROL MODULE
F32	10A	AUXILIARY GAUGES
F33	10A	RETAINED ACCESSORY POWER
F34	5A	BATTERY VOLTAGE SENSING
F35	30A	TAILGATE MOTOR
F36	20A	REAR ACCESSORY POWER OUTLET
F37	20A	INTERIOR ACCESSORY POWER OUTLET
F38	20A	FRT / LTR
F39	–	–
F40	40A	TRAILER MODULE
Relays
R1		BOOT RELEASE
R2		ACCESSORY
R3		–
R4		RUN
R5		–
R6		RETAINED ACCESSORY POWER
R7		LOGISTICS MODE
R8		–
R9		–
R10		2015-2017: EXHAUST VALVE
R11		2013-2014: CHILD LOCKS

Note: Relays R1, R2, R3 and R5 are PCB mounted relays.
