Holden Astra Sedan (BL) 2017-2018 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Saturday, May 24, 2025 6:45 PM

holden astra sedan bl 2017 2018 fuse layout

This article covers the seventh-generation Holden Astra sedan (BL), produced from 2017 to 2018. Here you will find the Holden Astra BK 2017 and 2018 fuse box diagrams, get information on the location of the fuse boxes in the car and learn about the assignment of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

The fuse box is located behind a cover. Pull the cover and remove.

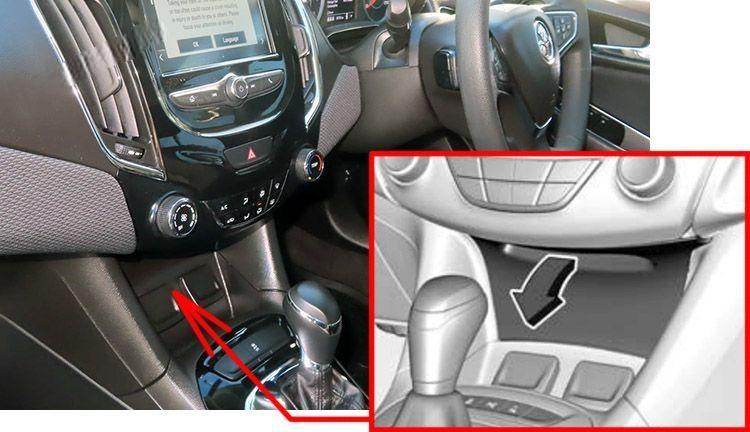

holden astra sedan bl 2017 2018 fuse layout 1 2024 12 12 16 24 50

Fuse Box Diagram

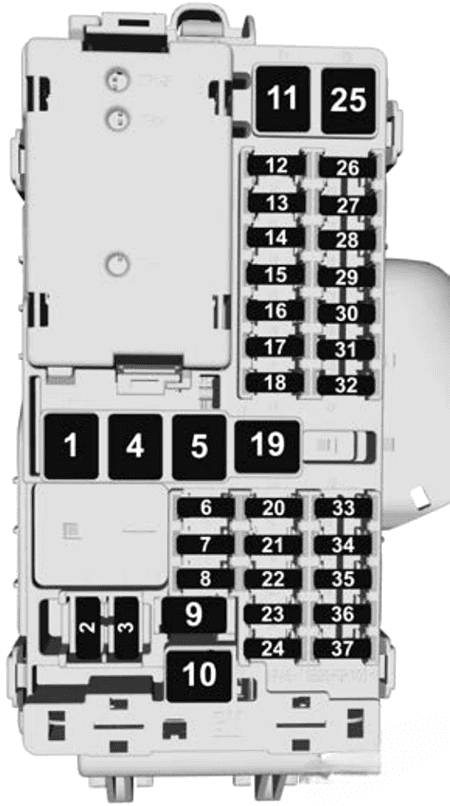

holden astra sedan bl 2017 2018 fuse layout 2 2024 12 12 16 25 00

Assignment of the fuses in the instrument panel

№	Circuit
1	ABS
2	Cigarette lighter
3	Power outlet front
4	Climate control system, fan
5	Power window front
6	Body control module
7	Heated seat
8	Exterior mirror / rain sensor / lane keep assist / high beam assist
9	Power seat, driver side
10	Power window rear
11	Body control module
12	Passive entry / passive start
13	Body control module
14	Central locking system, boot lid
15	Sunroof
16	Body control module
17	Body control module
18	Data link connector
19	–
20	Diagnostic module
21	Climate control system
22	Occupant sensor
23	Clock spring
24	Ignition switch / engine steering column lock
25	–
26	Parking assist / Infotainment system
27	–
28	Navigation module
29	Instrument cluster
30	Infotainment system, radio
31	Body control module
32	Body control module
33	–
34	Shifter / PRNDL
35	–
36	–
37	Audio amplifier

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.

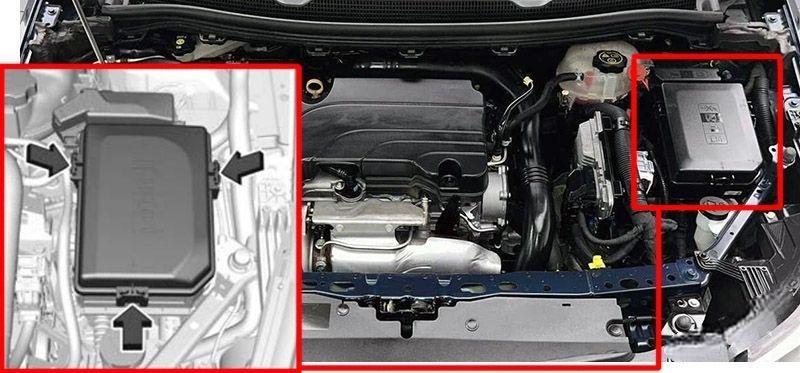

holden astra sedan bl 2017 2018 fuse layout 3 2024 12 12 16 25 09

Fuse Box Diagram

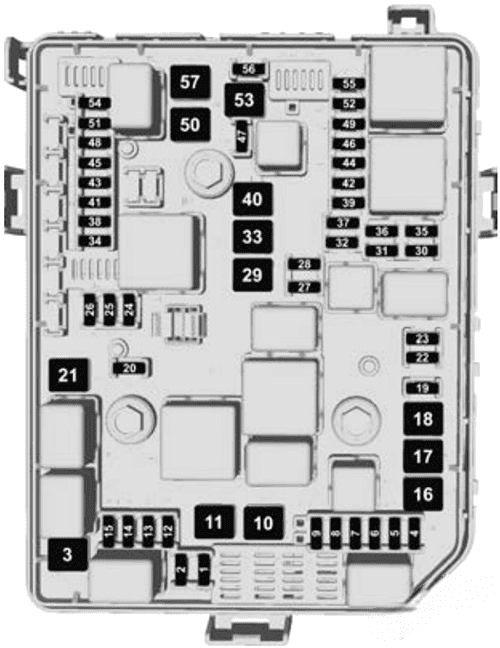

holden astra sedan bl 2017 2018 fuse layout 4 2024 12 12 16 25 18

Assignment of the fuses in the engine compartment

№	Circuit
1	Washer front / washer rear
2	Air conditioning clutch
3	Starter
4	–
5	High beam LH
6	High beam RH
7	–
8	Horn
9	–
10	–
11	–
12	Even bank
13	Odd bank
14	Exhaust sensor
15	Exhaust sensor
16	–
17	–
18	Front wiper
19	–
20	Engine control module
21	Starter
22	–
23	–
24	ECM
25	–
26	Transmission control module
27	Front fog light
28	–
29	–
30	–
31	ECM / TCM ignition
32	Water in fuel sensor / switchable water pump
33	Trailer provision
34	Flex fuel sensor
35	–
36	VAR_FUNC
37	Headlight leveling device
38	–
39	Fuel pump
40	–
41	–
42	Interior mirror
43	–
44	Steering wheel heating
45	Canister vent
46	Instrument cluster
47	Anti-theft alarm system
48	Rear heated seat
49	Electrical steering column lock (ESCL)
50	–
51	Central gateway
52	Mirror defog 1
53	Rear window defog
54	–
55	Mirror defog 2
56	–
57	ABS pump

Load Compartment Fuse Box

Some fuses are located near the vehicle battery.

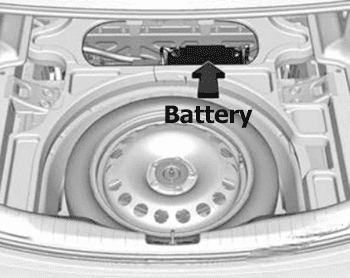

holden astra sedan bl 2017 2018 fuse layout 5 2024 12 12 16 25 26

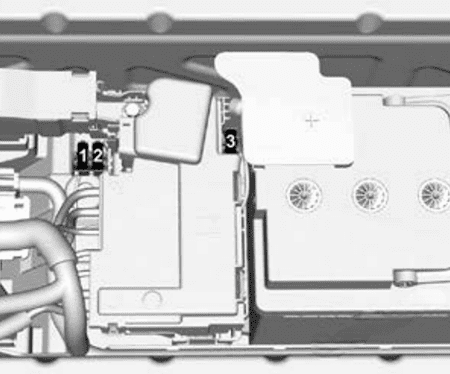

holden astra sedan bl 2017 2018 fuse layout 6 2024 12 12 16 27 47

№	Circuit
1	Engine control module
2	Fuel supply
3	Power supply
