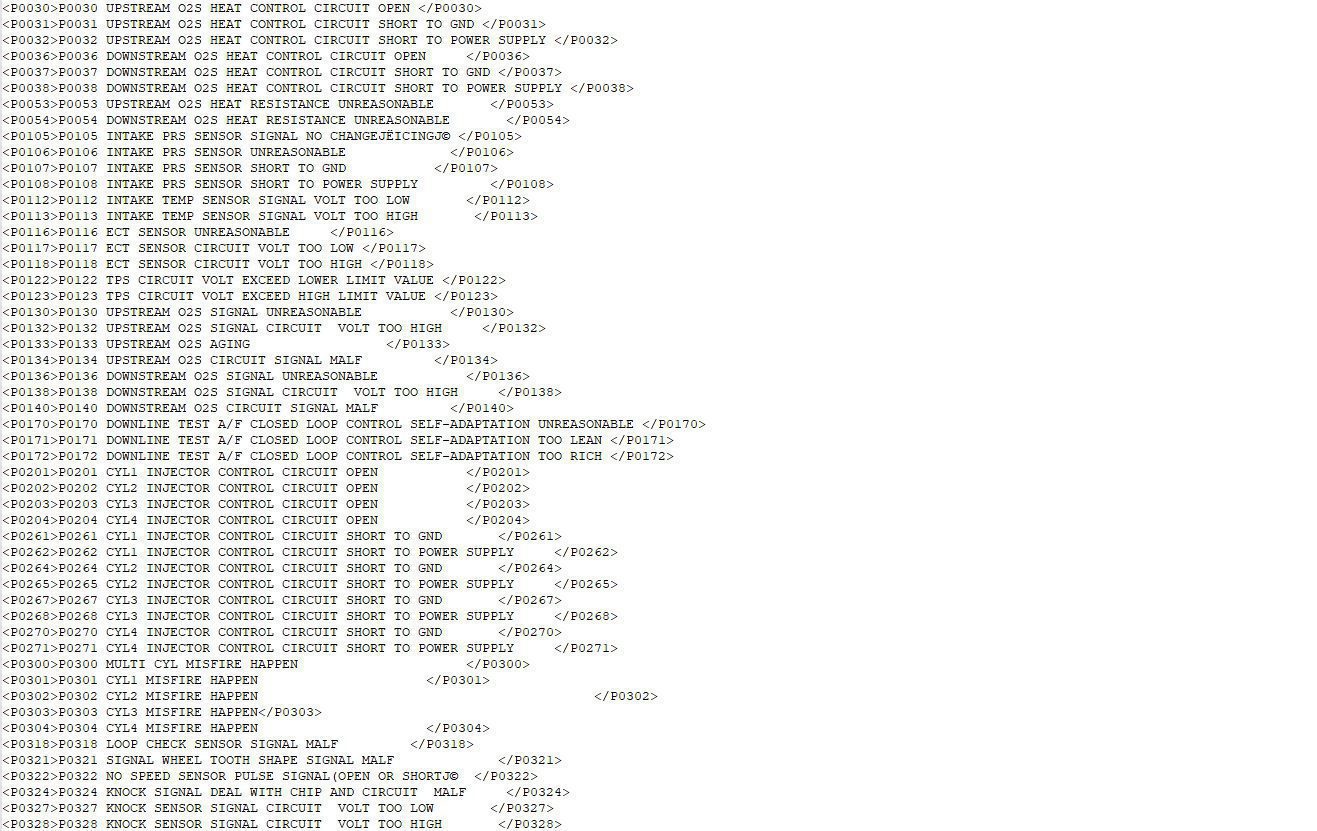

Geely DELPHI EURO4 MT20u2 SYSTEM TROUBLE CODES
<P0030>P0030 UPSTREAM O2S HEAT CONTROL CIRCUIT OPEN </P0030>
<P0031>P0031 UPSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO GND </P0031>
<P0032>P0032 UPSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0032>
<P0036>P0036 DOWNSTREAM O2S HEAT CONTROL CIRCUIT OPEN </P0036>
<P0037>P0037 DOWNSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO GND </P0037>
<P0038>P0038 DOWNSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0038>
<P0053>P0053 UPSTREAM O2S HEAT RESISTANCE UNREASONABLE </P0053>
<P0054>P0054 DOWNSTREAM O2S HEAT RESISTANCE UNREASONABLE </P0054>
<P0105>P0105 INTAKE PRS SENSOR SIGNAL NO CHANGEЈЁICINGЈ© </P0105>
<P0106>P0106 INTAKE PRS SENSOR UNREASONABLE </P0106>
<P0107>P0107 INTAKE PRS SENSOR SHORT TO GND </P0107>
<P0108>P0108 INTAKE PRS SENSOR SHORT TO POWER SUPPLY </P0108>
<P0112>P0112 INTAKE TEMP SENSOR SIGNAL VOLT TOO LOW </P0112>
<P0113>P0113 INTAKE TEMP SENSOR SIGNAL VOLT TOO HIGH </P0113>
<P0116>P0116 ECT SENSOR UNREASONABLE </P0116>
<P0117>P0117 ECT SENSOR CIRCUIT VOLT TOO LOW </P0117>
<P0118>P0118 ECT SENSOR CIRCUIT VOLT TOO HIGH </P0118>
<P0122>P0122 TPS CIRCUIT VOLT EXCEED LOWER LIMIT VALUE </P0122>
<P0123>P0123 TPS CIRCUIT VOLT EXCEED HIGH LIMIT VALUE </P0123>
<P0130>P0130 UPSTREAM O2S SIGNAL UNREASONABLE </P0130>
<P0132>P0132 UPSTREAM O2S SIGNAL CIRCUIT VOLT TOO HIGH </P0132>
<P0133>P0133 UPSTREAM O2S AGING </P0133>
<P0134>P0134 UPSTREAM O2S CIRCUIT SIGNAL MALF </P0134>
<P0136>P0136 DOWNSTREAM O2S SIGNAL UNREASONABLE </P0136>
<P0138>P0138 DOWNSTREAM O2S SIGNAL CIRCUIT VOLT TOO HIGH </P0138>
<P0140>P0140 DOWNSTREAM O2S CIRCUIT SIGNAL MALF </P0140>
<P0170>P0170 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION UNREASONABLE </P0170>
<P0171>P0171 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION TOO LEAN </P0171>
<P0172>P0172 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION TOO RICH </P0172>
<P0201>P0201 CYL1 INJECTOR CONTROL CIRCUIT OPEN </P0201>
<P0202>P0202 CYL2 INJECTOR CONTROL CIRCUIT OPEN </P0202>
<P0203>P0203 CYL3 INJECTOR CONTROL CIRCUIT OPEN </P0203>
<P0204>P0204 CYL4 INJECTOR CONTROL CIRCUIT OPEN </P0204>
<P0261>P0261 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0261>
<P0262>P0262 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0262>
<P0264>P0264 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0264>
<P0265>P0265 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0265>
<P0267>P0267 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0267>
<P0268>P0268 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0268>
<P0270>P0270 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0270>
<P0271>P0271 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0271>
<P0300>P0300 MULTI CYL MISFIRE HAPPEN </P0300>
<P0301>P0301 CYL1 MISFIRE HAPPEN </P0301>
<P0302>P0302 CYL2 MISFIRE HAPPEN </P0302>
<P0303>P0303 CYL3 MISFIRE HAPPEN</P0303>
<P0304>P0304 CYL4 MISFIRE HAPPEN </P0304>
<P0318>P0318 LOOP CHECK SENSOR SIGNAL MALF </P0318>
<P0321>P0321 SIGNAL WHEEL TOOTH SHAPE SIGNAL MALF </P0321>
<P0322>P0322 NO SPEED SENSOR PULSE SIGNAL(OPEN OR SHORTЈ© </P0322>
<P0324>P0324 KNOCK SIGNAL DEAL WITH CHIP AND CIRCUIT MALF </P0324>
<P0327>P0327 KNOCK SENSOR SIGNAL CIRCUIT VOLT TOO LOW </P0327>
<P0328>P0328 KNOCK SENSOR SIGNAL CIRCUIT VOLT TOO HIGH </P0328>
<P0340>P0340 PHASE SENSOR INSTALL POSI IMPROPER </P0340>
<P0341>P0341 PHASE SENSOR CONTACT MALF </P0341>
<P0342>P0342 PHASE SENSOR SHORT TO GND </P0342>
<P0343>P0343 PHASE SENSOR SHORT TO POWER SUPPLY </P0343>
<P0420>P0420 THREE WAY CATALYZE O2 STORE ABILITY AGINGЈЁEXHAUST EXCEED LIMITЈ© </P0420>
<P0444>P0444 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT OPEN </P0444>
<P0458>P0458 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO LOW </P0458>
<P0459>P0459 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO HIGH </P0459>
<P0480>P0480 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁLOWЈ© </P0480>
<P0481>P0481 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁHIGHЈ© </P0481>
<P0501>P0501 VSSSIGNAL UNREASONABLE </P0501>
<P0506>P0506 IDLE CONTROL SPEED LOWER THAN TARGET IDLE </P0506>
<P0507>P0507 IDLE CONTROL SPEED HIGHER THAN TARGET IDLE </P0507>
<P0508>P0508 STEP MOTOR DRIVE PLUG SHORT TO GND </P0508>
<P0509>P0509 STEP MOTOR DRIVE PLUG SHORT TO POWER SUPPLY </P0509>
<P0511>P0511 STEP MOTOR DRIVE PLUG OPEN OR EXIST NOT ONLY ONE MALF AT THE SAME TIME </P0511>
<P537 >P537 A/C EVAP TEMP SENSOR SIGNAL VOLT TOO LOW </P537 >
<P538 >P538 A/C EVAP TEMP SENSOR SIGNAL VOLT TOO HIGH </P538 >
<P0560>P0560 SYSTEM BATTERY VOLT SIGNAL UNREASONABLE </P0560>
<P0562>P0562 SYSTEM BATTERY VOLT TOO LOW </P0562>
<P0563>P0563 SYSTEM BATTERY VOLT TOO HIGH </P0563>
<P0602>P0602 ECU CODING MALF </P0602>
<P0627>P0627 OIL PUMP RELAY CONTROL CIRCUIT OPEN </P0627>
<P0628>P0628 OIL PUMP RELAY CONTROL CIRCUIT SHORT TO GND </P0628>
<P0629>P0629 OIL PUMP RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0629>
<P0645>P0645 A/C COMPRESSOR RELAY CONTROL CIRCUIT OPEN </P0645>
<P0646>P0646 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO GND </P0646>
<P0647>P0647 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0647>
<P0650>P0650 MIL DRIVING STAGE CIRCUIT MALF </P0650>
<P0691>P0691 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁLOWЈ© </P0691>
<P0692>P0692 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁLOWЈ© </P0692>
<P0693>P0693 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁHIGHЈ© </P0693>
<P0694>P0694 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁHIGHЈ© </P0694>
<P1651>P1651 SVSµЖ CIRCUIT MALF </P1651>
<P2177>P2177 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED UPPER LIMITЈЁMID LOAD ZONEЈ© </P2177>
<P2178>P2178 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED LOWER LIMITЈЁMID LOAD ZONEЈ© </P2178>
<P2187>P2187 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED UPPER LIMITЈЁLOW LOAD ZONEЈ© </P2187>
<P2188>P2188 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED LOWER LIMITЈЁLOW LOAD ZONEЈ© </P2188>
<P2195>P2195 UPSTREAM O2S AGING </P2195>
<P2196>P2196 UPSTREAM O2S AGING </P2196>
<P2270>P2270 DOWNSTREAM O2S AGING </P2270>
<P2271>P2271 DOWNSTREAM O2S AGING </P2271>
<P0001>P0001 BRAKE BOOSTER VAC SHORT </P0001>
<P0013>P0013 BRAKE BOOSTER VACOPEN </P0013>
<P0015>P0015 BRAKE BOOSTER VACTOO LOW </P0015>
<P0017>P0017 POWER CONTROL MODULE(PCM)DATA WIRE DESTROY </P0017>
<P0030>P0030 UPSTREAM O2S HEAT CONTROL CIRCUIT OPEN </P0030>
<P0031>P0031 UPSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO GND </P0031>
<P0032>P0032 UPSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0032>
<P0036>P0036 DOWNSTREAM O2S HEAT CONTROL CIRCUIT OPEN </P0036>
<P0037>P0037 DOWNSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO GND </P0037>
<P0038>P0038 DOWNSTREAM O2S HEAT CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0038>
<P0053>P0053 UPSTREAM O2S HEAT RESISTANCE UNREASONABLE </P0053>
<P0054>P0054 DOWNSTREAM O2S HEAT RESISTANCE UNREASONABLE </P0054>
<P0105>P0105 INTAKE PRS SENSOR SIGNAL NO CHANGEЈЁFROZENЈ© </P0105>
<P0106>P0106 INTAKE PRS SENSOR UNREASONABLE </P0106>
<P0107>P0107 INTAKE PRS SENSOR SHORT TO GND </P0107>
<P0108>P0108 INTAKE PRS SENSOR SHORT TO POWER SUPPLY </P0108>
<P0112>P0112 INTAKE TEMP SENSOR SIGNAL VOLT TOO LOW </P0112>
<P0113>P0113 INTAKE TEMP SENSOR SIGNAL VOLT TOO HIGH </P0113>
<P0116>P0116 ECT SENSOR UNREASONABLE </P0116>
<P0117>P0117 ECT SENSOR CIRCUIT VOLT TOO LOW </P0117>
<P0118>P0118 ECT SENSOR CIRCUIT VOLT TOO HIGH </P0118>
<P0122>P0122 TPS CIRCUIT VOLT EXCEED LOWER LIMIT VALUE </P0122>
<P0123>P0123 TPS CIRCUIT VOLT EXCEED HIGH LIMIT VALUE </P0123>
<P0130>P0130 UPSTREAM O2SSIGNAL UNREASONABLE </P0130>
<P0132>P0132 UPSTREAM O2SSIGNAL CIRCUIT VOLT TOO HIGH </P0132>
<P0133>P0133 UPSTREAM O2S AGING </P0133>
<P0134>P0134 UPSTREAM O2S CIRCUIT SIGNAL MALF </P0134>
<P0136>P0136 DOWNSTREAM O2SSIGNAL UNREASONABLE </P0136>
<P0138>P0138 DOWNSTREAM O2SSIGNAL CIRCUIT VOLT TOO HIGH </P0138>
<P0140>P0140 DOWNSTREAM O2S CIRCUIT SIGNAL MALF </P0140>
<P0170>P0170 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION UNREASONABLE </P0170>
<P0171>P0171 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION TOO LEAN </P0171>
<P0172>P0172 DOWNLINE TEST A/F CLOSED LOOP CONTROL SELF-ADAPTATION TOO RICH </P0172>
<P0201>P0201 CYL1 INJECTOR CONTROL CIRCUIT OPEN </P0201>
<P0202>P0202 CYL2 INJECTOR CONTROL CIRCUIT OPEN </P0202>
<P0203>P0203 CYL3 INJECTOR CONTROL CIRCUIT OPEN </P0203>
<P0204>P0204 CYL4 INJECTOR CONTROL CIRCUIT OPEN </P0204>
<P0261>P0261 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0261>
<P0262>P0262 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0262>
<P0264>P0264 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0264>
<P0265>P0265 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0265>
<P0267>P0267 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0267>
<P0268>P0268 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0268>
<P0270>P0270 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO GND </P0270>
<P0271>P0271 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0271>
<P0300>P0300 MULTI CYL MISFIRE HAPPEN </P0300>
<P0301>P0301 CYL1 MISFIRE HAPPEN </P0301>
<P0302>P0302 CYL2 MISFIRE HAPPEN </P0302>
<P0303>P0303 CYL3 MISFIRE HAPPEN </P0303>
<P0304>P0304 CYL4 MISFIRE HAPPEN </P0304>
<P0318>P0318 LOOP CHECK SENSOR SIGNAL MALF </P0318>
<P0321>P0321 SIGNAL WHEEL TOOTH SHAPE SIGNALµД MALF </P0321>
<P0322>P0322 NO SPEED SENSOR PULSE SIGNAL(OPENOR SHORTЈ© </P0322>
<P0324>P0324 KNOCK SIGNAL DEAL WITH CHIP AND CIRCUIT MALF </P0324>
<P0327>P0327 KNOCK SENSORSIGNAL CIRCUIT VOLT TOO LOW </P0327>
<P0328>P0328 KNOCK SENSORSIGNAL CIRCUIT VOLT TOO HIGH </P0328>
<P0340>P0340 PHASE SENSOR INSTALL POSI IMPROPER </P0340>
<P0341>P0341 PHASE SENSOR CONTACT MALF </P0341>
<P0342>P0342 PHASE SENSOR SHORT TO GND </P0342>
<P0343>P0343 PHASE SENSOR SHORT TO POWER SUPPLY </P0343>
<P0420>P0420 THREE WAY CATALYZE O2 STORE ABILITY AGINGЈЁEXHAUST EXCEED LIMITЈ© </P0420>
<P0444>P0444 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT OPEN </P0444>
<P0458>P0458 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO LOW </P0458>
<P0459>P0459 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO HIGH </P0459>
<P0480>P0480 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁLOWЈ© </P0480>
<P0481>P0481 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁHIGHЈ© </P0481>
<P0501>P0501 VSSSIGNAL UNREASONABLE </P0501>
<P0506>P0506 IDLE CONTROL SPEED LOWER THAN TARGET IDLE </P0506>
<P0507>P0507 IDLE CONTROL SPEED HIGHER THAN TARGET IDLE </P0507>
<P0508>P0508 STEP MOTOR DRIVE PLUGSHORT TO GND </P0508>
<P0509>P0509 STEP MOTOR DRIVE PLUGSHORT TO POWER SUPPLY </P0509>
<P0511>P0511 STEP MOTOR DRIVE PLUGOPEN OR EXIST NOT ONLY ONE MALF AT THE SAME TIME </P0511>
<P0537>P0537 A/C EVAP TEMP SENSORSIGNAL VOLT TOO LOW </P0537>
<P0538>P0538 A/C EVAP TEMP SENSORSIGNAL VOLT TOO HIGH </P0538>
<P0560>P0560 SYSTEM BATTERY VOLT SIGNAL UNREASONABLE </P0560>
<P0562>P0562 SYSTEM BATTERY VOLT TOO LOW </P0562>
<P0563>P0563 SYSTEM BATTERY VOLT TOO HIGH </P0563>
<P0602>P0602 ECU CODING MALF </P0602>
<P0627>P0627 OIL PUMP RELAY CONTROL CIRCUIT OPEN </P0627>
<P0628>P0628 OIL PUMP RELAY CONTROL CIRCUIT SHORT TO GND </P0628>
<P0629>P0629 OIL PUMP RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0629>
<P0645>P0645 A/C COMPRESSOR RELAY CONTROL CIRCUIT OPEN </P0645>
<P0646>P0646 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO GND </P0646>
<P0647>P0647 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY </P0647>
<P0650>P0650 MILµЖDRIVING STAGE CIRCUIT MALF </P0650>
<P0691>P0691 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁLOWЈ© </P0691>
<P0692>P0692 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁLOWЈ© </P0692>
<P0693>P0693 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁHIGHЈ© </P0693>
<P0694>P0694 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁHIGHЈ© </P0694>
<P2177>P2177 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED UPPER LIMITЈЁMID LOAD ZONEЈ© </P2177>
<P2178>P2178 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED LOWER LIMITЈЁMID LOAD ZONEЈ© </P2178>
<P2187>P2187 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED UPPER LIMITЈЁLOW LOAD ZONEЈ© </P2187>
<P2188>P2188 A/F CLOSED LOOP CONTROL SELF-ADAPTATION VALUE EXCEED LOWER LIMITЈЁLOW LOAD ZONEЈ© </P2188>
<P2195>P2195 UPSTREAM O2S AGING </P2195>
<P2196>P2196 UPSTREAM O2S AGING </P2196>
<P2270>P2270 DOWNSTREAM O2S AGING </P2270>
<P2271>P2271 DOWNSTREAM O2S AGING </P2271>
<P0137>P0137 ABS/TCS DATA LOSE </P0137>
<P0100>P0100 AFS CIRCUIT MALF </P0100>
<P0101>P0101 AFS CIRCUIT MALF </P0101>
<P0102>P0102 AFS SIGNAL TOO LOW </P0102>
<P0103>P0103 AFS SIGNAL TOO HIGH </P0103>
<P0105>P0105 BAROMETER SENSOR SIGNAL MALF </P0105>
<P0106>P0106 BAROMETER SENSOR CIRCUIT ADJ OR CAPABILITY HAVE PROBLEM </P0106>
<P0107>P0107 BAROMETER SENSOR VOLT TOO LOW </P0107>
<P0108>P0108 BAROMETER SENSOR VOLT TOO HIGH </P0108>
<P0110>P0110 IAT SENSOR CIRCUIT SHORT OR OPEN </P0110>
<P0111>P0111 IAT SENSOR CIRCUITADJ OR CAPABILITY HAVE PROBLEM </P0111>
<P0112>P0112 IAT SENSOR VOLT TOO HIGH </P0112>
<P0113>P0113 IAT SENSOR VOLT TOO LOW </P0113>
<P0115>P0115 WATER TEMP SENSOR CIRCUIT SHORT OR OPEN </P0115>
<P0116>P0116 ENGINE WATER TEMP VOLT SIGNAL MALF </P0116>
<P0117>P0117 ENGINE WATER TEMP VOLT SIGNAL TOO HIGH </P0117>
<P0118>P0118 ENGINE WATER TEMP VOLT SIGNAL TOO LOW </P0118>
<P0120>P0120 THROTTLE SIGNAL LOWER THAN 0.1V OR BIIGER THAN 4.9V </P0120>
<P0121>P0121 TPS ADJ IMPROPER </P0121>
<P0122>P0122 TPS VOLT TOO LOW </P0122>
<P0123>P0123 TPS VOLT TOO HIGH </P0123>
<P0125>P0125 ENGINE CAN’T ENTER CLOSED LOOP TEMP </P0125>
<P0130>P0130 FRONT O2S(O2 B1 S1) MALF </P0130>
<P0131>P0131 O2S(O2 B1 S1) VOLT TOO HIGH,MIX RATIOTOO LEAN </P0131>
<P0132>P0132 O2S(O2 B1 S1) VOLT TOO LOW,MIX RATIOTOO RICH </P0132>
<P0133>P0133 FRONT O2S(O2 B1 S1) CHANGE RATIO TOO SLOW </P0133>
<P0134>P0134 O2S(O2 B1 S1)OPEN OR NOT CHANGE </P0134>
<P0135>P0135 FRONT O2S(O2 B1 S1)SIGNAL DISTURB </P0135>
<P0136>P0136 REAR O2S(O2 B1 S2)SIGNAL MALF </P0136>
<P0137>P0137 REAR O2S(O2 B1 S2)SIGNAL TOO LOW </P0137>
<P0138>P0138 REAR O2S(O2 B1 S2)SIGNAL TOO HIGH </P0138>
<P0139>P0139 REAR O2S(O2 B1 S2) CHANGE RATIO TOO SLOW </P0139>
<P0140>P0140 REAR O2S(O2B1 S2) CIRCUIT OPEN OR SHORT </P0140>
<P0141>P0141 REAR O2S(O2B1 S2)HEAT CIRCUIT MALF </P0141>
<P0142>P0142 O2S(O2 B1 S3)SIGNAL MALF </P0142>
<P0143>P0143 O2S(O2 B1 S3)SIGNAL TOO LOW </P0143>
<P0144>P0144 O2S(O2 B1 S3)SIGNAL TOO HIGH </P0144>
<P0145>P0145 O2S(O2 B1 S3)CHANGE RATIO TOO SLOW </P0145>
<P0146>P0146 O2S(O2 B1 S3)CIRCUIT OPEN OR SHORT </P0146>
<P0147>P0147 O2S(O2 B1 S3)HEAT CIRCUIT MALF </P0147>
<P0150>P0150 O2S(O2 B2 S1)VOLT LOWER OR HIGHER </P0150>
<P0151>P0151 O2S(O2 B2 S1)VOLT TOO LOW,MIX RATIOTOO LEAN </P0151>
<P0152>P0152 O2S(O2 B2 S1)VOLT TOO HIGH,MIX RATIOTOO RICH </P0152>
<P0153>P0153 O2S(O2 B2 S1)SIGNAL CHANGE RATIO TOO SLOW </P0153>
<P0154>P0154 O2S(O2 B2 S1)SENSOR OPEN </P0154>
<P0155>P0155 O2S(O2 B2 S1)SENSOR DISTURB </P0155>
<P0156>P0156 O2S(O2 B2 S2)VOLT LOWER OR HIGHER </P0156>
<P0157>P0157 O2S(O2 B2 S2)VOLT TOO LOW,MIX RATIOTOO LEAN </P0157>
<P0158>P0158 O2S(O2 B2 S2)VOLT TOO HIGH,MIX RATIOTOO RICH </P0158>
<P0159>P0159 O2S(O2 B2 S2)SIGNAL CHANGE RATIO TOO SLOW </P0159>
<P0160>P0160 O2S(O2 B2 S2)HEATER OPEN </P0160>
<P0161>P0161 O2S(O2 B2 S2)HEATER MALF </P0161>
<P0162>P0162 O2S(O2 B2 S3)VOLT LOWER OR HIGHER </P0162>
<P0163>P0163 O2S(O2 B2 S3)VOLT TOO LOW,MIX RATIOTOO LEAN </P0163>
<P0164>P0164 O2S(O2 B2 S3)VOLT TOO HIGH,MIX RATIOTOO RICH </P0164>
<P0165>P0165 O2S(O2 B2 S3)SIGNAL CHANGE RATIO TOO SLOW </P0165>
<P0166>P0166 O2S(O2 B2 S3)HEATER OPEN </P0166>
<P0167>P0167 O2S(O2 B2 S3)HEATER MALF </P0167>
<P0170>P0170 B1 MIX RATIO MALF </P0170>
<P0171>P0171 B1 OIL SUPPLY TRIM TOO LEAN </P0171>
<P0172>P0172 B1 OIL SUPPLY TRIM TOO RICH </P0172>
<P0173>P0173 B1 MIX RATIO MALF </P0173>
<P0174>P0174 B2 OIL SUPPLY TRIM TOO LEAN </P0174>
<P0175>P0175 B2 OIL SUPPLY TRIM TOO RICH </P0175>
<P0176>P0176 FUEL MIX SENSOR MALF </P0176>
<P0177>P0177 FUEL MIX SENSOR CIRCUIT ADJ OR CAPABILITY MALF </P0177>
<P0178>P0178 FUEL MIX SENSOR VOLT TOO LOW </P0178>
<P0179>P0179 FUEL MIX SENSOR VOLT TOO HIGH </P0179>
<P0180>P0180 OIL SUPPLY TRIM SENSORA CIRCUIT MALF </P0180>
<P0181>P0181 OIL SUPPLY TRIM SENSORA CIRCUIT ADJ OR CAPABILITY MALF </P0181>
<P0182>P0182 OIL SUPPLY TRIM SENSORA VOLT TOO LOW </P0182>
<P0183>P0183 OIL SUPPLY TRIM SENSORA VOLT TOO HIGH </P0183>
<P0185>P0185 OIL SUPPLY TRIM SENSORB CIRCUIT MALF </P0185>
<P0186>P0186 OIL SUPPLY TRIM SENSORBADJ OR CAPABILITY MALF </P0186>
<P0187>P0187 OIL SUPPLY TRIM SENSORB VOLT TOO LOW </P0187>
<P0188>P0188 OIL SUPPLY TRIM SENSORB VOLT TOO HIGH </P0188>
<P0190>P0190 OIL PATH PRS SENSOR CIRCUIT MALF </P0190>
<P0191>P0191 OIL PATH PRS SENSOR CIRCUIT ADJ OR CAPABILITY MALF </P0191>
<P0192>P0192 OIL PATH PRS SENSOR VOLT TOO LOW </P0192>
<P0193>P0193 OIL PATH PRS SENSOR VOLT TOO HIGH </P0193>
<P0194>P0194 OIL PATH PRS SENSOR CIRCUIT CONTACT MALF </P0194>
<P0195>P0195 ENGINE OIL TEMP SENSOR MALF </P0195>
<P0196>P0196 ENGINE OIL TEMP SENSOR ADJ OR CAPABILITY MALF </P0196>
<P0197>P0197 ENGINE OIL TEMP SENSOR VOLT TOO LOW </P0197>
<P0198>P0198 ENGINE OIL TEMP SENSOR VOLT TOO HIGH </P0198>
<P0199>P0199 ENGINE OIL TEMP SENSOR CIRCUIT CONTACT MALF </P0199>
<P0200>P0200 INJECTOR LOOP MALF </P0200>
<P0201>P0201 CYL1 INJECTOR CIRCUIT MALF </P0201>
<P0202>P0202 CYL2 INJECTOR CIRCUIT MALF </P0202>
<P0203>P0203 CYL3 INJECTOR CIRCUIT MALF </P0203>
<P0204>P0204 CYL4 INJECTOR CIRCUIT MALF </P0204>
<P0205>P0205 CYL5 INJECTOR CIRCUIT MALF </P0205>
<P0206>P0206 CYL6 INJECTOR CIRCUIT MALF </P0206>
<P0207>P0207 CYL7 INJECTOR CIRCUIT MALF </P0207>
<P0208>P0208 CYL8 INJECTOR CIRCUIT MALF </P0208>
<P0209>P0209 CYL9 INJECTOR CIRCUIT MALF </P0209>
<P0210>P0210 CYL10 INJECTOR CIRCUIT MALF </P0210>
<P0211>P0211 CYL1 INJECTOR CIRCUIT MALF </P0211>
<P0212>P0212 CYL2 INJECTOR CIRCUIT MALF </P0212>
<P0213>P0213 FIRST COLD START INJECTOR MALF </P0213>
<P0214>P0214 SECOND COLD START INJECTOR MALF </P0214>
<P0215>P0215 CLOSE ENGINE COIL( RELAY) MALF </P0215>
<P0216>P0216 INJECTOR TIMING CONTROL CIRCUIT MALF </P0216>
<P0217>P0217 ENGINE TOO HOT </P0217>
<P0218>P0218 TRANSMISSION TOO HOT </P0218>
<P0219>P0219 ENGINE OVERRUN </P0219>
<P0220>P0220 TPS B CIRCUIT MALF </P0220>
<P0221>P0221 TPS BADJ IMPROPER </P0221>
<P0222>P0222 TPS B VOLT TOO LOW </P0222>
<P0223>P0223 TPS B VOLT TOO HIGH </P0223>
<P0224>P0224 TPS B CIRCUIT CONTACT MALF </P0224>
<P0225>P0225 TPS C CIRCUIT MALF </P0225>
<P0226>P0226 TPS CADJ IMPROPER </P0226>
<P0227>P0227 TPS C VOLT TOO LOW </P0227>
<P0228>P0228 TPS C VOLT TOO HIGH </P0228>
<P0229>P0229 TPS C CIRCUIT CONTACT MALF </P0229>
<P0230>P0230 FUEL PUMP MAIN CIRCUIT MALF </P0230>
<P0231>P0231 FUEL PUMP ASSISTANT CIRCUIT VOLT TOO LOW </P0231>
<P0232>P0232 FUEL PUMP ASSISTANT CIRCUIT VOLT TOO HIGH </P0232>
<P0233>P0233 FUEL PUMP ASSISTANT CIRCUIT CONTACT MALF </P0233>
<P0235>P0235 TORQUE BOOST SENSOR A CIRCUIT MALF </P0235>
<P0236>P0236 TORQUE BOOST SENSOR A ADJ IMPROPER </P0236>
<P0237>P0237 TORQUE BOOST SENSOR A VOLT TOO LOW </P0237>
<P0238>P0238 TORQUE BOOST SENSOR A VOLT TOO HIGH </P0238>
<P0240>P0240 TORQUE BOOST SENSOR B CIRCUIT MALF </P0240>
<P0241>P0241 TORQUE BOOST SENSOR B VOLT TOO LOW </P0241>
<P0242>P0242 TORQUE BOOST SENSOR B VOLT TOO HIGH </P0242>
<P0243>P0243 TORQUE BOOST EXHAUST VALVE A DRIVE COIL MALF </P0243>
<P0244>P0244 TORQUE BOOST EXHAUST VALVE A DRIVE COIL ADJ IMPROPER </P0244>
<P0245>P0245 TORQUE BOOST EXHAUST VALVE A DRIVE COIL VOLT TOO LOW </P0245>
<P0246>P0246 TORQUE BOOST EXHAUST VALVE A DRIVE COIL VOLT TOO HIGH </P0246>
<P0247>P0247 TORQUE BOOST EXHAUST VALVE B DRIVE COIL MALF </P0247>
<P0248>P0248 TORQUE BOOST EXHAUST VALVE B DRIVE COIL ADJ IMPROPER </P0248>
<P0249>P0249 TORQUE BOOST EXHAUST VALVE B DRIVE COIL VOLT TOO LOW </P0249>
<P0250>P0250 TORQUE BOOST EXHAUST VALVE B DRIVE COIL VOLT TOO HIGH </P0250>
<P0251>P0251 INJ PUMP A ROTOR OR CAM MALF </P0251>
<P0252>P0252 INJ PUMP A ROTOR OR CAM ADJ IMPROPER </P0252>
<P0253>P0253 INJ PUMP A ROTOR OR CAM SENSOR VOLT TOO LOW </P0253>
<P0254>P0254 INJ PUMP A ROTOR OR CAM SENSOR VOLT TOO HIGH </P0254>
<P0255>P0255 INJ PUMP A ROTOR OR CAM SENSOR CIRCUIT CONTACT MALF </P0255>
<P0256>P0256 INJ PUMP B ROTOR OR CAM MALF </P0256>
<P0257>P0257 INJ PUMP B ROTOR OR CAM ADJ IMPROPER </P0257>
<P0258>P0258 INJ PUMP B ROTOR OR CAM SENSOR VOLT TOO LOW </P0258>
<P0259>P0259 INJ PUMP B ROTOR OR CAM SENSOR VOLT TOO HIGH </P0259>
<P0260>P0260 INJ PUMP B ROTOR OR CAM SENSOR CIRCUIT CONTACT MALF </P0260>
<P0261>P0261 CYL1 INJECTOR CIRCUIT VOLT TOO LOW </P0261>
<P0262>P0262 CYL1 INJECTOR CIRCUIT VOLT TOO HIGH </P0262>
<P0263>P0263 CYL1 INJECTOR CIRCUIT ACTION FAIL </P0263>
<P0264>P0264 CYL2 INJECTOR CIRCUIT VOLT TOO LOW </P0264>
<P0265>P0265 CYL2 INJECTOR CIRCUIT VOLT TOO HIGH </P0265>
<P0266>P0266 CYL2 INJECTOR CIRCUIT ACTION FAIL </P0266>
<P0267>P0267 CYL3 INJECTOR CIRCUIT VOLT TOO LOW </P0267>
<P0268>P0268 CYL3 INJECTOR CIRCUIT VOLT TOO HIGH </P0268>
<P0269>P0269 CYL3 INJECTOR CIRCUIT ACTION FAIL </P0269>
<P0270>P0270 CYL4 INJECTOR CIRCUIT VOLT TOO LOW </P0270>
<P0271>P0271 CYL4 INJECTOR CIRCUIT VOLT TOO HIGH </P0271>
<P0272>P0272 CYL4 INJECTOR CIRCUIT ACTION FAIL </P0272>
<P0273>P0273 CYL5 INJECTOR CIRCUIT VOLT TOO LOW </P0273>
<P0274>P0274 CYL5 INJECTOR CIRCUIT VOLT TOO HIGH </P0274>
<P0275>P0275 CYL5 INJECTOR CIRCUIT ACTION FAIL </P0275>
<P0276>P0276 CYL6 INJECTOR CIRCUIT VOLT TOO LOW </P0276>
<P0277>P0277 CYL6 INJECTOR CIRCUIT VOLT TOO HIGH </P0277>
<P0278>P0278 CYL6 INJECTOR CIRCUIT ACTION FAIL </P0278>
<P0279>P0279 CYL7 INJECTOR CIRCUIT VOLT TOO LOW </P0279>
<P0280>P0280 CYL7 INJECTOR CIRCUIT VOLT TOO HIGH </P0280>
<P0281>P0281 CYL7 INJECTOR CIRCUIT ACTION FAIL </P0281>
<P0282>P0282 CYL8 INJECTOR CIRCUIT VOLT TOO LOW </P0282>
<P0283>P0283 CYL8 INJECTOR CIRCUIT VOLT TOO HIGH </P0283>
<P0284>P0284 CYL8 INJECTOR CIRCUIT ACTION FAIL </P0284>
<P0285>P0285 CYL9 INJECTOR CIRCUIT VOLT TOO LOW </P0285>
<P0286>P0286 CYL9 INJECTOR CIRCUIT VOLT TOO HIGH </P0286>
<P0287>P0287 CYL9 INJECTOR CIRCUIT ACTION FAIL </P0287>
<P0288>P0288 CYL10 INJECTOR CIRCUIT VOLT TOO LOW </P0288>
<P0289>P0289 CYL10 INJECTOR CIRCUIT VOLT TOO HIGH </P0289>
<P0290>P0290 CYL10 INJECTOR CIRCUIT ACTION FAIL </P0290>
<P0291>P0291 CYL11 INJECTOR CIRCUIT VOLT TOO LOW </P0291>
<P0292>P0292 CYL11 INJECTOR CIRCUIT VOLT TOO HIGH </P0292>
<P0293>P0293 CYL11 INJECTOR CIRCUIT ACTION FAIL </P0293>
<P0294>P0294 CYL12 INJECTOR CIRCUIT VOLT TOO LOW </P0294>
<P0295>P0295 CYL12 INJECTOR CIRCUIT VOLT TOO HIGH </P0295>
<P0296>P0296 CYL2 INJECTOR CIRCUIT ACTION FAIL </P0296>
<P0300>P0300 IGN SYSTEM INTERMITTENCE NOT IGN </P0300>
<P0301>P0301 CYL1 INTERMITTENCE NOT IGN </P0301>
<P0302>P0302 CYL2 INTERMITTENCE NOT IGN </P0302>
<P0303>P0303 CYL3 INTERMITTENCE NOT IGN </P0303>
<P0304>P0304 CYL4 INTERMITTENCE NOT IGN </P0304>
<P0305>P0305 CYL5 INTERMITTENCE NOT IGN </P0305>
<P0306>P0306 CYL6 INTERMITTENCE NOT IGN </P0306>
<P0307>P0307 CYL7 INTERMITTENCE NOT IGN </P0307>
<P0308>P0308 CYL8 INTERMITTENCE NOT IGN </P0308>
<P0309>P0309 CYL9 INTERMITTENCE NOT IGN </P0309>
<P0310>P0310 CYL10 INTERMITTENCE NOT IGN </P0310>
<P0311>P0311 CYL11 INTERMITTENCE NOT IGN </P0311>
<P0312>P0312 CYL12 INTERMITTENCE NOT IGN </P0312>
<P0320>P0320 ENGINE SPEED SIGNAL(PIP) MALF </P0320>
<P0321>P0321 CRANKSHAFT SENSOR OR CONSULT REFSIGNAL MALF </P0321>
<P0322>P0322 NO ENGINE SPEED SIGNAL </P0322>
<P0323>P0323 ENGINE SPEED SIGNAL LOSE INTERMITTENCE </P0323>
<P0325>P0325 KNOCK SENSOR1 CIRCUIT MALF </P0325>
<P0326>P0326 KNOCK SENSOR1 ADJ IMPROPER </P0326>
<P0327>P0327 KNOCK SENSOR1 VOLT TOO LOW </P0327>
<P0328>P0328 KNOCK SENSOR1 VOLT TOO HIGH </P0328>
<P0329>P0329 KNOCK SENSOR1 SIGNAL LOSE INTERMITTENCE </P0329>
<P0330>P0330 KNOCK SENSOR2 CIRCUIT MALF </P0330>
<P0331>P0331 KNOCK SENSOR2 ADJ IMPROPER </P0331>
<P0332>P0332 KNOCK SENSOR2 VOLT TOO LOW </P0332>
<P0333>P0333 KNOCK SENSOR2 VOLT TOO HIGH </P0333>
<P0334>P0334 KNOCK SENSOR2SIGNAL LOSE INTERMITTENCE </P0334>
<P0335>P0335 CRANKSHAFT POSI SENSORA MALF </P0335>
<P0336>P0336 CRANKSHAFT POSI SENSORAADJ IMPROPER OR CAPABILITY MALF </P0336>
<P0337>P0337 CRANKSHAFT POSI SENSORA VOLT TOO LOW </P0337>
<P0338>P0338 CRANKSHAFT POSI SENSORA VOLT TOO LOW </P0338>
<P0339>P0339 CRANKSHAFT POSI SENSORA CIRCUIT CONTACT MALF </P0339>
<P0340>P0340 CAMSHAFT POSI SENSOR MALF </P0340>
<P0341>P0341 CAMSHAFT POSI SENSORADJ IMPROPER OR CAPABILITY MALF </P0341>
<P0342>P0342 CAMSHAFT POSI SENSOR VOLT TOO LOW </P0342>
<P0343>P0343 CAMSHAFT POSI SENSOR VOLT TOO LOW </P0343>
<P0344>P0344 CAMSHAFT POSI SENSOR CIRCUIT CONTACT MALF </P0344>
<P0350>P0350 IGN COIL PRIMARY OR SECOND CIRCUIT MALF </P0350>
<P0351>P0351 IGN COILA PRIMARY OR SECOND CIRCUIT MALF </P0351>
<P0352>P0352 IGN COILB PRIMARY OR SECOND CIRCUIT MALF </P0352>
<P0353>P0353 IGN COILC PRIMARY OR SECOND CIRCUIT MALF </P0353>
<P0354>P0354 IGN COILD PRIMARY OR SECOND CIRCUIT MALF </P0354>
<P0355>P0355 IGN COILE PRIMARY OR SECOND CIRCUIT MALF </P0355>
<P0356>P0356 IGN COILF PRIMARY OR SECOND CIRCUIT MALF </P0356>
<P0357>P0357 IGN COILG PRIMARY OR SECOND CIRCUIT MALF </P0357>
<P0358>P0358 IGN COILH PRIMARY OR SECOND CIRCUIT MALF </P0358>
<P0359>P0359 IGN COILI PRIMARY OR SECOND CIRCUIT MALF </P0359>
<P0360>P0360 IGN COILJ PRIMARY OR SECOND CIRCUIT MALF </P0360>
<P0361>P0361 IGN COILK PRIMARY OR SECOND CIRCUIT MALF </P0361>
<P0362>P0362 IGN COILL PRIMARY OR SECOND CIRCUIT MALF </P0362>
<P0370>P0370 IGN TIMING SENSOR(HRS)A MALF </P0370>
<P0371>P0371 IGN TIMING SENSOR(HRS)A TOO MUCH PULSE </P0371>
<P0372>P0372 IGN TIMING SENSOR(HRS)A TOO MUCH PULSE </P0372>
<P0373>P0373 IGN TIMING SENSOR(HRS)A PULSE LOSE INTERMISSION </P0373>
<P0374>P0374 IGN TIMING SENSOR(HRS)A NO PULSE </P0374>
<P0375>P0375 IGN TIMING SENSOR(HRS)B MALF </P0375>
<P0376>P0376 IGN TIMING SENSOR(HRS)B TOO MUCH PULSE </P0376>
<P0377>P0377 IGN TIMING SENSOR(HRS)B TOO MUCH PULSE </P0377>
<P0378>P0378 IGN TIMING SENSOR(HRS)B PULSE LOSE INTERMISSION </P0378>
<P0379>P0379 IGN TIMING SENSOR(HRS)B NO PULSE </P0379>
<P0380>P0380 GLOW PLUG OR WARM WIND DEVICE CIRCUIT MALF </P0380>
<P0381>P0381 GLOW PLUG OR WARM WIND DEVICE INDICATOR MALF </P0381>
<P0385>P0385 CRANKSHAFT POSI SENSORB MALF </P0385>
<P0386>P0386 CRANKSHAFT POSI SENSORBADJ IMPROPER OR CAPABILITY MALF </P0386>
<P0387>P0387 CRANKSHAFT POSI SENSORB VOLT TOO LOW </P0387>
<P0388>P0388 CRANKSHAFT POSI SENSORB VOLT TOO LOW </P0388>
<P0389>P0389 CRANKSHAFT POSI SENSORB CIRCUIT CONTACT MALF </P0389>
<P0400>P0400 EXHAUST RECYCLE(EGR) CONTROL SYSTEM MALF </P0400>
<P0401>P0401 EXHAUST RECYCLE(EGR)FLUX NOT ENOUGH </P0401>
<P0402>P0402 EXHAUST RECYCLE(EGR)FLUX TOO MUCH </P0402>
<P0403>P0403 EXHAUST RECYCLE(EGR) CONTROL CIRCUIT MALF </P0403>
<P0404>P0404 EXHAUST RECYCLE(EGR)SYSTEM ADJ IMPROPER </P0404>
<P0405>P0405 EXHAUST RECYCLE(EGR)SENSORA VOLT TOO LOW </P0405>
<P0406>P0406 EXHAUST RECYCLE(EGR)SENSORA VOLT TOO HIGH </P0406>
<P0407>P0407 EXHAUST RECYCLE(EGR)SENSORB VOLT TOO LOW </P0407>
<P0408>P0408 EXHAUST RECYCLE(EGR)SENSORB VOLT TOO HIGH </P0408>
<P0410>P0410 ASSISTANT AIR INJECTION SYSTEM MALF </P0410>
<P0411>P0411 ASSISTANT AIR INJECTOR AIRFLOW ABNORMAL </P0411>
<P0412>P0412 ASSISTANT AIR INJECTOR SOLENOIDA MALF </P0412>
<P0413>P0413 ASSISTANT AIR INJECTOR SOLENOIDA OPEN </P0413>
<P0414>P0414 ASSISTANT AIR INJECTOR SOLENOIDA CLOSE </P0414>
<P0415>P0415 ASSISTANT AIR INJECTOR SOLENOIDB MALF </P0415>
<P0416>P0416 ASSISTANT AIR INJECTOR SOLENOIDB OPEN </P0416>
<P0417>P0417 ASSISTANT AIR INJECTOR SOLENOIDB CLOSE </P0417>
<P0420>P0420 FRONT ACCELERANT CONVERTER EFFICIENCY NOT GOOD </P0420>
<P0421>P0421 FRONT HEAVY ACCELERANT CONVERTER EFFICIENCY NOT GOOD </P0421>
<P0422>P0422 FRONT MAIN ACCELERANT CONVERTER EFFICIENCY REDUCE </P0422>
<P0423>P0423 FRONT HEAT ACCELERANT CONVERTER EFFICIENCY REDUCE </P0423>
<P0424>P0424 FRONT HEAT ACCELERANT CONVERTER TEMP NOT ENOUGH </P0424>
<P0430>P0430 FRONT ACCELERANT CONVERTER EFFICIENCY NOT GOOD </P0430>
<P0431>P0431 FRONT HEAVY ACCELERANT CONVERTER EFFICIENCY NOT GOOD </P0431>
<P0432>P0432 FRONT MAIN ACCELERANT CONVERTER EFFICIENCY REDUCE </P0432>
<P0433>P0433 FRONT HEAT ACCELERANT CONVERTER EFFICIENCY REDUCE </P0433>
<P0434>P0434 FRONT HEAT ACCELERANT CONVERTER TEMP NOT ENOUGH </P0434>
<P0440>P0440 ACTIVATED CARBON CANISTER CONTROL SYSTEM MALF </P0440>
<P0441>P0441 ACTIVATED CARBON CANISTERCLEAR AIRFLOW MALF </P0441>
<P0442>P0442 ACTIVATED CARBON CANISTER LITTLE LEAK </P0442>
<P0443>P0443 CARBON CANISTER SOLENOID CIRCUIT MALF(CANP) </P0443>
<P0444>P0444 ACTIVATED CARBON CANISTER SOLENOID CIRCUIT OPEN </P0444>
<P0445>P0445 ACTIVATED CARBON CANISTER SOLENOIDSIGNAL SHORT </P0445>
<P0446>P0446 ACTIVATED CARBON CANISTER VENT CONTROL MALF </P0446>
<P0447>P0447 ACTIVATED CARBON CANISTER VENT CONTROL OPEN </P0447>
<P0448>P0448 ACTIVATED CARBON CANISTER VENT CONTROL CLOSE </P0448>
<P0450>P0450 ACTIVATED CARBON CANISTER PRS SENSOR MALF </P0450>
<P0451>P0451 ACTIVATED CARBON CANISTER PRS SENSORADJ IMPROPER </P0451>
<P0452>P0452 ACTIVATED CARBON CANISTER PRS SENSOR VOLT TOO LOW </P0452>
<P0453>P0453 ACTIVATED CARBON CANISTER PRS SENSOR VOLT TOO LOW </P0453>
<P0454>P0454 ACTIVATED CARBON CANISTER PRS SENSORCONTACT MALF </P0454>
<P0455>P0455 ACTIVATED CARBON CANISTER MASS LEAK </P0455>
<P0460>P0460 FUEL LEVEL POSI SENSOR CIRCUIT MALF </P0460>
<P0461>P0461 FUEL LEVEL POSI SENSORADJ IMPROPER </P0461>
<P0462>P0462 FUEL LEVEL POSI SENSOR VOLT TOO LOW </P0462>
<P0463>P0463 FUEL LEVEL POSI SENSOR VOLT TOO HIGH </P0463>
<P0464>P0464 FUEL LEVEL POSI SENSOR CIRCUIT CONTACT MALF </P0464>
<P0465>P0465 CLEAR AIRFLOW SENSOR CIRCUIT MALF </P0465>
<P0466>P0466 CLEAR AIRFLOW SENSOR ADJ IMPROPER </P0466>
<P0467>P0467 CLEAR AIRFLOW SENSOR VOLT TOO LOW </P0467>
<P0468>P0468 CLEAR AIRFLOW SENSOR VOLT TOO HIGH </P0468>
<P0469>P0469 CLEAR AIRFLOW SENSOR CIRCUIT CONTACT MALF </P0469>
<P0470>P0470 EXHAUST PRS SENSOR CIRCUIT MALF </P0470>
<P0471>P0471 EXHAUST PRS SENSORADJ IMPROPER </P0471>
<P0472>P0472 EXHAUST PRS SENSOR VOLT TOO LOW </P0472>
<P0473>P0473 EXHAUST PRS SENSOR VOLT TOO HIGH </P0473>
<P0474>P0474 EXHAUST PRS SENSOR CIRCUIT CONTACT MALF </P0474>
<P0475>P0475 EXHAUST PRS SOLENOID CONTROL CIRCUIT MALF </P0475>
<P0476>P0476 EXHAUST PRS SOLENOID CONTROL CIRCUIT ADJ IMPROPER </P0476>
<P0477>P0477 EXHAUST PRS SOLENOID CONTROL CIRCUIT VOLT TOO LOW </P0477>
<P0478>P0478 EXHAUST PRS SOLENOID CONTROL CIRCUIT VOLT TOO HIGH </P0478>
<P0479>P0479 EXHAUST PRS SOLENOID CONTROL CIRCUIT CONTACT MALF </P0479>
<P0480>P0480 FAN1 DRIVE CIRCUIT OPENOR SHORT </P0480>
<P0481>P0481 FAN DRIVE CIRCUIT OPENOR SHORT </P0481>
<P0500>P0500 VEHICLE SPEED SIGNALSENSOR MALF(VSS) </P0500>
<P0501>P0501 VEHICLE SPEED SIGNALSENSOR(VSS)ADJ IMPROPER OR CAPABILITY MALF </P0501>
<P0502>P0502 VEHICLE SPEED SIGNALSENSOR(VSS) CIRCUIT VOLT TOO LOW </P0502>
<P0503>P0503 VEHICLE SPEED SIGNALSENSOR(VSS)CONTACT MALF OR CAPABILITY UNSTABLE </P0503>
<P0505>P0505 IDLE CONTROL SYSTEM MALF(IAC) </P0505>
<P0506>P0506 IDLE TOO LOW </P0506>
<P0507>P0507 IDLE TOO HIGH </P0507>
<P0510>P0510 THROTTLE CONTROL SW MALF </P0510>
<P0530>P0530 A/C COOLANT PRS SENSOR MALF </P0530>
<P0531>P0531 A/C COOLANT PRS SENSORADJ IMPROPER </P0531>
<P0532>P0532 A/C COOLANT PRS SENSOR VOLT TOO LOW </P0532>
<P0533>P0533 A/C COOLANT PRS SENSOR VOLT TOO HIGH </P0533>
<P0534>P0534 A/C COOLANT PRS SENSOR LEAK </P0534>
<P0550>P0550 POWER STEERING PRS SENSOR CIRCUIT MALF </P0550>
<P0551>P0551 POWER STEERING PRS SENSORADJ IMPROPER OR CAPABILITY MALF </P0551>
<P0552>P0552 POWER STEERING PRS SENSOR CIRCUIT VOLT TOO LOW </P0552>
<P0553>P0553 POWER STEERING PRS SENSOR CIRCUIT VOLT TOO HIGH </P0553>
<P0554>P0554 POWER STEERING PRS SENSOR CIRCUIT CONTACT MALF </P0554>
<P0560>P0560 SYSTEM VOLT MALF </P0560>
<P0561>P0561 SYSTEM VOLT UNSTABLE </P0561>
<P0562>P0562 SYSTEM VOLT TOO LOW </P0562>
<P0563>P0563 SYSTEM VOLT TOO HIGH </P0563>
<P0565>P0565 CRUISE CONTROL ON SIGNAL MALF </P0565>
<P0566>P0566 CRUISE CONTROL OFF SIGNAL MALF </P0566>
<P0567>P0567 CRUISE CONTROL RESUME SIGNAL MALF </P0567>
<P0568>P0568 CRUISE CONTROL SET SIGNAL MALF </P0568>
<P0569>P0569 CRUISE CONTROL SLIDE SIGNAL MALF </P0569>
<P0570>P0570 CRUISE CONTROL ACC SIGNAL MALF </P0570>
<P0571>P0571 CRUISE CONTROL SW CIRCUIT A MALF </P0571>
<P0572>P0572 CRUISE CONTROL SW CIRCUIT A VOLT TOO LOW </P0572>
<P0573>P0573 CRUISE CONTROL SW CIRCUIT A VOLT TOO LOW </P0573>
<P0600>P0600 SERIAL SIGNAL WIRE MALF </P0600>
<P0601>P0601 INNER MEMORIZER CHECK ERROR </P0601>
<P0602>P0602 CONTROL MODULE PROGRAM ERROR </P0602>
<P0603>P0603 INNER CONTROL MODULE KAM ERROR </P0603>
<P0604>P0604 INNER CONTROL MODULE RAM ERROR </P0604>
<P0605>P0605 INNER CONTROL MODULE ROM ERROR </P0605>
<P0606>P0606 PCM(PCM)PROCESSOR MALF </P0606>
<P0700>P0700 TRANSMISSION CONTROL SYSTEM MALF </P0700>
<P0701>P0701 TRANSMISSION CONTROL SYSTEM ADJ IMPROPER OR CAPABILITY MALF </P0701>
<P0702>P0702 TRANSMISSION CONTROL SYSTEM MALF </P0702>
<P0703>P0703 TCC(TORQUE CLUTCH) CONTROL BRAKE SW B CIRCUIT MALF </P0703>
<P0704>P0704 CLUTCH SW INPUT CIRCUIT MALF </P0704>
<P0705>P0705 TRANSMISSION CASE SHIFT SW SIGNAL MALF </P0705>
<P0706>P0706 TRANSMISSION CASE SHIFT SW ADJ IMPROPER OR CAPABILITY MALF </P0706>
<P0707>P0707 SHIFT SW (MLP)SIGNAL TOO LOW </P0707>
<P0708>P0708 SHIFT SW (MLP)SIGNAL TOO HIGH </P0708>
<P0709>P0709 SHIFT SW (MLP)SIGNAL CONTINUE </P0709>
<P0710>P0710 TRANSMISSION CASE TEMP SENSOR MALF </P0710>
<P0711>P0711 TRANSMISSION CASE TEMP SENSORADJ IMPROPER OR CAPABILITY MALF </P0711>
<P0712>P0712 TRANSMISSION CASE TEMP SENSOR VOLT TOO HIGH </P0712>
<P0713>P0713 TRANSMISSION CASE TEMP SENSOR VOLT TOO LOW </P0713>
<P0714>P0714 TRANSMISSION CASE TEMP SENSOR CIRCUIT CONTACT MALF </P0714>
<P0715>P0715 TRANSMISSION CASE INPUT AXIS SPEED SENSOR MALF </P0715>
<P0716>P0716 TRANSMISSION CASE INPUT AXIS SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </P0716>
<P0717>P0717 TRANSMISSION CASE INPUT AXIS SPEED SENSOR NO SIGNAL </P0717>
<P0718>P0718 TRANSMISSION CASE INPUT AXIS SPEED SENSOR CIRCUIT CONTACT MALF </P0718>
<P0719>P0719 TCC(TORQUE CLUTCH) CONTROL BRAKE SW B CIRCUIT VOLT TOO LOW </P0719>
<P0720>P0720 TRANSMISSION CASE OUTPUT AXIS SPEED SENSOR(OSS) CIRCUIT MALF </P0720>
<P0721>P0721 TRANSMISSION CASE OUTPUT AXIS SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </P0721>
<P0722>P0722 TRANSMISSION CASE OUTPUT AXIS SPEED SENSOR NO SIGNAL </P0722>
<P0723>P0723 TRANSMISSION CASE OUTPUT AXIS SPEED SENSOR CIRCUIT CONTACT MALF </P0723>
<P0724>P0724 TCC(TORQUE CLUTCH) CONTROL BRAKE SW B CIRCUIT VOLT TOO HIGH </P0724>
<P0725>P0725 ENGINE SPEED SENSOR CIRCUIT MALF </P0725>
<P0726>P0726 ENGINE SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </P0726>
<P0727>P0727 ENGINE SPEED SENSOR NO SIGNAL </P0727>
<P0728>P0728 ENGINE SPEED SENSOR CIRCUIT CONTACT MALF </P0728>
<P0730>P0730 GEAR RATIO WRONG </P0730>
<P0731>P0731 FIRST GEAR RATIO WRONG </P0731>
<P0732>P0732 SECOND GEAR RATIO WRONG </P0732>
<P0733>P0733 THIRD GEAR RATIO WRONG </P0733>
<P0734>P0734 FORTH GEAR RATIO WRONG </P0734>
<P0735>P0735 FIFTH GEAR RATIO WRONG </P0735>
<P0736>P0736 REVERSE GEAR RATIO WRONG </P0736>
<P0740>P0740 TCC(TORQUE CLUTCH) CIRCUIT MALF </P0740>
<P0741>P0741 TCC(TORQUE CLUTCH)SOLENOID STICK IN WIDE CLOSE </P0741>
<P0742>P0742 TCC(TORQUE CLUTCH)SOLENOID STICK IN WIDE OPEN </P0742>
<P0743>P0743 TCC(TORQUE CLUTCH)SOLENOID CONTROL CIRCUIT MALF </P0743>
<P0744>P0744 TCC(TORQUE CLUTCH)SOLENOID CONTROL CIRCUIT CONTACT MALF </P0744>
<P0745>P0745 PRS CONTROL SOLENOID COIL MALF </P0745>
<P0746>P0746 PRS CONTROL SOLENOID STICK IN WIDE CLOSE </P0746>
<P0747>P0747 PRS CONTROL SOLENOID STICK IN WIDE OPEN </P0747>
<P0748>P0748 PRS CONTROL SOLENOID CIRCUIT MALF </P0748>
<P0749>P0749 PRS CONTROL SOLENOID CIRCUIT CONTACT MALF </P0749>
<P0750>P0750 TRANSMISSION CASE SHIFT SW CIRCUIT MALF </P0750>
<P0751>P0751 SHIFT 1 SOLENOID(SS1) STICK IN WIDE CLOSE </P0751>
<P0752>P0752 SHIFT 1 SOLENOID(SS1) STICK IN WIDE OPEN </P0752>
<P0753>P0753 SHIFT 1 SOLENOID SHORT OR OPEN </P0753>
<P0754>P0754 SHIFT 1 SOLENOID CIRCUIT CONTACT MALF </P0754>
<P0755>P0755 SHIFT 2 SOLENOID CIRCUIT MALF </P0755>
<P0756>P0756 SHIFT 2 SOLENOID(SS2) STICK IN WIDE CLOSE </P0756>
<P0757>P0757 SHIFT 2 SOLENOID(SS2) STICK IN WIDE OPEN </P0757>
<P0758>P0758 SHIFT 2 SOLENOID SHORT OR OPEN </P0758>
<P0759>P0759 SHIFT 2 SOLENOID CIRCUIT CONTACT MALF </P0759>
<P0760>P0760 SHIFT 3 SOLENOID CIRCUIT MALF </P0760>
<P0761>P0761 SHIFT 3 SOLENOID(SS3) STICK IN WIDE CLOSE </P0761>
<P0762>P0762 SHIFT 3 SOLENOID(SS3) STICK IN WIDE OPEN </P0762>
<P0763>P0763 SHIFT 3 SOLENOID SHORT OR OPEN </P0763>
<P0764>P0764 SHIFT 3 SOLENOID CIRCUIT CONTACT MALF </P0764>
<P0765>P0765 SHIFT 4 SOLENOID CIRCUIT MALF </P0765>
<P0766>P0766 SHIFT 4 SOLENOID(SS4) STICK IN WIDE CLOSE </P0766>
<P0767>P0767 SHIFT 4 SOLENOID(SS4) STICK IN WIDE OPEN </P0767>
<P0768>P0768 SHIFT 4 SOLENOID SHORT OR OPEN </P0768>
<P0769>P0769 SHIFT 4 SOLENOID CIRCUIT CONTACT MALF </P0769>
<P0770>P0770 SHIFT 5 SOLENOID CIRCUIT MALF </P0770>
<P0771>P0771 SHIFT 5 SOLENOID(SS5) STICK IN WIDE CLOSE </P0771>
<P0772>P0772 SHIFT 5 SOLENOID(SS5) STICK IN WIDE OPEN </P0772>
<P0773>P0773 SHIFT 5 SOLENOID SHORT OR OPEN </P0773>
<P0774>P0774 SHIFT 5 SOLENOID CIRCUIT CONTACT MALF </P0774>
<P0780>P0780 SHIFT MALF </P0780>
<P0781>P0781 1-2SHIFT MALF </P0781>
<P0782>P0782 2-3SHIFT MALF </P0782>
<P0783>P0783 3-4SHIFT MALF </P0783>
<P0784>P0784 4-5SHIFT MALF </P0784>
<P0785>P0785 SHIFT TIMING SOLENOID CIRCUIT MALF </P0785>
<P0786>P0786 SHIFT TIMING SOLENOID ADJ IMPROPER OR CAPABILITY MALF </P0786>
<P0787>P0787 SHIFT TIMING SOLENOID CIRCUIT VOLT TOO LOW </P0787>
<P0788>P0788 SHIFT TIMING SOLENOID CIRCUIT VOLT TOO HIGH </P0788>
<P0789>P0789 SHIFT TIMING SOLENOID CIRCUIT CONTACT MALF </P0789>
<P0790>P0790 NORM/PERFORM SW CIRCUIT MALF </P0790>
<P1000>P1000 EEC-V COMPUTER CA’T LINK OBD-II </P1000>
<P1100>P1100 AFS CIRCUIT INTERMISSION OPEN </P1100>
<P1101>P1101 AFS SIGNAL EXCEED RANGE </P1101>
<P1102>P1102 IAC/TCC/FAN RELAY CONTROL CRYSTAL MALF </P1102>
<P1106>P1106 AFS INPUT VOLT HIGH </P1106>
<P1107>P1107 AFS INPUT VOLT LOW </P1107>
<P1111>P1111 INTAKE TEMP SENSOR MALF </P1111>
<P1112>P1112 INTAKE TEMP (IAT) INTERMISSION MALF </P1112>
<P1114>P1114 ENGINE WATER TEMP SENSOR INTERMISSION OPEN </P1114>
<P1115>P1115 ENGINE WATER TEMP SENSOR MALF </P1115>
<P1116>P1116 ENGINE WATER TEMP(ECT)SIGNAL EXCEED RANGE </P1116>
<P1117>P1117 ENGINE WATER TEMP(ECT)SIGNAL INTERMISSION MALF </P1117>
<P1120>P1120 THROTTLE (TP)SIGNAL VOLT TOO LOW </P1120>
<P1121>P1121 TP(TPS)SIGNAL AND AIRFLOW(MAF)SIGNAL NOT MATCH </P1121>
<P1122>P1122 TP(TPS)SIGNAL AND AIRFLOW(MAF)SIGNAL NOT MATCH </P1122>
<P1124>P1124 THROTTLE (TP)SIGNAL EXCEED RANGE </P1124>
<P1125>P1125 THROTTLE (TP) CIRCUIT INTERMISSION MALF </P1125>
<P1130>P1130 FRONT MAIN O2S CHANGE SIGNAL TOO SMALL </P1130>
<P1131>P1131 FRONT MAIN O2S SIGNAL TOO LOW(LEAN) </P1131>
<P1132>P1132 FRONT MAIN O2S SIGNAL TOO HIGH(RICH) </P1132>
<P1133>P1133 FRONT MAIN O2S VOLT NOT CHANGE ALWAYS </P1133>
<P1134>P1134 FRONT MAIN O2S SIGNAL MALF </P1134>
<P1135>P1135 FRONT MAIN O2S SIGNAL MALF </P1135>
<P1137>P1137 FRONT ASSISTANT O2S SIGNAL TOO LOW(RICH) </P1137>
<P1138>P1138 FRONT ASSISTANT O2S SIGNAL TOO HIGH(RICH) </P1138>
<P1150>P1150 REAR MAIN O2S VOLT SIGNAL CHANGE LITTLE </P1150>
<P1151>P1151 REAR MAIN O2S VOLT SIGNAL TOO LOW(LEAN) </P1151>
<P1152>P1152 REAR MAIN O2S VOLT SIGNAL TOO HIGH(RICH) </P1152>
<P1154>P1154 REAR MAIN O2S SIGNAL MALF </P1154>
<P1155>P1155 REAR MAIN O2S SIGNAL MALF </P1155>
<P1157>P1157 REAR ASSISTANT O2S SIGNAL TOO LOW(LEAN) </P1157>
<P1158>P1158 REAR ASISTANT O2S VOLT HIGHMIX RATIO RICH </P1158>
<P1220>P1220 TANDEM THROTTLE VALVE CONTROL MALF </P1220>
<P1224>P1224 TPS BSIGNAL EXCEED RANGE </P1224>
<P1233>P1233 FUEL PUMP DRIVE MODULE OFFLINE(MIL IS ON) </P1233>
<P1234>P1234 FUEL PUMP DRIVE MODULE OFFLINE </P1234>
<P1235>P1235 FUEL PUMP CONTROL SIGNAL EXCEED RANGE(MIL IS ON) </P1235>
<P1236>P1236 FUEL PUMP CONTROL SIGNAL EXCEED RANGE </P1236>
<P1237>P1237 FUEL PUMP ASSISTANT CIRCUIT MALF( MIL IS ON) </P1237>
<P1238>P1238 FUEL PUMP ASSISTANT CIRCUIT MALF </P1238>
<P1257>P1257 TORQUE BOOST CONTROL SOLENOID CIRCUIT MALF </P1257>
<P1260>P1260 ENGINE IMMO INVALID </P1260>
<P1270>P1270 RPM OR VEH SPEED LIMITER </P1270>
<P1274>P1274 INJECTOR CIRCUIT MALF </P1274>
<P1291>P1291 HOT AIR ENTRANCE </P1291>
<P1292>P1292 MIXTURE PRS TOO HIGH </P1292>
<P1293>P1293 MIXTURE PRS TOO LOW </P1293>
<P1294>P1294 IDLE NOT STABLE(IDLE SPEED PERFORMANCE) </P1294>
<P1295>P1295 TPS NO 5V SUPPLY </P1295>
<P1296>P1296 INTAKE PRS SENSOR NO 5V SUPPLY </P1296>
<P1297>P1297 MAP PNEUMATIC CHANGE </P1297>
<P1298>P1298 WIDE OPEN THROTTLE LEAN </P1298>
<P1299>P1299 AIR FLOW TOO HIGH,ENGINE TOO HOT(FORD) </P1299>
<P1300>P1300 IGFORIGTIGN SIGNAL MALF </P1300>
<P1307>P1307 ACCELEROGRAPH ACCSENSOR VOLT SIGNAL TOO LOW </P1307>
<P1308>P1308 ACCELEROGRAPH ACCSENSOR VOLT SIGNAL TOO HIGH </P1308>
<P1310>P1310 ABOVE CYL1 INTERMITTENCE NOT IGN </P1310>
<P1326>P1326 KNOCK CONTROL CIRCUITOR MAIN COMPUTER MALF </P1326>
<P1329>P1329 KNOCK CONTROL CIRCUITOR MAIN COMPUTER MALF </P1329>
<P1350>P1350 EST CIRCUIT MALF </P1350>
<P1351>P1351 IGN TRIGGER SIGNAL(IDM) CIRCUIT MALF </P1351>
<P1352>P1352 GROUP A HIGH PRS COIL MALF(CYL1,6) </P1352>
<P1353>P1353 GROUP B HIGH PRS COIL MALF(CYL3,5) </P1353>
<P1354>P1354 GROUP C HIGH PRS COIL MALF(CYL4,7) </P1354>
<P1355>P1355 GROUP D HIGH PRS COIL MALF(CYL2,8) </P1355>
<P1356>P1356 IDM PULSE SIGNAL MALF </P1356>
<P1357>P1357 IDM PULSE WIDTH NO DEFINITION </P1357>
<P1358>P1358 IDMSIGNAL EXCEED RANGE </P1358>
<P1361>P1361 EST BY PASS CIRCUIT MALF </P1361>
<P1362>P1362 IMMO MALF </P1362>
<P1364>P1364 HIGH VOLT COIL LOW VOLT CIRCUIT MALF </P1364>
<P1374>P1374 CRANKSHAFT LOWRES CORRELATE </P1374>
<P1381>P1381 ABS ROUGH ROAD SURFACE TEST SYSTEM ERROR</P1381>
<P1390>P1390 OCTANE NUMBER ADJ CIRCUIT MALF </P1390>
<P1391>P1391 CAM/CPS LOSS </P1391>
<P1391>P1391 NO PEAK PRI #1WITH MAX DWELL TIME </P1391>
<P1392>P1392 NO PEAK PRI #2WITH MAX DWELL TIME </P1392>
<P1393>P1393 NO PEAK PRI #3WITH MAX DWELL TIME </P1393>
<P1394>P1394 NO PEAK PRI #4WITH MAX DWELL TIME </P1394>
<P1395>P1395 NO PEAK PRI #5WITH MAX DWELL TIME </P1395>
<P1398>P1398 CRANKSHAFT SENSOR MALF </P1398>
<P1399>P1399 WAI TO STRT LMP CKT </P1399>
<P1400>P1400 EGR ELEC FREQUENCY VALVE VOLT TOO LOW </P1400>
<P1401>P1401 EGR ELEC FREQUENCY VALVE VOLT TOO HIGH </P1401>
<P1403>P1403 EGRSOLENOID CONTROL MALF </P1403>
<P1404>P1404 EGRSOLENOID CONTROL MALF </P1404>
<P1405>P1405 EGRSOLENOID CONTROL MALFORLOWFAN CIRCUIT MALF </P1405>
<P1406>P1406 EGR POSI SENSOR MALF </P1406>
<P1407>P1407 EGR SOLENOID STICK IN WIDE CLOSE </P1407>
<P1408>P1408 EGR VALVE CONTROL FLUX EXCEED RANGE </P1408>
<P1409>P1409 EVR CONTROL CIRCUIT MALF </P1409>
<P1413>P1413 ASSISTANT AIR INJ CIRCUIT VOLT TOO LOW </P1413>
<P1414>P1414 ASSISTANT AIR INJ CIRCUIT VOLT TOO HIGH </P1414>
<P1416>P1416 EGR TEMP SENSOR CIRCUIT MALF </P1416>
<P1417>P1417 EGR TEMP SENSORSIGNAL TOO LOW </P1417>
<P1418>P1418 EGR TEMP SENSORSIGNAL TOO HIGH </P1418>
<P1441>P1441 EVAP SYSTEM MALF </P1441>
<P1442>P1442 PURGE SOLENOID MALF </P1442>
<P1443>P1443 EVAP EXHAUST PURGE MALF </P1443>
<P1444>P1444 PURGE FLUX SENSOR CIRCUIT INPUT VOLT TOO LOW </P1444>
<P1445>P1445 PURGE FLUX SENSOR CIRCUIT INPUT VOLT TOO HIGH </P1445>
<P1460>P1460 A/C SW SIGNAL MALF </P1460>
<P1461>P1461 A/C PRESSURE CKT HIGHT INPUT </P1461>
<P1462>P1462 A/C PRESSURE CKT LOW INPUT </P1462>
<P1463>P1463 A/C PRS CHANGE NOT ENOUGH </P1463>
<P1464>P1464 A/C REQUIRE TOO MUCH </P1464>
<P1469>P1469 A/C CYCLE PERIOD TOO LOW </P1469>
<P1473>P1473 ASSISTANT FAN CAN’T ENTER HIGH RUN </P1473>
<P1474>P1474 LOWFAN CONTROL MALF </P1474>
<P1479>P1479 HIGHFAN CONTROL MALF </P1479>
<P1480>P1480 ASSISTANT FAN LOW RUN CONTROL </P1480>
<P1481>P1481 ASSISTANT FAN HIGH RUN CONTROL </P1481>
<P1486>P1486 EVAP HOSE PINCHED </P1486>
<P1487>P1487 HI SPD FAN #2CKT </P1487>
<P1488>P1488 AUX 5VOLT LOW OUTPUT </P1488>
<P1489>P1489 HIGHFAN RELAY CIRCUIT </P1489>
<P1490>P1490 LOWFAN RELAY CIRCUIT </P1490>
<P1491>P1491 COOLER FAN RELAY CIRCUIT </P1491>
<P1492>P1492 OUTER TEMP SENSOR VOLT TOO HIGH </P1492>
<P1493>P1493 OUTER TEMP SENSOR VOLT TOO LOW </P1493>
<P1494>P1494 LEAK CHECK PUMP PRS SW </P1494>
<P1495>P1495 LEAK CHECK PUMP COIL CIRCUIT </P1495>
<P1496>P1496 5V OUTPUT TOO LOW </P1496>
<P1500>P1500 VSSVEHICLE SPEEDSIGNAL INTERMISSION MALF </P1500>
<P1505>P1505 IACIDLE CONTROL MALF </P1505>
<P1506>P1506 IAC CONTROL START SIGNAL TOO HIGH </P1506>
<P1507>P1507 IAC CONTROLCLOSE SIGNAL TOO LOW </P1507>
<P1508>P1508 IAC CONTROLCLOSE SIGNAL TOO HIGH </P1508>
<P1509>P1509 IDLE CONTROL MALF( TOO HIGH) </P1509>
<P1518>P1518 INTAKE MANIFOLD IMPELLER ON </P1518>
<P1519>P1519 INTAKE MANIFOLD IMPELLER OFF </P1519>
<P1520>P1520 INTAKE MANIFOLD IMPELLER MALF;P/N SW SHORT MALF </P1520>
<P1530>P1530 COLD MEDIA PRS SW MALF </P1530>
<P1531>P1531 COLD MEDIA PRS TOO LOWOR PRS SW MALF </P1531>
<P1532>P1532 A/C EVAP TEMP SENSOR READING TOO LOW </P1532>
<P1533>P1533 A/C EVAP TEMP SENSOR READING TOO HIGH </P1533>
<P1550>P1550 CRUISE CONTROL SPPED MALF;AUTO ADJ SEAT PRS EXCEED RANGE(FORD) </P1550>
<P1554>P1554 CRUISE MTR LINK ERROR </P1554>
<P1558>P1558 CRUISE CONTROL VALVE POSI SENSORSIGNAL TOO LOW </P1558>
<P1561>P1561 CRUISE CONTROL ATMOSPHERE SOLENOID MALF </P1561>
<P1562>P1562 CRUISE CONTROL VACUUM SOLENOID MALF </P1562>
<P1565>P1565 CRUISE CONTROL VALVE POSI SENSOR MALF </P1565>
<P1567>P1567 CRUISE CONTROL FUNCTION SW MALF </P1567>
<P1568>P1568 CRUISE CONTROL VALVE POSI SENSORSIGNAL TOO HIGH </P1568>
<P1571>P1571 ABS LOAD SIGNAL MALF </P1571>
<P1573>P1573 ABS LOAD CIRCUIT OPEN </P1573>
<P1596>P1596 POWER STEERING SW INPUT STATUS MALF </P1596>
<P1598>P1598 (A/C)A/C PRS SENSOR INPUT VOLT TOO LOW </P1598>
<P1599>P1599 (A/C)A/C PRS SENSOR INPUT VOLT TOO LOW(KREISLER);CRUISE CONTROL VALVE POWER SUPPLY MALF</P1599>
<P1600>P1600 POWER SUPPLY WIRE OPEN </P1600>
<P1604>P1604 EEPROM MALF </P1604>
<P1605>P1605 ENGINE COMPUTER PERMANENT MEMORY(RAM) MALF </P1605>
<P1610>P1610 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1610>
<P1611>P1611 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1611>
<P1612>P1612 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1612>
<P1613>P1613 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1613>
<P1614>P1614 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1614>
<P1615>P1615 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1615>
<P1616>P1616 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1616>
<P1617>P1617 ECM B26 AND TCM B15 LINK SIGNAL TOO LOW;FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR</P1617>(FORD)
<P1618>P1618 ECM B26 AND TCM B15 LINK SIGNAL TOO HIGH;FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR</P1618>(FORD)
<P1619>P1619 ENGINE OIL LONGEVITY RESET CIRCUIT MALF;FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR(FORD)</P1619>
<P1620>P1620 FLASH MEMORIZER(FLASH EPROM)REPROGRAM ERROR </P1620>
<P1623>P1623 COMPUTER PROGRAM MEMORY MALF(PROM) </P1623>
<P1626>P1626 IMMO CONTROL FUEL PUMP CONTROL OPEN AFTER ENGINE START </P1626>
<P1629>P1629 IMMO CONTROL FUEL PUMP CONTROL OPEN WHEN MOTOR START</P1629>
<P1630>P1630 POWER SUPPLY VOLT LOWER THAN 9V OR HIGHER THAN 17.3V </P1630>
<P1635>P1635 VSBA VOLT CIRCUIT MALF </P1635>
<P1639>P1639 VSBB VOLT CIRCUIT MALF </P1639>
<P1640>P1640 EVAPЎўTCCЎўFAN CIRCUIT MALF </P1640>
<P1641>P1641 ODMA OUTPUT1 CIRCUIT MALF </P1641>
<P1642>P1642 ODMA OUTPUT2 CIRCUIT MALF </P1642>
<P1643>P1643 ODMA OUTPUT3 CIRCUIT MALF </P1643>
<P1644>P1644 ODMA OUTPUT4 CIRCUIT MALF </P1644>
<P1645>P1645 ODMA OUTPUT5 CIRCUIT MALF </P1645>
<P1646>P1646 ODMA OUTPUT6 CIRCUIT MALF </P1646>
<P1647>P1647 ODMA OUTPUT7 CIRCUIT MALF </P1647>
<P1650>P1650 SHIFTSOLENOIDЎўTCCЎўEGR MALF;AUTO ADJ SEAT SENSOR EXCEED RANGE(FORD</P1650>)
<P1651>P1651 ODMB OUTPUT1 CIRCUIT MALF </P1651>
<P1652>P1652 ODMB OUTPUT2 CIRCUIT MALF </P1652>
<P1653>P1653 ODMB OUTPUT3 CIRCUIT MALF </P1653>
<P1654>P1654 ODMB OUTPUT4 CIRCUIT MALF </P1654>
<P1655>P1655 ODMB OUTPUT5 CIRCUIT MALF </P1655>
<P1656>P1656 ODMB OUTPUT6 CIRCUIT MALF </P1656>
<P1657>P1657 ODMB OUTPUT7 CIRCUIT MALF </P1657>
<P1661>P1661 ODMC OUTPUT1 CIRCUIT MALF </P1661>
<P1662>P1662 ODMC OUTPUT2 CIRCUIT MALF </P1662>
<P1663>P1663 ODMC OUTPUT3 CIRCUIT MALF </P1663>
<P1664>P1664 ODMC OUTPUT4 CIRCUIT MALF </P1664>
<P1665>P1665 ODMC OUTPUT5 CIRCUIT MALF </P1665>
<P1666>P1666 ODMC OUTPUT6 CIRCUIT MALF </P1666>
<P1667>P1667 ODMC OUTPUT7 CIRCUIT MALF </P1667>
<P1670>P1670 MIL CONTROL CIRCUIT MALF </P1670>
<P1671>P1671 ODMD OUTPUT1 CIRCUIT MALF </P1671>
<P1672>P1672 ODMD OUTPUT2 CIRCUIT MALF </P1672>
<P1673>P1673 ODMD OUTPUT3 CIRCUIT MALF </P1673>
<P1674>P1674 ODMD OUTPUT4 CIRCUIT MALF </P1674>
<P1675>P1675 ODMD OUTPUT5 CIRCUIT MALF </P1675>
<P1676>P1676 ODMD OUTPUT6 CIRCUIT MALF </P1676>
<P1677>P1677 ODMD OUTPUT7 CIRCUIT MALF </P1677>
<P1698>P1698 NO CCD MESGS RECVD TRANS CNTRL MOD </P1698>
<P1699>P1699 NO CCD MESGS RECVD PWRTRAIN CNTRL MOD </P1699>
<P1701>P1701 REVERSE GEAR JOGGLE ERROR </P1701>
<P1703>P1703 BRAKE SW(BOO)SIGNAL MALF </P1703>
<P1705>P1705 SHIFT SW (MLP)SIGNAL EXCEED RANGE </P1705>
<P1709>P1709 SHIFT SW NO PAK P SIGNAL </P1709>
<P1711>P1711 TRANSMISSION CASE OIL TEMP(TFT) EXCEED RANGE </P1711>
<P1715>P1715 TRANSMISSION CASE OIK PRS SOLENOID MALF </P1715>
<P1729>P1729 4X4L SW MALF </P1729>
<P1730>P1730 4X4 TOO LOW </P1730>
<P1731>P1731 1/2SHIFT MALF </P1731>
<P1732>P1732 2/3SHIFT MALF </P1732>
<P1733>P1733 3/4SHIFT MALF </P1733>
<P1741>P1741 TCC JOGGLE MALF </P1741>
<P1742>P1742 TCC SOLENOID CAN’T STICK </P1742>
<P1743>P1743 TCC SOLENOID CAN’T STICK </P1743>
<P1744>P1744 TCC SOLENOID STICK IN WIDE CLOSE </P1744>
<P1746>P1746 TRANSMISSION CASE PIPE PRS SOLENOID(EPC) OPEN </P1746>
<P1747>P1747 TRANSMISSION CASE PIPE PRS SOLENOID(EPC) SHORT </P1747>
<P1749>P1749 TRANSMISSION CASE PIPE PRS SOLENOID(EPC) MALF </P1749>
<P1750>P1750 TRANSMISSION CASESHIFTSOLENOID MALF </P1750>
<P1751>P1751 SHIFT 1 SOLENOID(SSI)MALF </P1751>
<P1752>P1752 SHIFT 1 SOLENOID(SSI)MALF </P1752>
<P1754>P1754 SLIDE CLUTCH CONTROL MALF </P1754>
<P1756>P1756 SHIFTSOLENOID B MALF </P1756>
<P1761>P1761 SHIFTSOLENOID C MALF </P1761>
<P1762>P1762 GOV PRS SENSOR MALF </P1762>
<P1763>P1763 GOV PRS SENSOR VOLT TOO HIGH </P1763>
<P1764>P1764 GOV PRS SENSOR VOLT TOO LOW </P1764>
<P1765>P1765 TRANSMISSION CASE PIPE PRS SOLENOID MALF </P1765>
<P1766>P1766 SHIFTSOLENOID D MALF </P1766>
<P1780>P1780 TRANSMISSION CASE TCS SW CIRCUIT MALF </P1780>
<P1781>P1781 4X4L SW MALF </P1781>
<P1783>P1783 TRANSMISSION CASE OIL TEMP TOO HIGH </P1783>
<P1784>P1784 TRANSMISSION CASE GEAR1,REVERSE GEAR MECHANISM MALF </P1784>
<P1785>P1785 TRANSMISSION CASE GEAR1,2 MECHANISM MALF </P1785>
<P1788>P1788 VFS OPEN </P1788>
<P1789>P1789 VFS SHORT </P1789>
<P1801>P1801 TRANSMISSION CLUTCH MUTUAL LOCK SAFETY SW CIRCUIT OPEN </P1801>
<P1802>P1802 TRANSMISSION CLUTCH MUTUAL LOCK SAFETY SW CIRCUIT ¶ФBATTERY SHORT </P1802>
<P1810>P1810 TORQUE CONTROL COMM CIRCUIT MALF </P1810>
<P1811>P1811 FOUR-WHEEL DRIVE LOW INDICATOR SHORT TO GND </P1811>
<P1812>P1812 FOUR-WHEEL DRIVE MODE SELECT SW OPEN </P1812>
<P1814>P1814 TORQUE TOO TIGHT </P1814>
<P1860>P1860 TORQUE SOLENOID CIRCUIT MALF(HMD) </P1860>
<P1864>P1864 TORQUE SOLENOID CIRCUIT MALF(HMD) </P1864>
<P1870>P1870 TRANSMISSION CASE ASSEMBLY LOOSE </P1870>
<P1871>P1871 GEAR TRANSMISSION RATIO AMBIGUITY </P1871>
<P1886>P1886 GEAR 3 TO 2 CLUTCH CIRCUIT MALF </P1886>
<P1889>P1889 3RD CLUTCH SW MALF(HMD) </P1889>
<P1899>P1899 P/N SW INPUT STATUS ERROR </P1899>
<C0200>C0200 RF WHEEL SPEED SENSOR MALF </C0200>
<C0201>C0201 RF WHEEL SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0201>
<C0202>C0202 RF WHEEL SPEED SENSOR VOLT TOO LOW </C0202>
<C0203>C0203 RF WHEEL SPEED SENSOR VOLT TOO HIGH </C0203>
<C0205>C0205 LF WHEEL SPEED SENSOR MALF </C0205>
<C0206>C0206 LF WHEEL SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0206>
<C0207>C0207 LF WHEEL SPEED SENSOR VOLT TOO LOW </C0207>
<C0208>C0208 LF WHEEL SPEED SENSOR VOLT TOO HIGH </C0208>
<C0210>C0210 RF WHEEL SPEED SENSOR MALF </C0210>
<C0211>C0211 RF WHEEL SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0211>
<C0212>C0212 RF WHEEL SPEED SENSOR VOLT TOO LOW </C0212>
<C0213>C0213 RF WHEEL SPEED SENSOR VOLT TOO HIGH </C0213>
<C0215>C0215 LR WHEEL SPEED SENSOR MALF </C0215>
<C0216>C0216 LR WHEEL SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0216>
<C0217>C0217 LR WHEEL SPEED SENSOR VOLT TOO LOW </C0217>
<C0218>C0218 LR WHEEL SPEED SENSOR VOLT TOO HIGH </C0218>
<C0220>C0220 REAR WHEEL SPEED SENSOR MALF </C0220>
<C0221>C0221 REAR WHEEL SPEED SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0221>
<C0222>C0222 REAR WHEEL SPEED SENSOR VOLT TOO LOW </C0222>
<C0223>C0223 REAR WHEEL SPEED SENSOR VOLT TOO HIGH </C0223>
<C0225>C0225 WHEEL SPEED SENSOR FREQUENCY WRONG </C0225>
<C0226>C0226 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT MALF </C0226>
<C0227>C0227 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0227>
<C0228>C0228 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0228>
<C0229>C0229 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0229>
<C0231>C0231 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT MALF </C0231>
<C0232>C0232 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0232>
<C0233>C0233 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0233>
<C0234>C0234 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0234>
<C0236>C0236 LF WHEEL ABS COIL OR MOTOR #1 CIRCUIT MALF </C0236>
<C0237>C0237 LF WHEEL ABS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0237>
<C0238>C0238 LF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0238>
<C0239>C0239 LF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0239>
<C0241>C0241 LF WHEEL ABS COIL OR MOTOR #2 CIRCUIT MALF </C0241>
<C0242>C0242 LF WHEEL ABS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0242>
<C0243>C0243 LF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0243>
<C0244>C0244 LF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0244>
<C0246>C0246 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT MALF </C0246>
<C0247>C0247 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0247>
<C0248>C0248 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0248>
<C0249>C0249 RF WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0249>
<C0251>C0251 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT MALF </C0251>
<C0252>C0252 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0252>
<C0253>C0253 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0253>
<C0254>C0254 RF WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0254>
<C0256>C0256 LR WHEEL ABS COIL OR MOTOR #1 CIRCUIT MALF </C0256>
<C0257>C0257 LR WHEEL ABS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0257>
<C0258>C0258 LR WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0258>
<C0259>C0259 LR WHEEL ABS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0259>
<C0261>C0261 LR WHEEL ABS COIL OR MOTOR #2 CIRCUIT MALF </C0261>
<C0262>C0262 LR WHEEL ABS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0262>
<C0263>C0263 LR WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0263>
<C0264>C0264 LR WHEEL ABS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0264>
<C0266>C0266 WATER PUMP MOTOR CIRCUIT MALF </C0266>
<C0267>C0267 WATER PUMP MOTOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0267>
<C0268>C0268 WATER PUMP MOTOR CIRCUIT VOLT TOO LOW </C0268>
<C0269>C0269 WATER PUMP MOTOR CIRCUIT VOLT TOO HIGH </C0269>
<C0271>C0271 WATER PUMP MOTOR RELAY CIRCUIT MALF </C0271>
<C0272>C0272 WATER PUMP MOTOR RELAY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0272>
<C0273>C0273 WATER PUMP MOTOR RELAY CIRCUIT VOLT TOO LOW </C0273>
<C0274>C0274 WATER PUMP MOTOR RELAY CIRCUIT VOLT TOO HIGH </C0274>
<C0276>C0276 SOLENOID RELAY CIRCUIT MALF </C0276>
<C0277>C0277 SOLENOID RELAY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0277>
<C0278>C0278 SOLENOID RELAY CIRCUIT VOLT TOO LOW </C0278>
<C0279>C0279 SOLENOID RELAY CIRCUIT VOLT TOO HIGH </C0279>
<C0300>C0300 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT MALF </C0300>
<C0301>C0301 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0301>
<C0302>C0302 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0302>
<C0303>C0303 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0303>
<C0305>C0305 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT MALF </C0305>
<C0306>C0306 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0306>
<C0307>C0307 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0307>
<C0308>C0308 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0308>
<C0310>C0310 LF WHEEL TCS COIL OR MOTOR #1 CIRCUIT MALF </C0310>
<C0311>C0311 LF WHEEL TCS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0311>
<C0312>C0312 LF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0312>
<C0313>C0313 LF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0313>
<C0315>C0315 LF WHEEL TCS COIL OR MOTOR #2 CIRCUIT MALF </C0315>
<C0316>C0316 LF WHEEL TCS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0316>
<C0317>C0317 LF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0317>
<C0318>C0318 LF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0318>
<C0320>C0320 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT MALF </C0320>
<C0321>C0321 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0321>
<C0322>C0322 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0322>
<C0323>C0323 RF WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0323>
<C0325>C0325 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT MALF </C0325>
<C0326>C0326 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0326>
<C0327>C0327 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0327>
<C0328>C0328 RF WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0328>
<C0330>C0330 LR WHEEL TCS COIL OR MOTOR #1 CIRCUIT MALF </C0330>
<C0331>C0331 LR WHEEL TCS COIL OR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0331>
<C0332>C0332 LR WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO LOW </C0332>
<C0333>C0333 LR WHEEL TCS COIL OR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0333>
<C0335>C0335 LR WHEEL TCS COIL OR MOTOR #2 CIRCUIT MALF </C0335>
<C0336>C0336 LR WHEEL TCS COIL OR MOTOR #2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0336>
<C0337>C0337 LR WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO LOW </C0337>
<C0338>C0338 LR WHEEL TCS COIL OR MOTOR #2 CIRCUIT VOLT TOO HIGH </C0338>
<C0340>C0340 ABS/TCS BRAKE SW CIRCUIT MALF </C0340>
<C0341>C0341 ABS/TCS BRAKE SW CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0341>
<C0342>C0342 ABS/TCS BRAKE SW CIRCUIT VOLT TOO LOW </C0342>
<C0343>C0343 ABS/TCS BRAKE SW CIRCUIT VOLT TOO HIGH </C0343>
<C0345>C0345 BRAKE OIL CONSUME INDICATE CIRCUIT MALF </C0345>
<C0346>C0346 BRAKE OIL CONSUME INDICATE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0346>
<C0347>C0347 BRAKE OIL CONSUME INDICATE CIRCUIT VOLT TOO LOW </C0347>
<C0348>C0348 BRAKE OIL CONSUME INDICATE CIRCUIT VOLT TOO HIGH </C0348>
<C0350>C0350 REAR WHEEL COILOR MOTOR #1 CIRCUIT MALF </C0350>
<C0351>C0351 REAR WHEEL COILOR MOTOR #1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0351>
<C0352>C0352 REAR WHEEL COILOR MOTOR #1 CIRCUIT VOLT TOO LOW </C0352>
<C0353>C0353 REAR WHEEL COILOR MOTOR #1 CIRCUIT VOLT TOO HIGH </C0353>
<C0355>C0355 THROTTLE CONTROL MOTOR CIRCUIT MALF </C0355>
<C0356>C0356 THROTTLE CONTROL MOTOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0356>
<C0357>C0357 THROTTLE CONTROL MOTOR CIRCUIT VOLT TOO LOW </C0357>
<C0358>C0358 THROTTLE CONTROL MOTOR CIRCUIT VOLT TOO HIGH </C0358>
<C0360>C0360 SYSTEM PRS CONTROL CIRCUIT MALF </C0360>
<C0361>C0361 SYSTEM PRS CONTROL CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0361>
<C0362>C0362 SYSTEM PRS CONTROL CIRCUIT VOLT TOO LOW </C0362>
<C0363>C0363 SYSTEM PRS CONTROL CIRCUIT VOLT TOO HIGH </C0363>
<C0365>C0365 SIDE ACC MESEARMENT CIRCUIT MALF </C0365>
<C0366>C0366 SIDE ACC MESEARMENT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0366>
<C0367>C0367 SIDE ACC MESEARMENT CIRCUIT VOLT TOO LOW </C0367>
<C0368>C0368 SIDE ACC MESEARMENT CIRCUIT VOLT TOO HIGH </C0368>
<C0370>C0370 SLIDE RATIO TEST CIRCUIT MALF </C0370>
<C0371>C0371 SLIDE RATIO TEST CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0371>
<C0372>C0372 SLIDE RATIO TEST CIRCUIT VOLT TOO LOW </C0372>
<C0373>C0373 SLIDE RATIO TEST CIRCUIT VOLT TOO HIGH </C0373>
<C0500>C0500 STEERING SOLENOID CIRCUIT MALF </C0500>
<C0501>C0501 STEERING SOLENOID CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0501>
<C0502>C0502 STEERING SOLENOID CIRCUIT VOLT TOO LOW </C0502>
<C0503>C0503 STEERING SOLENOID CIRCUIT VOLT TOO HIGH </C0503>
<C0505>C0505 STEERING ANGLE SENSOR MALF </C0505>
<C0506>C0506 STEERING ANGLE SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0506>
<C0507>C0507 STEERING ANGLE SENSOR VOLT TOO LOW </C0507>
<C0508>C0508 STEERING ANGLE SENSOR VOLT TOO HIGH </C0508>
<C0510>C0510 STEERING VELOCITY SENSOR MALF </C0510>
<C0511>C0511 STEERING VELOCITY SENSOR ADJ IMPROPER OR CAPABILITY MALF </C0511>
<C0512>C0512 STEERING VELOCITY SENSOR VOLT TOO LOW </C0512>
<C0513>C0513 STEERING VELOCITY SENSOR VOLT TOO HIGH </C0513>
<C0700>C0700 LF WHEEL SOLENOID CIRCUIT MALF </C0700>
<C0701>C0701 LF WHEEL SOLENOID CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0701>
<C0702>C0702 LF WHEEL SOLENOID CIRCUIT VOLT TOO LOW </C0702>
<C0703>C0703 LF WHEEL SOLENOID CIRCUIT VOLT TOO HIGH </C0703>
<C0705>C0705 RF WHEEL SOLENOID CIRCUIT MALF </C0705>
<C0706>C0706 RF WHEEL SOLENOID CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0706>
<C0707>C0707 RF WHEEL SOLENOID CIRCUIT VOLT TOO LOW </C0707>
<C0708>C0708 RF WHEEL SOLENOID CIRCUIT VOLT TOO HIGH </C0708>
<C0710>C0710 LR WHEEL SOLENOID CIRCUIT MALF </C0710>
<C0711>C0711 LR WHEEL SOLENOID CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0711>
<C0712>C0712 LR WHEEL SOLENOID CIRCUIT VOLT TOO LOW </C0712>
<C0713>C0713 LR WHEEL SOLENOID CIRCUIT VOLT TOO HIGH </C0713>
<C0715>C0715 RF WHEEL SOLENOID CIRCUIT MALF </C0715>
<C0716>C0716 RF WHEEL SOLENOID CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0716>
<C0717>C0717 RF WHEEL SOLENOID CIRCUIT VOLT TOO LOW </C0717>
<C0718>C0718 RF WHEEL SOLENOID CIRCUIT VOLT TOO HIGH </C0718>
<C0720>C0720 LF WHEEL ACC MESEARMENT CIRCUIT MALF </C0720>
<C0721>C0721 LF WHEEL ACC MESEARMENT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0721>
<C0722>C0722 LF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO LOW </C0722>
<C0723>C0723 LF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO HIGH </C0723>
<C0725>C0725 RF WHEEL ACC MESEARMENT CIRCUIT MALF </C0725>
<C0726>C0726 RF WHEEL ACC MESEARMENT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0726>
<C0727>C0727 RF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO LOW </C0727>
<C0728>C0728 RF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO HIGH </C0728>
<C0730>C0730 LR WHEEL ACC MESEARMENT CIRCUIT MALF </C0730>
<C0731>C0731 LR WHEEL ACC MESEARMENT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0731>
<C0732>C0732 LR WHEEL ACC MESEARMENT CIRCUIT VOLT TOO LOW </C0732>
<C0733>C0733 LR WHEEL ACC MESEARMENT CIRCUIT VOLT TOO HIGH </C0733>
<C0735>C0735 RF WHEEL ACC MESEARMENT CIRCUIT MALF </C0735>
<C0736>C0736 RF WHEEL ACC MESEARMENT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0736>
<C0737>C0737 RF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO LOW </C0737>
<C0738>C0738 RF WHEEL ACC MESEARMENT CIRCUIT VOLT TOO HIGH </C0738>
<C0740>C0740 LF WHEEL POSI SENSOR CIRCUIT MALF </C0740>
<C0741>C0741 LF WHEEL POSI SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0741>
<C0742>C0742 LF WHEEL POSI SENSOR CIRCUIT VOLT TOO LOW </C0742>
<C0743>C0743 LF WHEEL POSI SENSOR CIRCUIT VOLT TOO HIGH </C0743>
<C0745>C0745 RF WHEEL POSI SENSOR CIRCUIT MALF </C0745>
<C0746>C0746 RF WHEEL POSI SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0746>
<C0747>C0747 RF WHEEL POSI SENSOR CIRCUIT VOLT TOO LOW </C0747>
<C0748>C0748 RF WHEEL POSI SENSOR CIRCUIT VOLT TOO HIGH </C0748>
<C0750>C0750 LR WHEEL POSI SENSOR CIRCUIT MALF </C0750>
<C0751>C0751 LR WHEEL POSI SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0751>
<C0752>C0752 LR WHEEL POSI SENSOR CIRCUIT VOLT TOO LOW </C0752>
<C0753>C0753 LR WHEEL POSI SENSOR CIRCUIT VOLT TOO HIGH </C0753>
<C0755>C0755 RF WHEEL POSI SENSOR CIRCUIT MALF </C0755>
<C0756>C0756 RF WHEEL POSI SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </C0756>
<C0757>C0757 RF WHEEL POSI SENSOR CIRCUIT VOLT TOO LOW </C0757>
<C0758>C0758 RF WHEEL POSI SENSOR CIRCUIT VOLT TOO HIGH </C0758>
<B0100>B0100 DRIVER FRONT AIRBAG CIRCUIT MALF </B0100>
<B0101>B0101 DRIVER FRONT AIRBAG CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0101>
<B0102>B0102 DRIVER FRONT AIRBAG CIRCUIT VOLT TOO LOW </B0102>
<B0103>B0103 DRIVER FRONT AIRBAG CIRCUIT VOLT TOO HIGH </B0103>
<B0105>B0105 PASSENGER FRONT AIRBAG CIRCUIT MALF </B0105>
<B0106>B0106 PASSENGER FRONT AIRBAG CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0106>
<B0107>B0107 PASSENGER FRONT AIRBAG CIRCUIT VOLT TOO LOW </B0107>
<B0108>B0108 PASSENGER FRONT AIRBAG CIRCUIT VOLT TOO HIGH </B0108>
<B0110>B0110 DRIVER AIRBAG CIRCUIT MALF </B0110>
<B0111>B0111 DRIVER AIRBAG CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0111>
<B0112>B0112 DRIVER AIRBAG CIRCUIT VOLT TOO LOW </B0112>
<B0113>B0113 DRIVER AIRBAG CIRCUIT VOLT TOO HIGH </B0113>
<B0115>B0115 PASSENGER AIRBAG CIRCUIT MALF </B0115>
<B0116>B0116 PASSENGER AIRBAG CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0116>
<B0117>B0117 PASSENGER AIRBAG CIRCUIT VOLT TOO LOW </B0117>
<B0118>B0118 PASSENGER AIRBAG CIRCUIT VOLT TOO HIGH </B0118>
<B0120>B0120 NO 1 SAFETY BELT SW CIRCUIT MALF </B0120>
<B0121>B0121 NO 1 SAFETY BELT SW CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0121>
<B0122>B0122 NO 1 SAFETY BELT SW CIRCUIT VOLT TOO LOW </B0122>
<B0123>B0123 NO 1 SAFETY BELT SW CIRCUIT VOLT TOO HIGH </B0123>
<B0125>B0125 NO 2 SAFETY BELT SW CIRCUIT MALF </B0125>
<B0126>B0126 NO 2 SAFETY BELT SW CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0126>
<B0127>B0127 NO 2 SAFETY BELT SW CIRCUIT VOLT TOO LOW </B0127>
<B0128>B0128 NO 2 SAFETY BELT SW CIRCUIT VOLT TOO HIGH </B0128>
<B0130>B0130 NO1 SAFETY BELT SHRINK CIRCUIT MALF </B0130>
<B0131>B0131 NO1 SAFETY BELT SHRINK CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0131>
<B0132>B0132 NO1 SAFETY BELT SHRINK CIRCUIT VOLT TOO LOW </B0132>
<B0133>B0133 NO1 SAFETY BELT SHRINK CIRCUIT VOLT TOO HIGH </B0133>
<B0135>B0135 NO2 SAFETY BELT SHRINK CIRCUIT MALF </B0135>
<B0136>B0136 NO2 SAFETY BELT SHRINK CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0136>
<B0137>B0137 NO2 SAFETY BELT SHRINK CIRCUIT VOLT TOO LOW </B0137>
<B0138>B0138 NO2 SAFETY BELT SHRINK CIRCUIT VOLT TOO HIGH </B0138>
<B0300>B0300 NO1 COOLING FAN CIRCUIT MALF </B0300>
<B0301>B0301 NO1 COOLING FAN CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0301>
<B0302>B0302 NO1 COOLING FAN CIRCUIT VOLT TOO LOW </B0302>
<B0303>B0303 NO1 COOLING FAN CIRCUIT VOLT TOO HIGH </B0303>
<B0305>B0305 NO2 COOLING FAN CIRCUIT MALF </B0305>
<B0306>B0306 NO2 COOLING FAN CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0306>
<B0307>B0307 NO2 COOLING FAN CIRCUIT VOLT TOO LOW </B0307>
<B0308>B0308 NO2 COOLING FAN CIRCUIT VOLT TOO HIGH </B0308>
<B0310>B0310 A/C CLUTCH CIRCUIT MALF </B0310>
<B0311>B0311 A/C CLUTCH CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0311>
<B0312>B0312 A/C CLUTCH CIRCUIT VOLT TOO LOW </B0312>
<B0313>B0313 A/C CLUTCH CIRCUIT VOLT TOO HIGH </B0313>
<B0315>B0315 NO1 A/C PRS CONTROL CIRCUIT MALF </B0315>
<B0316>B0316 NO1 A/C PRS CONTROL CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0316>
<B0317>B0317 NO1 A/C PRS CONTROL CIRCUIT VOLT TOO LOW </B0317>
<B0318>B0318 NO1 A/C PRS CONTROL CIRCUIT VOLT TOO HIGH </B0318>
<B0320>B0320 NO2 A/C PRS CONTROL CIRCUIT MALF </B0320>
<B0321>B0321 NO2 A/C PRS CONTROL CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0321>
<B0322>B0322 NO2 A/C PRS CONTROL CIRCUIT VOLT TOO LOW </B0322>
<B0323>B0323 NO2 A/C PRS CONTROL CIRCUIT VOLT TOO HIGH </B0323>
<B0325>B0325 A/C PRS SENSOR(SIG)CIRCUIT MALF </B0325>
<B0326>B0326 A/C PRS SENSOR(SIG)CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0326>
<B0327>B0327 A/C PRS SENSOR(SIG)CIRCUIT VOLT TOO LOW </B0327>
<B0328>B0328 A/C PRS SENSOR(SIG)CIRCUIT VOLT TOO HIGH </B0328>
<B0330>B0330 ATMOSPHERE TEMP SENSOR CIRCUIT MALF </B0330>
<B0331>B0331 ATMOSPHERE TEMP SENSOR CIRCUIT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0331>
<B0332>B0332 ATMOSPHERE TEMP SENSOR CIRCUIT VOLT TOO LOW </B0332>
<B0333>B0333 ATMOSPHERE TEMP SENSOR CIRCUIT VOLT TOO HIGH </B0333>
<B0335>B0335 NO1 ROOM TEMP SENSOR CIRCUIT MALF </B0335>
<B0336>B0336 NO1 ROOM TEMP SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0336>
<B0337>B0337 NO1 ROOM TEMP SENSOR CIRCUIT VOLT TOO LOW </B0337>
<B0338>B0338 NO1 ROOM TEMP SENSOR CIRCUIT VOLT TOO HIGH </B0338>
<B0340>B0340 NO2 ROOM TEMP SENSOR CIRCUIT MALF </B0340>
<B0341>B0341 NO2 ROOM TEMP SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0341>
<B0342>B0342 NO2 ROOM TEMP SENSOR CIRCUIT VOLT TOO LOW </B0342>
<B0343>B0343 NO2 ROOM TEMP SENSOR CIRCUIT VOLT TOO HIGH </B0343>
<B0345>B0345 NO1 SUNSHINE INTENSITY SENSOR CIRCUIT MALF </B0345>
<B0346>B0346 NO1 SUNSHINE INTENSITY SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0346>
<B0347>B0347 NO1 SUNSHINE INTENSITY SENSOR CIRCUIT VOLT TOO LOW </B0347>
<B0348>B0348 NO1 SUNSHINE INTENSITY SENSOR CIRCUIT VOLT TOO HIGH </B0348>
<B0350>B0350 NO2 SUNSHINE INTENSITY SENSOR CIRCUIT MALF </B0350>
<B0351>B0351 NO2 SUNSHINE INTENSITY SENSOR CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0351>
<B0352>B0352 NO2 SUNSHINE INTENSITY SENSOR CIRCUIT VOLT TOO LOW </B0352>
<B0353>B0353 NO2 SUNSHINE INTENSITY SENSOR CIRCUIT VOLT TOO HIGH </B0353>
<B0355>B0355 NO1 WIND SENDER MOTOR SPEED CONTROL CIRCUIT MALF </B0355>
<B0356>B0356 NO1 WIND SENDER MOTOR SPEED CONTROL CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0356>
<B0357>B0357 NO1 WIND SENDER MOTOR SPEED CONTROL CIRCUIT VOLT TOO LOW </B0357>
<B0358>B0358 NO1 WIND SENDER MOTOR SPEED CONTROL CIRCUIT VOLT TOO HIGH </B0358>
<B0360>B0360 NO1 WIND SENDER MOTOR POWER SUPPLY CIRCUIT MALF </B0360>
<B0361>B0361 NO1 WIND SENDER MOTOR POWER SUPPLY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0361>
<B0362>B0362 NO1 WIND SENDER MOTOR POWER SUPPLY CIRCUIT VOLT TOO LOW </B0362>
<B0363>B0363 NO1 WIND SENDER MOTOR POWER SUPPLY CIRCUIT VOLT TOO HIGH </B0363>
<B0365>B0365 NO1 WIND SENDER MOTOR TO GND CIRCUIT MALF </B0365>
<B0366>B0366 NO1 WIND SENDER MOTOR TO GND CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0366>
<B0367>B0367 NO1 WIND SENDER MOTOR TO GND CIRCUIT VOLT TOO LOW </B0367>
<B0368>B0368 NO1 WIND SENDER MOTOR TO GND CIRCUIT VOLT TOO HIGH </B0368>
<B0370>B0370 A/C HIGH PRS TEMP SENSOR MALF </B0370>
<B0371>B0371 A/C HIGH PRS TEMP SENSOR ADJ IMPROPER OR CAPABILITY MALF </B0371>
<B0372>B0372 A/C HIGH PRS TEMP SENSOR VOLT TOO LOW </B0372>
<B0373>B0373 A/C HIGH PRS TEMP SENSOR VOLT TOO HIGH </B0373>
<B0375>B0375 A/C EVAP ENTRANCE TEMP SENSOR MALF </B0375>
<B0376>B0376 A/C EVAP ENTRANCE TEMP SENSOR ADJ IMPROPER OR CAPABILITY MALF </B0376>
<B0377>B0377 A/C EVAP ENTRANCE TEMP SENSOR VOLT TOO LOW </B0377>
<B0378>B0378 A/C EVAP ENTRANCE TEMP SENSOR VOLT TOO HIGH </B0378>
<B0380>B0380 A/C REFRIGERATE PRS TOO LOW </B0380>
<B0381>B0381 A/C REFRIGERATE PRS TOO HIGH </B0381>
<B0400>B0400 AIR PRS CONTROL MOUTH 1 DEFROST DEVICE MALF </B0400>
<B0401>B0401 AIR PRS CONTROL MOUTH 1 DEFROST DEVICE ADJ IMPROPER OR CAPABILITY MALF </B0401>
<B0402>B0402 AIR PRS CONTROL MOUTH 1 DEFROST DEVICE PRS TOO LOW </B0402>
<B0403>B0403 AIR PRS CONTROL MOUTH 1 DEFROST DEVICE PRS TOO HIGH </B0403>
<B0405>B0405 AIR PRS CONTROL MOUTH 2 HEAT DEVICE MALF </B0405>
<B0406>B0406 AIR PRS CONTROL MOUTH 2 HEAT DEVICE ADJ IMPROPER OR CAPABILITY MALF </B0406>
<B0407>B0407 AIR PRS CONTROL MOUTH 2 HEAT DEVICE PRS TOO LOW </B0407>
<B0408>B0408 AIR PRS CONTROL MOUTH 2 HEAT DEVICE PRS TOO HIGH </B0408>
<B0410>B0410 AIR PRS CONTROL MOUTH 3 MIXTURE DEVICE MALF </B0410>
<B0411>B0411 AIR PRS CONTROL MOUTH 3 MIXTURE DEVICEADJ IMPROPER OR CAPABILITY MALF </B0411>
<B0412>B0412 AIR PRS CONTROL MOUTH 3 MIXTURE DEVICE PRS TOO LOW </B0412>
<B0413>B0413 AIR PRS CONTROL MOUTH 3 MIXTURE DEVICE PRS TOO HIGH </B0413>
<B0415>B0415 AIR PRS CONTROL MOUTH 4 VENT MALF </B0415>
<B0416>B0416 AIR PRS CONTROL MOUTH 4 VENTADJ IMPROPER OR CAPABILITY MALF </B0416>
<B0417>B0417 AIR PRS CONTROL MOUTH 4 VENT PRS TOO LOW </B0417>
<B0418>B0418 AIR PRS CONTROL MOUTH 4 VENT PRS TOO HIGH </B0418>
<B0420>B0420 AIR PRS CONTROL MOUTH 5 AIR REGULATOR MALF </B0420>
<B0421>B0421 AIR PRS CONTROL MOUTH 5 AIR REGULATOR ADJ IMPROPER OR CAPABILITY MALF </B0421>
<B0422>B0422 AIR PRS CONTROL MOUTH 5 AIR REGULATOR PRS TOO LOW </B0422>
<B0423>B0423 AIR PRS CONTROL MOUTH 5 AIR REGULATOR PRS TOO HIGH </B0423>
<B0425>B0425 AIR PRS CONTROL MOUTH 6 AIR RECYCLE MALF </B0425>
<B0426>B0426 AIR PRS CONTROL MOUTH 6 AIR RECYCLE ADJ IMPROPER OR CAPABILITY MALF </B0426>
<B0427>B0427 AIR PRS CONTROL MOUTH 6 AIR RECYCLE PRS TOO LOW </B0427>
<B0428>B0428 AIR PRS CONTROL MOUTH 6 AIR RECYCLE PRS TOO HIGH </B0428>
<B0430>B0430 REAR DEFROST CIRCUIT MALF </B0430>
<B0431>B0431 REAR DEFROST CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0431>
<B0432>B0432 REAR DEFROST CIRCUIT VOLT TOO LOW </B0432>
<B0433>B0433 REAR DEFROST CIRCUIT VOLT TOO HIGH </B0433>
<B0435>B0435 A/C REQUIRE CIRCUIT MALF </B0435>
<B0436>B0436 A/C REQUIRE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0436>
<B0437>B0437 A/C REQUIRE CIRCUIT VOLT TOO LOW </B0437>
<B0438>B0438 A/C REQUIRE CIRCUIT VOLT TOO HIGH </B0438>
<B0440>B0440 NO1 CONTROL HEAD FEEDBACK SIGNAL MALF </B0440>
<B0441>B0441 NO1 CONTROL HEAD FEEDBACK CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0441>
<B0442>B0442 NO1 CONTROL HEAD FEEDBACK SIGNAL VOLT TOO LOW </B0442>
<B0443>B0443 NO1 CONTROL HEAD FEEDBACK SIGNAL VOLT TOO HIGH </B0443>
<B0445>B0445 NO2 CONTROL HEAD FEEDBACK SIGNAL MALF </B0445>
<B0446>B0446 NO2 CONTROL HEAD FEEDBACK CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0446>
<B0447>B0447 NO2 CONTROL HEAD FEEDBACK SIGNAL VOLT TOO LOW </B0447>
<B0448>B0448 NO2 CONTROL HEAD FEEDBACK SIGNAL VOLT TOO HIGH </B0448>
<B0500>B0500 R WHEEL STEERING CIRCUIT MALF </B0500>
<B0501>B0501 R WHEEL STEERING CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0501>
<B0502>B0502 R WHEEL STEERING CIRCUIT VOLT TOO LOW </B0502>
<B0503>B0503 R WHEEL STEERING CIRCUIT VOLT TOO HIGH </B0503>
<B0505>B0505 L WHEEL STEERING CIRCUIT MALF </B0505>
<B0506>B0506 L WHEEL STEERING CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0506>
<B0507>B0507 L WHEEL STEERING CIRCUIT VOLT TOO LOW </B0507>
<B0508>B0508 L WHEEL STEERING CIRCUIT VOLT TOO HIGH </B0508>
<B0510>B0510 HEADLIGHT INDICATOR LIGHT CIRCUIT MALF </B0510>
<B0511>B0511 HEADLIGHT INDICATOR LIGHT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0511>
<B0512>B0512 HEADLIGHT INDICATOR LIGHT CIRCUIT VOLT TOO LOW </B0512>
<B0513>B0513 HEADLIGHT INDICATOR LIGHT CIRCUIT VOLT TOO HIGH </B0513>
<B0515>B0515 SPEED METER CIRCUIT MALF </B0515>
<B0516>B0516 SPEED METER CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0516>
<B0517>B0517 SPEED METER CIRCUIT VOLT TOO LOW </B0517>
<B0518>B0518 SPEED METER CIRCUIT VOLT TOO HIGH </B0518>
<B0520>B0520 SPEED METER CIRCUIT MALF </B0520>
<B0521>B0521 SPEED METER CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0521>
<B0522>B0522 SPEED METER CIRCUIT VOLT TOO LOW </B0522>
<B0523>B0523 SPEED METER CIRCUIT VOLT TOO HIGH </B0523>
<B0525>B0525 WATER TEMP GAUGE CIRCUIT MALF </B0525>
<B0526>B0526 WATER TEMP GAUGE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0526>
<B0527>B0527 WATER TEMP GAUGE CIRCUIT VOLT TOO LOW </B0527>
<B0528>B0528 WATER TEMP GAUGE CIRCUIT VOLT TOO HIGH </B0528>
<B0530>B0530 OIL LEVEL GAUGE CIRCUIT MALF </B0530>
<B0531>B0531 OIL LEVEL GAUGE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0531>
<B0532>B0532 OIL LEVEL GAUGE CIRCUIT VOLT TOO LOW </B0532>
<B0533>B0533 OIL LEVEL GAUGE CIRCUIT VOLT TOO HIGH </B0533>
<B0535>B0535 AIR GAUGE CIRCUIT MALF </B0535>
<B0536>B0536 AIR GAUGE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0536>
<B0537>B0537 AIR GAUGE CIRCUIT VOLT TOO LOW </B0537>
<B0538>B0538 AIR GAUGE CIRCUIT VOLT TOO HIGH </B0538>
<B0540>B0540 SAFETY BELT INDICATE CIRCUIT MALF </B0540>
<B0541>B0541 SAFETY BELT INDICATE CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0541>
<B0542>B0542 SAFETY BELT INDICATE CIRCUIT VOLT TOO LOW </B0542>
<B0543>B0543 SAFETY BELT INDICATE CIRCUIT VOLT TOO HIGH </B0543>
<B0545>B0545 DOOR NOT CLOSE INDICATOR LIGHT NO1 CIRCUIT MALF </B0545>
<B0546>B0546 DOOR NOT CLOSE INDICATOR LIGHT NO1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0546>
<B0547>B0547 DOOR NOT CLOSE INDICATOR LIGHT NO1 CIRCUIT VOLT TOO LOW </B0547>
<B0548>B0548 DOOR NOT CLOSE INDICATOR LIGHT NO1 CIRCUIT VOLT TOO HIGH </B0548>
<B0550>B0550 DOOR NOT CLOSE INDICATOR LIGHT NO2 CIRCUIT MALF </B0550>
<B0551>B0551 DOOR NOT CLOSE INDICATOR LIGHT NO2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0551>
<B0552>B0552 DOOR NOT CLOSE INDICATOR LIGHT NO2 CIRCUIT VOLT TOO LOW </B0552>
<B0553>B0553 DOOR NOT CLOSE INDICATOR LIGHT NO2 CIRCUIT VOLT TOO HIGH </B0553>
<B0555>B0555 BRAKE INDICATOR LIGHT CIRCUIT MALF </B0555>
<B0556>B0556 BRAKE INDICATOR LIGHT CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0556>
<B0557>B0557 BRAKE INDICATOR LIGHT CIRCUIT VOLT TOO LOW </B0557>
<B0558>B0558 BRAKE INDICATOR LIGHT CIRCUIT VOLT TOO HIGH </B0558>
<B0560>B0560 AIRBAG LIGHT NO1 CIRCUIT MALF </B0560>
<B0561>B0561 AIRBAG LIGHT NO1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0561>
<B0562>B0562 AIRBAG LIGHT NO1 CIRCUIT VOLT TOO LOW </B0562>
<B0563>B0563 AIRBAG LIGHT NO1 CIRCUIT VOLT TOO HIGH </B0563>
<B0565>B0565 ECURITY OP INFO CIRCUIT MALF </B0565>
<B0566>B0566 ECURITY OP INFO CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0566>
<B0567>B0567 ECURITY OP INFO CIRCUIT VOLT TOO LOW </B0567>
<B0568>B0568 ECURITY OP INFO CIRCUIT VOLT TOO HIGH </B0568>
<B0600>B0600 PARAMETER COLLCATE ERROR </B0600>
<B0601>B0601 REAL TIME DATA MEMORIZER(KAM)RESET </B0601>
<B0602>B0602 WATCHDOG VIBRATE CIRCUIT(OSC WATCHDOG COP) MALF </B0602>
<B0603>B0603 MEMORIZER(EEPROM)WRITE ERROR </B0603>
<B0604>B0604 MEMORIZER(EEPROM)CHECK ERROR </B0604>
<B0605>B0605 MEMORIZER(EEPROM)CHECK SUM ERROR </B0605>
<B0606>B0606 MEMORIZER(RAM) MALF </B0606>
<B0607>B0607 (COMPUTER)INNER ERROR </B0607>
<B0608>B0608 (COMPUTER)INITIALIZATION ERROR </B0608>
<B0800>B0800 EQUIPMENT POWER SUPPLY NO1 CIRCUIT MALF </B0800>
<B0801>B0801 EQUIPMENT POWER SUPPLY NO1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0801>
<B0802>B0802 EQUIPMENT POWER SUPPLY NO1 CIRCUIT VOLT TOO LOW </B0802>
<B0803>B0803 EQUIPMENT POWER SUPPLY NO1 CIRCUIT VOLT TOO HIGH </B0803>
<B0805>B0805 EQUIPMENT POWER SUPPLY NO2 CIRCUIT MALF </B0805>
<B0806>B0806 EQUIPMENT POWER SUPPLY NO2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0806>
<B0807>B0807 EQUIPMENT POWER SUPPLY NO2 CIRCUIT VOLT TOO LOW </B0807>
<B0808>B0808 EQUIPMENT POWER SUPPLY NO2 CIRCUIT VOLT TOO HIGH </B0808>
<B0810>B0810 EQUIPMENT POWER SUPPLY NO3 CIRCUIT MALF </B0810>
<B0811>B0811 EQUIPMENT POWER SUPPLY NO3 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0811>
<B0812>B0812 EQUIPMENT POWER SUPPLY NO3 CIRCUIT VOLT TOO LOW </B0812>
<B0813>B0813 EQUIPMENT POWER SUPPLY NO3 CIRCUIT VOLT TOO HIGH </B0813>
<B0815>B0815 EQUIPMENT TO GND NO1 CIRCUIT MALF </B0815>
<B0816>B0816 EQUIPMENT TO GND NO1 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0816>
<B0817>B0817 EQUIPMENT TO GND NO1 CIRCUIT VOLT TOO LOW </B0817>
<B0818>B0818 EQUIPMENT TO GND NO1 CIRCUIT VOLT TOO HIGH </B0818>
<B0820>B0820 EQUIPMENT TO GND NO2 CIRCUIT MALF </B0820>
<B0821>B0821 EQUIPMENT TO GND NO2 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0821>
<B0822>B0822 EQUIPMENT TO GND NO2 CIRCUIT VOLT TOO LOW </B0822>
<B0823>B0823 EQUIPMENT TO GND NO2 CIRCUIT VOLT TOO HIGH </B0823>
<B0825>B0825 EQUIPMENT TO GND NO3 CIRCUIT MALF </B0825>
<B0826>B0826 EQUIPMENT TO GND NO3 CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0826>
<B0827>B0827 EQUIPMENT TO GND NO3 CIRCUIT VOLT TOO LOW </B0827>
<B0828>B0828 EQUIPMENT TO GND NO3 CIRCUIT VOLT TOO HIGH </B0828>
<B0830>B0830 IGN CIRCUIT #0 MALF </B0830>
<B0831>B0831 IGN CIRCUIT #0 ADJ IMPROPER OR CAPABILITY MALF </B0831>
<B0832>B0832 IGN CIRCUIT #0 VOLT TOO LOW </B0832>
<B0833>B0833 IGN CIRCUIT #0 VOLT TOO HIGH </B0833>
<B0835>B0835 IGN CIRCUIT #1 MALF </B0835>
<B0836>B0836 IGN CIRCUIT #1 ADJ IMPROPER OR CAPABILITY MALF </B0836>
<B0837>B0837 IGN CIRCUIT #1 VOLT TOO LOW </B0837>
<B0838>B0838 IGN CIRCUIT #1 VOLT TOO HIGH </B0838>
<B0840>B0840 IGN CIRCUIT #3 MALF </B0840>
<B0841>B0841 IGN CIRCUIT #3 ADJ IMPROPER OR CAPABILITY MALF </B0841>
<B0842>B0842 IGN CIRCUIT #3 VOLT TOO LOW </B0842>
<B0843>B0843 IGN CIRCUIT #3 VOLT TOO HIGH </B0843>
<B0845>B0845 5V POWER SUPPLY CIRCUIT MALF </B0845>
<B0846>B0846 5V POWER SUPPLY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0846>
<B0847>B0847 5V POWER SUPPLY CIRCUIT VOLT TOO LOW </B0847>
<B0848>B0848 5V POWER SUPPLY CIRCUIT VOLT TOO HIGH </B0848>
<B0850>B0850 (CLEAN BATTERY)BATTERY CIRCUIT MALF </B0850>
<B0851>B0851 (CLEAN BATTERY)BATTERY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0851>
<B0852>B0852 (CLEAN BATTERY)BATTERY CIRCUIT VOLT TOO LOW </B0852>
<B0853>B0853 (CLEAN BATTERY)BATTERY CIRCUIT VOLT TOO HIGH </B0853>
<B0855>B0855 (DIRTY BATTERY)BATTERY CIRCUIT MALF </B0855>
<B0856>B0856 (DIRTY BATTERY)BATTERY CIRCUIT ADJ IMPROPER OR CAPABILITY MALF </B0856>
<B0857>B0857 (DIRTY BATTERY)BATTERY CIRCUIT VOLT TOO LOW </B0857>
<B0858>B0858 (DIRTY BATTERY)BATTERY CIRCUIT VOLT TOO HIGH </B0858>
<B0860>B0860 SYSTEM VOLT TOO HIGH </B0860>
<B0861>B0861 SYSTEM VOLT TOO HIGH </B0861>
<U0139>U0139 POWER SUPPLY(VSS) CIRCUIT NO VOLT </U0139>
<U0151>U0151 NO BRAKE SWSIGNAL </U0151>
<U1135>U1135 NO IGN SW SIGNAL </U1135>
<U1451>U1451 PATS MODULE NO </U1451>
