Geely AUTOMOBILE EURO 3 EOBD TROUBLE CODES

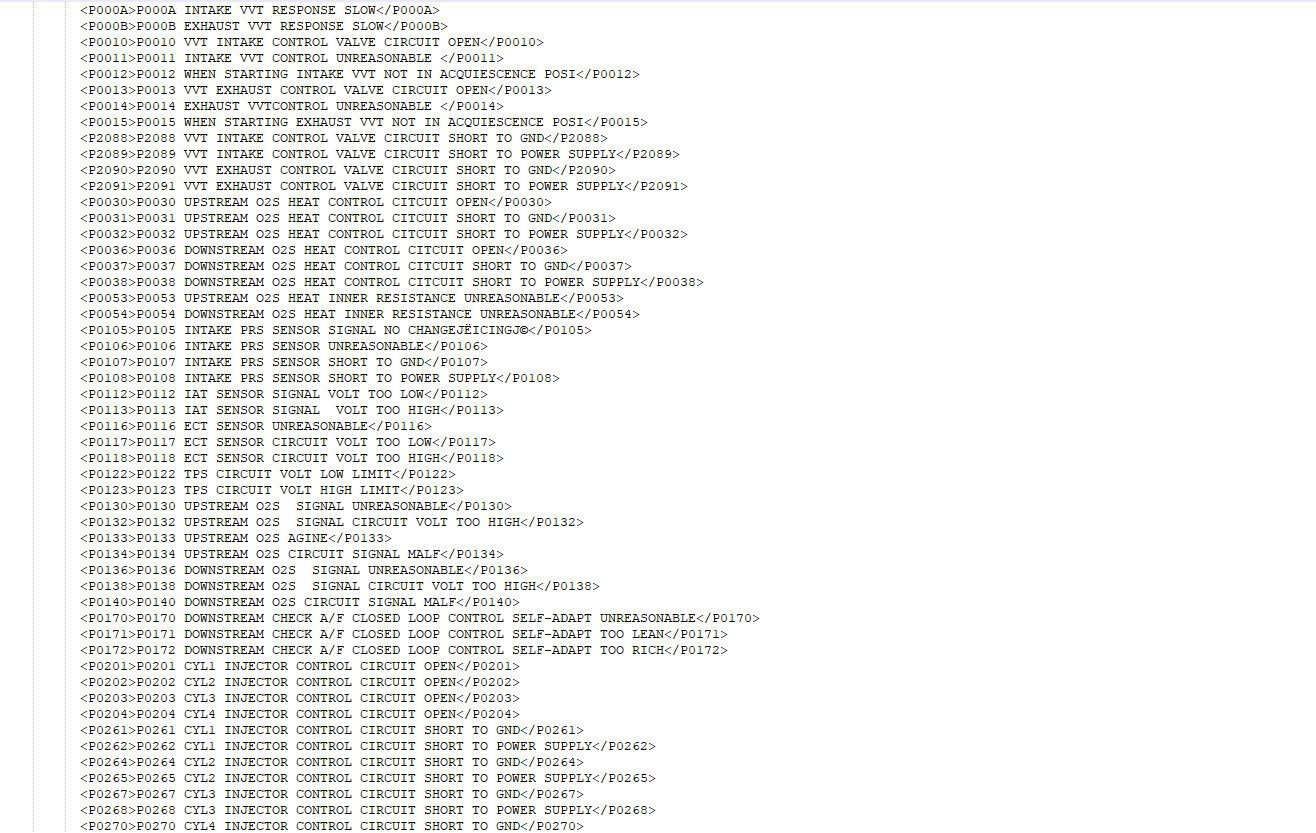

Geely Fault Codes

<P000A>P000A INTAKE VVT RESPONSE SLOW</P000A>
<P000B>P000B EXHAUST VVT RESPONSE SLOW</P000B>
<P0010>P0010 VVT INTAKE CONTROL VALVE CIRCUIT OPEN</P0010>
<P0011>P0011 INTAKE VVT CONTROL UNREASONABLE </P0011>
<P0012>P0012 WHEN STARTING INTAKE VVT NOT IN ACQUIESCENCE POSI</P0012>
<P0013>P0013 VVT EXHAUST CONTROL VALVE CIRCUIT OPEN</P0013>
<P0014>P0014 EXHAUST VVTCONTROL UNREASONABLE </P0014>
<P0015>P0015 WHEN STARTING EXHAUST VVT NOT IN ACQUIESCENCE POSI</P0015>
<P2088>P2088 VVT INTAKE CONTROL VALVE CIRCUIT SHORT TO GND</P2088>
<P2089>P2089 VVT INTAKE CONTROL VALVE CIRCUIT SHORT TO POWER SUPPLY</P2089>
<P2090>P2090 VVT EXHAUST CONTROL VALVE CIRCUIT SHORT TO GND</P2090>
<P2091>P2091 VVT EXHAUST CONTROL VALVE CIRCUIT SHORT TO POWER SUPPLY</P2091>
<P0030>P0030 UPSTREAM O2S HEAT CONTROL CITCUIT OPEN</P0030>
<P0031>P0031 UPSTREAM O2S HEAT CONTROL CITCUIT SHORT TO GND</P0031>
<P0032>P0032 UPSTREAM O2S HEAT CONTROL CITCUIT SHORT TO POWER SUPPLY</P0032>
<P0036>P0036 DOWNSTREAM O2S HEAT CONTROL CITCUIT OPEN</P0036>
<P0037>P0037 DOWNSTREAM O2S HEAT CONTROL CITCUIT SHORT TO GND</P0037>
<P0038>P0038 DOWNSTREAM O2S HEAT CONTROL CITCUIT SHORT TO POWER SUPPLY</P0038>
<P0053>P0053 UPSTREAM O2S HEAT INNER RESISTANCE UNREASONABLE</P0053>
<P0054>P0054 DOWNSTREAM O2S HEAT INNER RESISTANCE UNREASONABLE</P0054>
<P0105>P0105 INTAKE PRS SENSOR SIGNAL NO CHANGEЈЁICINGЈ©</P0105>
<P0106>P0106 INTAKE PRS SENSOR UNREASONABLE</P0106>
<P0107>P0107 INTAKE PRS SENSOR SHORT TO GND</P0107>
<P0108>P0108 INTAKE PRS SENSOR SHORT TO POWER SUPPLY</P0108>
<P0112>P0112 IAT SENSOR SIGNAL VOLT TOO LOW</P0112>
<P0113>P0113 IAT SENSOR SIGNAL VOLT TOO HIGH</P0113>
<P0116>P0116 ECT SENSOR UNREASONABLE</P0116>
<P0117>P0117 ECT SENSOR CIRCUIT VOLT TOO LOW</P0117>
<P0118>P0118 ECT SENSOR CIRCUIT VOLT TOO HIGH</P0118>
<P0122>P0122 TPS CIRCUIT VOLT LOW LIMIT</P0122>
<P0123>P0123 TPS CIRCUIT VOLT HIGH LIMIT</P0123>
<P0130>P0130 UPSTREAM O2S SIGNAL UNREASONABLE</P0130>
<P0132>P0132 UPSTREAM O2S SIGNAL CIRCUIT VOLT TOO HIGH</P0132>
<P0133>P0133 UPSTREAM O2S AGINE</P0133>
<P0134>P0134 UPSTREAM O2S CIRCUIT SIGNAL MALF</P0134>
<P0136>P0136 DOWNSTREAM O2S SIGNAL UNREASONABLE</P0136>
<P0138>P0138 DOWNSTREAM O2S SIGNAL CIRCUIT VOLT TOO HIGH</P0138>
<P0140>P0140 DOWNSTREAM O2S CIRCUIT SIGNAL MALF</P0140>
<P0170>P0170 DOWNSTREAM CHECK A/F CLOSED LOOP CONTROL SELF-ADAPT UNREASONABLE</P0170>
<P0171>P0171 DOWNSTREAM CHECK A/F CLOSED LOOP CONTROL SELF-ADAPT TOO LEAN</P0171>
<P0172>P0172 DOWNSTREAM CHECK A/F CLOSED LOOP CONTROL SELF-ADAPT TOO RICH</P0172>
<P0201>P0201 CYL1 INJECTOR CONTROL CIRCUIT OPEN</P0201>
<P0202>P0202 CYL2 INJECTOR CONTROL CIRCUIT OPEN</P0202>
<P0203>P0203 CYL3 INJECTOR CONTROL CIRCUIT OPEN</P0203>
<P0204>P0204 CYL4 INJECTOR CONTROL CIRCUIT OPEN</P0204>
<P0261>P0261 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO GND</P0261>
<P0262>P0262 CYL1 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0262>
<P0264>P0264 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO GND</P0264>
<P0265>P0265 CYL2 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0265>
<P0267>P0267 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO GND</P0267>
<P0268>P0268 CYL3 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0268>
<P0270>P0270 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO GND</P0270>
<P0271>P0271 CYL4 INJECTOR CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0271>
<P0300>P0300 MULTI CYL MISFIRE HAPPEN</P0300>
<P0301>P0301 CYL1 MISFIRE HAPPEN</P0301>
<P0302>P0302 CYL2 MISFIRE HAPPEN</P0302>
<P0303>P0303 CYL3 MISFIRE HAPPEN</P0303>
<P0304>P0304 CYL4 MISFIRE HAPPEN</P0304>
<P0318>P0318 LOOP CHECK SENSOR SIGNAL MALF</P0318>
<P0321>P0321 SIGNAL GEAR SIGNAL MALF</P0321>
<P0322>P0322 NO SPEED SENSOR PULSE SIGNAL(OPEN OR SHORTЈ©</P0322>
<P0324>P0324 KNOCK SIGNAL DEAL WITH CHIP AND CIRCUIT MALF</P0324>
<P0327>P0327 KNOCK SENSOR SIGNAL CIRCUIT VOLT TOO LOW</P0327>
<P0328>P0328 KNOCK SENSOR SIGNAL CIRCUIT VOLT TOO HIGH</P0328>
<P0340>P0340 PHASE SENSOR INSTALL POSI INPROPER</P0340>
<P0341>P0341 PHASE SENSOR CONTACT MALF</P0341>
<P0342>P0342 PHASE SENSOR SHORT TO GND</P0342>
<P0343>P0343 PHASE SENSOR SHORT TO POWER SUPPLY</P0343>
<P0420>P0420 THREE WAY CATALYZE O2 STORE AGINEЈЁEXHAUST OVER LIMITЈ©</P0420>
<P0444>P0444 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT OPEN</P0444>
<P0458>P0458 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO LOW</P0458>
<P0459>P0459 CARBON CANISTER CONTROL VALVE CONTROL CIRCUIT VOLT TOO HIGH</P0459>
<P0480>P0480 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁLOWЈ©</P0480>
<P0481>P0481 COOLING FAN RELAY CONTROL CIRCUIT OPENЈЁHIGHЈ©</P0481>
<P0501>P0501 VSS SIGNAL UNREASONABLE</P0501>
<P0506>P0506 IDLE CONTROL SPEED LOWER THAN TARGET IDLE</P0506>
<P0507>P0507 IDLE CONTROL SPEED HIGHER THAN TARGET IDLE</P0507>
<P0508>P0508 STEP MOTOR DRIVE FOOT SHORT TO GND</P0508>
<P0509>P0509 STEP MOTOR DRIVE FOOT SHORT TO POWER SUPPLY</P0509>
<P0511>P0511 STEP MOTOR DRIVE FOOT OPEN OR CONCURRENCE NOT ONLY ONE MALF</P0511>
<P0537>P0537 A/C EVAP TEMP SENSOR SIGNAL VOLT TOO LOW</P0537>
<P0538>P0538 A/C EVAP TEMP SENSOR SIGNAL VOLT TOO HIGH</P0538>
<P0560>P0560 SYSTEM BATTERY VOLT SIGNAL UNREASONABLE</P0560>
<P0562>P0562 SYSTEM BATTERY VOLT TOO LOW</P0562>
<P0563>P0563 SYSTEM BATTERY VOLT TOO HIGH</P0563>
<P0602>P0602 ECU CODING MALF</P0602>
<P0627>P0627 FUEL PUMP RELAY CONTROL CIRCUIT OPEN</P0627>
<P0628>P0628 FUEL PUMP RELAY CONTROL CIRCUIT SHORT TO GND</P0628>
<P0629>P0629 FUEL PUMP RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0629>
<P0645>P0645 A/C COMPRESSOR RELAY CONTROL CIRCUIT OPEN</P0645>
<P0646>P0646 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO GND</P0646>
<P0647>P0647 A/C COMPRESSOR RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLY</P0647>
<P0650>P0650 MIL DRIVE STAGE CIRCUIT MALF</P0650>
<P0691>P0691 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁLOWЈ©</P0691>
<P0692>P0692 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁLOWЈ©</P0692>
<P0693>P0693 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO GNDЈЁHIGHЈ©</P0693>
<P0694>P0694 COOLING FAN RELAY CONTROL CIRCUIT SHORT TO POWER SUPPLYЈЁHIGHЈ©</P0694>
<P1651>P1651 SVS LAMP CIRCUIT MALF</P1651>
<P2177>P2177 A/F CLOSED LOOP CONTROL SELF-ADAPT VALUE EXCEED UPPER LIMITЈЁMIDDLE LOAD AREAЈ©</P2177>
<P2178>P2178 A/F CLOSED LOOP CONTROL SELF-ADAPT VALUE EXCEED LOWER LIMITЈЁMIDDLE LOAD AREAЈ©</P2178>
<P2187>P2187 A/F CLOSED LOOP CONTROL SELF-ADAPT VALUE EXCEED UPPER LIMITЈЁLOW LOAD AREAЈ©</P2187>
<P2188>P2188 A/F CLOSED LOOP CONTROL SELF-ADAPT VALUE EXCEED LOWER LIMITЈЁLOW LOAD AREAЈ©</P2188>
<P2195>P2195 UPSTREAM O2S AGINE</P2195>
<P2196>P2196 UPSTREAM O2S AGINE</P2196>
<P2270>P2270 DOWNSTREAM O2S AGINE</P2270>
<P2271>P2271 DOWNSTREAM O2S AGINE</P2271>
