GAC GS3 Power 2021-2022 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Thursday, July 17, 2025 5:50 PM

The GAC GS3 Power subcompact crossover was produced from 2018 to 2023. In this article you will find the fuse box diagrams for the GAC GS3 Power 2021 and 2022, get information on the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay.

Passenger Compartment Fuse Box

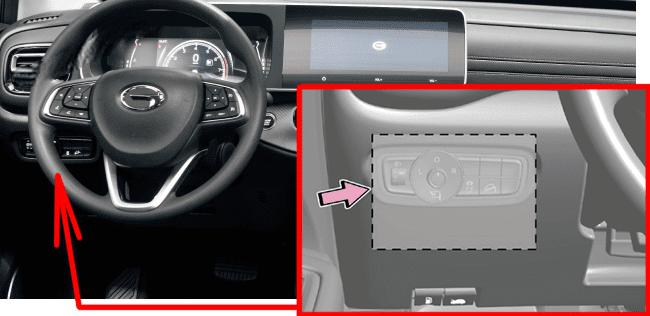

Fuse Box Location

Instrument panel PDU is installed inside the left instrument panel as arrowed.

gac gs3 power 2021 2022 fuse layout 1 2024 12 09 10 54 50

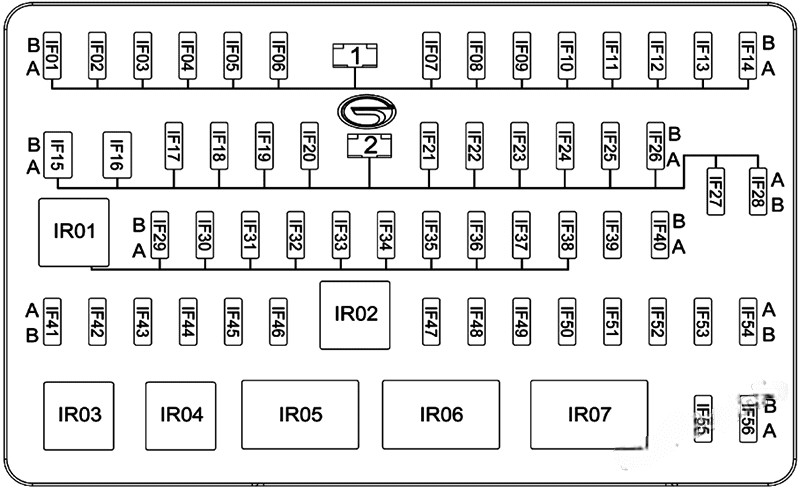

Fuse Box Diagram

gac gs3 power 2021 2022 fuse layout 2 2024 12 09 10 55 09

Assignment of the fuses in the dashboard

№	Amps	Function
IF01	—	—
IF02	20A	Electric adjustment of left front seat
IF03	15A	Power sunroof ECU
IF04	—	—
IF05	—	—
IF06	—	—
IF07	30A	BCM (front right window regulator) / BCM (rear right window regulator)
IF08	30A	BCM (front left window regulator) / BCM (rear left window regulator)
IF09	—	—
IF10	—	—
IF11	15A	BCM (windshield washer and rear wiper motor)
IF12	10A	Rearview mirror folding
IF13	—	—
IF14	15A	IG2 relay
IF15	—	—
IF16	30A	Instrument panel PDU
IF17	7.5A	OBD DLC
IF18	20A	BCM (main lamps)
IF19	7.5A	GWM / PEPS ECU
IF20	—	—
IF21	10A	BCM (turn signal lamp)
IF22	—	—
IF23	7.5A	Ignition switch / PEPS ECU
IF24	20A	BCM (main lamps)
IF25	7.5A	High-mounted stop lamp
IF26	20A	BCM (door lock)
IF27	—	—
IF28	SHUNT	Shorting link
IF29	10A	SRS ECU
IF30	7.5A	1.5T GDI ECM / G-DCT TCU / 6AT TCU / 1.5TM ECM
IF31	7.5A	GWM / BCM / PEPS ECU
IF32	—	—
IF33	7.5A	SAS / electric power steering control unit / 6AT GSM / G-DCT GSM
IF34	7.5A	ESPI / brake switch
IF35	7.5A	ACU / T-BOX ECU / instrument cluster
IF36	25A	Ignition switch
IF37	7.5A	Left front combination lamp (leveling motor) / right front combination lamp (leveling motor) / ALS switch / RPA ECU
IF38	7.5A	Power sunroof ECU / LDW ECU / Seat heater / HCP / HVAC control unit / negative ion generator
IF39	15A	6AT TCU
IF40	20A	ACU
IF41	7.5A	BCM / PEPS ECU / G-DCT TCU
IF42	7.5A	USB 5V power supply
IF43	—	—
IF44	7.5A	ACU / rearview mirror adjusting switch
IF45	—	—
IF46	20A	Cigarette lighter
IF47	—	—
IF48	7.5A	PEPS ECU
IF49	7.5A	Defogger relay / blower relay
IF50	7.5A	Ignition switch / PEPS ECU / BCM / G-DCT TCU / 1.5T GDI ECM / 1.5TM ECM
IF51	7.5A	T-BOX ECU
IF52	7.5A	HVAC control unit
IF53	—	—
IF54	7.5A	LDW ECU / EPB switch / G-DCT GSM
IF55	15A	BCM
IF56	7.5A	HCP / instrument cluster / AV display
IR01	—	IG1 relay
IR02	—	IG2 relay
IR03	—	—
IR04	—	—
IR05	—	ACC relay
IR06	—	Rearview mirror folding relay
IR07	—	Rearview mirror unfolding relay

Engine Compartment Fuse Box

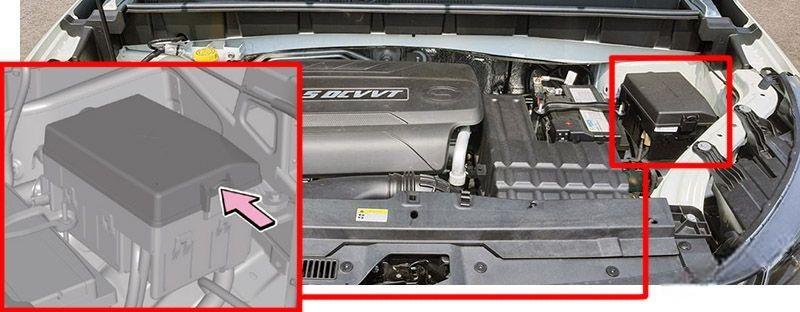

Fuse Box Location

Press the fixing clip in the direction of arrow to release the cover of the PDU.

gac gs3 power 2021 2022 fuse layout 3 2024 12 09 10 55 19

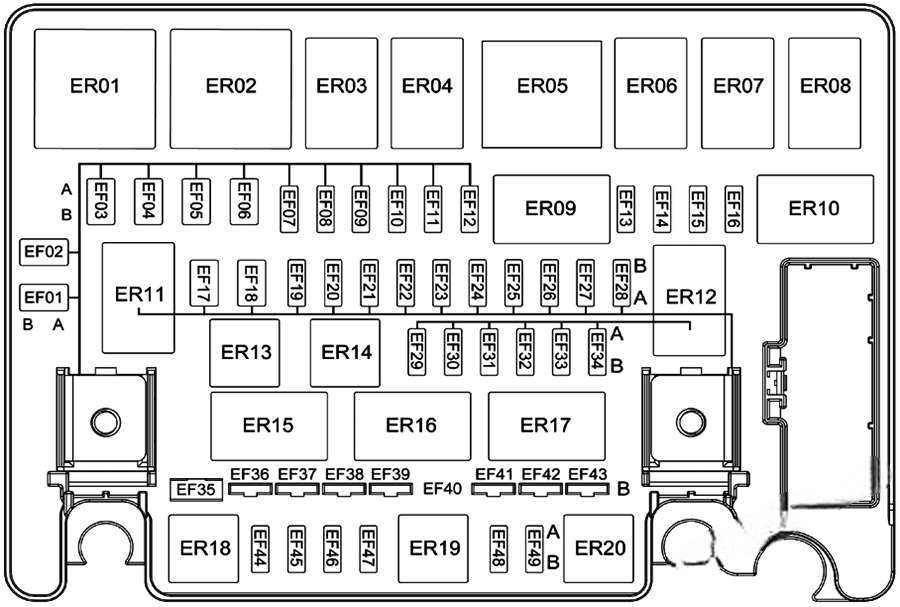

Fuse Box Diagram

gac gs3 power 2021 2022 fuse layout 4 2024 12 09 10 55 27

Assignment of the fuses in the engine compartment

№	Amps	Function
EF01	50A	Low speed fan relay
EF02	50A	High speed fan relay 2
EF03	—	—
EF04	—	—
EF05	—	—
EF06	40A	ESPI
EF07	7.5A	A/C compressor
EF08	30A	IG1 relay
EF09	—	—
EF10	20A	Seat heater
EF11	—	—
EF12	—	—
EF13	15A	Left front low beam
EF14	15A	Right front low beam
EF15	7.5A	1.5TM ECM / 1.5T GDI ECM
EF16	7.5A	Rearview mirror heater
EF17	40A	G-DCT control unit
EF18	30A	ACC relay / ignition switch
EF19	7.5A	Brake switch / low beam relay / main relay / wiper speed control relay / wiper relay
EF20	—	—
EF21	—	—
EF22	—	—
EF23	15A	Fuel pump
EF24	20A	Wiper
EF25	7.5A	G-DCT TCU / 1.5TGDI ECM / 1.5TM ECM
EF26	15A	Horn relay/horn
EF27	10A	G-DCT control unit
EF28	15A	High beam relay/left front high beam / right front high beam
EF29	10A	Electronic water pump
EF30	10A	VCT (exhaust) / VCT (intake) / canister solenoid valve / oil pump solenoid valve / clutch position sensor / CSV / relief valve / waste gate
EF31	10A	Downstream oxygen sensor / upstream oxygen sensor
EF32	15A	1.5T GDI ECM / 1.5TM ECM
EF33	15A	Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4
EF34	7.5A	Compressor relay / starter relay 1 / high speed fan relay 2 / starter relay 2 / low speed fan relay / fuel pump relay / high speed fan relay 1
EF35	80A	EPS ECU
EF36	—	—
EF37	40A	Blower
EF38	40A	ESPI
EF39	40A	Rear windshield defogger heater / rearview mirror heater
EF40	150A	Main fuse
EF41	30A	Starter relay 1 / ignition switch
EF42	50A	Instrument panel PDU
EF43	50A	Instrument panel PDU
EF44	—	—
EF45	—	—
EF46	—	—
EF47	—	—
EF48	—	—
EF49	—	—
ER01	—	Low speed fan relay
ER02	—	High speed fan relay 2
ER03	—	Fuel pump relay
ER04	—	—
ER05	—	High speed fan relay 1
ER06	—	Wiper speed control relay
ER07	—	Wiper relay
ER08	—	High beam relay
ER09	—	Defogger relay
ER10	—	Blower relay
ER11	—	Low beam relay
ER12	—	Main relay
ER13	—	Compressor relay
ER14	—	—
ER15	—	Starter relay 1
ER16	—	Starter relay 2
ER17	—	—
ER18	—	—
ER19	—	Horn relay
ER20	—	—

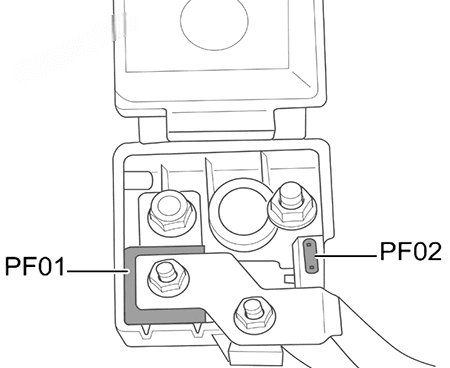

Fuses in battery PDU

gac gs3 power 2021 2022 fuse layout 5 2024 12 09 10 55 35

№	Amps	Feature/component
PF01	300A	Starter / engine compartment PDU
PF02	7.5A	EBS
