The GAC Emkoo compact crossover is produced from 2022 to present. In this article you will find the fuse box diagrams of the GAC Emkoo 2022 and 2023, get information about the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay.
Passenger Compartment Fuse Box

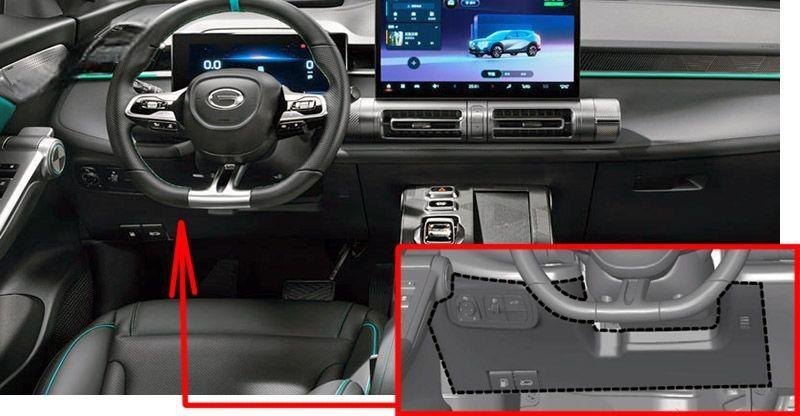

Fuse Box Location
Remove the left lower guard of the instrument panel (shaded part with dotted lines).

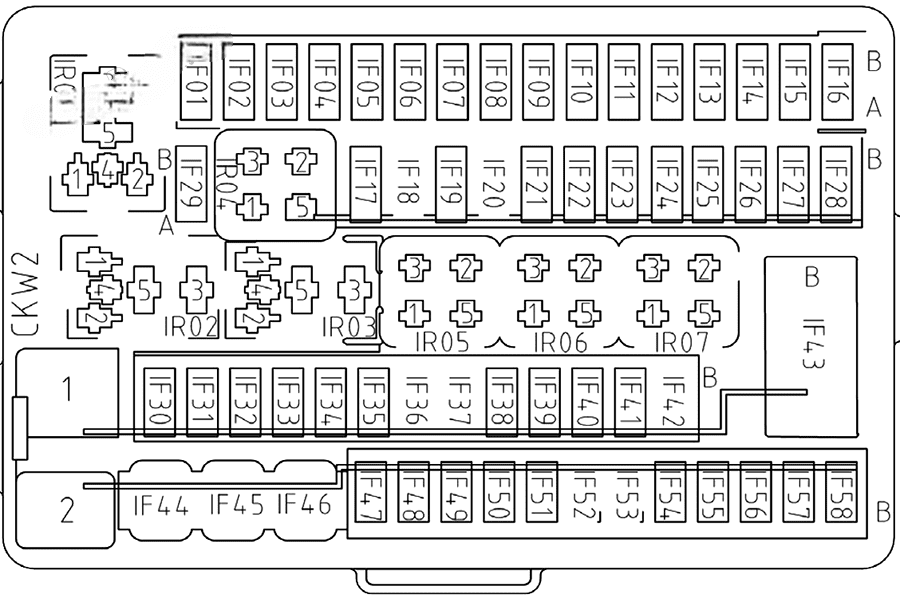

Fuse Box Diagram
Assignment of the fuses in the dashboard
| № | Amps | Function |
|---|---|---|
| IF01 | 20A | Front 12V power outlet |
| IF02 | 7.5A | Integrated BCM / BCM / PEPS ECU |
| IF03 | 7.5A | AV control uni / GWM / exterior rearview mirror adjusting switch |
| IF04 | 7.5A | Rear USB port |
| IF05 | 20A | USB_TYPE_C interface |
| IF06 | — | — |
| IF07 | 7.5A | GWM / T-BOX ECU |
| IF08 | 20A | AV control unit |
| IF09 | 20A | Left front seat connector (HVSM) |
| IF10 | 10A | Rain and light sensor / touch control screen |
| IF11 | 10A | GWM / A/C control unit / Left front seat connector (HVSM) |
| IF12 | — | — |
| IF13 | 7.5A | Blower relay (ER05) / PEPS ECU / integrated BCM |
| IF14 | 20A | Integrated BCM / BCM |
| IF15 | 10A | Instrument cluster display |
| IF16 | — | — |
| IF17 | 10A | Airbag control unit |
| IF18 | 7.5A | WDCT control unit / engine control unit |
| IF19 | 7.5A | GWM / PEPS ECU / T-BOX ECU / BCM / instrument cluster / integrated BCM |
| IF20 | 7.5A | Brake switch |
| IF21 | 7.5A | ESPI |
| IF22 | 7.5A | Gearshift lever module / electronic P gear actuator / HVAC control unit / negative ion generator / EPS control unit |
| IF23 | 7.5A | Panoramic sunroof sunshade / left front seat connector (HVSM) |
| IF24 | — | — |
| IF25 | 7.5A | Left instrument panel switch block / left rear combination lamp / air quality sensor / right front combination lamp |
| IF26 | 7.5A | RPA ECU / AV ECU |
| IF27 | — | — |
| IF28 | — | — |
| IF29 | — | — |
| IF30 | 20A | BCM |
| IF31 | 20A | Integrated BCM / BCM |
| IF32 | 7.5A | Power liftgate module / video receiver module |
| IF33 | 20A | Integrated BCM |
| IF34 | 7.5A | Gearshift lever module / Lane departure warning module |
| IF35 | 7.5A | GWM / PEPS ECU |
| IF36 | 15A | Integrated BCM / BCM |
| IF37 | 30A | Integrated BCM / BCM / combination instrument |
| IF38 | 10A | Instrument panel switch group-right / instrument panel switch group-left / PEPS ECU / EPB switch |
| IF39 | 20 A | BCM |
| IF40 | 20 A | Integrated BCM / BCM |
| IF41 | 7.5A | Driver OBD DLC 1 / front passenger OBD DLC 2 |
| IF42 | 20 A | Integrated BCM / BCM |
| IF43 | Dark current switch | AV control unit / GWM / left front seat connector (HVSM) / HVAC control unit / touch control screen / Rain and light sensor |
| IF44 | 30A | Power liftgate module |
| IF45 | 30A | Right front door control module |
| IF46 | 30A | Left front door control module |
| IF47 | — | — |
| IF48 | — | — |
| IF49 | 20A | BCM |
| IF50 | 10A | IG2 power supply |
| IF51 | 20 A | Right front seat connector (seat adjusting switch) |
| IF52 | 20 A | Right front seat connector (seat adjusting switch) |
| IF53 | 15A | Integrated BCM / BCM |
| IF54 | 20 A | BCM |
| IF55 | — | — |
| IF56 | 20A | Panoramic sunroof sunshade |
| IF57 | — | — |
| IF58 | — | — |
| IR01 | — | ACC relay |
| IR02 | — | Lock-up relay 1 |
| IR03 | — | Lock-up relay 2 |
| IR04 | — | IG1 relay |
| IR05 | — | — |
| IR06 | — | — |
| IR07 | — | IG2 relay |
Engine Compartment Fuse Box

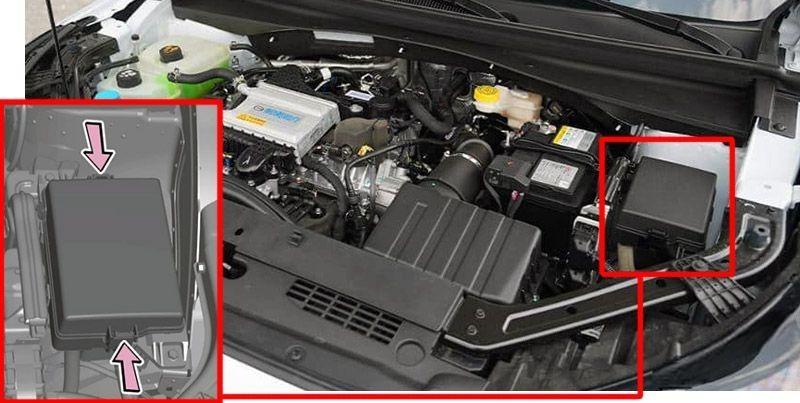

Fuse Box Location
Press the fixing clip in the direction of arrow to release the cover of the PDU.

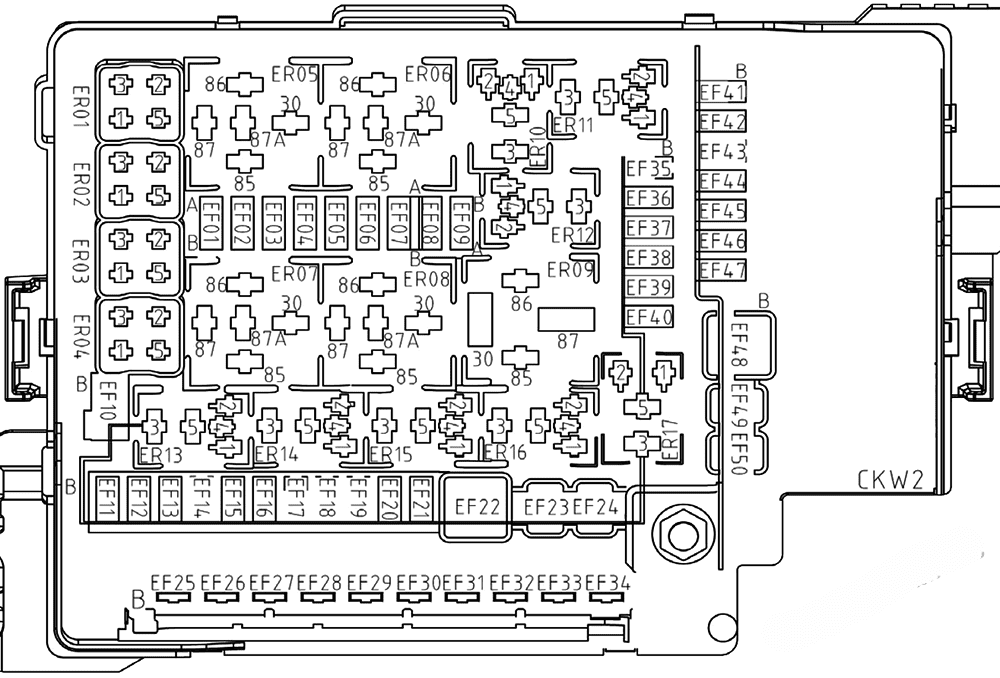

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| № | Amps | Function |
|---|---|---|
| EF01 | — | — |
| EF02 | 15A | Left front combination lamp |
| EF03 | 15A | Right front combination lamp |
| EF04 | 7.5A | Engine control unit |
| EF05 | — | — |
| EF06 | — | — |
| EF07 | — | — |
| EF08 | — | — |
| EF09 | — | — |
| EF10 | 7.5A | WDCT control unit |
| EF11 | 30A | WDCT control unit |
| EF12 | 15A | Horn relay (ER03) / horn |
| EF13 | 30A | WDCT control unit |
| EF14 | 7.5A | MRR module |
| EF15 | — | — |
| EF16 | 20A | Fuel pump |
| EF17 | 20A | Wiper speed relay (ER11) / wiper relay (ER12)/ front wiper motor |
| EF18 | 7.5A | Brake switch/low beam relay (ER13) |
| EF19 | 7.5A | Engine control unit/main relay (ER17) |
| EF20 | — | — |
| EF21 | — | — |
| EF22 | 60A | Instrument panel PDU |
| EF23 | 40A | ESPI |
| EF24 | 30A | IG1 power supply |
| EF25 | 30A | Starter excitation coil/engine control unit |
| EF26 | 40A | ACC power supply |
| EF27 | 40A | To HVAC assembly (blower) |
| EF28 | — | — |
| EF29 | 50A | GWM / T-BOX ECU / AV control unit / left front seat connector / HVAC control unit |
| EF30 | — | — |
| EF31 | — | — |
| EF32 | 60A | Instrument panel PDU |
| EF33 | — | — |
| EF34 | 80A | EPS control unit |
| EF35 | 10A | Water pump relay (ER02) / fuel pump relay (ER14) / radiator fan control module |
| EF36 | 15A | Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4 |
| EF37 | 15A | Engine control unit |
| EF38 | 10A | Compressor relay (ER04) / upstream oxygen sensor / downstream oxygen sensor / starter relay 1(ER15) / starter relay 2 (ER16) |
| EF39 | 10A | PCV heater relay (ER01) / PCV heater / canister vent valve / electronic intake air recirculation valve / canister solenoid valve / oil control valve (intake end) / oil pump solenoid valve / oil control valve (exhaust end) |
| EF40 | — | — |
| EF41 | 30A | Left front combination lamp |
| EF42 | 10A | Right front combination lamp |
| EF43 | 30A | Electric water pump |
| EF44 | 7.5A | High beam relay (ER10) / left front combination lamp / right front combination lamp |
| EF45 | 7.5A | A/C compressor |
| EF46 | — | — |
| EF47 | — | — |
| EF48 | 40A/60A | ESPI |
| EF49 | 30A | Electronic P gear actuator |
| EF50 | — | — |
| ER01 | — | PCV heater relay |
| ER02 | — | Water pump relay |
| ER03 | — | Horn relay |
| ER04 | — | Compressor relay |
| ER05 | — | Blower relay |
| ER06 | — | — |
| ER07 | — | — |
| ER08 | — | — |
| ER09 | — | — |
| ER10 | — | High beam relay |
| ER11 | — | Wiper speed relay |
| ER12 | — | Wiper relay |
| ER13 | — | Low beam relay |
| ER14 | — | Fuel pump relay |
| ER15 | — | Starter relay 1 |
| ER16 | — | Starter relay 2 |
| ER17 | — | Main relay |
