In this article we consider the sixth generation Ford Taurus after a facelift, produced from 2013 to 2019. Here you will find the Ford Taurus 2013, 2014, 2015, 2016, 2017, 2018 and 2019 fuse box outline, get information on the location of the fuse boxes inside the car and learn about the allocation of each fuse (fuse layout) and relay.
The cigar lighter (socket) fuses are fuses #9 (second row socket), #20 (storage compartment socket) and #27 (cigar lighter) in the engine compartment fuse box.
Fuse box location
Passenger compartment

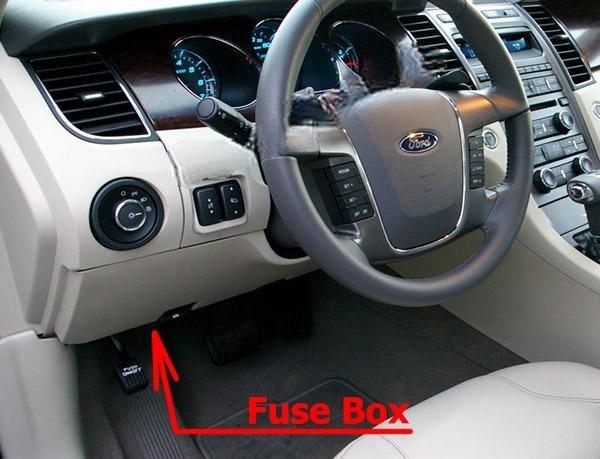

The fuse panel is located under the instrument panel to the left of the steering wheel.
Engine compartment

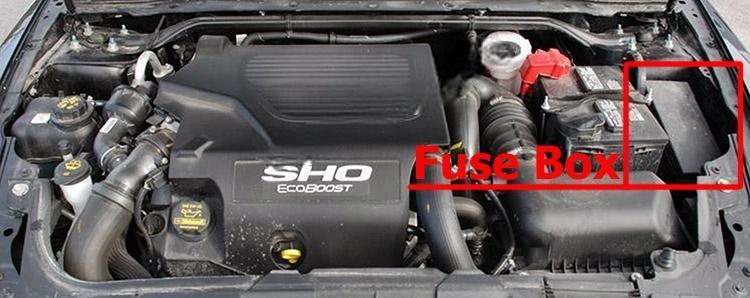

The power distribution box is located in the engine compartment.
Fuse box diagrams
2013
Passenger compartment

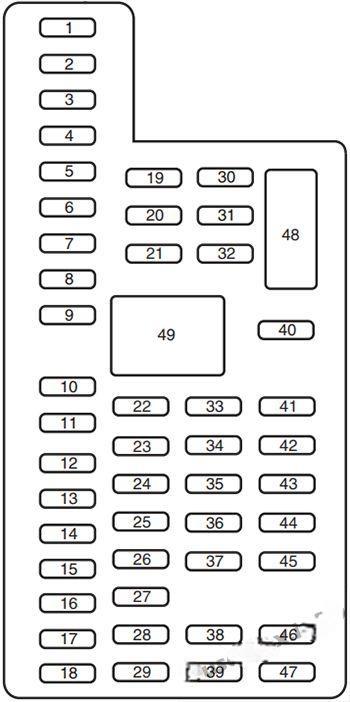

Assignment of the fuses in the Passenger compartment (2013)
| № | Amp rating | Protected Components |
|---|---|---|
| 1 | 30A | Left front and right rear smart window motors |
| 2 | 15A | Driver seat switch power |
| 3 | 30A | Right front smart window motor |
| 4 | 10A | Demand lamps battery saver relay and coil |
| 5 | 20A | Audio amplifiers |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Driver seat module logic, Left front door zone module, Keypad |
| 8 | 10A | Not used (spare) |
| 9 | 10A | SYNC® module, Multi-function displays, Electronic finish panel, Radio frequency transceiver module |
| 10 | 10A | Run accessory relay |
| 11 | 10A | Intelligent access module logic, Heads-up display |
| 12 | 15A | Puddle lamp, Backlighting LED, Interior lighting |
| 13 | 15A | Right front turn, Right rear turn |
| 14 | 15A | Left front turn, Left rear turn |
| 15 | 15A | Stop lamp, Backup lamp |
| 16 | 10A | Right front low beam |
| 17 | 10A | Left front low beam |
| 18 | 10A | Start button, Keypad illumination, Brake shift interlock, Powertrain control module wakeup, Immobilizer transceiver module |
| 19 | 20A | Audio amplifier |
| 20 | 20A | All lock motor relay, Driver lock motor relay |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module logic, Instrument cluster |
| 24 | 15A | Steering wheel control module, Datalink |
| 25 | 15A | Decklid release relay |
| 26 | 5A | Ignition switch or push button start switch |
| 27 | 20A | Intelligent access module power |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera |
| 35 | 5A | Motorized humidity sensor, Heads-up display, Traction control switch |
| 36 | 10A | Heated steering wheel |
| 37 | 10A | Not used (spare) |
| 38 | 10A | Auto-dimming mirror (without automatic high beam and lane departure module), Moonroof module and switch |
| 39 | 15A | High beams |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Occupant classification sensor, Restraint control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamp relay |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power windows |
Engine compartment

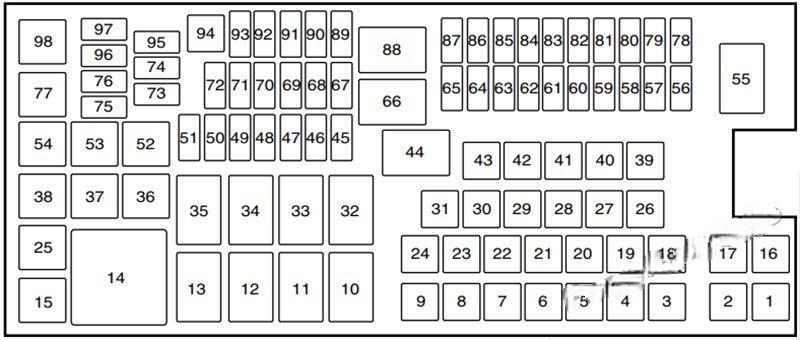

Assignment of the fuses in the Power distribution box (2013)
| № | Amp rating | Protected Components |
|---|---|---|
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A** | Wiper motor relay |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 20A** | Moonroof, Power sunshade |
| 9 | 20A** | Second row powerpoint |
| 10 | — | Not used |
| 11 | — | Heated rear window relay |
| 12 | — | Not used |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | — | Not used |
| 17 | — | Not used |
| 18 | 40A** | Front blower motor relay |
| 19 | 30A** | Starter relay |
| 20 | 20A** | Storage bin powerpoint |
| 21 | 20A** | Rear heated seat module |
| 22 | — | Not used |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 40A** | Rear window defrost relay |
| 27 | 20A** | Cigar lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | 40A** | Electric fan relay 1 |
| 30 | 40A** | Electric fan relay 2 |
| 31 | 25A** | Electric fan relay 3 |
| 32 | — | Not used |
| 33 | — | Not used |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | — | Not used |
| 45 | 5A* | Rain sensor |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15 A* | Heated mirrors |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | Not used |
| 55 | — | Wiper relay |
| 56 | — | Not used |
| 57 | 20A* | Left high-intensity discharge headlamp |
| 58 | 10 A* | Alternator A-line |
| 59 | 10 A* | Brake on/off switch |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | 10 A* | A/ C clutch relay |
| 63 | — | Not used |
| 64 | — | Not used |
| 65 | 30A* | Fuel pump relay, Fuel injectors |
| 66 | — | Powertrain control module relay |
| 67 | 20A* | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Ignition coils |
| 69 | 20A* | Vehicle power #1 (powertrain control module) |
| 70 | 15 A* | A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | — | Not used |
| 74 | — | Not used |
| 75 | — | Not used |
| 76 | — | Not used |
| 77 | — | Not used |
| 78 | 20A* | Right high-intensity discharge headlamp |
| 79 | 5A* | Adaptive cruise control module |
| 80 | — | Not used |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Not used |
| 84 | — | Not used |
| 85 | — | Not used |
| 86 | 7.5 A* | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5A* | Run/start relay |
| 88 | — | Run/start relay |
| 89 | 5A* | Front blower relay coil, Electrical power assist steering module |
| 90 | 10 A* | Powertrain control module run/start |
| 91 | 10 A* | Adaptive cruise control module |
| 92 | 10 A* | Anti-lock brake system module, Adaptive headlamp module |
| 93 | 5A* | Rear window defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| 98 | — | A/C clutch relay |
| * Mini Fuses ** Cartridge Fuses |
2014
Passenger compartment
Assignment of the fuses in the Passenger compartment (2014)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | 30A | Left front and right rear smart window motors |
| 2 | 15A | Driver seat switch power |
| 3 | 30A | Right front smart window motor |
| 4 | 10A | Demand lamps batteiy saver relay and coil |
| 5 | 20A | Audio amplifiers |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Driver seat module logic, Left front door zone module, Keypad |
| 8 | 10A | Not used (spare) |
| 9 | 10A | SYNC module, Multi-function displays, Electronic finish panel, Radio frequency transceiver module |
| 10 | 10A | Run accessory relay |
| 11 | 10A | Intelligent access module logic, Heads-up display |
| 12 | 15A | Puddle lamp, Backlighting LED, Interior lighting |
| 13 | 15A | Right front turn, Right rear turn |
| 14 | 15A | Left front turn, Left rear turn |
| 15 | 15A | Stop lamp, Backup lamp |
| 16 | 10A | Right front low beam |
| 17 | 10A | Left front low beam |
| 18 | 10A | Start button, Keypad illumination, Brake shift interlock, Powertrain control module wakeup, Immobilizer transceiver module |
| 19 | 20A | Audio amplifier |
| 20 | 20A | All lock motor relay, Driver lock motor relay |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module logic, Instrument cluster |
| 24 | 15A | Steering wheel control module, Datalink |
| 25 | 15A | Decklid release relay |
| 26 | 5A | Ignition switch or push button start switch |
| 27 | 20A | Intelligent access module power |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear ideo camera |
| 35 | 5A | Motorized humidity sensor, Heads-up display, Traction control switch |
| 36 | 10A | Heated steering wheel |
| 37 | 10A | Not used (spare) |
| 38 | 10A | Auto-dimming mirror (without automatic high beam and lane departure module), Moonroof module and switch |
| 39 | 15A | High beams |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Occupant classification sensor, Restraint control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamp relay |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power windows |
Engine compartment

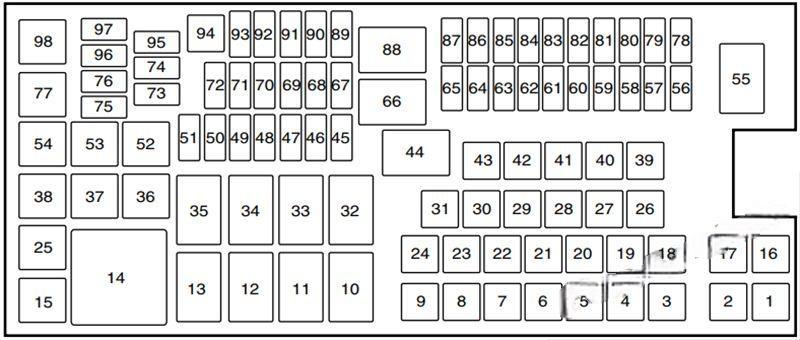

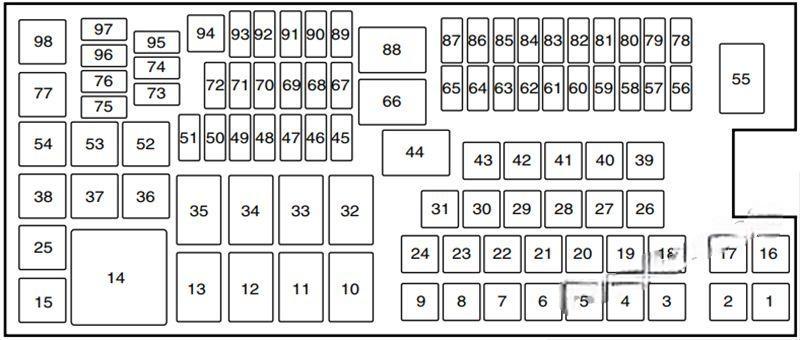

Assignment of the fuses in the Power distribution box (2014)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A** | Wiper motor relay |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 20A** | Moonroof, Power sunshade |
| 9 | 20A** | Second row powerpoint |
| 10 | — | Not used |
| 11 | — | Heated rear window relay |
| 12 | — | Not used |
| 13 | — | Starter motor high-current relay |
| 14 | — | Left-hand cooling fan #2 relay |
| 15 | — | Fuel pump ultra relay |
| 16 | — | Not used |
| 17 | — | Not used |
| 18 | 40A** | Front blower motor relay |
| 19 | 30A** | Starter relay |
| 20 | 20A** | Storage bin powerpoint |
| 21 | 20A** | Rear heated seat module |
| 22 | — | Not used |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 40A** | Rear window defrost relay |
| 27 | 20A** | Cigar lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | 40A** | Electric fan relay 1 |
| 30 | 40A** | Electric fan relay 2 |
| 31 | 25A** | Electric fan relay 3 |
| 32 | — | Not used |
| 33 | — | Right-hand cooling fan relay |
| 34 | — | Blower motor high-current relay |
| 35 | — | Left-hand cooling fan #1 relay |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | — | Not used |
| 45 | 5A* | Rain sensor |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15 A* | Heated mirrors |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | Not used |
| 55 | — | Wiper relay |
| 56 | — | Not used |
| 57 | 20A* | Left high-intensity discharge headlamp |
| 58 | 10 A* | Alternator A-line |
| 59 | 10 A* | Brake on/off switch |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | 10 A* | A/ C clutch relay |
| 63 | — | Not used |
| 64 | — | Not used |
| 65 | 30A* | Fuel pump relay, Fuel injectors |
| 66 | — | Powertrain control module relay |
| 67 | 20A* | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Ignition coils |
| 69 | 20A* | Vehicle power #1 (powertrain control module) |
| 70 | 15 A* | A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | — | Not used |
| 74 | — | Not used |
| 75 | — | Not used |
| 76 | — | Not used |
| 77 | — | Not used |
| 78 | 20A* | Right high-intensity discharge headlamp |
| 79 | 5A* | Adaptive cruise control module |
| 80 | — | Not used |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Not used |
| 84 | — | Not used |
| 85 | — | Not used |
| 86 | 7.5 A* | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5A* | Run/start relay |
| 88 | — | Run/start relay |
| 89 | 5A* | Front blower relay coil, Electrical power assist steering module |
| 90 | 10 A* | Powertrain control module run/start |
| 91 | 10 A* | Adaptive cruise control module |
| 92 | 10 A* | Anti-lock brake system module, Adaptive headlamp module |
| 93 | 5A* | Rear window defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| 98 | — | A/C clutch relay |
| * Mini Fuses ** Cartridge Fuses |
2015
Passenger compartment
Assignment of the fuses in the Passenger compartment (2015)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | 30A | Left front and right rear smart window motors |
| 2 | 15A | Driver seat switch power |
| 3 | 30A | Right front smart window motor |
| 4 | 10A | Demand lamps battery saver relay and coil |
| 5 | 20A | Audio amplifiers |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Driver seat module logic, Left front door zone module, Keypad |
| 8 | 10A | Not used (spare) |
| 9 | 10A | SYNC module, Multi-function displays, Electronic finish panel, Radio frequency transceiver module |
| 10 | 10A | Run accessory relay |
| 11 | 10A | Intelligent access module logic, Heads-up display |
| 12 | 15A | Puddle lamp, Backlighting LED, Interior lighting |
| 13 | 15A | Right front turn, Right rear turn |
| 14 | 15A | Left front turn, Left rear turn |
| 15 | 15A | Stop lamp, Backup lamp |
| 16 | 10A | Right front low beam |
| 17 | 10A | Left front low beam |
| 18 | 10A | Start button, Keypad illumination, Brake shift interlock, Powertrain control module wakeup, Immobilizer transceiver module |
| 19 | 20A | Audio amplifier |
| 20 | 20A | All lock motor relay, Driver lock motor relay |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module logic, Instrument cluster |
| 24 | 15A | Steering wheel control module, Datalink |
| 25 | 15A | Decklid release relay |
| 26 | 5A | Ignition switch or push button start switch |
| 27 | 20A | Intelligent access module power |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera |
| 35 | 5A | Motorized humidity sensor, Heads-up display, Traction control switch |
| 36 | 10A | Heated steering wheel |
| 37 | 10A | Not used (spare) |
| 38 | 10A | Auto-dimming mirror (without automatic high beam and lane departure module), Moonroof module and switch |
| 39 | 15A | High beams |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Occupant classification sensor, Restraint control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamp relay |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power windows |
Engine compartment
Assignment of the fuses in the Power distribution box (2015)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A** | Wiper motor relay |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 20A** | Moonroof, Power sunshade |
| 9 | 20A** | Second row powerpoint |
| 10 | — | Not used |
| 11 | — | Heated rear window relay |
| 12 | — | Not used |
| 13 | — | Starter motor high-current relay |
| 14 | — | Left-hand cooling fan #2 relay |
| 15 | — | Fuel pump ultra relay |
| 16 | — | Not used |
| 17 | — | Not used |
| 18 | 40A** | Front blower motor relay |
| 19 | 30A** | Starter relay |
| 20 | 20A** | Storage bin powerpoint |
| 21 | 20A** | Rear heated seat module |
| 22 | — | Massage control seats relay |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 40A** | Rear window defrost relay |
| 27 | 20A** | Cigar lighter |
| 28 | 30A** | Climate controlled seats |
| 29 | 40A** | Electric fan relay 1 |
| 30 | 40A** | Electric fan relay 2 |
| 31 | 25A** | Electric fan relay 3 |
| 32 | — | Power seat relay |
| 33 | — | Right-hand cooling fan relay |
| 34 | — | Blower motor high-current relay |
| 35 | — | Left-hand cooling fan #1 relay |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | — | Not used |
| 45 | 5A* | Rain sensor |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15 A* | Heated mirrors |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | Not used |
| 55 | — | Wiper relay |
| 56 | — | Not used |
| 57 | 20A* | Left high-intensity discharge headlamp |
| 58 | 10 A* | Alternator A-line |
| 59 | 10 A* | Brake on/off switch |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | 10 A* | A/C clutch relay |
| 63 | — | Not used |
| 64 | 15 A* | Massage control seats |
| 65 | 30A* | Fuel pump relay, Fuel injectors |
| 66 | — | Powertrain control module relay |
| 67 | 20A* | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Ignition coils |
| 69 | 20A* | Vehicle power #1 (powertrain control module) |
| 70 | 15 A* | A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | — | Not used |
| 74 | — | Not used |
| 75 | — | Not used |
| 76 | — | Not used |
| 77 | — | Not used |
| 78 | 20 A* | Right high-intensity discharge headlamp |
| 79 | — | Not used |
| 80 | — | Not used |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Not used |
| 84 | — | Not used |
| 85 | — | Not used |
| 86 | 7.5 A* | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5A* | Run/start relay |
| 88 | — | Run/start relay |
| 89 | 5A* | Front blower relay coil, Electrical power assist steering module |
| 90 | 10 A* | Powertrain control module run/start |
| 91 | 10 A* | Adaptive cruise control module |
| 92 | 10 A* | Anti-lock brake system module, Adaptive headlamp module |
| 93 | 5A* | Rear window defroster relay |
| 94 | 30A** | Passenger compartment fuse panel run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| 98 | — | A/C clutch relay |
| * Mini Fuses ** Cartridge Fuses |
2016, 2017, 2018, 2019
Passenger compartment
Assignment of the fuses in the Passenger compartment (2016-2019)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | 30A | Left front and right rear smart window motors. |
| 2 | 15A | Driver seat switch. |
| 3 | 30A | Right front smart window motor. |
| 4 | 10A | Demand lamps battery saver relay. |
| 5 | 20A | Audio amplifier. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5 A | Driver seat module logic. Left front door zone module. Keypad. |
| 8 | 10A | Not used (spare). |
| 9 | 10A | SYNC module. Multi-function displays. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. |
| 11 | 10A | Intelligent access module logic. Heads-up display. |
| 12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
| 13 | 15A | Right-hand direction indicators. |
| 14 | 15A | Left-hand direction indicators. |
| 15 | 15A | Stop lamp. Backup lamp. |
| 16 | 10A | Right front low beam. |
| 17 | 10A | Left front low beam. |
| 18 | 10A | Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Immobilizer transceiver module. |
| 19 | 20A | Audio amplifiers. |
| 20 | 20A | All lock motor relay and coil. Driver lock motor relay and coil. |
| 21 | 10A | Extended power module. |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic Instrument cluster. |
| 24 | 15A | Steering wheel control module. Datalink. |
| 25 | 15A | Decklid release. |
| 26 | 5A | Ignition switch. Push button ignition switch. |
| 27 | 20A | Intelligent access module power. |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. |
| 31 | 5A | Not used (spare). |
| 32 | 15A | Smart window motors. Master window and mirror switch. Rear window power sunshade module. Lock switch illumination. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Automatic high beam and lane departure module. Rear heated seat module. Blind spot monitor module. Rear video camera. |
| 35 | 5A | Motorized humidity sensor. Heads-up display. Traction control switch. |
| 36 | 10A | Heated steering wheel. |
| 37 | 10A | Not used (spare). |
| 38 | 10A | Auto-dimming mirror (without automatic high beam and lane departure module). Moonroof module and switch. |
| 39 | 15A | High beams. |
| 40 | 10A | Rear park lamps. |
| 41 | 7.5 A | Extended power module. |
| 42 | 5A | Not used (spare). |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Not used (spare). |
| 48 | 30A Circuit breaker | Front passenger power window. Rear power windows. |
| 49 | Relay | Delayed accessory. |
Engine compartment
Assignment of the fuses in the Power distribution box (2016-2019)
| № | Amp rating | Protected components |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 30A | Wiper motor relay. |
| 5 | 50A | Anti-lock brake system pump. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | 20A | Moonroof. Power sunshade. |
| 9 | 20A | Second row power point. |
| 10 | – | Not used. |
| 11 | Relay | Heated rear window relay. |
| 12 | – | Not used. |
| 13 | Relay | Starter motor relay. |
| 14 | Relay | Left-hand cooling fan number 2 relay. |
| 15 | Relay | Fuel pump relay. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 40A | Front blower motor relay. |
| 19 | 30A | Starter relay. |
| 20 | 20A | Storage bin power point. |
| 21 | 20A | Rear heated seat module. |
| 22 | – | Not used. |
| 23 | 30A | Driver power seat. Memory module. |
| 24 | – | Not used. |
| 25 | – | Not used. |
| 26 | 40A | Heated rear window relay. |
| 27 | 20A | Cigar lighter. |
| 28 | 30A | Climate controlled seats. |
| 29 | 40A | Electric fan relay 1. |
| 30 | 40A | Electric fan relay 2. |
| 31 | 25 A | Electric fan relay 3. |
| 32 | Relay | Massage control seat relay. |
| 33 | Relay | Right-hand cooling fan relay. |
| 34 | Relay | Blower motor relay. |
| 35 | Relay | Left-hand cooling fan Number 1 relay. |
| 36 | – | Not used. |
| 37 | – | Not used. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 30A | Passenger power seat. |
| 43 | 20A | Anti-lock brake system valves. |
| 44 | – | Not used. |
| 45 | 5A | Rain sensor. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | – | Not used. |
| 49 | – | Not used. |
| 50 | 15A | Heated mirrors. |
| 51 | – | Not used. |
| 52 | – | Not used. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | Relay | Wiper relay. |
| 56 | – | Not used. |
| 57 | 20A | Left-hand high intensity discharge headlamp. |
| 58 | 10A | Alternator A-line. |
| 59 | 10A | Brake on/off switch. |
| 60 | – | Not used. |
| 61 | – | Not used. |
| 62 | 10A | A/C clutch relay. |
| 63 | – | Not used. |
| 64 | 15A | Massage control seats. |
| 65 | 30A | Fuel pump relay. Fuel injectors. |
| 66 | Relay | Powertrain control module relay. |
| 67 | 20A | Oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A | Ignition coils. |
| 69 | 20A | Vehicle power 1 (powertrain control module). |
| 70 | 15A | A/C clutch. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | – | Not used. |
| 74 | – | Not used. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | – | Not used. |
| 78 | 20A | Right high-intensity discharge headlamp. |
| 79 | – | Not used. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | – | Not used. |
| 83 | – | Not used. |
| 84 | – | Not used. |
| 85 | – | Not used. |
| 86 | 7.5A | Powertrain control module. Keep alive power and relay. Canister vent solenoid. |
| 87 | 5A | Run/start relay. |
| 88 | Relay | Run/start relay. |
| 89 | 5A | Front blower relay coil. Electrical power assist steering module. |
| 90 | 10A | Powertrain control module run/start. |
| 91 | 10A | Adaptive cruise control module. |
| 92 | 10A | Anti-lock brake system module. |
| 93 | 5A | Rear window defroster relay. |
| 94 | 30A | Passenger compartment fuse panel run/ start. |
| 95 | – | Not used. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | Relay | A/C clutch relay. |
