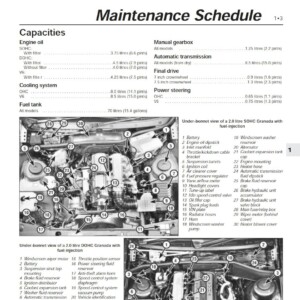

Ford Scorpio 1985 – 1994 Service Repair Manual

Haynes Service Repair Manual. In 1985, the production of a new Ford Scorpio car, which replaced the Granada model, was launched at the plant in Cologne, Germany (the former name remained on the UK and Ireland markets). It was a large five-door hatchback, the flagship of the European model range “Ford”. The car was well received by buyers, thanks to the comfort, spacious interior and equipment that is not bad for those years (for example, all versions had ABS in the “base”). In 1990, the Ford Scorpio appeared with a sedan, and in 1992 a station wagon went on sale.

Gasoline carburetor engines 1.8 (90 hp.) And 2.0 (101–115 hp.), As well as Cologne V6 engines 2.4 (125–130 hp.), 2.8 (150 l.) Were installed on the rear wheel drive car. p.) and 2.9 (145–150 forces). 2.5 liters diesel engine, which developed 69 liters. with. in the atmospheric version and 92 l. with. in the turbo, was borrowed from the company “Peugeot”. Some modifications of the Ford Scorpio car were offered not only with rear, but also with all-wheel drive. Gearboxes – five-speed “mechanics” or four-stage “automatic”.

In 1989, the old carburetor engines disappeared from the gamut, but a new 120-horsepower power unit with a volume of two liters with fuel injection and two camshafts appeared. In 1990, buyers were offered Ford Scorpio Coswoth with a V6 2.9 engine with a capacity of 195 liters. with. received four valves per cylinder instead of two.

In 1992, the Scorpio received an updated design. At the same time, the Peugeot diesel engine was replaced by the Italian engine VM Motori with a 2.5 liter capacity and 115 liter capacity. with.


  • Air cleaner filter element renewal
  • Air conditioner condenser check
  • Air conditioner refrigerant charge check
  • Automatic choke check
  • Automatic transmission brake band adjustment
  • Automatic transmission fluid level check
  • Automatic transmission selector lubrication
  • Auxiliary drivebelt check
  • Battery electrolyte level check
  • Battery terminal check
  • Brake fluid renewal
  • Brake pipe and hose check
  • Brake system seal and hose renewal
  • Camshaft drivebelt renewal
  • Crankcase ventilation vent valve renewal
  • Driveshaft check
  • Electrical system check
  • Engine coolant renewal
  • Engine inlet manifold security check
  • Engine oil and filter renewal
  • Engine valve clearance check
  • Exhaust system check
  • Final drive oil level check
  • Fluid leak check
  • Fluid level checks
  • Front and rear brake pad check
  • Fuel filter renewal
  • Hinge and lock check and lubrication
  • Hot starting check
  • Idle mixture check
  • Idle speed check
  • Idle speed linkage clean
  • Ignition system component check
  • Intensive maintenance
  • Introduction
  • Manual gearbox oil level check
  • Oil filler cap check
  • Power steering fluid level check
  • Road test
  • Roadwheel security check
  • Seat belt check
  • Spark plug renewal
  • Specifications
  • Steering and suspension security check
  • Tyre checks
  • Underbody inspection
  • Wiper blade check

Language: English
Format: PDF
Pages: 255
