The Ford Puma subcompact crossover is available from 2019. In this article you will find the Ford Puma 2019, 2020 fuse box outline, information on the location of the fuse boxes in the car and the allocation of each fuse (fuse layout).
The fuses for the cigar lighter socket on the Ford Puma are fuses #83 and #84 in the engine fuse box.
Passenger Compartment Fuse Box

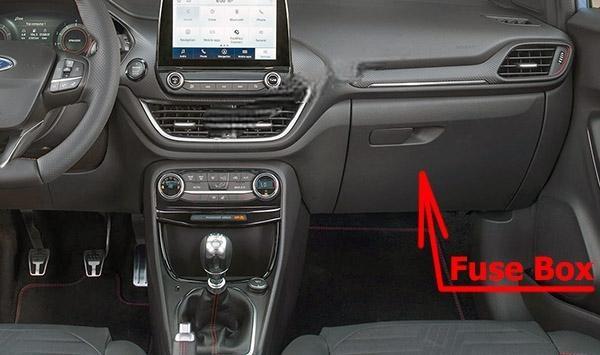

Fuse Box Location
The fuse panel is located behind the glove box (LHD), or below the glove box (RHD).

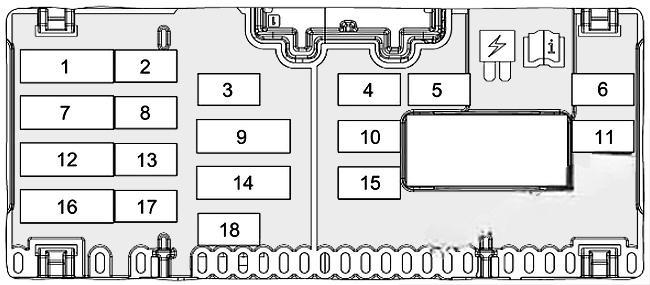

Fuse Box Diagram
Assignment of the fuses in the instrument panel
| № | Amp Rating | Description |
|---|---|---|
| 1 | 5A | Restraints control module. In-vehicle temperature and humidity sensor. |
| 2 | 10A | Parking assist control module. |
| 3 | 10A | Ignition switch. Push button ignition switch. Telematics modem. |
| 4 | 20A | Lock. Unlock. |
| 5 | 10A | Moonroof. |
| 6 | 30A | Right-hand mirror switch. Right-hand front power windows. |
| 7 | 5A | Passenger airbag deactivation indicator. Auto-dimming interior mirror. |
| 8 | 10A | Data link connector. |
| 9 | 5A | Central security module. |
| 10 | 15A | Child safety locks. Fuel filler door. |
| 11 | 30A | Left-hand mirror switch. Left-hand front power windows. |
| 12 | 15A | Heated steering wheel. Headlamp control module. |
| 13 | 15A | Voice control. Information and entertainment display. Compact disc player. |
| 14 | 7.5A | Battery back-up sounder. |
| 15 | 10A | Anti-theft alarm horn. |
| 16 | 7.5A | Climate control. Steering wheel module. Instrument cluster. Data link connector. |
| 17 | 20A | Audio unit. |
| 18 | 20A | Not used. |
Engine Compartment Fuse Box

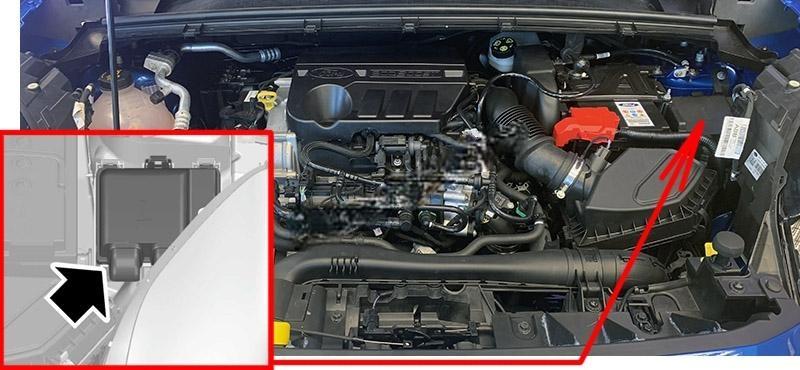

Fuse Box Location

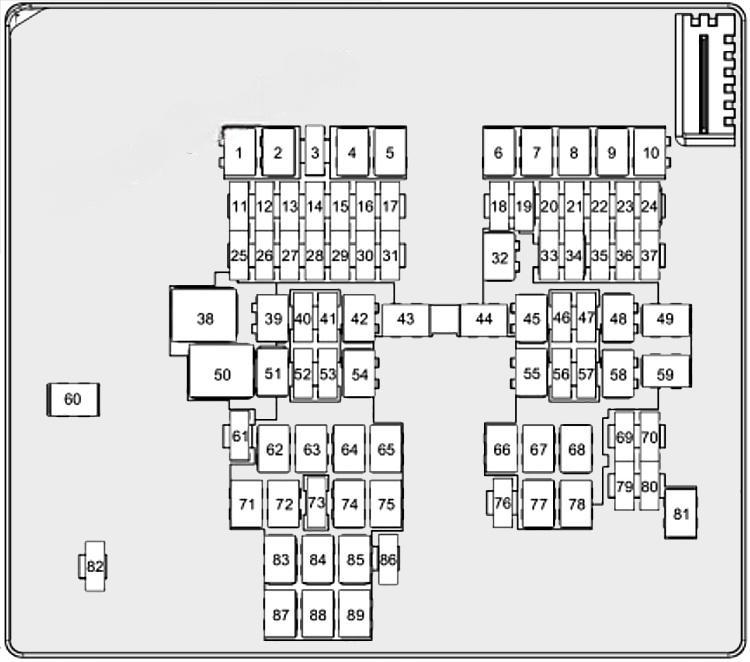

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| № | Amp Rating | Description |
|---|---|---|
| 1 | – | Not used. |
| 2 | 60A | Intake air heater. |
| 3 | 10A | Windshield heated washer jets. |
| 4 | 40A | Left-hand heated windshield element. |
| 5 | – | Not used. |
| 6 | 30A | Starter motor. |
| 7 | 40A | Blower motor. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | – | Not used. |
| 11 | 20A | Steering column lock. |
| 12 | 10A | Air conditioning clutch. |
| 13 | – | Not used. |
| 14 | – | Not used. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | 5A | Powertrain control module. |
| 18 | 10A | Heated steering wheel. |
| 19 | 5A | Electronic power assist steering. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | – | Not used. |
| 23 | 10A | Passenger multi-contour seat module. |
| 24 | 10A | Driver multi-contour seat module. |
| 25 | 10A | Coolant pump. Exhaust valve. |
| 26 | 15A | Evaporative emission canister purge valve. Camshaft position sensor. Fuel injection control pressure sensor. Turbocharger variable vane control solenoid. Exhaust gas recirculation cooler bypass valve. Wastegate control valve solenoid. Heated oxygen sensor. |
| 27 | 20A | Powertrain control module. |
| 28 | 15A | Active grille shutter. Oil pump. Air conditioning compressor. Wastegate control valve solenoid. Water-in-fuel sensor. |
| 29 | 15A | Ignition coil. Noise suppression capacitor. |
| 30 | 10A | Air conditioning pressure relief valve. |
| 31 | – | Not used. |
| 32 | 30A | Body control module. |
| 33 | 10A | Blind spot information system. Cruise control module. Front parking aid camera. Rear parking aid camera. Parking assist control module. |
| 34 | – | Not used. |
| 35 | 10A | Headlamps. |
| 36 | 5A | Anti-lock brake system. |
| 37 | – | Not used. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 20A | Heated seats. |
| 42 | – | Not used. |
| 43 | 40A | Trailer tow module. |
| 44 | 40A | Right-hand heated windshield element. |
| 45 | 30A | Left-hand rear door module. |
| 46 | 5A | Headlamp leveling. |
| 47 | 15A | Audio unit amplifier. |
| 48 | 20A | Moonroof. |
| 49 | 60A | Anti-lock brake pump. |
| 50 | 60A | High-speed cooling fan. |
| 51 | – | Not used. |
| 52 | 10A | Data link connector. |
| 53 | – | Not used. |
| 54 | 30A | Right-hand rear door module. |
| 55 | 30A | Anti-lock brake valve. |
| 56 | 5A | Brake on-off switch. |
| 57 | 15A | Audio unit amplifier. |
| 58 | 30A | Power liftgate. |
| 59 | 40A | Body control module. |
| 60 | – | Not used. |
| 61 | – | Not used. |
| 62 | – | Not used. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 20A | Fuel pump. |
| 69 | – | Not used. |
| 70 | – | Not used. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | 5A | Rain sensor. |
| 74 | 30A | Windshield wiper motor. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | 25A | Heated rear window. |
| 78 | – | Not used. |
| 79 | 20A | Horn. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | 15A | Rear window washer pump. |
| 83 | 20A | Cigar lighter. Front auxiliary power points. |
| 84 | 20A | Rear auxiliary power points. |
| 85 | 40A | Low-speed cooling fan. |
| 86 | 20A | Rear window wiper. |
| 87 | – | Not used. |
| 88 | – | Not used. |
| 89 | – | Not used. |
