Ford Fusion Hybrid / Energi 2016-2020 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Wednesday, June 18, 2025 2:14 AM

ford fusion hybrid energi 2016 2020 fuse layout

In this article we take a look at the Ford Fusion Hybrid / Energi post-facelift, produced from 2016 to present. Here you will find the Ford Fusion Hybrid / Fusion Energi 2016, 2017, 2018, 2019 and 2020 fuse box outline, information on the location of the fuse boxes inside the car and the allocation of each fuse (fuse layout) and relay.

The cigar lighter/socket fuses in the Ford Fusion Hybrid/Energy are fuses #5 (power point 3 – rear of console), #10 (power point 1 – front of driver) and #16 (power point 2 – console) in the engine compartment fuse box.

Fuse box location

Passenger compartment

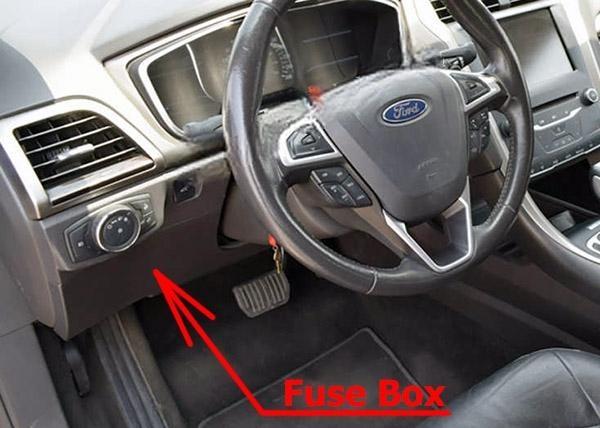

The fuse panel is located under the instrument panel to the left of the steering column (behind the trim panel below the steering wheel).

ford fusion hybrid energi 2016 2020 fuse layout 1 2024 12 06 16 10 28

Engine compartment

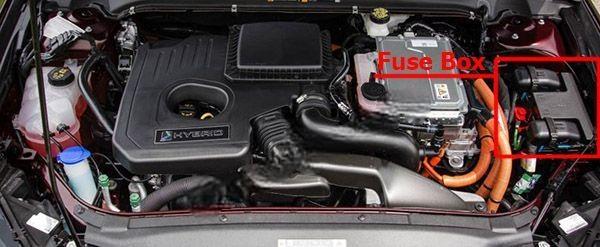

The power distribution box is located in the engine compartment.

ford fusion hybrid energi 2016 2020 fuse layout 2 2024 12 06 16 10 41

There are fuses located on the bottom of the fuse box

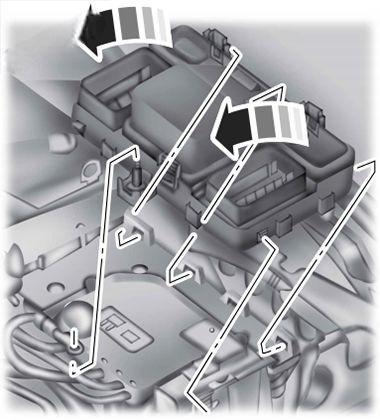

ford fusion hybrid energi 2016 2020 fuse layout 3 2024 12 06 16 10 49

To access the bottom of the fusebox, do the following:

1. Release the two latches, located on both sides of the fusebox.
2. Raise the inboard side of the fusebox from the cradle.
3. Move the fusebox toward the center of the engine compartment.
4. Pivot the outboard side of the fusebox to access the bottom side.

Fuse box diagrams

2016

Passenger compartment

Assignment of the fuses in the Passenger compartment (2016)

№	Amp Rating	Protected components
1	10A	Lighting (ambient, glove box, vanity, dome, trunk).
2	7.5A	Memory seats. Lumbar. Power mirror.
3	20A	Driver door unlock.
4	5A	Not used (spare).
5	20A	Subwoofer amplifier.
6	10A	Heated seat relay coil.
7	10A	Not used (spare).
8	10A	Not used (spare).
9	10A	Not used (spare).
10	5A	Keypad. Cell phone passport module. Power decklid module.
11	5A	Not used (spare).
12	7.5A	Climate control. Gear shift.
13	7.5A	Steering wheel column. Instrument cluster. Datalink logic.
14	10A	Battery electronic control module.
15	10A	Datalink-gateway module.
16	15 A	Child lock. Decklid release.
17	5A	Tracking and blocking.
18	5A	Ignition. Push button start stop switch.
19	7.5A	Passenger airbag disabled indicator. Transmission range control.
20	7.5A	Adaptive headlamps.
21	5A	Humidity and in-car temperature sensor.
22	5A	Occupant classification sensor.
23	10A	Delayed Accessory (Power inverter logic, Moonroof logic).
24	20A	Central lock unlock.
25	30A	Driver door (window, mirror).
26	30A	Front passenger door (window, mirror).
27	30A	Moonroof.
28	20A	Amplifier.
29	30A	Rear driver side door (window).
30	30A	Rear passenger side door (window).
31	15A	Not used (spare).
32	10A	GPS. Voice control. Display. Adaptive cruise control. Radio frequency receiver.
33	20A	Radio. Active noise control.
34	30A	Run-start (fuse #19,20,21,22,35,36,37, circuit breaker).
35	5A	Restraints control module.
36	15A	Auto-dimming rear view mirror.
37	15A	All wheel drive. Heated steering wheel.
38	30A	Not used (spare).

Engine compartment

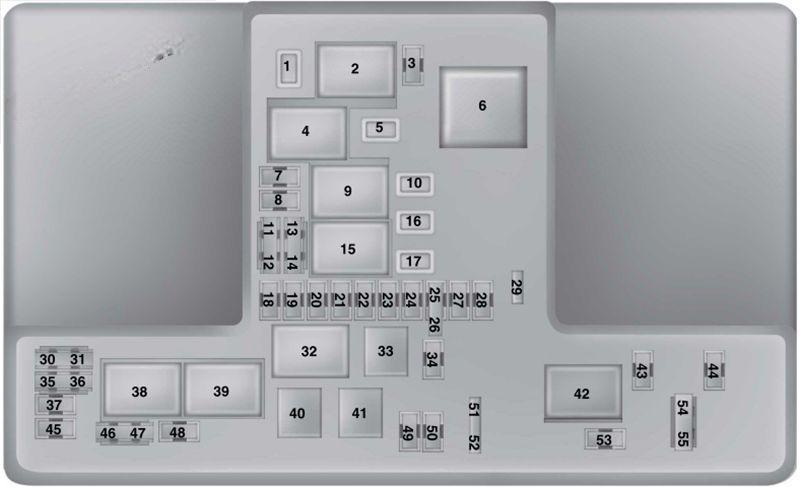

ford fusion hybrid energi 2016 2020 fuse layout 5 2024 12 06 16 11 09

Assignment of the fuses in the Power distribution box (2016)

№	Amp Rating	Protected components
1	25 A	Wiper motor 2.
2	—	Not used.
3	15A	Rain sensor.
4	—	Blower motor relay.
5	20A	Power point 3 – back of console.
6	—	Not used.
7	20A	Powertrain control module – vehicle power 1 .
8	20A	Powertrain control module – vehicle power 2.
9	—	Powertrain control module relay.
10	20A	Power point 1 – driver front.
11	15 A	Powertrain control module – vehicle power 4.
12	15 A	Powertrain control module – vehicle power 3.
13	—	Not used.
14	—	Not used.
15	—	Run-start relay.
16	20A	Power point 2 – console.
17	20A	Transmission oil pump.
18	10A	Powertrain and hybrid powertrain control module keep alive power.
19	10A	Run/start electronic power assist steering.
20	10A	Run-start lighting.
21	15 A	Run-start transmission switch. HEV inverter.
22	—	Not used.
23	15 A	Run-start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display. Shifter
24	10A	Run-start transmission oil pump.
25	10A	Run-start anti-lock brake system.
26	10A	Run-start powertrain control module.
27	10A	Fuel door solenoid.
28	—	Not used.
29	15A	Hybrid content vehicle power 5.
30	—	Not used.
31	—	Not used.
32	—	HEV/PHEV pulse width modulated fan relay.
33	—	Not used.
34	—	Not used.
35	15A	Charger fan.
36	15A	HEV battery electronic control module fan.
37	5A	Remote CD.
38	—	Vacuum pump #1 relay.
39	—	Vacuum pump #2 relay.
40	—	Fuel pump relay.
41	—	Horn relay.
42	—	Not used.
43	—	Not used.
44	—	Not used.
45	5A	Vacuum pump monitor.
46	10A	Charge port light ring.
47	10A	Brake on-off switch.
48	20A	Horn.
49	5A	Air flow monitor.
50	—	Not used.
51	15 A	Hybrid content vehicle power 1.
52	15 A	Hybrid content vehicle power 2.
53	10A	Power seats.
54	10A	Hybrid content vehicle power 3.
55	10A	Hybrid content vehicle power 4.

Engine compartment – Bottom

ford fusion hybrid energi 2016 2020 fuse layout 6 2024 12 06 16 11 20

Assignment of the fuses in the Power distribution box (Bottom) (2016)

№	Amp Rating	Protected components
56	30A	Fuel pump feed.
57	—	Not used.
58	—	Not used.
59	40A	Vacuum pump relay.
60	40A	Pulse width modulated fan.
61	—	Not used.
62	50A	Body control module 1.
63	—	Not used.
64	40A	PHEV charger.
65	20A	Front heated seat.
66	—	Not used.
67	50A	Body control module 2.
68	40A	Heated rear window.
69	30A	Anti-lock brake system valves.
70	30A	Passenger seat.
71	—	Not used.
72	30A	Panoramic roof #1.
73	20A	Rear heated seat.
74	30A	Driver seat module.
75	—	Not used.
76	20A	Transmission oil pump. iShifter
77	30A	Front climate controlled seats.
78	40A	Trailer tow module.
79	40A	Blower motor.
80	30A	Power decklid.
81	40A	Inverter.
82	60A	Anti-lock brake system pump.
83	25A	Wiper motor 1.
84	—	Not used.
85	30A	Panoramic roof #2.

2017

Passenger compartment

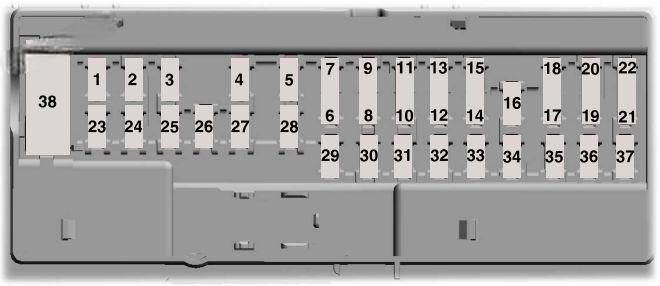

ford fusion hybrid energi 2016 2020 fuse layout 7 2024 12 06 16 11 28

Assignment of the fuses in the Passenger compartment (2017)

№	Amp Rating	Protected components
1	10A	Lighting (ambient, glove box, vanity, dome, trunk).
2	7.5A	Lumbar.
3	20A	Driver door unlock.
4	5A	Not used (spare).
5	20A	Subwoofer amplifier.
6	10A	Not used (spare).
7	10A	Not used (spare).
8	10A	Not used (spare).
9	10A	Not used (spare).
10	5A	Keypad. Cell phone passport module.
11	5A	Not used (spare).
12	7.5A	Climate control. Gear shift.
13	7.5A	Steering wheel column. Instrument cluster. Datalink logic.
14	10A	Extended power module.
15	10A	Datalink-gateway module.
16	15 A	Child lock. Decklid release.
17	5A	Not used (spare).
18	5A	Push button start stop switch.
19	7.5A	Extended power module.
20	7.5A	Adaptive headlamps.
21	5A	Humidity and in-car temperature sensor.
22	5A	Pedestrian sounder.
23	10A	Delayed accessory (power inverter logic, moonroof logic, driver master switch).
24	20A	Central lock unlock.
25	30A	Driver door (window, mirror).
26	30A	Front passenger door (window, mirror).
27	30A	Moonroof.
28	20A	Amplifier.
29	30A	Rear driver side door (window).
30	30A	Rear passenger side door (window).
31	15A	Not used (spare).
32	10A	GPS. Voice control. Display. Radio frequency receiver.
33	20A	Radio. Active noise control.
34	30A	Run-start (fuse #19,20,21,22,35,36,37, circuit breaker).
35	5A	Not used (spare).
36	15A	Auto-dimming rear view mirror.
37	20A	Heated steering wheel.
38	30A	Not used (spare).

Engine compartment

ford fusion hybrid energi 2016 2020 fuse layout 8 2024 12 06 16 11 38

Assignment of the fuses in the Power distribution box (2017)

№	Amp Rating	Protected components
1	25 A	Wiper motor 2.
2	—	Not used.
3	15A	Rain sensor.
4	—	Blower motor relay.
5	20A	Power point 3 – back of console.
6	—	Not used.
7	20A	Powertrain control module – vehicle power 1. Powertrain control module power.
8	20A	Powertrain control module – vehicle power 2. Emission components.
9	—	Powertrain control module relay.
10	20A	Power point 1 – driver front.
11	15A	Powertrain control module – vehicle power 4. Ignition coils.
12	15A	Powertrain control module – vehicle power 3. Non-emission components.
13	10A	Not used (spare).
14	10A	Not used (spare).
15	—	Run-start relay.
16	20A	Power point 2 – console.
17	20A	Not used (spare).
18	10A	Powertrain and hybrid powertrain control module keep alive power. Battery module.
19	10A	Run/start electronic power assist steering.
20	10A	Adaptive cruise control.
21	15 A	Run-start transmission switch. HEV inverter.
22	5A	Not used (spare).
23	15 A	Run-start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, shifter.
24	10A	Run-start transmission oil pump.
25	10A	Run-start anti-lock brake system.
26	10A	Run-start powertrain control module.
27	10A	Fuel door solenoid.
28	20A	Not used (spare).
29	20A	Not used (spare).
30	—	Not used.
31	—	Not used.
32	—	HEV/PHEV pulse width modulated fan relay.
33	—	Not used.
34	—	Not used.
35	15 A	Charger fan.
36	15 A	HEV battery electronic control module fan.
37	—	Not used.
38	—	Vacuum pump #1 relay.
39	—	Vacuum pump #2 relay.
40	—	Fuel pump relay.
41	—	Horn relay.
42	—	Not used.
43	10A	Not used (spare).
44	—	Not used.
45	5A	Vacuum pump monitor.
46	10A	Charge port light ring.
47	10A	Brake on-off switch.
48	20A	Horn.
49	5A	Air flow monitor.
50	15A	Hybrid content vehicle power 5. Battery energy control module fan.
51	15A	Hybrid content vehicle power 1. Hybrid powertrain control module.
52	15A	Hybrid content vehicle power 2. Battery energy control module.
53	10A	Not used (spare).
54	10A	Hybrid content vehicle power 3. Coolant pump.
55	10A	Hybrid content vehicle power 4. Air conditioning compressor. Positive temperature coefficient heater (PHEV). Humidity sensor (PHEV).

Engine compartment – Bottom

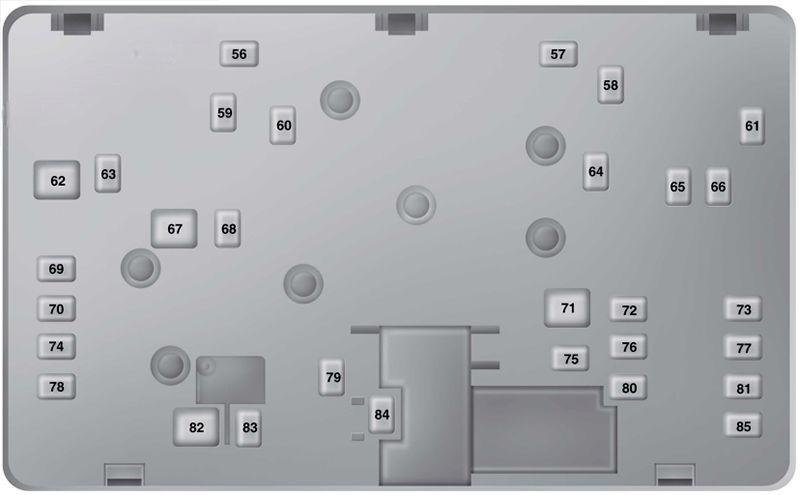

ford fusion hybrid energi 2016 2020 fuse layout 9 2024 12 06 16 11 48

Assignment of the fuses in the Power distribution box (Bottom) (2017)

№	Amp Rating	Protected components
56	30A	Fuel pump feed.
57	—	Not used.
58	—	Not used.
59	40A	Vacuum pump relay.
60	40 A	Pulse width modulated fan.
61	—	Not used.
62	50A	Body control module 1.
63	—	Not used.
64	40A	PHEV charger.
65	20A	Front heated seat.
66	—	Not used.
67	50A	Body control module 2.
68	40A	Heated rear window.
69	30 A	Anti-lock brake system valves.
70	30 A	Passenger seat.
71	—	Not used.
72	30 A	Panoramic roof #1.
73	—	Not used.
74	30 A	Driver seat module.
75	20A	Transmission oil pump (PHEV).
76	20A	e-Shifter (transmission range control module).
77	30 A	Front climate controlled seats.
78	—	Not used.
79	40A	Blower motor.
80	—	Not used.
81	40A	Inverter.
82	60A	Anti-lock brake system pump.
83	25A	Wiper motor 1.
84	—	Not used.
85	—	Not used.

2018, 2019, 2020

Passenger compartment

ford fusion hybrid energi 2016 2020 fuse layout 10 2024 12 06 16 11 56

Assignment of the fuses in the Passenger compartment (2018, 2019, 2020)

№	Amp Rating	Protected Components
1	10A	2018: Lighting (ambient, glove box, vanity, dome, trunk). 2019-2020: Not used.
2	7.5A	Lumbar.
3	20A	Driver door unlock.
4	5A	Not used (spare).
5	20A	Subwoofer amplifier.
6	10A	Not used (spare).
7	10A	Not used (spare).
8	10A	Not used (spare).
9	10A	Not used (spare).
10	5A	Keypad. Cell phone passport module.
11	5A	Not used (spare).
12	7.5A	Climate control. Gear shift.
13	7.5A	Steering wheel column. Instrument cluster. Datalink logic.
14	10A	Extended power module.
15	10A	Datalink-gateway module.
16	15 A	Child lock. Decklid release.
17	5A	Not used (spare).
18	5A	Push button start stop switch.
19	7.5A	Extended power module.
20	7.5A	Adaptive headlamps.
21	5A	Humidity and in-car temperature sensor.
22	5A	Spare.
23	10A	Delayed accessory (power inverter logic, moonroof logic, driver master switch).
24	20A	Central lock unlock
25	30A	Driver door (window, mirror).
26	30A	Front passenger door (window, mirror).
27	30A	Moonroof.
28	20A	Amplifier.
29	20A	Rear driver side door (window).
30	30A	Rear passenger side door (window).
31	15A	Not used (spare).
32	10A	GPS. Voice control. Display. Radio frequency receiver.
33	20A	Radio. Active noise control.
34	30A	Run-start (fuse #19,20,21,22,35,36,37, circuit breaker).
35	5A	Not used (spare).
36	15A	Auto-dimming rear view mirror.
37	20A	Heated steering wheel.
38	—	Not used.

Engine compartment

ford fusion hybrid energi 2016 2020 fuse layout 11 2024 12 06 16 12 05

Assignment of the fuses in the Power distribution box (2018, 2019, 2020)

№	Amp Rating	Protected Components
1	25A	Wiper motor 2.
2	—	Not used.
3	15 A	Rain sensor.
4	—	Blower motor relay.
5	20A	Power point 3 – back of console.
6	—	2018: Not used. 2019-2020: Water pump relay
7	20A	Powertrain control module – vehicle power 1 . Powertrain control module power.
8	20A	Powertrain control module – vehicle power 2. Emission components.
9	—	Powertrain control module relay.
10	20A	Power point 1 – driver front.
11	15 A	Powertrain control module – vehicle power 4. Ignition coils.
12	15 A	Powertrain control module – vehicle power 3. Non-emission components.
13	10A	Not used (spare).
14	10A	Not used (spare).
15	—	Run-start relay.
16	20A	Power point 2 – console.
17	20A	Not used (spare).
18	10A	Powertrain and hybrid powertrain control module keep alive power. Battery module.
19	10A	Run/start electronic power assist steering.
20	10A	Adaptive cruise control.
21	15A	Run-start transmission switch. HEV inverter.
22	5A	Not used (spare).
23	15A	Run-start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, shifter.
24	10A	PHEV Run-start transmission oil pump.
25	10A	Run-start anti-lock brake system.
26	10A	Run-start powertrain control module.
27	10A	Fuel door solenoid.
28	20A	Not used (spare).
29	20A	Not used (spare).
30	—	Not used.
31	—	Not used.
32	—	HEV/PHEV pulse width modulated fan relay.
33	—	Not used.
34	—	Not used.
35	15A	Charger fan.
36	15A	HEV battery electronic control module fan.
37	—	Not used.
38	—	Vacuum pump #1 relay.
39	—	Vacuum pump #2 relay.
40	—	Fuel pump relay.
41	—	Horn relay.
42	—	Not used.
43	10A	Not used (spare).
44	—	Not used.
45	5A	Vacuum pump monitor.
46	10A	Charge port light ring.
47	10A	Brake on-off switch.
48	20A	Horn.
49	5A	Airflow monitor.
50	15 A	Hybrid content vehicle power 5. Battery energy control module fan.
51	15 A	Hybrid content vehicle power 1. Hybrid powertrain control module.
52	15 A	Hybrid content vehicle power 2. Battery energy control module.
53	10A	Not used (spare).
54	10A	Hybrid content vehicle power 3. Coolant pump.
55	10A	Hybrid content vehicle power 4. Air conditioning compressor. Positive temperature coefficient heater (PHEV). Humidity sensor (PHEV).

Engine compartment – Bottom

ford fusion hybrid energi 2016 2020 fuse layout 12 2024 12 06 16 12 15

Assignment of the fuses in the Power distribution box (Bottom) (2018, 2019, 2020)

№	Amp Rating	Protected Components
56	30A	Fuel pump feed.
57	—	Not used.
58	—	Not used.
59	40A	Vacuum pump relay.
60	40 A	Pulse width modulated fan.
61	—	Not used.
62	50A	Body control module 1.
63	—	Not used.
64	40A	PHEV charger.
65	20 A	Front heated seat.
66	—	Not used.
67	50A	Body control module 2.
68	40A	Heated rear window.
69	30 A	Anti-lock brake system valves.
70	30 A	Passenger seat.
71	—	Not used.
72	30 A	Panoramic roof #1.
73	50A	Not used (spare)
74	30 A	Driver seat module.
75	20A	Transmission oil pump (PHEV).
76	20A	e-Shifter (transmission range control module).
77	30 A	Front climate controlled seats.
78	—	Not used.
79	40A	Blower motor.
80	25A	2018: Not used. 2019-2020: Wiper motor 2.
81	40A	2018: Inverter. 2019-2020: Not used.
82	60A	Anti-lock brake system pump.
83	25A	Wiper motor 1.
84	—	Not used.
85	30A	Not used (spare).
