Ford Focus 2008-2011 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Saturday, August 9, 2025 4:30 PM

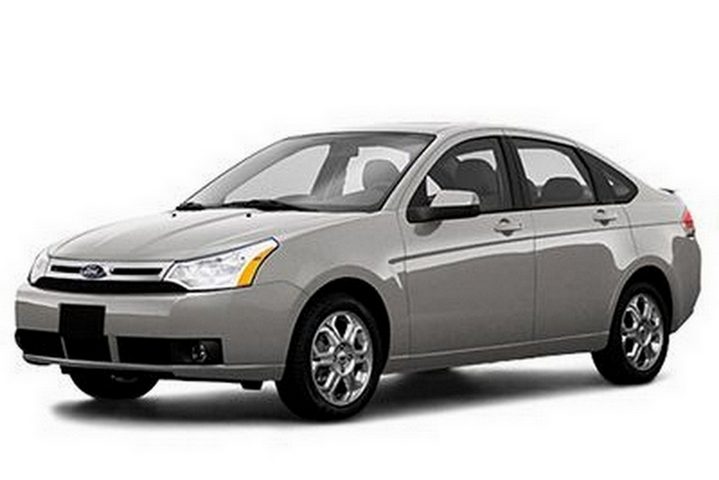

In this article we take a look at the second-generation Ford Focus (North America), produced from 2008 to 2011. Here you will find the fuse box diagrams for the Ford Focus 2008, 2009, 2010 and 2011, get information on the location of the fuse boxes in the car and learn about the assignment of each fuse (fuse layout) and relay.

The cigar lighter (socket) fuses are fuses №3 (socket) and №15 (front socket) in the engine compartment fuse box.

Fuse box location

Passenger compartment

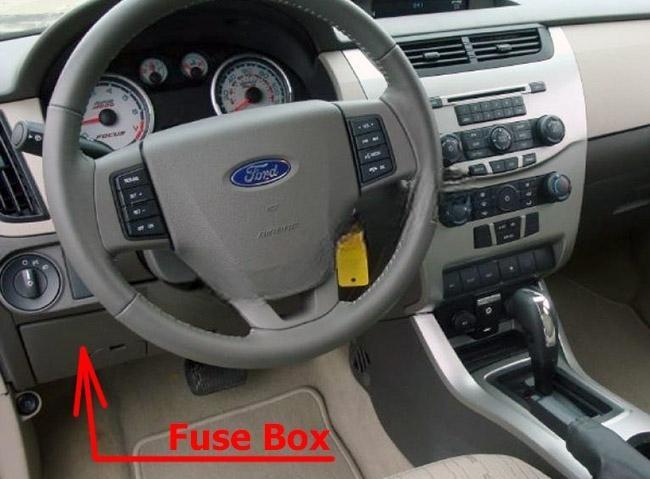

The panel is located below and to the left of the steering wheel by the brake pedal.
Remove the cover under the steering wheel.

ford focus 2008 2011 fuse layout 1 2024 12 06 13 00 16

Engine compartment

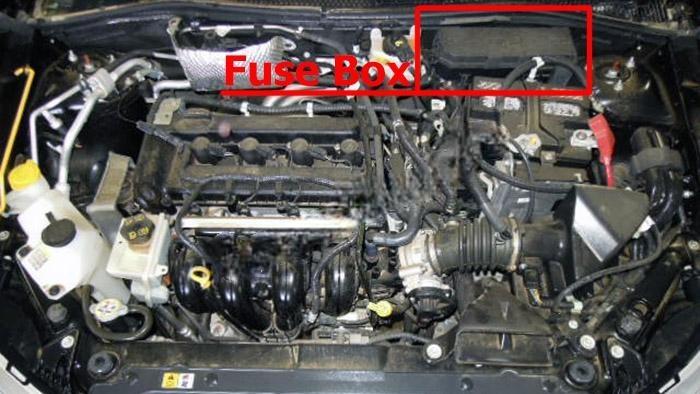

The power distribution box is located in the engine compartment.

Fuse box diagrams

2008

Passenger compartment

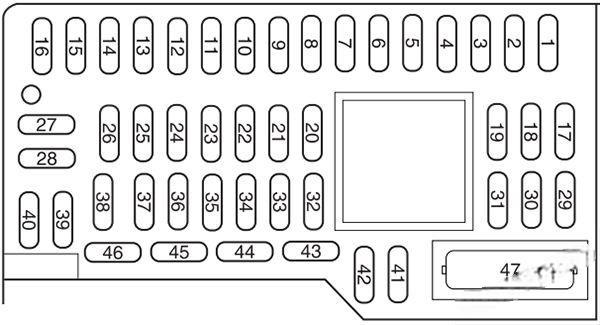

Assignment of the fuses in the Passenger compartment (2008)

№	Amp Rating	Description
1	—	Not used
2	15A	Brake Switch CHMSL
3	15A	Satellite Radio
4	—	Not used
5	10A	Shift Interlock
6	20A	Right Front Turn lamp/Left Front Turn lamp
7	10A	Left Low beam Headlamp
8	10A	Right Low beam Headlamp
9	15A	Interior Lamps
10	15A	Instrument Panel Backlighting
11	—	Not used
12	7.5A	Power Mirrors
13	5A	SYNC
14	—	Not used
15	10A	Recirculated Air, Air Conditioning
16	—	Not used
17	20A	Power Locks, Trunk Release
18	20A	Heated Seats
19	—	Not used
20	15A	Data Link Connector
21	15A	Foglamps, Foglamp Indicator
22	15A	Parking Lamps
23	15A	High Beam Lamps
24	20A	Horn
25	10A	Demand Lamps, Trunk Lamps
26	10A	Instrument Cluster
27	20A	Ignition Switch
28	5A	Radio (Start)
29	5A	Instrument Cluster (Run/Start)
30	—	Not used
31	10A	ABS
32	10A	Restraints Control Module
33	—	Not used
34	—	Not used
35	—	Not used
36	5A	PATS Module
37	10A	Climate Control (Run/Start)
38	20A	Subwoofer
39	20A	Radio/CID/EFP
40	—	Not used
41	15A	Door Lock/Moonroof Switch Illumination, Electrochromic Mirror
42	—	Not used
43	10A	Instrument Cluster, Heated Seats (Run/Accessory)
44	—	Not used
45	5A	Front Wipers (logic)
46	7.5A	Front Passenger Sensing System
47	30A (circuit breaker)	Sunroof, Power Windows

Engine compartment

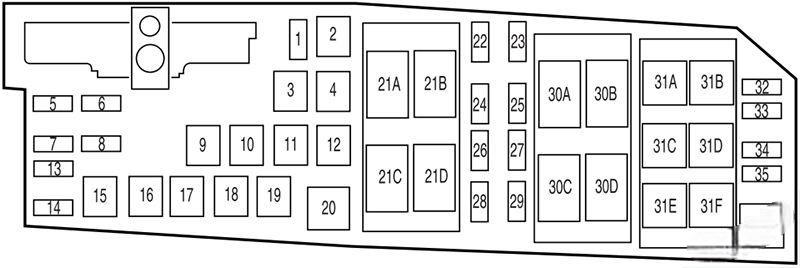

ford focus 2008 2011 fuse layout 4 2024 12 06 13 00 52

Assignment of the fuses in the Power distribution box (2008)

№	Amp Rating	Description
1	15A	Heated mirror
2	30A	Rear defrost
3	20A	Power point
4	20A	Fuel pump
5	10A	Powertrain control module (PCM) KAPWR / Canister Vent
6	15A	Alt sense
7	10A	Reverse lamps
8	—	Not used
9	40A	ABS motor
10	30A	Wipers
11	30A	Starter
12	40A	Blower
13	10A	A/C clutch
14	10A	PCM relay coil
15	20A	Front power point
16	20A	Cooling fan—low
17	30A	Cooling fan—high
18	20A	ABS solenoid
19	—	Spare
20	—	A/C clutch relay
21A		Rear defrost relay
21B	—	Not used
21C	—	Blower relay
21D	—	PCM relay
22	10A	Fuel injector
23	3A	Ambient lighting
24	—	Not used
25	—	Not used
26	15A	PCM MIL
27	—	Spare
28	15A	PCM
29	15A	Ignition
30A	—	Cooling fan low speed relay
30B	—	Starter relay
30C	—	Spare
30D	—	Cooling fan high speed relay
31A	—	Reverse lamp relay
31B	—	Fuel pump relay
31C	—	Spare
31D	—	Spare
31E	—	Spare
31F	—	Spare
32	—	A/C clutch diode
33	—	EEC diode
34	—	One Touch Integrated Start (OTIS) diode
35	10A	Run/Start

2009

Passenger compartment

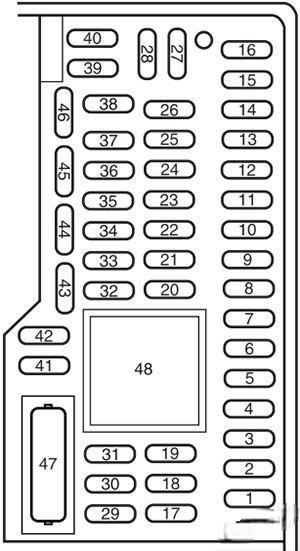

ford focus 2008 2011 fuse layout 5 2024 12 06 13 01 04

Assignment of the fuses in the Passenger compartment (2009)

№	Amp Rating	Protected circuits
1	30A	Not used (spare)
2	15A	Brake Switch CHMSL
3	15A	Satellite radio
4	30A	Not used (spare)
5	10A	Shift Interlock
6	20A	Right Front Turn lamp/Left Front Turn lamp, Rear stop/turn lamps
7	10A	Left Low beam Headlamp
8	10A	Right Low beam Headlamp
9	15A	Interior Lamps
10	15A	Instrument Panel Backlighting
11	10A	Not used (spare)
12	7.5A	Power Mirrors
13	5A	SYNC
14	10A	Not used (spare)
15	10A	Recirculated Air, Air Conditioning
16	15A	Not used (spare)
17	20A	Power Locks, Trunk Release
18	20A	Heated Seats
19	25A	Not used (spare)
20	15A	Data Link Connector
21	15A	Fog lamps, Fog lamp Indicator
22	15A	Parking Lamps
23	15A	High Beam Lamps
24	20A	Horn
25	10A	Demand Lamps, Trunk Lamps
26	10A	Instrument Cluster
27	20A	Ignition Switch
28	5A	Radio (Start)
29	5A	Instrument Cluster (Run/Start)
30	5A	Not used (spare)
31	10A	ABS
32	10A	Restraints Control Module
33	10A	Not used (spare)
34	5A	Not used (spare)
35	10A	Not used (spare)
36	5A	PATS Module
37	10A	Climate Control (Run/Start)
38	20A	Subwoofer
39	20A	Radio/CID/EFP
40	20A	Not used (spare)
41	15A	Door Lock/sunroof switch illumination, Electrochromic mirror, Ambient lighting
42	10A	Not used (spare)
43	10A	Not used (spare)
44	10A	Not used (spare)
45	5A	Front Wipers (logic)
46	7.5A	Front Passenger Sensing System
47	30A (circuit breaker)	Sunroof, Power Windows
48	—	Delayed accessoiy relay

Engine compartment

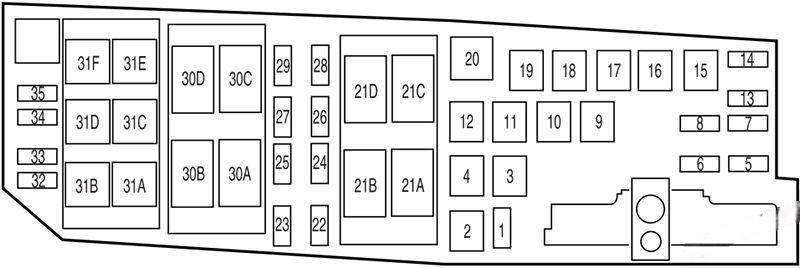

ford focus 2008 2011 fuse layout 6 2024 12 06 13 01 13

Assignment of the fuses in the Power distribution box (2009)

№	Amp Rating	Protected circuits
1	15A	Heated mirror
2	30A	Rear defrost
3	20A	Power point
4	20A	Fuel pump
5	10A	Powertrain control module (PCM) KAPWR / Canister Vent
6	15A	Alt sense
7	10A	Reverse lamps
8	—	Not used
9	40A	ABS motor
10	30A	Wipers
11	30A	Starter
12	40A	Blower
13	10A	A/C clutch
14	10A	PCM relay coil
15	20A	Front power point
16	20A	Cooling fan—low
17	30A	Cooling fan—high
18	20A	ABS solenoid
19	—	Not used
20	—	A/C clutch relay
21A		Rear defrost relay
21B	—	Not used
21C	—	Blower relay
21D	—	PCM relay
22	10A	Fuel injector
23	—	Not used
24	—	Not used
25	—	Not used
26	15A	PCM MIL
27	—	Not used
28	15A	PCM
29	15A	Ignition
30A	—	Cooling fan low speed relay
30B	—	Starter relay
30C	—	Not used
30D	—	Cooling fan high speed relay
31A	—	Reverse lamp relay
31B	—	Fuel pump relay
31C	—	Wiper power relay
31D	—	Not used
31E	—	Not used
31F	—	Not used
32	—	A/C clutch diode
33	—	EEC diode
34	—	One Touch Integrated Start (OTIS) diode
35	10A	Run/Start

2010

Passenger compartment

ford focus 2008 2011 fuse layout 7 2024 12 06 13 01 22

Assignment of the fuses in the Passenger compartment (2010)

№	Amp Rating	Protected circuits
1	30A	Not used (spare)
2	15A	Brake switch (high-mount brake lamp)
3	15A	Not used (spare)
4	30A	Not used (spare)
5	10A	Shift interlock
6	20A	Right front turn lamp/Left front turn lamp, Rear stop/turn lamps
7	10A	Left low beam headlamp
8	10A	Right low beam headlamp
9	15A	Interior lamps
10	15A	Instrument panel backlighting
11	10A	Not used (spare)
12	7.5A	Power mirrors
13	5A	SYNC®
14	10A	Not used (spare)
15	10A	Recirculated air, Air conditioning
16	15A	Not used (spare)
17	20A	Power locks, Trunk release
18	20A	Heated seats
19	25A	Not used (spare)
20	15A	Data link connector
21	15A	Fog lamps, Fog lamp indicator
22	15A	Parking lamps
23	15A	High beam lamps
24	20A	Horn
25	10A	Demand lamps, Trunk lamps
26	10A	Instrument cluster
27	20A	Ignition switch
28	5A	Radio (Start)
29	5A	Instrument cluster (Run/Start)
30	5A	Not used (spare)
31	10A	Not used (spare)
32	10A	Restraints control module
33	10A	Not used (spare)
34	5A	Not used (spare)
35	10A	Anti-lock brake system (ABS)
36	5A	Passive anti-theft system (PATS) module
37	10A	Climate control (Run/Start)
38	20A	Subwoofer
39	20A	Radio, Center information display, Electronic finish panel
40	20A	Not used (spare)
41	15A	Door lock/sunroof switch illumination, Auto dimming rear view mirror, Ambient lighting
42	10A	Not used (spare)
43	10A	Not used (spare)
44	10A	Not used (spare)
45	5A	Front wipers (logic)
46	7.5A	Front passenger sensing system
47	30A (circuit breaker)	Sunroof, Power windows
48	—	Delayed accessory relay

Engine compartment

ford focus 2008 2011 fuse layout 8 2024 12 06 13 01 31

Assignment of the fuses in the Power distribution box (2010)

№	Amp Rating	Protected circuits
1	15A	Heated mirror
2	30A	Rear defrost
3	20A	Power point
4	20A	Fuel pump
5	10A	Powertrain control module (PCM) keep alive power, Canister Vent
6	15A	Alt sense
7	10A	Reverse lamps
8	—	Not used
9	40A	Anti-lock brake system (ABS) motor
10	30A	Wipers
11	30A	Starter
12	40A	Blower
13	10A	A/C clutch
14	10A	PCM relay coil
15	20A	Power point
16	20A	Cooling fan—low
17	30A	Cooling fan—high
18	20A	ABS solenoid
19	—	Not used
20	—	A/C clutch relay
21A		Rear defrost relay
21B	—	Not used
21C	—	Blower relay
21D	—	PCM relay
22	10A	Fuel injector
23	—	Not used
24	—	Not used
25	—	Not used
26	15A	PCM – emission related powertrain components
27	—	Not used
28	15A	PCM
29	15A	Ignition
30A	—	Cooling fan low speed relay
30B	—	Starter relay
30C	—	Not used
30D	—	Cooling fan high speed relay
31A	—	Reverse lamp relay
31B	—	Fuel pump relay
31C	—	Wiper power relay
31D	—	Not used
31E	—	Not used
31F	—	Not used
32	—	A/C clutch diode
33	—	EEC diode
34	—	One touch integrated start (OTIS) diode
35	10A	Run/Start

2011

Passenger compartment

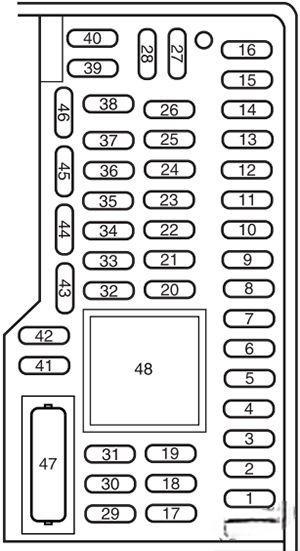

Assignment of the fuses in the Passenger compartment (2011)

№	Amp Rating	Protected circuits
1	30A	Not used (spare)
2	15A	Brake switch (high-mount brake lamp)
3	15A	Not used (spare)
4	30A	Not used (spare)
5	10A	Shift interlock
6	20A	Right front turn lamp/Left front turn lamp, Rear stop/turn lamps
7	10A	Left low beam headlamp
8	10A	Right low beam headlamp
9	15A	Interior lamps
10	15A	Instrument panel backlighting
11	10A	Not used (spare)
12	7.5A	Power mirrors
13	5A	SYNC®
14	10A	Not used (spare)
15	10A	Recirculated air, Air conditioning
16	15A	Global positioning system (GPS) module
17	20A	Power locks, Trunk release
18	20A	Heated seats
19	25A	Not used (spare)
20	15A	Data link connector
21	15A	Fog lamps, Fog lamp indicator
22	15A	Parking lamps
23	15A	High beam lamps
24	20A	Horn
25	10A	Demand lamps, Trunk lamps
26	10A	Instrument cluster
27	20A	Ignition switch
28	5A	Radio (Start)
29	5A	Instrument cluster (run/start)
30	5A	Not used (spare)
31	10A	Not used (spare)
32	10A	Restraints control module
33	10A	Not used (spare)
34	5A	Not used (spare)
35	10A	Anti-lock brake system (ABS)
36	5A	Passive anti-theft system (PATS) module
37	10A	Climate control (run/start)
38	20A	Subwoofer
39	20A	Radio, Center information display, Electronic finish panel
40	20A	Not used (spare)
41	15A	Door lock/sunroof switch illumination, Auto dimming rear view mirror, Ambient lighting
42	10A	Not used (spare)
43	10A	Heated seats relay
44	10A	Not used (spare)
45	5A	Front wipers (logic)
46	7.5A	Front passenger sensing system
47	30A (circuit breaker)	Sunroof, Power windows
48	—	Delayed accessory relay

Engine compartment

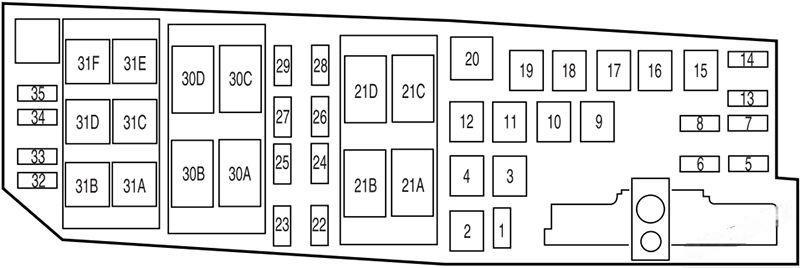

ford focus 2008 2011 fuse layout 10 2024 12 06 13 01 50

Assignment of the fuses in the Power distribution box (2011)

№	Amp Rating	Protected circuits
1	15A	Heated mirror
2	30A	Rear defrost
3	20A	Power point
4	20A	Fuel pump
5	10A	Powertrain control module (PCM) keep alive power, Canister Vent
6	15A	Alt sense
7	10A	Reverse lamps
8	—	Not used
9	40A	Anti-lock brake system (ABS) motor
10	30A	Wipers
11	30A	Starter
12	40A	Blower
13	10A	A/C clutch
14	10A	PCM relay coil
15	20A	Power point
16	20A	Cooling fan – low
17	30A	Cooling fan – high
18	20A	ABS solenoid
19	—	Not used
20	—	A/C clutch relay
21A		Rear defrost relay
21B	—	Not used
21C	—	Blower relay
21D	—	PCM relay
22	10A	Fuel injector
23	—	Not used
24	—	Not used
25	—	Not used
26	15A	PCM – emission related powertrain components
27	—	Not used
28	15A	PCM
29	15A	Ignition
30A	—	Cooling fan low speed relay
30B	—	Starter relay
30C	—	Not used
30D	—	Cooling fan high speed relay
31A	—	Reverse lamp relay
31B	—	Fuel pump relay
31C	—	Wiper power relay
31D	—	Not used
31E	—	Not used
31F	—	Not used
32	—	Not used
33	—	EEC diode
34	—	One-touch integrated start (OTIS) diode
35	10A	Run/Start

Ford Focus 2008-2011 Fuse Box Diagram – Location, Fuses & Relay Assignments

Fuse box location

Passenger compartment

Engine compartment

Fuse box diagrams

2008

Passenger compartment

Engine compartment

2009

2010

2011

Engine compartment

Latest Posts

Buick Encore GX 2020-2022 Fuse Box Diagram – Location, Fuses & Relay Assignments

Audi A6 1997-2004 Fuse Box Diagram – Location, Fuses & Relay Assignments

Chevrolet Colorado 2004-2012 Fuse Box Diagram – Location, Fuses & Relay Assignments

Honda Accord 1998-2002 Fuse Box Diagram – Location, Fuses & Relay Assignments

Holden Caprice WM / Holden Statesman WM 2006-2013 Fuse Box Diagram – Location, Fuses & Relay Assignments

Ford Edge 2011-2014 Fuse Box Diagram – Location, Fuses & Relay Assignments

Car Fuse Box Diagrams & Guides

quick navigation

Ford Focus 2008-2011 Fuse Box Diagram – Location, Fuses & Relay Assignments

Fuse box location

Passenger compartment

Engine compartment

Fuse box diagrams

2008

Passenger compartment

Engine compartment

2009

2010

2011

Engine compartment

Latest Posts

Buick Encore GX 2020-2022 Fuse Box Diagram – Location, Fuses & Relay Assignments

Audi A6 1997-2004 Fuse Box Diagram – Location, Fuses & Relay Assignments

Chevrolet Colorado 2004-2012 Fuse Box Diagram – Location, Fuses & Relay Assignments

Honda Accord 1998-2002 Fuse Box Diagram – Location, Fuses & Relay Assignments

Holden Caprice WM / Holden Statesman WM 2006-2013 Fuse Box Diagram – Location, Fuses & Relay Assignments

Ford Edge 2011-2014 Fuse Box Diagram – Location, Fuses & Relay Assignments

Car Fuse Box Diagrams & Guides

quick navigation

Resources

Quick Links

Follow Us On
