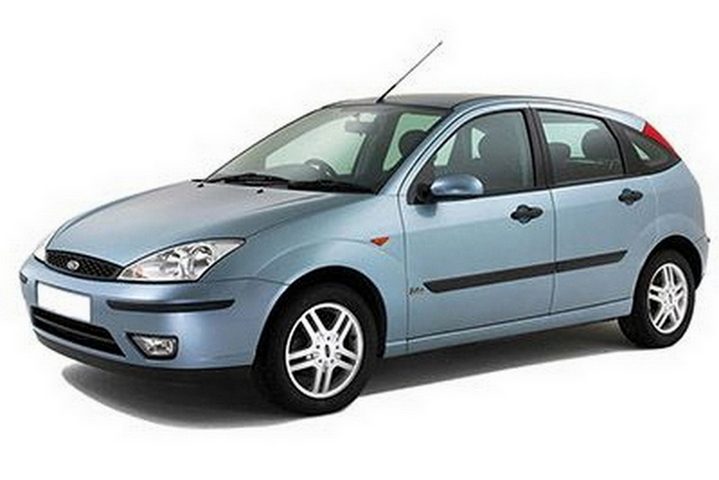

In this article we focus on the first generation Ford Focus, produced from 2000 to 2007. Here you will find the Ford Focus 2000, 2001, 2002, 2003, 2004, 2005, 2006 and 2007 fuse box diagrams, information on the location of the fuse boxes in the car and the assignment of each fuse (fuse layout) and relay.
The cigar lighter (socket) fuses in the Ford Focus are fuses №39 (if fitted) and №46 (2000-2001) or №47 (since 2002) in the instrument panel fuse box.
Fuse box location

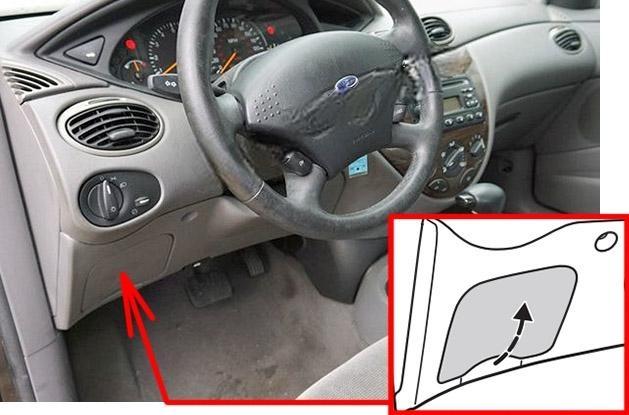

Passenger compartment
The fuse panel is located below and to the left of the steering wheel by the brake pedal (behind the cover).

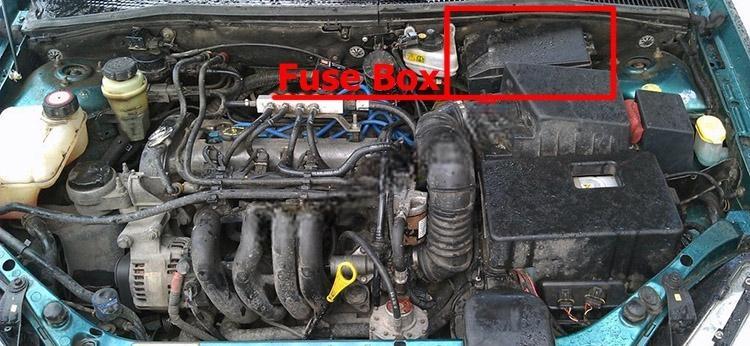

Engine compartment
The power distribution box is located in the engine compartment.
Fuse box diagrams
2000, 2001

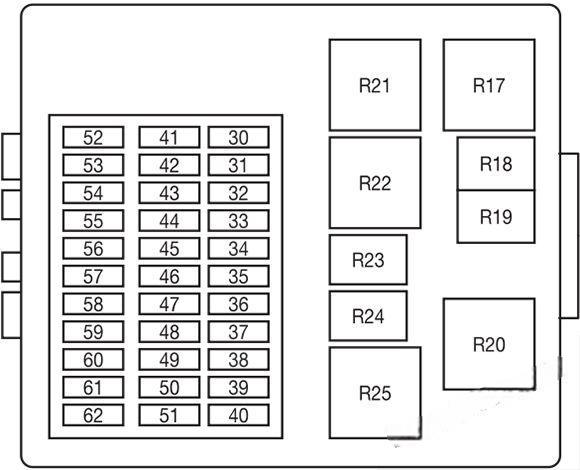

Passenger compartment
Assignment of the fuses in the Passenger compartment (2000, 2001)
| № | Amp Rating | Description |
|---|---|---|
| 30 | 7.5 | ABS |
| 31 | 15 | Radio |
| 32 | 10 | Light switch |
| 33 | 15 | Hazard flasher |
| 34 | 20 | Horn |
| 35 | 7.5 | Interior lamps, power mirrors |
| 36 | 7.5 | Central timer, electronic modules |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | 10 | Back-up lamps |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | — | Not used |
| 43 | 15 | Rear wiper |
| 44 | 20 | Fog lamps |
| 45 | — | Not used |
| 46 | 15 | Cigar lighter |
| 47 | 7.5 | Side lights (left) |
| 48 | 7.5 | Side lights (right) |
| 49 | 25 | Rear defrost |
| 50 | 7.5 | Radio, central timer |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | 10 | Back-up lamps |
| 54 | 15 | Brake lamps |
| 55 | 20 | Front wipers |
| 56 | 25 | Front power windows |
| 57 | 25 | Rear power windows |
| 58 | 7.5 | Air conditioning, recirculated air |
| 59 | 7.5 | Electronic modules, instrument cluster |
| 60 | 7.5 | Air bag module |
| 61 | 7.5 | Light switch |
| 62 | — | Not used |
| 63 | 20 | Central lock module (on back side of fuse panel) |
| Relay: | ||
| 17 | Starter | |
| 18 | Rear intermittent wiper (may be incorporated with relay 19) | |
| 19 | Front intermittent wiper (may be incorporated with relay 18) | |
| 20 | Not used | |
| 21 | Not used | |
| 22 | Not used | |
| 23 | Horn | |
| 24 | Battery saver | |
| 25 | Rear defrost |
Engine compartment

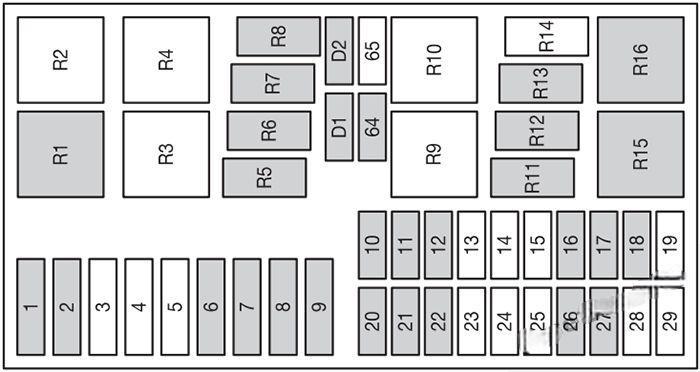

Assignment of the fuses in the Power distribution box (2000, 2001)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40 | Main power supply to electrical system |
| 2 | 30 | Engine cooling fan (A/C) 2nd fuse |
| 3 | — | Not used |
| 4 | — | Not used |
| 5 | — | Not used |
| 6 | 50 | Engine cooling fan (A/C) 1st fuse |
| 7 | 40 | Main power supply to electrical system |
| 8 | 30 | Ignition |
| 9 | 20 | Engine management |
| 10 | 10 | Battery voltage sensor, diagnostic plug |
| 11 | 30 | ABS |
| 12 | 15 | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | 10 | Low beam (left side) |
| 17 | 10 | Low beam (right side) |
| 18 | 10 | Heated oxygen sensors |
| 19 | — | Not used |
| 20 | 10 | Engine management |
| 21 | 20 | ABS |
| 22 | 20 | DRL (low beams) |
| 23 | — | Not used |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 10 | High beam (left side) |
| 27 | 10 | High beam (right side) |
| 28 | — | Not used |
| 29 | — | Not used |
| 64 | 30 | Heater blower motor |
| 65 | — | Not used |
| Relay | ||
| 1 | Ignition | |
| 2 | Not used | |
| 3 | Not used | |
| 4 | Not used | |
| 5 | High beams | |
| 6 | Low beams | |
| 7 | Fuel pump | |
| 8 | Engine management | |
| 9 | Not used | |
| 10 | Not used | |
| 11 | Air conditioning | |
| 12 | Daytime miming lights | |
| 13 | Fog lamps | |
| 14 | Stop lamp inhibit relay (Advance Trac only) | |
| 15 | Engine cooling fan level 2 (A/C) | |
| 16 | Engine cooling fan level 1 |
2002
Passenger compartment
Assignment of the fuses in the Passenger compartment (2002)
| № | Amp Rating | Description |
|---|---|---|
| 30 | 10 | Light switch |
| 31 | 15 | Radio |
| 32 | 15 | Turn signal, hazard flasher |
| 33 | 20 | Horn, power seat |
| 34 | 20 | Power sunroof |
| 35 | 7.5 | Interior lamps, power mirrors |
| 36 | 7.5 | Electronic modules, instrument cluster |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | 15 | Rear power point |
| 40 | 10 | Back-up lamps (automatic transmission) |
| 41 | 7.5 | Radio (accessory) |
| 42 | 15 | Stop lamps |
| 43 | 15 | Rear wiper |
| 44 | 20 | Fog lamps |
| 45 | 7.5 | Recirculated air, air conditioning |
| 46 | 7.5 | ABS |
| 47 | 20 | Cigar lighter, front power point |
| 48 | 10 | Data link connector |
| 49 | 25 | Rear defrost |
| 50 | 7.5 | Heated mirrors |
| 51 | — | Not used |
| 52 | 15 | Heated front seats |
| 53 | 10 | Back-up lamps (manual transmission) |
| 54 | 25 | Rear power windows |
| 55 | 25 | Front power windows |
| 56 | 20 | Front wipers |
| 57 | 7.5 | Side lights (right) |
| 58 | 7.5 | Side lights (left) |
| 59 | 7.5 | Light switch |
| 60 | 7.5 | Air bag module |
| 61 | 7.5 | Electronic modules, instrument cluster |
| 62 | 7.5 | License plate lamp |
| 63 | 20 | Power locks (GEM) (on back side of fuse panel) |
| Relay | ||
| 17 | Starter | |
| 18 | Rear intermittent wiper | |
| 19 | Front intermittent wiper | |
| 20 | Not used | |
| 21 | Not used | |
| 22 | Not used | |
| 23 | Horn | |
| 24 | Battery saver | |
| 25 | Rear defrost, heated mirrors |
Engine compartment

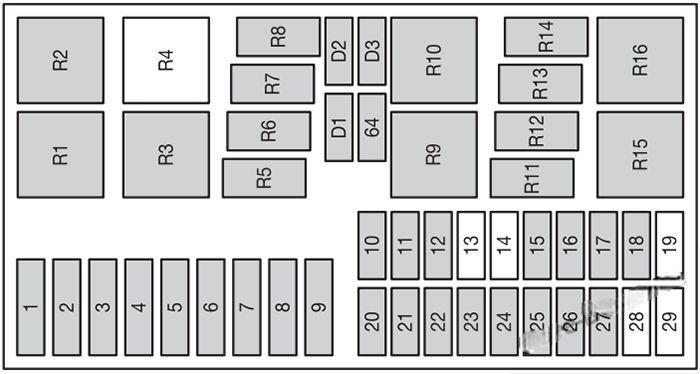

Assignment of the fuses in the Power distribution box (2002)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40 | Main power supply to electrical system |
| 2 | 30 | Engine cooling fan (A/C) 2nd fuse |
| 3 | — | Not used |
| 4 | — | Not used |
| 5 | — | Not used |
| 6 | 50 | Engine cooling fan (A/C) 1st fuse |
| 7 | 40 | Main power supply to electrical system |
| 8 | 30 | Ignition switch, starter |
| 9 | 20 | Engine management |
| 10 | 10 | Batteiy voltage sensor, diagnostic plug |
| 11 | 30 | ABS |
| 12 | 15 | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10 | AC clutch solenoid |
| 16 | 10 | Low beam (left side) |
| 17 | 10 | Low beam (right side) |
| 18 | 10 | Heated oxygen sensors |
| 19 | 10 | Low beam (DRL) |
| 20 | 10 | Engine management |
| 21 | 20 | ABS |
| 22 | 20 | Low beam (DRL) |
| 23 | — | Not used |
| 24 | 30 | Powered subwoofer |
| 25 | — | Not used |
| 26 | 10 | High beam (left side) |
| 27 | 10 | High beam (right side) |
| 28 | — | Not used |
| 29 | — | Not used |
| 64 | 40 | Heater blower motor |
| 65 | — | Not used |
| Relay | ||
| 1 | Ignition | |
| 2 | Not used | |
| 3 | Not used | |
| 4 | A/C diode | |
| 5 | High beams | |
| 6 | Low beams | |
| 7 | Fuel pump | |
| 8 | Engine management | |
| 9 | Not used | |
| 10 | Not used | |
| 11 | Air conditioning | |
| 12 | Daytime running lights | |
| 13 | Fog lamps | |
| 14 | Stop lamp inhibit relay (AdvanceTrac® only) | |
| 15 | Engine cooling fan level 2 (A/C) | |
| 16 | Engine cooling fan level 1 |
2003
Passenger compartment
Assignment of the fuses in the Passenger compartment (2003)
| № | Amp Rating | Description |
|---|---|---|
| R17 | — | Starter relay |
| R18 | — | Rear intermittent relay |
| R19 | — | Front wiper intermittent relay |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | — | Not used |
| R23 | — | Horn relay |
| R24 | — | Batteiy saver relay |
| R25 | — | Rear defrost relay |
| 30 | 10A | Light switch |
| 31 | 15A | Radio |
| 32 | 15A | Turn signal |
| 33 | 20A | Horn, Power seats (SVT only) |
| 34 | 20A | Power sunroof |
| 35 | 7.5A | Interior lamps, Power mirrors |
| 36 | 7.5A | A/C switch, Hazard flasher, Instrument cluster |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | 10A | Backup lamps (automatic transaxle) |
| 41 | 7.5A | Radio and cluster (accessory) |
| 42 | 15A | Stop lamps |
| 43 | 15A | Rear wiper |
| 44 | 20A | Fog lamps |
| 45 | 7.5A | Recirculated air, Air conditioning |
| 46 | 7.5A | Anti-lock Brake System (ABS) |
| 47 | 20A | Cigar lighter, Rear power point (SVT only) |
| 48 | 10A | Data link connector |
| 49 | 25A | Rear defroster |
| 50 | 7.5A | Heated mirror, Heated backlite indicator |
| 51 | — | Not used |
| 52 | 15A | Heated seats |
| 53 | 10A | Backup lamps (manual transaxle) |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Position and side lights (right) |
| 58 | 7.5A | Position and side lights (left) |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, Instrument cluster |
| 62 | 7.5A | License plate lamp |
| 63 | 20A | Power locks (GEM) |
Fuse 63 is located on the back of the panel. See your dealer or a certified technician for service of this fuse.
Engine compartment

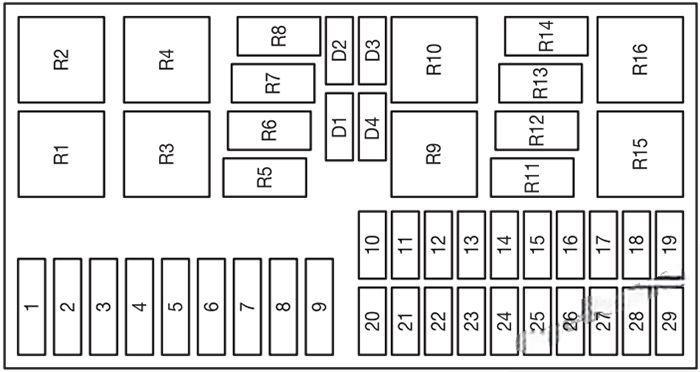

Assignment of the fuses in the Power distribution box (2003)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40A | Main power supply to electrical system |
| 2 | 30A | Engine cooling fan (A/C) 2nd fuse |
| 3 | 30A | Cooling fan (2.0L engine only) |
| 4 | 30A | Air pump motor |
| 5 | 30A | Cooling fan 2 (2.0L engine only) |
| 6 | 50A | Engine cooling fan (A/C) 1st fuse |
| 7 | 40A | Main power supply to electrical system |
| 8 | 30A | Ignition switch, Starter |
| 9 | 20A | Engine management |
| 10 | 10A (2.0L engine only) | Batteiy voltage sensor |
| 10 | 1A (2.3L engine only) | Batteiy voltage sensor |
| 11 | 30A | Anti-lock Brake System (ABS) |
| 12 | 15A | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10A | A/C clutch solenoid |
| 16 | 10A | Low beam (left side -conventional headlamps) |
| 16 | 15A | Low beam (left side – HID headlamps) |
| 17 | 10A | Low beam (right side -conventional headlamps) |
| 17 | 15A | Low beam (right side – HID headlamps) |
| 18 | 10A (2.0L engine only) | Heated oxygen sensors |
| 18 | 15A (2.3L engine only) | Heated oxygen sensors |
| 19 | — | Not used |
| 20 | 10A | Engine module |
| 21 | 20A | ABS |
| 22 | 20A | Low beam (DRL) |
| 23 | — | Not used |
| 24 | 30A | Subwoofer |
| 25 | — | Not used |
| 26 | 10A | High beam (left) |
| 27 | 10A | High beam (right) |
| 28 | — | Not used |
| 29 | — | Not used |
| 64 | 40A | Heater blower motor |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay |
| R3 | — | Cooling fan (Run-on fan) relay (2.3L engine only) |
| R4 | — | Not used |
| R5 | — | High beams relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay (2.0L engine only) |
| R10 | — | Cooling fan 2 relay (2.0L engine only) |
| R11 | — | Air conditioning relay |
| R12 | — | Daytime Running Lamps (DRL) relay |
| R13 | — | Fog lamps relay |
| R14 | — | HID lamps (SVT only) |
| R15 | — | Cooling fan high speed (A/C only) relay (2.0L engine only) |
| R16 | — | Cooling fan low speed relay |
| D1 | — | PCM diode |
| D2 | — | Cooling fan diode |
| D3 | — | A/C clutch diode |
2004
Passenger compartment
Assignment of the fuses in the Passenger compartment (2004)
| № | Amp Rating | Description |
|---|---|---|
| R17 | — | Starter relay |
| R18 | — | Rear intermittent relay |
| R19 | — | Front wiper intermittent relay |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | — | Decklid/Liftgate release relay |
| R23 | — | Horn relay |
| R24 | — | Battery saver relay |
| R25 | — | Rear defrost relay |
| 30 | 10A | Light switch |
| 31 | 15A | Radio |
| 32 | 15A | Turn signal |
| 33 | 20A | Horn, Power seats (SVT only) |
| 34 | 20A | Power sunroof |
| 35 | 7.5A | Interior lamps, Power mirrors |
| 36 | 7.5A | A/C switch, Hazard flasher, Instrument cluster |
| 37 | 25A | Decklid/Liftgate release |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | 10A | Backup lamps (automatic transaxle) |
| 41 | 7.5A | Radio and cluster (accessory) |
| 42 | 15A | Stop lamps |
| 43 | 15A | Rear wiper |
| 44 | 20A | Fog lamps |
| 45 | 7.5A | Recirculated air, Air conditioning |
| 46 | 7.5A | Anti-lock Brake System (ABS) |
| 47 | 20A | Cigar lighter, Rear power point (SVT only) |
| 48 | 10A | Data link connector |
| 49 | 25A | Rear defroster |
| 50 | 7.5A | Heated mirror, Heated backlite indicator |
| 51 | — | Not used |
| 52 | 15A | Heated seats |
| 53 | 10A | Backup lamps (manual transaxle) |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Position and side lights (right) |
| 58 | 7.5A | Position and side lights (left) |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, Instrument cluster |
| 62 | 7.5A | License plate lamp |
| 63 | 20A | Power locks (GEM) |
Fuse 63 is located on the back of the panel. See your dealer or a certified technician for service of this fuse.
Engine compartment
Assignment of the fuses in the Power distribution box (2004)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40A | Main power supply to electrical system |
| 2 | 30A | Engine cooling fan (A/C) 2nd fuse |
| 3 | 30A | Cooling fan (2.0L engine only) |
| 4 | 30A | Air pump motor |
| 5 | 30A | Cooling fan 2 (2.0L engine only) |
| 6 | 50A | Engine cooling fan (A/C) 1st fuse |
| 7 | 40A | Main power supply to electrical system |
| 8 | 30A | Ignition switch, Starter |
| 9 | 20A | Engine management |
| 10 | 10A (2.0L engine only) | Battery voltage sensor |
| 10 | 1A (2.3L engine only) | Battery voltage sensor |
| 11 | 30A | Anti-lock Brake System (ABS) |
| 12 | 15A | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10A | A/C clutch solenoid |
| 16 | 10A | Low beam (left side -conventional headlamps) |
| 16 | 15A | Low beam (left side – HID headlamps) |
| 17 | 10A | Low beam (right side -conventional headlamps) |
| 17 | 15A | Low beam (right side – HID headlamps) |
| 18 | 10A (2.0L engine only) | Heated oxygen sensors |
| 18 | 15A (2.3L engine only) | Heated oxygen sensors |
| 19 | — | Not used |
| 20 | 10A | Engine module |
| 21 | 20A | ABS |
| 22 | 20A | Low beam (DRL) |
| 23 | 10A | Cooling fan (2.3L engine only) |
| 24 | 30A | Subwoofer |
| 25 | — | Not used |
| 26 | — | Not used |
| 27 | 15A | High beams (right and left) |
| 28 | — | Not used |
| 29 | — | Not used |
| 64 | 40A | Heater blower motor |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay (2.3L engine only) |
| R3 | — | Cooling fan (Run-on fan) relay (2.3L engine only) |
| R4 | — | Not used |
| R5 | — | High beams relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay (2.0L engine only) |
| R10 | — | Cooling fan 2 relay (2.0L engine only) |
| R11 | — | Mr conditioning relay |
| R12 | — | Daytime Running Lamps (DRL) relay |
| R13 | — | Fog lamps relay |
| R14 | — | HID lamps (SVT only) |
| R15 | — | Cooling fan high speed (A/C only) relay (2.0L engine only) |
| R16 | — | Cooling fan low speed relay |
| D1 | — | PCM diode |
| D2 | — | Cooling fan diode |
| D3 | — | A/C clutch diode |
2005
Passenger compartment
Assignment of the fuses in the Passenger compartment (2005)
| № | Amp Rating | Description |
|---|---|---|
| R17 | — | Starter relay |
| R18 | — | Rear wiper intermittent relay |
| R19 | — | Front wiper intermittent relay |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | — | Decklid/Liftgate release relay |
| R23 | — | Horn relay |
| R24 | — | Battery saver relay |
| R25 | — | Rear defrost/Heated mirror relay |
| 30 | 10A | Parking lamps |
| 31 | 20A | Radio |
| 32 | 15A | Turn signal (GEM) |
| 33 | 20A | Horn |
| 34 | 20A | Stand-alone decklid relay (sedan only), Power sunroof |
| 35 | 7.5A | Interior lamps, Power mirrors |
| 36 | 7.5A | A/C switch, Instrument cluster |
| 37 | 25A | Decklid/Liftgate release |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | 10A | Back-up lamps (automatic transaxle only) |
| 41 | 7.5A | Radio and cluster (accessory) |
| 42 | 15A | Stop lamps |
| 43 | 15A | Rear wiper, Sunroof (ignition) |
| 44 | 20A | Fog lamps |
| 45 | 7.5A | Recirculated air, Air conditioning |
| 46 | 7.5A | Anti-lock Brake System (ABS) |
| 47 | 20A | Cigar lighter/Power point |
| 48 | 10A | Data link connector |
| 49 | 25A | Rear defroster |
| 50 | 7.5A | Heated mirror, Heated backlite indicator |
| 51 | 7.5A | Front passenger sensing system |
| 52 | 15A | Heated seats |
| 53 | 10A | Back-up lamps (manual transaxle only), Speed control |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Position and side lights (right-hand side) |
| 58 | 7.5A | Position and side lights (left-hand side), License plate lamps |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, Instrument cluster |
| 62 | 7.5A | Radio (Start) |
| 63 | 20A | Power locks (GEM) |
Fuse 63 is located on the back of the panel. See your dealer or a certified technician for service of this fuse.
Engine compartment
Assignment of the fuses in the Power distribution box (2005)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40A | Main power supply (to passenger compartment fuse panel) |
| 2 | 30A | Engine cooling fan (Secondary fuse) |
| 3 | 40A | Heater blower motor |
| 4 | 30A | Air pump motor (PZEV engine only) |
| 5 | — | Not used |
| 6 | 50A | Engine cooling fan (Primary fuse) |
| 7 | 40A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30A | Ignition switch, Starter solenoid |
| 9 | 20A | Engine management |
| 10 | 1A | Battery voltage sense |
| 11 | 30A | Anti-lock Brake System (ABS) (pumps) |
| 12 | 15A | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10A | A/C clutch solenoid |
| 16 | 10A | Low beam (left-hand side) |
| 17 | 10A | Low beam (right-hand side) |
| 18 | 15A | Heated Exhaust Gas Oxygen (HE GO) sensors |
| 19 | — | Not used |
| 20 | 10A | Engine module (KAP) |
| 21 | 20A | ABS (valves) |
| 22 | 20A | Daytime Running Lights (DRL) |
| 23 | — | Not used |
| 24 | 30A | Subwoofer |
| 25 | — | Not used |
| 26 | 10A | Left high beam |
| 27 | 10A | Right high beam |
| 28 | — | Not used |
| 29 | — | Not used |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay (PZEV engine only) |
| R3 | — | Cooling fan (high-speed) |
| R4 | — | Cooling fan (medium-speed) |
| R5 | — | High beams relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay |
| R10 | — | Cooling fan relay |
| R11 | — | A/C clutch solenoid relay |
| R12 | — | DRL relay |
| R13 | — | Fog lamps relay |
| R14 | — | Not used |
| R15 | — | Not used |
| R16 | — | Not used |
| D1 | — | PCM diode |
| D2 | — | Cooling fan diode |
| D3 | — | A/C clutch diode |
| D4 | — | Cooling fan diode |
2006
Passenger compartment
Assignment of the fuses in the Passenger compartment (2006)
| № | Amp Rating | Description |
|---|---|---|
| R17 | — | Starter relay |
| R18 | — | Rear wiper intermittent relay |
| R19 | — | Front wiper intermittent relay |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | — | Not used |
| R23 | — | Horn relay |
| R24 | — | Battery saver relay |
| R25 | — | Rear defrost/Heated mirror relay |
| 30 | 10A | Parking lamps |
| 31 | 20A | Radio |
| 32 | 15A | Turn signal (GEM) |
| 33 | 20A | Horn |
| 34 | 20A | Power sunroof |
| 35 | 7.5A | Interior lamps, Power mirrors |
| 36 | 7.5A | A/C switch, Instrument cluster |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | 10A | Back-up lamps (automatic transaxle only) |
| 41 | 7.5A | Radio and cluster (accessory) |
| 42 | 10A | Stop lamps, Shift interlock |
| 43 | 15A | Rear wiper, Sunroof (ignition) |
| 44 | — | Not used |
| 45 | 7.5A | Recirculated air, Air conditioning |
| 46 | — | Not used |
| 47 | 20A | Cigar lighter/Power point |
| 48 | 10A | Data link connector |
| 49 | 25A | Rear defroster |
| 50 | 7.5A | Heated mirror, Heated backlite indicator |
| 51 | 7.5A | Front passenger sensing system |
| 52 | 15A | Heated seats |
| 53 | 10A | Back-up lamps (manual transaxle only), Speed control |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | — | Not used |
| 58 | — | Not used |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, Instrument cluster |
| 62 | 7.5A | Radio (Start) |
| 63 | 20A | Power locks (GEM) |
Fuse 63 is located on the back of the panel. See your dealer or a certified technician for service of this fuse.
Engine compartment
Assignment of the fuses in the Power distribution box (2006)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40A | Main power supply (to passenger compartment fuse panel) |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A | Air pump motor (PZEV engine only) |
| 5 | — | Not used |
| 6 | 50A | Engine cooling fan (Primary fuse) |
| 7 | 40A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30A | Ignition switch, Starter solenoid |
| 9 | 20A | Engine management |
| 10 | 1A | Battery voltage sense |
| 11 | 30A | Subwoofer |
| 12 | 15A | Fuel pump motor |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 20A | ABS (valves) |
| 16 | 10A | Low beam (left-hand side) |
| 17 | 10A | Low beam (right-hand side) |
| 18 | 15A | Heated Exhaust Gas Oxygen (HE GO) sensors |
| 19 | 40A | Heater blower motor |
| 20 | 10A | Engine module (KAP) |
| 21 | 10A | A/C |
| 22 | 20A | Daytime Running Lights (DRL) |
| 23 | — | Not used |
| 24 | 30A | Anti-lock Brake System (ABS) (pumps) |
| 25 | — | Not used |
| 26 | 15A | Fog lamps |
| 27 | 15A | High beams |
| 28 | — | Not used |
| 29 | 10A | ABS module, Speed control |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay (PZEV engine only) |
| R3 | — | Cooling fan (high-speed) |
| R4 | — | Cooling fan (low-speed) |
| R5 | — | High beams relay, Fog lamps |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay |
| R10 | — | Cooling fan relay |
| R11 | — | A/C clutch solenoid relay |
| R12 | — | DRL relay |
| R13 | — | Not used |
| R14 | — | Not used |
| R15 | — | Not used |
| R16 | — | Not used |
| D1 | — | PCM diode |
| D2 | — | Not used |
| D3 | — | A/C clutch diode |
| D4 | — | Not used |
2007
Passenger compartment
Assignment of the fuses in the Passenger compartment (2007)
| № | Amp Rating | Description |
|---|---|---|
| R17 | — | Starter relay |
| R18 | — | Not used |
| R19 | — | Not used |
| R20 | — | Not used |
| R21 | — | Daytime running lamps |
| R22 | — | Not used |
| R23 | — | Not used |
| R24 | — | Not used |
| R25 | — | Rear defrost/Heated mirror relay |
| 30 | 10A | Parking lamps |
| 31 | 20A | Radio |
| 32 | 15A | Turn signal (GEM) |
| 33 | 20A | Sunroof |
| 34 | 20A | Horn |
| 35 | 7.5A | A/C switch, Instrument cluster |
| 36 | 7.5A | Interior lamps, Power mirrors |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | 2A | PCM relay coil |
| 40 | 25A | Rear defroster |
| 41 | — | Not used |
| 42 | 10A | Stop lamps, Shift interlock |
| 43 | 15A | Rear wiper, Sunroof (ignition) |
| 44 | 15A | Daytime Running Lamps (DRL) |
| 45 | 7.5A | Recirculated air, Air conditioning |
| 46 | — | Not used |
| 47 | 20A | Cigar lighter/Power point |
| 48 | 10A | Data link connector |
| 49 | 7.5A | Heated mirror, Heated backlite indicator |
| 50 | 10A | Back- up lamps (automatic transaxle only) |
| 51 | 7.5A | Front passenger sensing system |
| 52 | 15A | Heated seats |
| 53 | 10A | Back-up lamps (manual transaxle only), Speed control |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Radio and cluster (accessory) |
| 58 | — | Not used |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, Instrument cluster |
| 62 | 7.5A | Radio (Start) |
| 63 | 20A | Power locks (GEM) |
Fuse 63 is located on the back of the panel. See your dealer or a certified technician for service of this fuse.
Engine compartment
Assignment of the fuses in the Power distribution box (2007)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 40A | Main power supply (to passenger compartment fuse panel) |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A | Air pump motor (PZEV engine only) |
| 5 | 30A | Anti-lock Brake System (ABS) (pumps) |
| 6 | 50A | Engine cooling fan (Primary fuse) |
| 7 | 40A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30A | Ignition switch, Starter solenoid |
| 9 | 20A | Engine management |
| 10 | 1A | Battery voltage sense |
| 11 | 30A | Subwoofer |
| 12 | 15A | Fuel pump motor |
| 13 | 20A | Anti-lock Brake System (ABS) (valves) |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | 10A | Low beam (left-hand side) |
| 17 | 10A | Low beam (right-hand side) |
| 18 | 15A | Heated Exhaust Gas Oxygen (HE GO) sensors |
| 19 | 40A | Heater blower motor |
| 20 | 10A | Engine module (KAP) |
| 21 | 10A | A/C |
| 22 | 20A | Low beams |
| 23 | 15A | High beams, Fog lamps |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | — | Not used |
| 29 | 10A | ABS module, Speed control |
| R1 | — | Ignition relay |
| R2 | — | High beam relay, Fog lamps relay |
| R3 | — | Cooling fan (high-speed) |
| R4 | — | Cooling fan (low-speed) |
| R5 | — | A/C relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay |
| R10 | — | Cooling fan relay |
| R11 | — | Not used |
| R12 | — | Not used |
| R13 | — | Not used |
| R14 | — | Not used |
| R15 | — | Air pump motor relay |
| R16 | — | Not used |
| D1 | — | Not used |
| D2 | — | Not used |
| D3 | — | A/C clutch diode |
| D4 | — | Not used |
