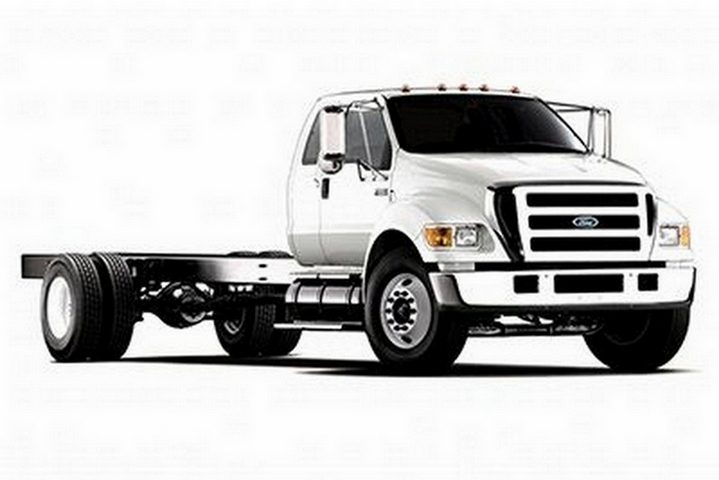

In this article we take a look at the seventh generation Ford F-650 / F-750, produced from 2001 to 2015. Here you will find the Ford F-650 and F-750 2004, 2005, 2006, 2008 and 2011 wiring diagrams, information on the location of the fuse boxes inside the car and the allocation of each fuse (fuse layout) and relay.
Information from the 2004, 2005, 2006, 2008 and 2011 owner’s manuals is used. The location and function of fuses in vehicles manufactured at other times may be different.
The fuses for the cigar lighter (socket) in the Ford F-650 / F-750 are fuses №104 (power point) in the battery junction box (engine compartment) and №3 (cigar lighter) in the central junction box (passenger compartment).
Fuse box location
Passenger compartment
The fuse box is located behind the passenger airbag cover and can be accessed through the glove box.
Engine compartment
The power distribution box is located in the engine compartment.
Fuse box diagrams
2004

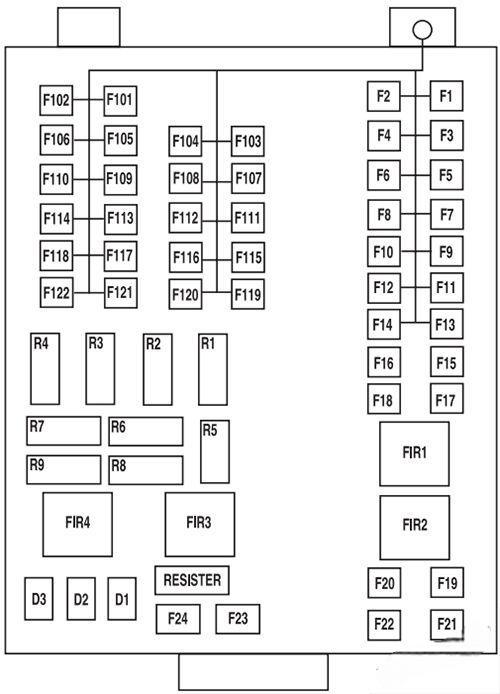

Fuse block – battery junction box
Fuse block – battery junction box
| № | Amp Rating | Fuse Description |
|---|---|---|
| F1 | 15A* | Main light switch |
| F2 | 30A* | Power seat (driver) |
| F3 | 30A* | Power seat (passenger) |
| F4 | 15A* | Washer pump relay, Washer pump motor |
| F5 | 15A* | Exhaust brake (Caterpillar and Cummins engine) |
| F6 | 15A* | Air intake heater (Caterpillar engine) |
| F7 | 15A* | Stoplamp switches |
| F8 | 25A* | Fuel heater relay (Caterpillar engine) |
| F8 | 20A* | Fuel heater relay (6.0L Power Stroke engine) |
| F9 | — | Not used |
| F10 | 15A* | Heated drain valve |
| F11 | — | Not used |
| F12 | — | Not used |
| F13 | 10 A* | Parking brake |
| F14 | — | Not used |
| F15 | 7.5A* | Body builder – trailer adapter stoplamps |
| F16 | 5A* | WABCO hydraulic ABS |
| F17 | — | Not used |
| F18 | 10 A* | Fuel transfer pump |
| F19 | — | Not used |
| F20 | 10 A* | Engine ECM power relay (6.0L Power Stroke engine) |
| F21 | 10 A* | Control for Hydro-max motor |
| F22 | 10 A* | V8 engine IDM2 logic power |
| F23 | — | Not used |
| F24 | — | Not used |
| F101 | 30A** | Air ABS relay, Hydraulic modulator relay |
| F102 | 20A** | Ignition switch to customer access |
| F103 | 50A** | Ignition switch, Central Junction Box (CJB) fuses 8, 9, 10, 11, 19, 20, 23, 24, 25, 29, 30, 31 |
| F104 | 20A** | Power point |
| F105 | 20A** | Door lock switches |
| F106 | 30A** | Main light switch, Multifunction switch, CJB fuses 16, 26 and 28, Headlamps, DRL relays |
| F107 | 50A** | CJB fuses 1, 2, 3, 4, 12, 13, 14, 15 |
| F108 | 40 A** | Fuel heater relay (Cummins engine) |
| F109 | 40 A** | Power windows relay |
| F110 | — | Not used |
| F111 | 30A** | Park lamps relay, Park lamps |
| F112 | 40 A** | Blow’er motor relay, Blower motor |
| F113 | 30A** | Heated seats |
| F114 | 25A** | Hydraulic ABS ECU power |
| F115 | 40 A** | Ignition switch, CJB fuse 21 |
| F116 | 30A** | Turn relays and back-up lamp relay |
| F117 | 20A** | Stoplamp relay (Caterpillar and Cummins engine) |
| F118 | 60A** | Trailer tow left, right and ABS fuse block (Hydraulic brake vehicles) |
| F119/F120 | 60A** | Trailer tow fuse block, Stop/Tail/Marker lamps |
| F121/F122 | 60A** | Trailer tow fuse block (Air brake vehicles), Left, right and ABS, Hydraulic HydroMax pump motor fuse relay |
| R1-201 | — | Washer pump relay |
| R2-202 | — | Wiper speed relay |
| R3-203 | — | Wiper run-park relay |
| R4-204 | Crank inhibit relay (6.0L Power Stroke engine)/Exhaust brake relay (Caterpillar and Cummins engine) | |
| R5-207 | — | Drain valve heater relay |
| R6-205 | — | RH stop/turn relay |
| R7-206 | — | LH stop/turn relay |
| R8-208 | — | Back-up lamps relay |
| R9-209 | ECM ISO relay (6.0L Power Stroke engine) or Stoplamp relay (Caterpillar and Cummins engine) | |
| FIR1-301 | — | Fuel heater, Fuel heater-fuel transfer pump |
| FIR2-302 | — | Park lamp relay |
| FIR3-303 | — | Blower motor relay |
| FIR4-304 | — | Air ABS relay, Hydraulic modulator relay |
| * Mini fuse ** Maxi fuse |

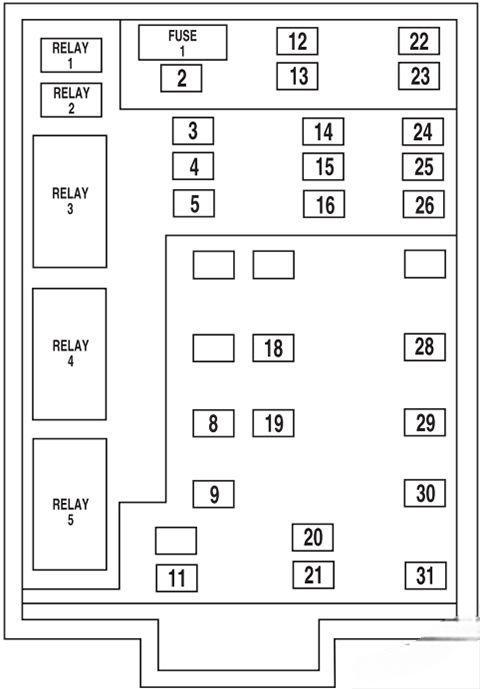

Fuse block – central junction box
Fuse block – central junction box
| № | Amp Rating | Fuse Description |
|---|---|---|
| 1 | 20A | Horn relay |
| 2 | 15A | Hazard flasher |
| 3 | 20A | Cigar lighter |
| 4 | 10A | Diagnostics |
| 5 | 15A | Blend door actuator, Back-up lamps, DRL signal, Heated seats |
| 6 | 10A | Horn switch |
| 7 | — | Not used |
| 8 | 5A | Radio, GEM ACC |
| 9 | 5A | Headlamp switch LED, Window switch LED and relay |
| 10 | 15A | Heated and lighted mirrors |
| 11 | 30A | Wiper motor, Washer pump relay |
| 12 | 10A | Stop lamp switch (Hydraulic brake vehicles) |
| 13 | 20A | Cluster, Radio |
| 14 | 10A | Interior lamp relay |
| 15 | 10A | Interior lamp relay |
| 16 | 15A | Headlamp high beam, High beam indicator |
| 17 | — | Not used |
| 18 | 5A | Headlamp switch interior lighting |
| 19 | 15A | Engine control (all engines), Accelerator pedal (6.0L Power Stroke engine) |
| 20 | 15A | Starting system |
| 21 | 10A | DRL resistor |
| 22 | 15A | Speed control feed (6.0L Power Stroke engine), Air solenoid, Fuel transfer pump |
| 23 | 10A | Hazard flasher (Run) |
| 24 | 15A | ABS, Air dryer, Vacuum pump, Fuel heater relay |
| 25 | 10A | Function selector switch |
| 26 | 10A | RH headlamp low beam |
| 27 | — | Not used |
| 28 | 10A | LH headlamp low beam |
| 29 | 10A | Cluster warning lamps, Gauges GEM, Hydraulic brake ABS |
| 30 | — | Not used |
| 31 | 15A | Allison transmission or ABS event |
| Relay 1 | 1/2 ISO | Interior lamp relay |
| Relay 2 | 1/2 ISO | Not used |
| Relay 3 | Full ISO | Horn relay |
| Relay 4 | Full ISO | One-touch window down relay |
| Relay 5 | Full ISO | Not used |
2005

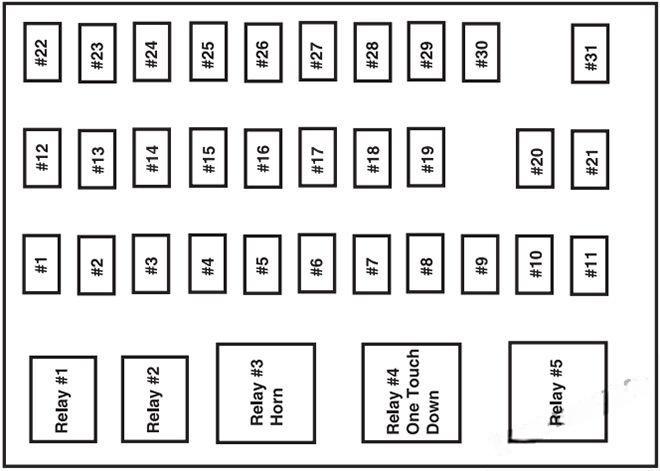

Passenger compartment
Assignment of the fuses in the Passenger compartment (2005)
| № | Amp Rating | Fuse Description |
|---|---|---|
| 1 | 20A | Horn |
| 2 | 15A | Turn/Hazard lamps |
| 3 | 20A | Cigar lighter |
| 4 | 10A | Diagnostic connectors |
| 5 | 15A | Back-up lamps, DRL relays, Blend door actuator, Heated seat module, Trailer ABS relay |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 5A | Radio, GEM |
| 9 | 5A | Switch illumination (Headlamp, Power windows, Power door locks), Power window relay |
| 10 | 15A | Heated/Lighted mirrors |
| 11 | 30A | Wiper motor, Washer pump relay |
| 12 | 10A | Stoplamp switch (Hydraulic brake vehicles only) |
| 13 | 20A | Radio, Cluster |
| 14 | 10A | Interior lamps |
| 15 | 10A | GEM, Interior lamp relay, Map lamps |
| 16 | 15A | High beams |
| 17 | — | Not used |
| 18 | 5A | Headlamp switch, GEM |
| 19 | 15A | Engine ECM (Caterpillar and Cummins engines) |
| 19 | 15A | Engine ECM, Accel, Crank (6.0L Power Stroke engine only) |
| 20 | 15A | Starter relay, GEM |
| 21 | 10A | Daytime Running Lamps (DRL) |
| 22 | 15A | Air solenoid 4-pack (Air horn, Air suspension dump, Differential lock axle and Two-speed axle) |
| 23 | 10A | Electronic flasher |
| 24 | 15A | Vacuum pump, Air dryer, ABS, Fuel heater/Fuel transfer pump relay, Heated drain valve, 6.0L Power Stroke Water In Fuel (WIF) module |
| 25 | 10A | Blower motor relay |
| 26 | 10A | RH low beam headlamp |
| 27 | — | Not used |
| 28 | 10A | LH low beam headlamp |
| 29 | 10A | Cluster (Power, Warning lamps), Hydraulic ABS relay, Air traction control |
| 30 | 30A | Not used |
| 31 | 15A | Allison transmissions |
| Relay 1 | — | Interior lamps |
| Relay 2 | — | Not used |
| Relay 3 | — | Horn |
| Relay 4 | — | One-touch down window |
| Relay 5 | — | Not used |

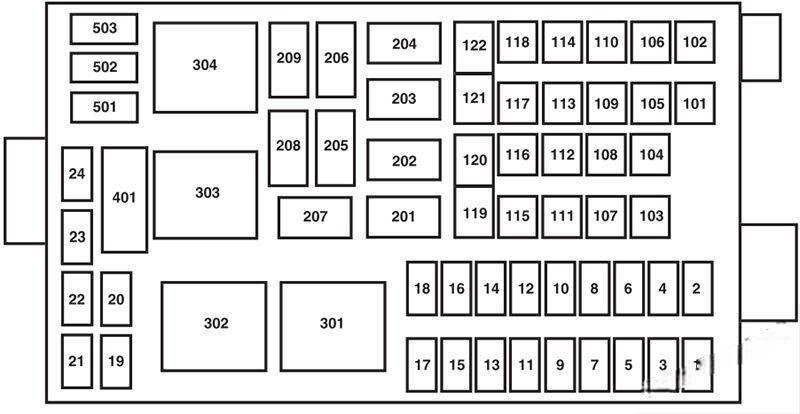

Engine compartment
Assignment of the fuses in the Power distribution box (2005)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 15A* | Park lamps, Roof lamps |
| 2 | 30A* | Power seat (driver) |
| 3 | 30A* | Power seat (passenger) |
| 4 | 15A* | Washer pump |
| 5 | 15A* | Exhaust brake (Caterpillar and Cummins engines only) |
| 6 | 15A* | Air intake heater (Caterpillar engine only) |
| 7 | 15A* | Stoplamps |
| 8 | 25A* | Fuel heater (Caterpillar engine only) |
| 8 | 20A* | Fuel heater (6.0L Power Stroke engine only) |
| 9 | — | Not used |
| 10 | 15A* | Heated drain valve |
| 11 | — | Not used |
| 12 | — | Not used |
| 13 | 10 A* | Power park brake |
| 14 | — | Not used |
| 15 | 7.5A* | Body builder prep/trailer socket stop (6.0L Power Stroke engine only) |
| 16 | 5A* | WABCO hydraulic ABS Run feed |
| 17 | — | Not used |
| 18 | 10 A* | Fuel transfer pump (duel fuel tanks only) |
| 19 | — | Not used |
| 20 | 10 A* | Engine ECM power relay (6.0L Power Stroke engine only) |
| 21 | 10 A* | GEM (Hydraulic brake vehicles only) |
| 22 | 10 A* | Engine IDM2 logic power (6.0L Power Stroke engine only) |
| 23 | — | Not used |
| 24 | — | Not used |
| 101 | 30A** | Bendix Air ABS relay (Air brake vehicles only) |
| 101 | 30A** | WABCO ABS modulator relay (Hydraulic brake vehicles only) |
| 102 | 20A** | Body builder prep Run feed |
| 103 | 50A** | Ignition switch (Junction box fuses 8, 9, 10, 11, 19, 20, 22, 23, 24,25, 29, 30,31) |
| 104 | 20A** | Power point |
| 105 | 20A** | Power door locks |
| 106 | 30A** | Headlamps |
| 107 | 50A** | Junction box battery feed (1,2, 3, 4, 12, 13, 14, 15) |
| 108 | 40 A** | Fuel heater (Cummins engine only) |
| 109 | 40 A** | Power windows |
| 110 | — | Not used |
| 111 | 30A** | Body builder prep |
| 112 | 40 A** | Blower motor |
| 113 | 30A** | Heated seat (passenger side) |
| 114 | 25A** | WABCO ABS battery feed (Hydraulic brake vehicles only) |
| 115 | 40 A** | Ignition switch (Junction box fuses 5, 8, 9, 10, 11, 21) |
| 116 | 30A** | Body builder prep |
| 117 | 20A** | Body builder prep/trailer socket stop (Caterpillar and Cummins engines only) |
| 118 | 60A** | Hydraulic brake trailer two fuse block. Air brake trailer two fuse block |
| 119/120 | 60A** | Hydraulic brake trailer two fuse block |
| 121/122 | 60A** | HydroMax motor. Air brake trailer two fuse block |
| 201 | — | Washer pump relay |
| 202 | — | Wiper speed relay |
| 203 | — | Wiper run/park relay |
| 204 | — | Neutral start relay (6.0L Power Stroke engine only) |
| 204 | — | Exhaust brake relay (Caterpillar and Cummins engines only) |
| 205 | — | RH stop/turn relay |
| 206 | — | LH stop/turn relay |
| 207 | — | Drain valve heater relay |
| 208 | — | Back-up lamps relay |
| 209 | — | Stoplamps relay |
| 301 | — | Fuel heater/Fuel transfer pump relay |
| 302 | — | Park lamps relay |
| 303 | — | Blower motor relay |
| 304 | — | Air ABS relay. Hydraulic modulator relay |
| 401 | — | Not used |
| 501 | — | Not used |
| 502 | — | Not used |
| 503 | — | Not used |
| * Mini fuse ** Maxi fuse |

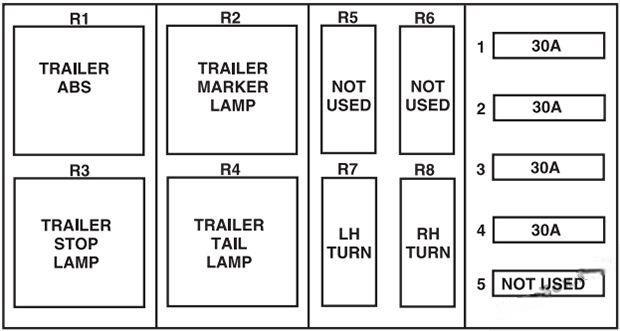

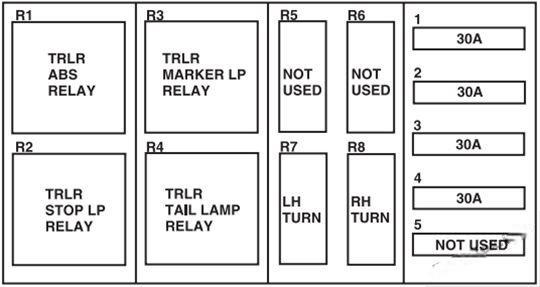

Air brake trailer tow relays (if equipped) (2005)
Air brake trailer tow relays (if equipped) (2005)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 30A* | Trailer tow ABS feed |
| 2 | 30A* | Trailer tow park/marker lamps |
| 3 | 30A* | Trailer tow stop lamps |
| 4 | 30A* | Trailer tow turn/stop lamps (combined) |
| 4 | 30A* | Trailer tow turn lamps (separate) |
| 5 | — | Not used |
| R1 | — | Trailer tow ABS relay |
| R2 | — | Trailer tow stop lamp relay |
| R3 | — | Trailer tow park/marker lamp relay |
| R4 | — | Trailer tow tail lamp relay |
| R5 | — | Not used |
| R6 | — | Not used |
| R7 | — | Trailer tow left turn/stop lamp relay (combined) |
| R7 | — | Trailer tow left turn lamp relay (separate) |
| R8 | — | Trailer tow right turn/stop lamp relay (combined) |
| R8 | — | Trailer tow right turn lamp relay (separate) |
| * Maxi fuse |
2006

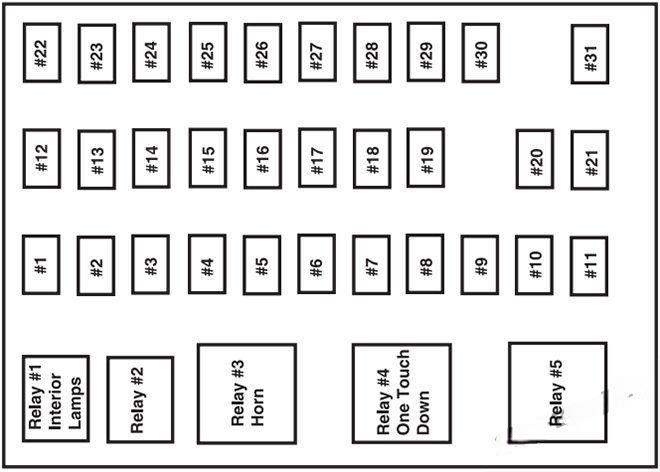

Passenger compartment
Assignment of the fuses in the Passenger compartment (2006)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Horn |
| 2 | 15A | Turn/Hazard lamps |
| 3 | 20A | Cigar lighter |
| 4 | 10A | Diagnostic connectors |
| 5 | 15A | Back-up lamps, DRL relays, Blend door actuator, Heated seat module, Trailer ABS relay |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 5A | Radio, GEM |
| 9 | 5A | Switch illumination (Headlamp, Power windows, Power door locks), Power window relay |
| 10 | 15A | Heated/Lighted mirrors |
| 11 | 30A | Wiper motor, Washer pump relay |
| 12 | 10A | Stoplamp switch (Hydraulic brake vehicles only) |
| 13 | 20A | Radio, Cluster |
| 14 | 10A | Interior lamps |
| 15 | 10A | GEM, Interior lamp relay, Map lamps |
| 16 | 15A | High beams |
| 17 | — | Not used |
| 18 | 5A | Headlamp switch, GEM |
| 19 | 15A | Engine ECM (Caterpillar and Cummins engines) |
| 19 | 15A | Engine ECM, Accel, Crank (6.0L Power Stroke engine only) |
| 20 | 15A | Starter relay, GEM |
| 21 | 10A | Daytime Running Lamps (DRL) |
| 22 | 15A | Air solenoid 4-pack (Air horn, Air suspension dump, Differential lock axle and Two-speed axle) |
| 23 | 10A | Electronic flasher |
| 24 | 15A | Vacuum pump, Air dryer, ABS, Fuel heater/Fuel transfer pump relay, Heated drain valve, 6.0L Power Stroke Water In Fuel (WIF) module |
| 25 | 10A | Blower motor relay |
| 26 | 10A | RH low beam headlamp |
| 27 | — | Not used |
| 28 | 10A | LH low beam headlamp |
| 29 | 10A | Cluster (Power, Warning lamps), Hydraulic ABS relay, Air traction control |
| 30 | 30A | Not used |
| 31 | 15A | Allison transmissions |
| Relay 1 | — | Interior lamps |
| Relay 2 | — | Not used |
| Relay 3 | — | Horn |
| Relay 4 | — | One-touch down window |
| Relay 5 | — | Not used |
Engine compartment
Assignment of the fuses in the Power distribution box (2006)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 15A* | Park lamps, Roof lamps |
| 2 | 30A* | Power seat (driver) |
| 3 | 30A* | Power seat (passenger) |
| 4 | 15A* | Washer pump |
| 5 | 15A* | Exhaust brake (Caterpillar and Cummins engines only) |
| 6 | 15A* | Air intake heater (Caterpillar engine only) |
| 7 | 15A* | Stoplamps |
| 8 | 25A* | Fuel heater (Caterpillar engine only) |
| 8 | 20A* | Fuel heater (6.0L Power Stroke engine only) |
| 9 | 20A* | Inhibit relay, Engine ECM, Cluster, Transmission TCM |
| 10 | 15A* | Heated drain valve |
| 11 | — | Not used |
| 12 | 20A* | Daytime Running Lamps (DRL), Blend door actuator, Climate mode, Back-up, Heated seats, Trailer ABS, Exhaust brake |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 7.5A* | Body builder prep/trailer socket stop (6.0L Power Stroke engine only) |
| 16 | 5A* | WABCO hydraulic ABS Run feed |
| 17 | — | Not used |
| 18 | 10 A* | Fuel transfer pump (duel fuel tanks only) |
| 19 | — | Not used |
| 20 | 10 A* | Engine ECM power relay (6.0L Power Stroke engine only) |
| 21 | 10 A* | GEM (Hydraulic brake vehicles only) |
| 22 | 10 A* | Engine IDM2 logic power (6.0L Power Stroke engine only) |
| 23 | — | Not used |
| 24 | — | Not used |
| 101 | 30A** | Bendix Air ABS relay (Air brake vehicles only) |
| 101 | 30A** | WABCO ABS modulator relay (Hydraulic brake vehicles only) |
| 102 | 20A** | Body builder prep Rim feed |
| 103 | 20A** | Ignition switch (Junction box fuses 8, 9, 10, 11, 19, 29, 30) |
| 104 | 20A** | Power point |
| 105 | 20A** | Power door locks |
| 106 | 30A** | Headlamps |
| 107 | 50A** | Junction box battery feed (1,2, 3, 4, 12, 13, 14, 15) |
| 108 | 40 A** | Fuel heater (Cummins engine only) |
| 109 | 40 A** | Power windows |
| 110 | 30A** | Wiper power relay (Park, Low/High speed) |
| 111 | 30A** | Body builder prep |
| 112 | 40 A** | Blower motor |
| 113 | 30A** | Heated seats |
| 114 | 25A** | WABCO ABS battery feed (Hydraulic brake vehicles only) |
| 115 | 20A** | Ignition switch, Central Junction Box fuses 8, 9, 10, 11, Starter motor relay |
| 116 | 30A** | Body builder prep |
| 117 | 20A** | Body builder prep/trailer socket stop (Caterpillar and Cummins engines only) |
| 118 | 60A** | Hydraulic brake trailer two fuse block |
| 119/120 | 60A** | Hydraulic brake trailer two fuse block. Air brake trailer two fuse block |
| 121/122 | 60A** | HydroMax motor. Air brake trailer two fuse block |
| 201 | — | Washer pump relay |
| 202 | — | Wiper speed relay |
| 203 | — | Wiper run/park relay |
| 204 | — | Neutral start relay (6.0L Power Stroke engine only) |
| 204 | — | Exhaust brake relay (Caterpillar and Cummins engines only) |
| 205 | — | RH stop/turn relay |
| 206 | — | LH stop/turn relay |
| 207 | — | Drain valve heater relay |
| 208 | — | Back-up lamps relay |
| 209 | — | Stoplamps relay |
| 301 | — | Fuel heater/Fuel transfer pump relay |
| 302 | — | Park lamps relay |
| 303 | — | Blower motor relay |
| 304 | — | Air ABS relay |
| 304 | — | Hydraulic modulator relay |
| 401 | — | Not used |
| 501 | — | Not used |
| 502 | — | Not used |
| 503 | — | Not used |
| * Mini fuse ** Maxi fuse |
Air brake trailer tow relays (if equipped) (2006)
Air brake trailer tow relays (if equipped) (2006)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 30A* | Trailer tow ABS feed |
| 2 | 30A* | Trailer tow park/marker lamps |
| 3 | 30A* | Trailer tow stop lamps |
| 4 | 30A* | Trailer tow turn/stop lamps (combined) |
| 4 | 30A* | Trailer tow turn lamps (separate) |
| 5 | — | Not used |
| R1 | — | Trailer tow ABS relay |
| R2 | — | Trailer tow stop lamp relay |
| R3 | — | Trailer tow park/marker lamp relay |
| R4 | — | Trailer tow tail lamp relay |
| R5 | — | Not used |
| R6 | — | Not used |
| R7 | — | Trailer tow left turn/stop lamp relay (combined) |
| R7 | — | Trailer tow left turn lamp relay (separate) |
| R8 | — | Trailer tow right turn/stop lamp relay (combined) |
| R8 | — | Trailer tow right turn lamp relay (separate) |
| * Maxi fuse |
Inline fuses
Your vehicle has two inline fuses located in/on the battery cables by the battery. A 10A fuse for the transmission control module and a 40A fuse for the engine control module.
2008
Passenger compartment
Assignment of the fuses in the Passenger compartment (2008)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Horn relay |
| 2 | 15A | Flasher |
| 3 | 20A | Cigar lighter |
| 4 | 10A | Diagnostics, Parking brake warning |
| 5 | 15A | Blend door actuator, Climate mode, Back-up lamps, DRL signal, Heated seats, Trailer ABS, Exhaust brakes |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 5A | Radio, GEM 4 |
| 9 | 5A | Power window switch LED and relay |
| 10 | 15A | Heated mirrors |
| 11 | 5A | Wiper motor, Washer pump relays |
| 12 | 10A | Stoplamp switch (Hydraulic brake vehicles only), Allison push-button shifter |
| 13 | 20A | Cluster, Radio |
| 14 | 10A | Interior lamp relay |
| 15 | 10A | Interior lamp relay, GEM, Vanity mirrors |
| 16 | 15A | High beams, Indicator |
| 17 | — | Not used |
| 18 | 5A | Headlamp switch interior lighting |
| 19 | 15A | Engine control |
| 20 | 5A | Starting system |
| 21 | 10A | DRL resistor |
| 22 | 15A | Air horn, Air suspension dump, Two-speed axle, Driver-controlled locking differential |
| 23 | 10A | Flasher |
| 24 | 15A | ABS, Air dryer, Vacuum pump, Fuel heater relay |
| 25 | 10A | Function selector switch |
| 26 | 10A | RH low beam headlamp |
| 27 | — | Not used |
| 28 | 10A | LH low beam headlamp |
| 29 | 10A | Cluster warning lamps, Gauges, GEM, Hydraulic ABS |
| 30 | 15A | Allison electronic transmission |
| 31 | — | Not used |
| Relay 1 | — | Interior lamps |
| Relay 2 | — | Not used |
| Relay 3 | — | Horn |
| Relay 4 | — | One-touch down window |
| Relay 5 | — | Not used |
Engine compartment
Assignment of the fuses in the Power distribution box (2008)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 15A* | Main light switch |
| 2 | 30A* | Power seat (driver) |
| 3 | 30A* | Power seat (passenger) |
| 4 | 15A* | Washer pump relay, Washer pump motor |
| 5 | — | Not used |
| 6 | 15A* | Air intake heater (Caterpillar engine only) |
| 7 | 15A* | Stoplamp switches (Air brake vehicles only) |
| 8 | 25A* | Fuel heater relay (Caterpillar engine-equipped vehicles with dual fuel tanks only) |
| 9 | 20A* | Inhibit relay, Engine ECM, Cluster, Transmission TCM |
| 10 | 15A* | Heated drain valve |
| 11 | 30A* | Electric trailer brake |
| 12 | 20A* | Daytime Running Lamps (DRL), Blend door actuator, Climate mode, Back-up, Heated seats, Trailer ABS, Exhaust brake |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 7.5A* | Body builder – trailer adapter stoplamps |
| 16 | 5A* | Bendix Air ABS (Air brake vehicles only) |
| 16 | 5A* | WABCO ABS (Hydraulic brake vehicles only) |
| 17 | — | Not used |
| 18 | 10 A* | Fuel transfer pump (duel fuel tanks only) |
| 19 | — | Not used |
| 20 | — | Not used |
| 21 | 10 A* | Hydromax motor control |
| 22 | — | Not used |
| 23 | — | Not used |
| 24 | — | Not used |
| 101 | 30A** | Bendix Air ABS relay (Air brake vehicles only) |
| 101 | 30A** | WABCO ABS modulator relay (Hydraulic brake vehicles only) |
| 102 | 20A** | Ignition switch to customer access |
| 103 | 20A** | Ignition switch (Junction box fuses 8, 9, 10, 11, 19, 29 and 30) |
| 104 | 20A** | Power point |
| 105 | 20A** | Power door locks |
| 106 | 30A** | Main light switch, Multifunction switch, CJB fuses 16, 26 and 28, Headlamps, DRL relays |
| 107 | 50A** | Junction box fuses 1, 2, 3, 4, 12, 13, 14 and 15 |
| 108 | 40 A** | Fuel heater relay (Cummins engine only) |
| 109 | 40 A** | Power windows relay |
| 110 | 30A** | Wiper power relay (Park, LowYHigh speed) |
| 111 | 30A** | Park lamps relay, Park lamps |
| 112 | 40 A** | Blower motor relay, Blower motor |
| 113 | 30A** | Heated seats |
| 114 | 25A** | Hydraulic ABS ECU power |
| 115 | 20A** | Ignition switch, Central Junction Box fuses 8, 9, 10 and 11, Starter motor relay |
| 116 | 30A** | Left/Right turn relays, Back-up lamp relay |
| 117 | 20A** | Stoplamps relay |
| 118 | 60A** | Hydraulic brake vehicles (Trailer tow package only) |
| 119/120 | 60A** | Hydraulic brake vehicle (Trailer tow package only) |
| 119/120 | 60A** | Air brake vehicles (Trailer tow package only) |
| 121/122 | 60A** | Hydraulic brake, ABS system |
| 121/122 | 60A** | Air brake trailer tow fuse block |
| 201 | — | Washer pump relay |
| 202 | — | Wiper speed relay |
| 203 | — | Wiper on/off relay |
| 204 | — | Wiper power relay |
| 205 | — | RH stop/turn relay |
| 206 | — | LH stop/turn relay |
| 207 | — | Hydraulic ABS event relay |
| 208 | — | Back-up lamps relay |
| 209 | — | Stoplamp relay |
| 301 | — | Fuel heater/Fuel transfer pump relay |
| 302 | — | Park lamps relay |
| 303 | — | Blower motor relay |
| 304 | — | Air ABS relay |
| 304 | — | Hydraulic modulator relay |
| * Mini fuse ** Maxi fuse |
Air brake trailer tow relays (if equipped) (2008)
Trailer tow relays (if equipped) (2008)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 30A* | Trailer tow ABS feed |
| 2 | 30A* | Trailer tow park/marker lamps |
| 3 | 30A* | Trailer tow stop lamps |
| 4 | 30A* | Trailer tow turn/stop lamps (combined) |
| 4 | 30A* | Trailer tow turn lamps (separate) |
| 5 | — | Not used |
| R1 | — | Trailer tow ABS relay |
| R2 | — | Trailer tow marker lamp relay |
| R3 | — | Trailer tow stop lamp relay |
| R4 | — | Trailer tow tail lamp relay |
| R5 | — | Not used |
| R6 | — | Not used |
| R7 | — | Trailer tow left turn lamp relay |
| R8 | — | Trailer tow right turn lamp relay |
| * Maxi fuse |
Inline fuses
Your vehicle has two inline fuses located in/on the battery cables by the battery. A 10A fuse for the transmission control module and a 40A fuse for the engine control module.
2011
Passenger compartment
Assignment of the fuses in the Passenger compartment (2011)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Horn |
| 2 | 15A | Flasher relay |
| 3 | 20A | Power point |
| 4 | 10A | Data Link Connector (DLC), Engine diagnostic connector, Parking brake warning |
| 5 | 15A | Run relay |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 5A | Radio, GEM |
| 9 | 5A | Power window relay |
| 10 | 15A | Heated mirrors |
| 11 | 5A | Wiper and washer systems |
| 12 | 10A | Transmission shift selector |
| 13 | 20A | Radio, Power mirrors |
| 14 | 10A | Interior lamp relay |
| 15 | 10A | Interior lamp relay |
| 16 | 15A | High beams, Indicator |
| 17 | — | Not used |
| 18 | 5A | Dimmer switch, Interior lighting |
| 19 | 15A | Engine control |
| 20 | 5A | Starting system |
| 21 | 10A | DRL resistor |
| 22 | 15A | Air horn, Air suspension dump, Two-speed axle, Driver-controlled locking differential |
| 23 | 10A | Flasher relay |
| 24 | 15A | ABS relay, Fuel heater relay, Air diyer |
| 25 | 10A | Blower motor relay |
| 26 | 10A | Right-hand low beam headlight |
| 27 | — | Not used |
| 28 | 10A | Left-hand low beam headlight |
| 29 | 10A | Cluster, GEM |
| 30 | 15A | Allison electronic transmission |
| 31 | 15A | Mirror fold relay |
| Relay 1 | — | Interior lamps |
| Relay 2 | — | Not used |
| Relay 3 | — | Horn |
| Relay 4 | — | Not used |
| Relay 5 | — | Not used |
Engine compartment
Assignment of the fuses in the Power distribution box (2011)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 20A | Upfitter switches (AUX 2 and AUX 4) |
| 2 | 30A | Power seat (driver) |
| 3 | 30A | Power seat (passenger) |
| 4 | 15A | Windshield washer relay, Washer pump motor |
| 5 | 5A | Brake warning switch (hydraulic brake only) |
| 6 | 20A | Upfitter switches (AUX 1 and AUX 3) |
| 7 | 15A | Brake pressure switches, ABS event relay |
| 8 | 20A | DEF (Urea), Line heaters |
| 9 | 20A | Ignition switch, Starter cutoff |
| 10 | 15A | Air tank moisture removal valve |
| 11 | 30A | Electric trailer brake |
| 12 | 20A | Passenger compartment fuse box 5 and 21 |
| 13 | 15A | Instrument cluster/Gateway module |
| 14 | 20A | Nitrogen oxide sensor |
| 15 | — | Not used |
| 16 | 5A | Bendix® Air ABS |
| 17 | — | Not used |
| 18 | 10A | Fuel transfer pump |
| 19 | — | Not used |
| 20 | — | Not used |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | — | Not used |
| 24 | — | Not used |
| 101 | 30A | Bendix Air ABS relay (Air brake vehicles only) |
| 101 | 30A | Hydraulic brakes module (Hydraulic brake vehicles only) |
| 102 | 20A | Ignition switch |
| 103 | 20A | Ignition switch, Passenger compartment fuse box fuses 19, 29 and 30 |
| 104 | 20A | Power point |
| 105 | 20A | Power door lock switches |
| 106 | 30A | Main light switch, Multi-function switch |
| 107 | 50A | Passenger compartment fuse box fuses 1,2, 3, 4, 12, 13, 14 and 15 |
| 108 | 40A | Fuel heater |
| 109 | 40A | Power window |
| 110 | 30A | Windshield wiper |
| 111 | 30A | Body builder relay, Parking lamps |
| 112 | 40A | Blower motor |
| 113 | 30A | Heated seats, Air-Ride seat |
| 114 | 20A | Aftertreatment DCU |
| 115 | 20A | Ignition switch, Passenger compartment fuse box fuses 8, 9, 10 and 11 |
| 116 | 30A | Left/Right turn relays, Back-up lamp relay |
| 117 | 20A | Stoplamps |
| 118 | 60A | Hydraulic brake vehicles (Trailer tow’ package only) |
| 601 | 60A | Trailer socket |
| 602 | 60A | Air brake trailer tow fuse block |
| 602 | 30A | Hydraulic brakes pump motor 2 |
| 201 | — | Windshield washer relay |
| 202 | — | Wiper high/low relay |
| 203 | — | Wiper run/park relay |
| 204 | — | Windshield wiper relay |
| 205 | — | Body builder relay, right turn |
| 206 | — | Body builder relay, left turn |
| 207 | — | ABS event relay (Hydraulic brake vehicles only) |
| 208 | — | Body builder relay, back-up lamps relay |
| 209 | — | Auxiliary stoplamp relay |
| 301 | — | Fuel heater/Fuel transfer pump relay |
| 302 | — | Body builder relay, parking lamps relay |
| 303 | — | Blower motor relay |
| 304 | — | DEF (Urea) line heaters relay |
| Individual maxi-fuse holder in engine compartment | ||
| 9925 | 30A | Hydraulic brakes pump motor 1 |

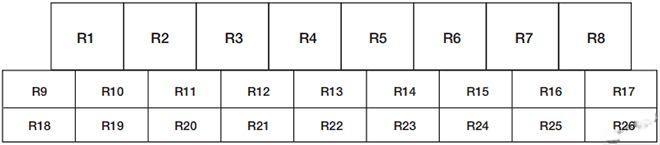

Relay center
The relay center is located along the passenger side A-pillar on the right side of the footwell.
| № | Relay description |
|---|---|
| R1 | Spring applied hydraulic release warning chime module |
| R2 | A/C compressor clutch |
| R3 | Power windows |
| R4 | Flasher (standard/LED) |
| R5 | Upfitter relay 1 |
| R6 | UpFitter relay 2 |
| R7 | Headlights |
| R8 | Spare |
| R9 | Upfitter relay 3 |
| R10 | Starter |
| R11 | DCU |
| R12 | Two-speed axle/Differential lock |
| R13 | Door lock |
| R14 | Air tank moisture valve |
| R15 | DRL #1 |
| R16 | Heated mirrors |
| R17 | Spare |
| R18 | Upfitter relay 4 |
| R19 | PRNDL display |
| R20 | Selective Catalyst Reduction (SCR) system (NOx) |
| R21 | Run |
| R22 | Door unlock |
| R23 | ABS warning indicator |
| R24 | DRL #2 |
| R25 | Park lights |
| R26 | Spare |
Trailer tow relays (if equipped) (2011)
Trailer tow relays (if equipped) (2011)
| № | Amp Rating | Description |
|---|---|---|
| 1 | 30A* | Trailer tow ABS feed (non electric trailer brake vehicles only) |
| 2 | 30A* | Trailer tow park/marker lamps |
| 3 | 30A* | Trailer tow stop lamps |
| 4 | 30A* | Trailer tow turn/stop lamps (combined) |
| 4 | 30A* | Trailer tow turn lamps (separate) |
| 5 | — | Not used |
| R1 | — | Trailer tow ABS relay (non electric trailer brake vehicles only) |
| R2 | — | Trailer tow marker lamp relay |
| R3 | — | Trailer tow stop lamp relay |
| R4 | — | Trailer tow tail lamp relay |
| R5 | — | Not used |
| R6 | — | Not used |
| R7 | — | Trailer tow left turn lamp relay |
| R8 | — | Trailer tow right turn lamp relay |
| * Maxi fuse |
Inline fuses
Your vehicle may have several inline fuses located in/on the battery cables located in the battery box depending on application.
All Allison transmission-equipped vehicles have a 10 Amp fuse located in the clean power cables located in the battery box.
All vehicles have a 30 Amp fuse located in the clean power cables located in the battery box.
All vehicles equipped with an Eaton transmission have a 30 Amp fuse located in the clean power cables located in the battery box.
All Hydraulic brake equipped vehicles have a 40 Amp fuse located in the clean power cables located in the battery box and in addition another 30 Amp fuse located in a fuse holder just above the power distribution center located in the vehicles engine compartment.
