Ford F-550, Ford F-450, Ford F-250, Car Fuse Box, Ford

Ford F250 / F350 / F450 / F550 2017-2019 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Saturday, September 6, 2025 2:04 AM

ford f250 f350 f450 f550 2017 2019 fuse layout

In this article we look at the fourth generation Ford F-Series Super Duty, available from 2017 to 2019. Here you will find the 2017, 2018 and 2019 Ford F-250 / F-350 / F-450 / F-550 fuse box diagrams, get information on the location of the fuse boxes inside the vehicle and learn about the assignment of each fuse (fuse layout) and relay.

The fuses for the cigar lighter socket in the Ford F-250 / F-350 / F-450 / F-550 are fuses №22 (2017: Auxiliary outlet #5 (rear console)), №62 (Auxiliary outlet #1 (instrument panel)), №64 (Auxiliary outlet #2), №66 (Auxiliary outlet #3 (centre console)), №68 (Auxiliary outlet #4 (rear media tray)) and №70 (2018-2019: Auxiliary outlet #5 (rear centre console)) in the engine compartment fuse box.

Fuse box location

Passenger compartment

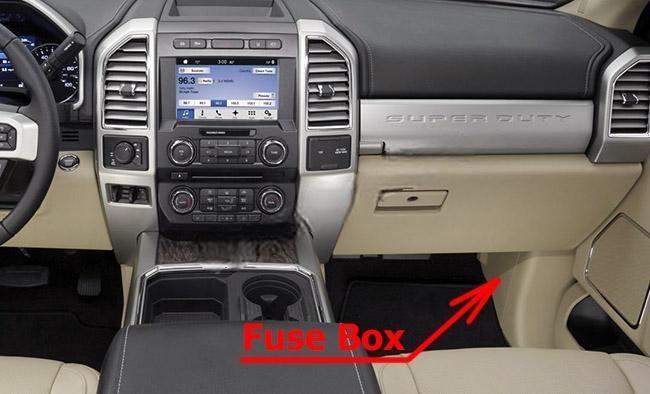

The fuse panel is in the right-hand side of the passenger footwell behind a trim panel.

ford f250 f350 f450 f550 2017 2019 fuse layout 1 2024 12 05 15 41 51

Engine compartment

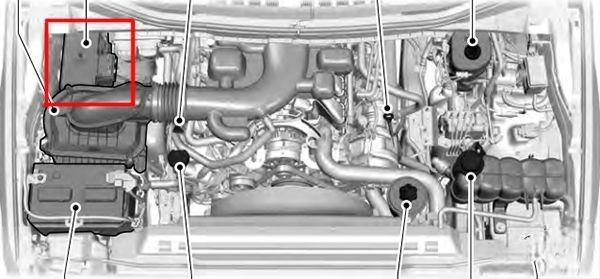

The power distribution box is located in the engine compartment.

ford f250 f350 f450 f550 2017 2019 fuse layout 2 2024 12 05 15 42 03

Fuse box diagrams

2017

Passenger compartment

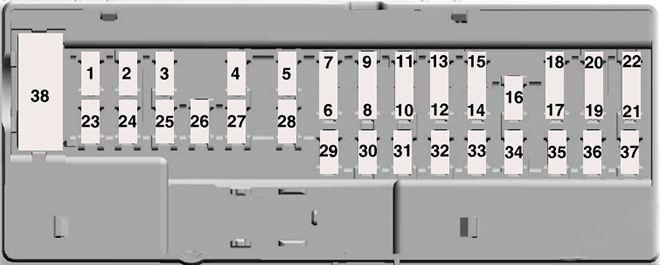

Assignment of the fuses in the Passenger compartment (2017)

№	Amp Rating	Protected components
1	—	Not used.
2	7.5A	Memory seat switch (lumbar power).
3	20A	Driver door unlock relay.
4	5A	Aftermarket electronic brake controller.
5	20A	Rear heated seat module.
6	—	Not used.
7	—	Not used.
8	—	Not used.
9	—	Not used.
10	5A	Securicode™ keyless entry keypad.
11	5A	Rear climate control module.
12	7.5A	Front climate control module.
13	7.5A	Instrument cluster. Smart data link. Steering column control module.
14	—	Not used.
15	10A	Smart datalink connector power. Heads up display.
16	—	Not used.
17	5A	Electronic finish panel.
18	5A	Push button ignition switch. Ignition switch. Key inhibit.
19	7.5 A	Transmission control switch (tow/haul).
20	—	Not used.
21	5A	Terrain management system. Head-up display. Humidity sensor.
22	5A	Occupant classification sensor.
23	10A	Accessory delay. Power windows. Moonroof. Power folding mirrors relay. Inverter. Window/moonroof switch illumination.
24	20A	Central locking system relay.
25	30A	Left-hand front smart window motor. Door zone module.
26	30A	Right-hand front smart window motor. Door zone module.
27	30A	Moonroof.
28	20A	Sony amplifier -10 channel.
29	30A	Sony amplifier -14 channel.
30	—	Not used.
31	—	Not used.
32	10A	SYNC. GPS module. Display. Radio frequency receiver.
33	20A	Radio.
34	30A	Run-start relay.
35	5A	Restraints control module.
36	15 A	Lane keeping system. Automatic high beam control. Auto-dimming mirrors. Rear heated seats.
37	20A	Heated steering wheel.
38	30A	Left-hand front window motor. Rear power window motors.

Engine compartment

ford f250 f350 f450 f550 2017 2019 fuse layout 5 2024 12 05 15 42 25

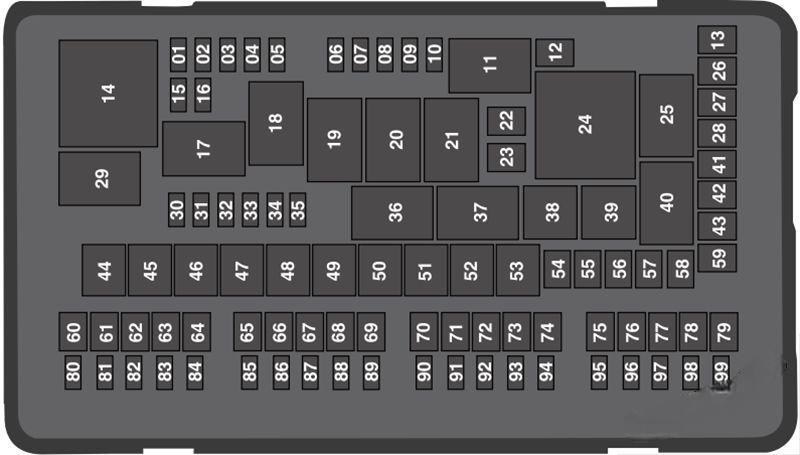

Assignment of the fuses in the Power distribution box (2017)

№	Amp Rating	Protected components
1	20A	Powertrain control module.
2	20A	Emissions (MIL).
3	20A	Cooling fan. A/C compressor. Engine brake.
4	20A	Noise suppression cap. Mass air flow sensor. Emissions. Glow plugs. Urea.
5	15A	Compressed natural gas fuel control module.
6	—	Not used.
7	—	Not used.
8	—	Not used.
9	—	Not used.
10	15A	Heated exterior mirrors.
11	—	CNG relay.
12	40A	Heated rear window.
13	—	Not used.
14	—	Powertrain control module relay.
15	20A	Horn.
16	10A	A/C clutch relay power.
17	—	Rear heated window and heated mirrors relay.
18	—	Not used.
19	—	Not used.
20	—	Supplemental air heater bank #1 relay.
21	—	Not used.
22	20A	Auxiliary power point #5 (rear console). Run-start.
23	—	Not used.
24	—	Cooling fan relay. Supplemental air heater bank #3 relay.
25	—	Glow plug module power relay.
26	—	Not used.
27	30A	Trailer tow battery charge relay.
29	—	Run-start relay.
30	10A	4×4 module.
31	5A	Adaptive cruise control. Run-start.
32	5A	Anti-lock brake system module. Run-start.
33	10A	Powertrain control module (ISPR). Run-start. Engine control module. Transmission control module.
34	10A	Blind spot information system. Run-start. Front camera. Rear camera.
35	—	Not used.
36	—	Blower motor relay.
37	—	Trailer tow battery charge relay.
38	—	A/C compressor clutch relay.
39	—	Horn relay.
40	—	Supplemental air heater bank #2 relay.
41	25 A	Glow plugs.
42	40A	Trailer tow lighting module.
43	40A	Front blower motor.
44	50A	Voltage quality module. Body control module.
45	60A	Active front steering.
46	50A	Supplemental air heater bank #2.
47	50A	Cooling fan. Supplemental air heater bank #3.
48	50A	Body control module RP1 bus.
49	60A	Inverter.
50	50A	Body control module RP2 bus.
51	60A	Body control module B+ feed.
52	60A	Anti-lock brake system pump.
53	50A	Supplemental air heater bank #1.
54	30A	Trailer brake control module.
55	30A	Climate controlled seat module.
56	40A	Auxiliary lighting module.
57	30A	Power running boards.
58	30A	Compressed natural gas fuel control module relay.
59	30A	Anti-lock brake system valve.
60	—	Not used.
61	30A	Driver power seat.
62	20A	Auxiliary power point #1 (instrument panel).
63	30A	Starter motor.
64	20A	Auxiliary power point #2.
65	30A	Trailer tow lighting module.
66	20A	Auxiliary power point #3 (center console).
67	30A	Passenger power seat.
68	20A	Auxiliary power point #4 (rear media bin).
69	25 A	4×4 module.
70	—	Not used.
71	—	Not used.
72	30A	Trailer tow left hand/right hand stop/turn.
73	—	Not used.
74	—	Not used.
75	30A	Fuel pump.
76	—	Not used.
77	30A	Wiper motor.
78	—	Not used.
79	30A	Power sliding rear window.
80	25A	4×4 module.
81	10A	4×4 solenoid.
82	10A	Power telescoping mirrors.
83	20A	Rear heated seats.
84	10A	Trailer tow backup lamps.
85	—	Not used.
86	—	Not used.
87	—	Not used.
88	10A	Multi contour seats.
89	—	Not used.
90	10A	Spot light module.
91	10A	Upfitter interface module.
92	—	Not used.
93	—	Not used.
94	15A	Transmission control module.
95	10A	Powertrain control module keep alive power.
96	5A	Rain sensor.
97	—	Not used.
98	10A	Alternator sense.
99	30A	Trailer tow parking lamps.

2018, 2019

Passenger compartment

ford f250 f350 f450 f550 2017 2019 fuse layout 6 2024 12 05 15 42 32

Assignment of the fuses in the Passenger compartment (2018, 2019)

№	Amp Rating	Protected Components
1	—	Not used.
2	7.5A	Memory seat switch (lumbar power).
3	20A	Driver door unlock relay.
4	5A	Aftermarket electronic brake controller. Trailer brake controller Brake On/Off. Customer access circuits.
5	—	Not used.
6	—	Not used.
7	—	Not used.
8	10A	Driver window switch mirror fold.
9	10A	Brake On/Off / Pressure Switch.
10	5A	2018: Not used. 2019: Embedded Modem
11	5A	Combined sense security module.
12	7.5A	Front climate control module.
13	7.5A	Instrument cluster. Smart data link. Steering column control module.
14	10A	Extended power restraints module.
15	10A	Smart datalink connector power.
16	15 A	Tailgate release solenoid.
17	5A	Head-up display.
18	5A	Push button ignition switch. Ignition switch. Key inhibit.
19	75A	Transmission control switch (tow/haul). Select Shift switch.
20	7.5A	Active front steering module.
21	5A	Head-up display. Humidity sensor.
22	5A	Upfitter switch. Run/Start. PTO relays.
23	10A	Accessory delay. Power windows. Moonroof. Power folding mirrors relay. Inverter. Window/moonroof switch illumination.
24	20A	Central locking system relay.
25	30A	Left-hand front smart window motor. Door zone module.
26	30A	Right-hand front smart window motor. Door zone module.
27	30A	Moonroof.
28	20A	2018: Sony amplifier -10 channel. 2019: Not used
29	30A	2018: Not used. 2019: Bang & Olufsen Amplifier
30	—	Not used.
31	15A	Adjustable pedals switch.
32	10A	SYNC. GPS module. Display. Radio frequency receiver.
33	20A	Radio.
34	30A	Run-start relay.
35	5A	Extended power restraints module.
36	15 A	Lane keeping system. Automatic high beam control. Auto-dimming mirrors. Rear heated seats. Camera module.
37	20A	Heated steering wheel.
38	30A	Rear power window switch.

Engine compartment

ford f250 f350 f450 f550 2017 2019 fuse layout 7 2024 12 05 15 42 40 1

Assignment of the fuses in the Power distribution box (2018, 2019)

№	Amp Rating	Protected Components
1	20A	Powertrain control module.
2	20A	Emissions – malfunction indicator lamp.
3	20A	Cooling fan. A/C compressor. Engine brake.
4	20A	Noise suppression cap. Mass air flow sensor. Emissions. Glow plugs. Urea.
5	15 A	Compressed natural gas fuel control module. Fuel sensor.
6	—	Not used.
7	—	Not used.
8	—	Not used.
9	—	Not used.
10	15 A	Heated exterior mirrors.
11	—	Compressed natural gas relay.
12	40	Heated rear window.
13	—	Not used.
14	—	Powertrain control module relay.
15	20A	Horn.
16	10A	A/C clutch relay power.
17	—	Rear heated window and heated mirrors relay.
18	—	Trailer park lamp relay.
19	—	Not used.
20	—	Supplemental air heater bank #1 relay.
21	—	Not used.
22	—	Not used.
23	—	Not used.
24	—	Cooling fan relay. Supplemental air heater bank #3 relay.
25	—	Glow plug module power relay.
26	—	Not used.
27	30A	Trailer tow battery charge relay (if equipped).
28	—	Not used.
29	—	Run-start relay.
30	10A	4×4 module.
31	5A	Adaptive cruise control. Run-start.
32	5A	Anti-lock brake system module. Run-start.
33	10A	Powertrain control module – ignition status power run. Run-start. Engine control module. Transmission control module.
34	10A	Blind spot information system. Run-start. Front camera. Rear camera.
35	—	Not used.
36	—	Blower motor relay.
37	—	Trailer tow battery charge relay (only on non-trailer brake controller vehicles).
38	—	A/C compressor clutch relay.
39	—	Horn relay.
40	—	Supplemental air heater bank #2 relay.
41	25 A	Glow plugs.
42	40A	Trailer tow lighting module (if equipped).
43	40A	Front blower motor.
44	50A	Voltage quality. Body control module power.
45	60A	Active front steering.
46	50A	Supplemental air heater bank #2.
47	50A	Cooling fan. Supplemental air heater bank #3.
48	50A	Body control module run power 1 bus.
49	60A	Inverter.
50	50A	Body control module run power 2 bus.
51	60A	Body control module B+ feed.
52	60A	Anti-lock brake system pump.
53	50A	Supplemental air heater bank #1.
54	30A	Trailer brake control module.
55	30A	Climate controlled seat module.
56	40A	Auxiliary lighting module.
57	30A	Power running boards.
58	30A	Compressed natural gas fuel control module relay.
59	30A	Anti-lock brake system valve.
60	—	Not used.
61	30A	Driver power seat.
62	20A	Auxiliary power point #1 (instrument panel).
63	30A	Starter motor.
64	20A	Auxiliary power point #2.
65	30A	Trailer tow lighting module (if equipped).
66	20A	Auxiliary power point #3 (center console).
67	30A	Passenger power seat.
68	20A	Auxiliary power point #4 (USB charger, rear center console).
69	25A	4×4 module.
70	20A	Auxiliary power point #5 (rear center console).
71	—	Not used.
72	30A	Trailer tow left hand/right hand stop/turn (if equipped, not present with trailer brake controller).
73	—	Not used.
74	—	Not used.
75	30A	Fuel pump.
76	—	Not used.
77	30A	Wiper motor.
78	—	Not used.
79	30A	Power sliding rear window.
80	25A	4×4 module.
81	10A	4×4 solenoid.
82	10A	Power telescoping mirrors.
83	20A	Rear heated seats.
84	10A	Trailer tow backup lamps (if equipped).
85	—	Not used.
86	—	Not used.
87	—	Not used.
88	10A	Multi contour seats.
89	—	Not used.
90	10A	Spot light module.
91	10A	Upfitter interface module.
92	—	Not used.
93	—	Not used.
94	15 A	Transmission control module.
95	10A	Powertrain control module keep alive power.
96	5A	Rain sensor.
97	10A	Run/Start control for Auxiliary power point #5
98	10A	Alternator sense.
99	30A	Trailer tow parking lamps.

Ford F250 / F350 / F450 / F550 2017-2019 Fuse Box Diagram – Location, Fuses & Relay Assignments

Fuse box location

Passenger compartment

Engine compartment

Fuse box diagrams

2017

Passenger compartment

Engine compartment

2018, 2019

Engine compartment

Latest Posts

Buick Encore GX 2020-2022 Fuse Box Diagram – Location, Fuses & Relay Assignments

Audi A6 1997-2004 Fuse Box Diagram – Location, Fuses & Relay Assignments

Chevrolet Colorado 2004-2012 Fuse Box Diagram – Location, Fuses & Relay Assignments

Honda Accord 1998-2002 Fuse Box Diagram – Location, Fuses & Relay Assignments

Holden Caprice WM / Holden Statesman WM 2006-2013 Fuse Box Diagram – Location, Fuses & Relay Assignments

Ford Edge 2011-2014 Fuse Box Diagram – Location, Fuses & Relay Assignments

Car Fuse Box Diagrams & Guides

quick navigation

Ford F250 / F350 / F450 / F550 2017-2019 Fuse Box Diagram – Location, Fuses & Relay Assignments

Fuse box location

Passenger compartment

Engine compartment

Fuse box diagrams

2017

Passenger compartment

Engine compartment

2018, 2019

Engine compartment

Latest Posts

Buick Encore GX 2020-2022 Fuse Box Diagram – Location, Fuses & Relay Assignments

Audi A6 1997-2004 Fuse Box Diagram – Location, Fuses & Relay Assignments

Chevrolet Colorado 2004-2012 Fuse Box Diagram – Location, Fuses & Relay Assignments

Honda Accord 1998-2002 Fuse Box Diagram – Location, Fuses & Relay Assignments

Holden Caprice WM / Holden Statesman WM 2006-2013 Fuse Box Diagram – Location, Fuses & Relay Assignments

Ford Edge 2011-2014 Fuse Box Diagram – Location, Fuses & Relay Assignments

Car Fuse Box Diagrams & Guides

quick navigation

Resources

Quick Links

Follow Us On
