Ford F150 2015-2020 Fuse Box Diagram – Location, Fuses & Relay Assignments

In this article we take a look at the thirteenth generation Ford F-150, available from 2015 to present. Here you will find the fuse box diagrams for the Ford F-150 2015, 2016, 2017, 2018, 2019 and 2020, get information on the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay.

The Ford F150 cigar lighter (socket) fuses are fuses №89 (cigar lighter socket 1), №90 (socket 2), №91 (socket 3) and №92 (socket 4) in the engine compartment fuse box (2016-2017). From 2018 – Fuses №6 (cigar lighter socket 1), №8 (cigar lighter socket 2) and №51 (socket 3) in the engine compartment fuse box.

Fuse box location

Passenger compartment

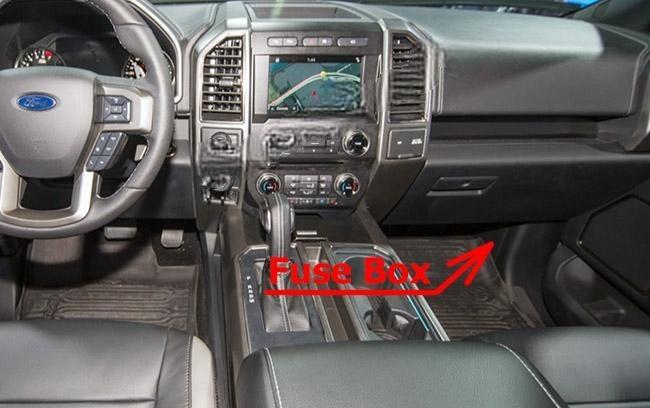

The fuse panel is in the right-hand side of the passenger footwell behind a trim panel.

To remove the trim panel, pull it toward you and swing it away from the side.
To reinstall it, line up the tabs with the grooves on the panel, and then push it shut.

To remove the fuse panel cover, press in the tabs on both sides of the cover, and then pull it off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel and push the bottom part until it latches. Gently pull on the cover to make sure it has latched properly.

Engine compartment

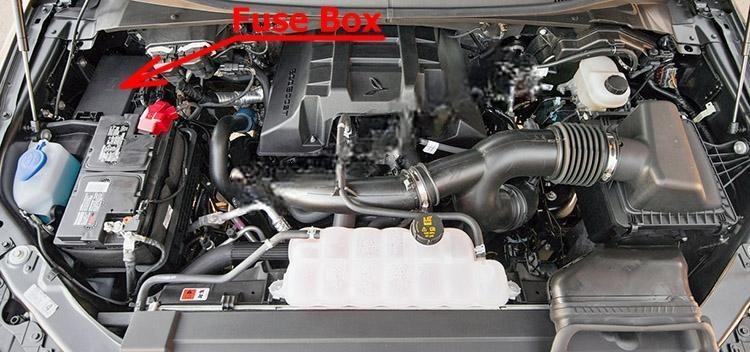

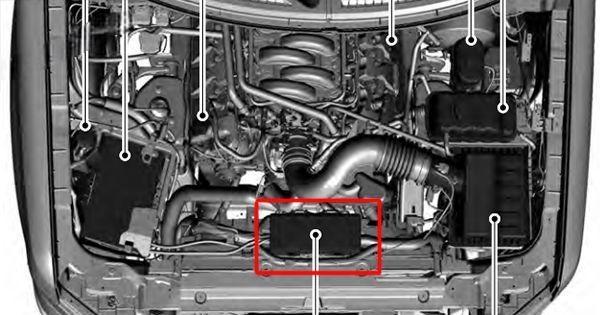

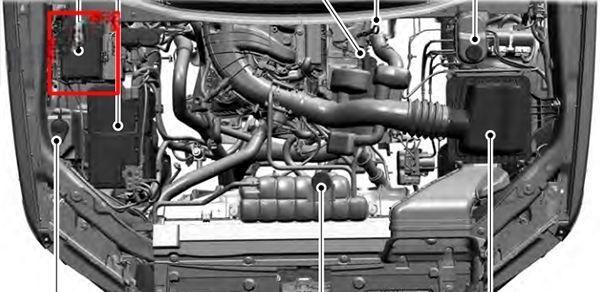

The power distribution box is located in the engine compartment.

Or

Fuse box diagrams

2016

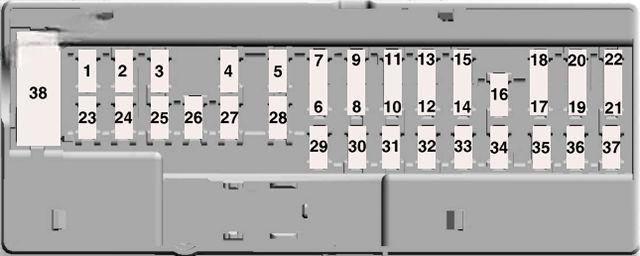

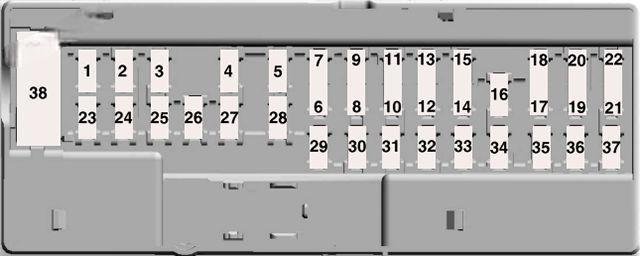

Passenger compartment

Assignment of the fuses in the Passenger compartment (2016)

№	Amp Rating	Protected components
1	10A	Demand lamp relay. Power seats relay. Glove box. Vanity lamps. Overhead console. Dome. Courtesy. Map lamps.
2	7.5A	Memory module logic. Memory seat switches. Lumbar motor.
3	20A	Driver door lock motor.
4	5A	Trailer brake control.
5	20A	Not used.
6	10A	Not used.
7	10A	Not used.
8	10A	Not used.
9	10A	Not used.
10	5A	Not used (spare).
11	5A	Combined sensor module.
12	7.5 A	Climate head module. Smart datalink converter.
13	7.5 A	Cluster. SCCM.
14	10A	Brake.
15	10A	Smart datalink converter.
16	15A	Tailgate release.
17	5A	HUD.
18	5A	Ignition switch and passive-entry passive-start start stop switch. Key inhibit solenoid.
19	7.5 A	Tow haul (O/D) cancel for floor or column shifter.
20	7.5 A	Not used.
21	5A	HUD. In car temperature with humidity sensor.
22	5A	EPB. Power seat.
23	10A	PDRG switch. Inverter. Driver side window. Moonroof. Vista roof.
24	20A	Central lock/unlock.
25	30A	Driver door control module.
26	30A	Passenger door control module.
27	30A	Vista roof. Moonroof.
28	20A	Not used.
29	30A	Not used.
30	30A	Not used.
31	15A	Adjustable pedal switch and motor.
32	10A	Multi-function display. Global position system. Sync 1. Sync 2. Radio frequency receiver.
33	20A	Radio.
34	30A	Run-start relay.
35	5A	Restraints module.
36	15A	360 camera module. Heated steering wheel module. Rear-view mirror. Rear heated seats.
37	20A	Power distribution box run-start fuses.
38	30A Circuit breaker.	Rear window switches and motors.

Engine compartment

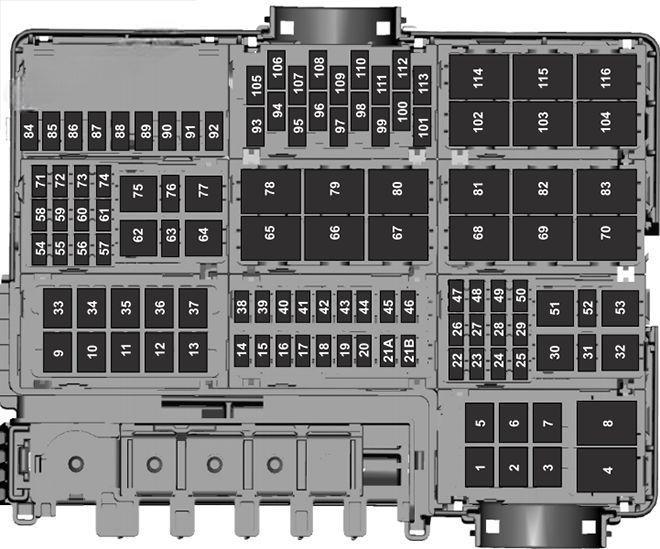

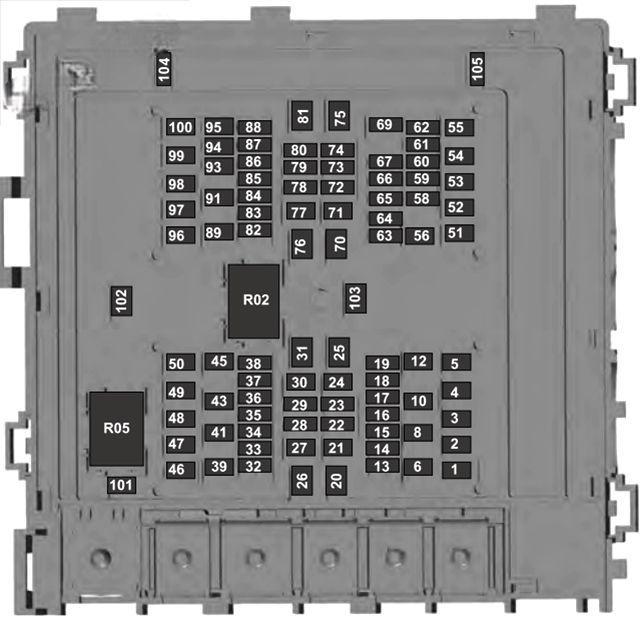

Assignment of the fuses in the Power distribution box (2016)

№	Amp Rating	Protected components
1	—	Not used.
2	—	Not used.
3	—	Not used.
4	—	Telescoping side-view mirror.
5	40A*	Rear window defroster.
6	—	Not used.
7	—	Not used.
8	—	Telescoping side-view mirror.
9	—	Not used.
10	—	Not used.
11	60A*	Automatic brake system motor.
12	50A*	Body control module 1.
13	60A*	Body control module 2.
14	20A**	Amplifier.
15	25A**	4×4.
16	10 A**	Spot light module.
17	15A**	Heated seat.
18	10 A**	Steering-column lock.
19	10 A**	Power seats.
20	15A**	Snow plow. Rear heated seats.
21A	—	Not used.
21B	—	Not used.
22	30 A*	Windshield wiper motor.
23	15 A*	Rain sensor.
24	25 A*	Series fan feed.
25	—	Not used.
26	30 A*	Driver seat motors.
27	30 A*	Passenger power seat.
28	30 A*	Climate controlled seat.
29	—	Not used.
30	—	Air conditioner clutch relay.
31	—	Not used.
32	—	Not used.
33	50A*	Electric fan 3.
34	25 A*	Trailer tow park lamps.
35	20A*	Trailer tow stop-turn relay fuse.
36	25 A*	Trailer tow lamps module.
37	50A*	Electric fan 1.
38	10A**	Alt A sensor.
39	10A**	Integrated wheel end solenoid.
40	15A**	E-locker.
41	10A**	Telescoping mirror.
42	30A**	Transmission fluid pump.
43	25A**	Horn.
44	10A**	Air conditioner clutch.
45	10A**	Powertrain control module relay coil.
46	10A**	Wiper relay coil.
47	—	Not used.
48	—	Not used.
49	30 A*	Trailer brake control module.
50	30 A*	Power running boards.
51	—	Fuel pump relay.
52	—	Not used.
53	—	Not used.
54	30 A*	Voltage quality module. Body-control-module voltage-quality-module feed.
55	40A*	Body control module RP2 feed.
56	20A*	Fuel pump.
57	30 A*	Right-hand EPB actuator.
58	30 A*	Left-hand EPB actuator.
59	30 A*	Starter.
60	40A*	Blower motor.
61	30 A*	Brake control module. Automatic brake system valves.
62	—	Power seat relay.
63	15A**	Heated mirrors.
64	—	Not used.
65	—	Starter relay.
66	—	Powertrain control module relay.
67	—	Windshield wiper relay.
68	—	Blower motor relay.
69	—	Power sliding back window relay.
70	—	Electric fan 1 relay.
71	—	Not used.
72	25 A*	4×4.
73	—	Not used.
74	30 A*	PDRG motor.
75	—	Horn relay.
76	—	Not used.
77	—	Steering column lock relay.
78	—	Not used.
79	—	Trailer tow parking lamp relay.
80	—	Rear window defroster relay.
81	—	Not used.
82	—	PDRG close relay.
83	—	Not used.
84	—	Not used.
85	—	Not used.
86	—	Not used.
87	10A**	Trailer tow backup lamps.
88	—	Not used.
89	20A*	Cigar lighter power point 1.
90	20A*	Power point 2.
91	20A*	Power point 3.
92	20A*	Power point 4.
93	25A**	GTDI vehicle power 1.
93	10A**	PFI vehicle power 1.
94	—	Not used.
95	25A**	Vehicle power 2.
96	—	Not used.
97	10A**	Vehicle power 3.
98	—	Not used.
99	20A**	Vehicle power 4 (PFI).
99	15A**	Vehicle power 4 (GTDI).
100	—	Not used.
101	—	Not used.
102	—	Snow plow relay.
103	—	Not used.
104	—	Electic fan 3 relay.
105	10A**	Power steering.
106	—	Not used.
107	10 A**	Anti-lock brakes.
108	—	Not used.
109	10 A**	Powertrain control module.
110	10 A**	4×4 run/start. Adaptive cruise control.
111	10 A**	Transmission pump run-start.
112	—	Not used.
113	7.5 A**	Blind spot information system. Rear view camera. Front view camera. Voltage quality module.
114	—	Electric fan 2 relay.
115	—	Not used.
116	—	Not used.
		* Cartridge fuses ** Mini fuses
