Fixing Blown Fuses: A Complete Guide to Your Fuse Box 🔌🚗
Table of Contents
Solve Electrical Issues in Minutes—No Mechanic Required!
1. Why Blown Fuses Happen (And Why DIY Fixes Save Money) 💸
Blown fuses are your car’s way of protecting circuits from overloads. Common causes:
- Short Circuits: Damaged wires or faulty components.
- Overloaded Systems: Adding high-power accessories (e.g., amps, lights).
- Age/Wear: Fuses degrade over time.
Key Stat: Replacing a fuse costs 1–10, while mechanics charge 50–100 for the same fix (AAA).
2. Tools You’ll Need 🧰
| Tool | Purpose | Cost |
|---|---|---|
| Fuse puller | Safely remove fuses | $5 |
| Multimeter | Test circuits for continuity | $20 |
| Replacement fuses | Match your car’s amp ratings | $10 (pack of 20) |
| Flashlight | Illuminate dark fuse boxes | $10 |
| Owner’s manual | Locate fuse diagrams | Free |
Pro Tip: Buy a mixed amp fuse kit (5A–30A) for versatility.
3. Step-by-Step Fuse Replacement Guide 📋
Step 1: Locate the Fuse Box
- Common spots: Under the dashboard, hood, or trunk (check your manual).

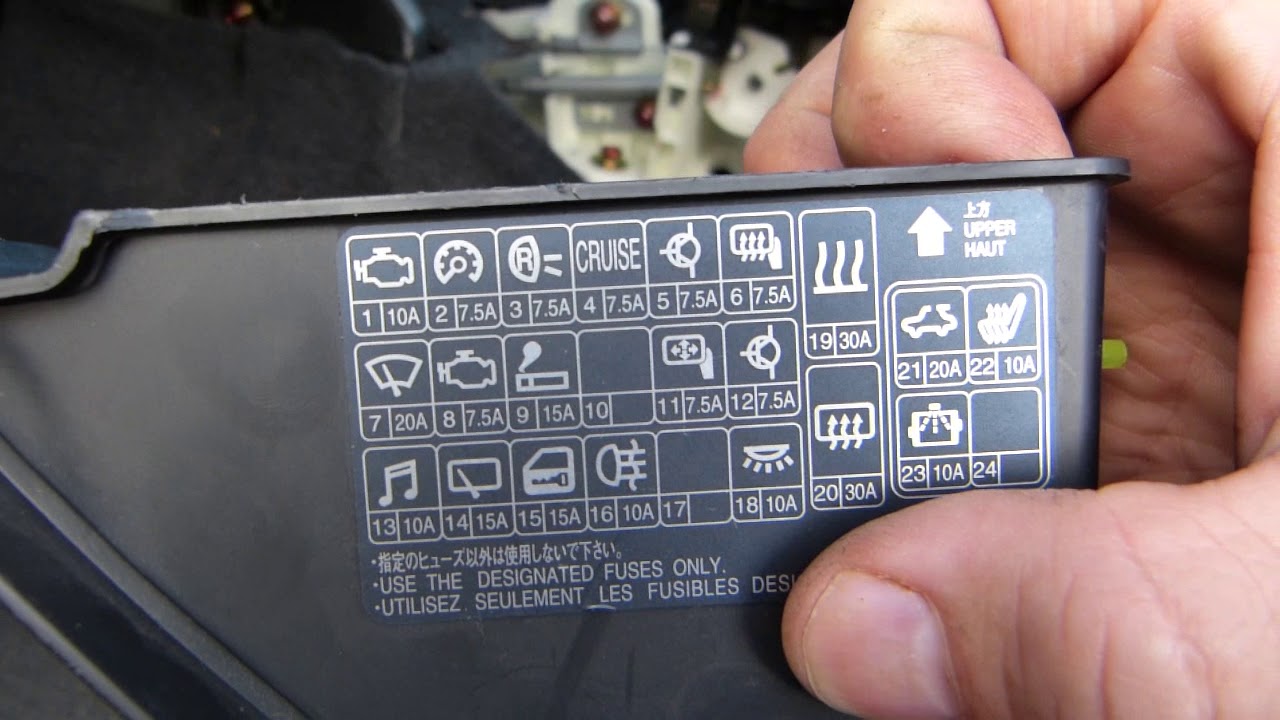

- Look for labels: Diagrams often list fuse functions (e.g., “RADIO,” “AC”).
Step 2: Identify the Blown Fuse
- Visual check: A blown fuse has a broken metal strip or melted appearance.

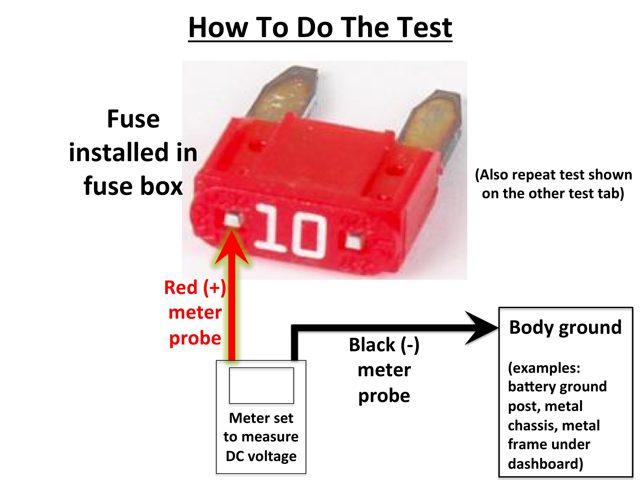

- Multimeter test: Set to continuity mode—touch probes to fuse ends (no beep = dead).
Step 3: Replace the Fuse

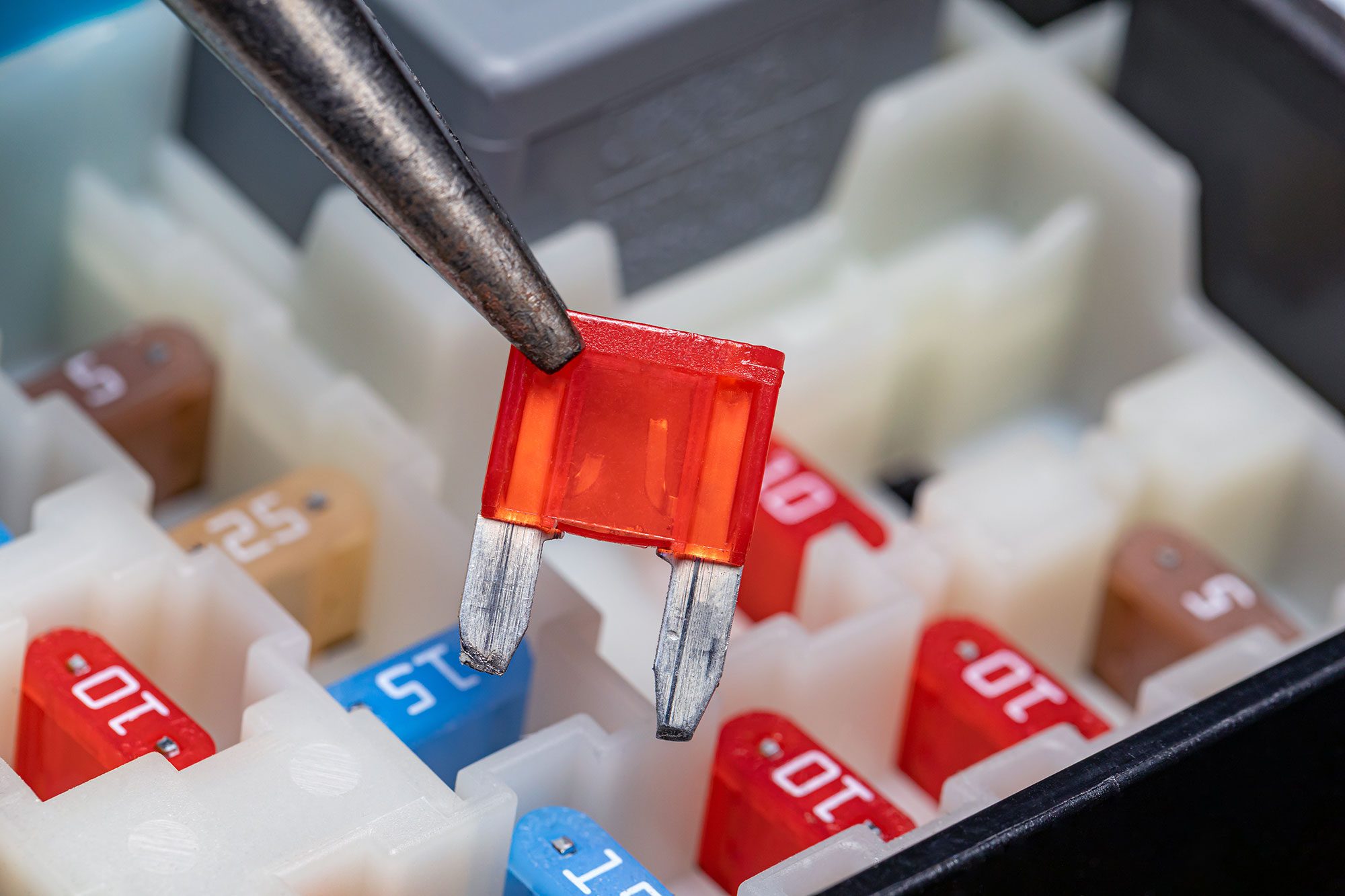

- Pull the old fuse: Use fuse pullers or needle-nose pliers.
- Match the amp rating: Never substitute with a higher-amp fuse!
- Insert the new fuse: Press firmly until seated.
- Test the circuit: Turn on the affected system (e.g., radio, lights).
Warning: If the new fuse blows immediately, you have a deeper electrical issue.

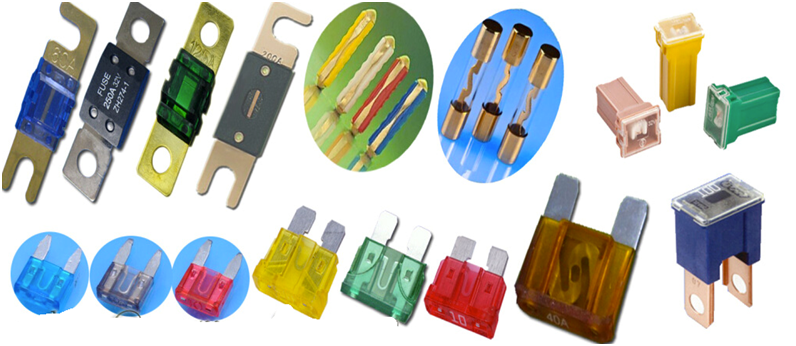

4. Understanding Fuse Types & Ratings 🔍
| Type | Appearance | Common Amps |
|---|---|---|
| Blade Fuses | Plastic, colored tops | 5A (tan) – 40A (green) |
| Glass Tube | Cylindrical, metal ends | 1A – 30A |
| Mini Blade | Smaller blade design | 2A – 30A |
Always match the amp rating printed on the fuse or in your manual.
5. Top 5 Fuse Kits for Your Car 🛒
| Product | Amp Range | Fuse Count | Price |
|---|---|---|---|
| Bussmann BP/HHH-ATM Blade Fuses | 5A–30A | 20 | $10 |
| JCATM Mini Fuse Assortment | 5A–30A | 150 | $15 |
| AstroAI Multimeter | Voltage/Continuity | – | $25 |
| CTA Tools Fuse Puller | Ergonomic grip | – | $5 |
| Lumintrail LED Flashlight | Bright, compact | – | $12 |
6. 7 Costly Mistakes to Avoid ❌
- Ignoring the Root Cause: Recurring blown fuses signal wiring issues.
- Using a Higher-Amp Fuse: Risks fire or component damage.
- Skipping the Multimeter: Guessing wastes time and fuses.
- Mixing Fuse Types: Blade vs. mini blade—size matters!
- Forgetting Battery Safety: Disconnect the negative terminal first.
- Misreading the Diagram: Wrong fuse = unresolved problem.
- Using Metal Tools: Can short circuits if slipped.
7. FAQs ❓🌟
Q1: How do I know which fuse is blown without tools?
A: Look for a broken filament or discolored window (on blade fuses).
Q2: Can I reuse a blown fuse?
A: Never—replace it with an identical amp-rated fuse.
Q3: Where can I buy replacement fuses?
A: Auto parts stores (AutoZone, O’Reilly’s), Amazon, or Walmart.
Q4: Why does my fuse keep blowing?
A: Check for shorts, overloaded circuits, or faulty components.
Q5: Are all fuses in the same box?
A: No—many cars have multiple boxes (engine bay, interior).
8. Free Fuse Replacement Checklist 📝
[🔗 Download Your Free PDF Here]
Includes:
- Fuse box diagram templates.
- Amp rating cheat sheet.
- Step-by-step troubleshooting guide.
Final Pro Tips 🌟
- Label Spare Fuses: Keep them organized in your glovebox.
- Carry a Multimeter: Diagnose issues on the go.
- Check Aftermarket Accessories: Poor installations often overload circuits.
