This article is about the fifth generation Dodge Viper (VX), produced from 2013 to 2017. Here you will find the 2014, 2015 and 2017 Dodge Viper fuse box diagram, get information on the location of the fuse boxes inside the car and learn about the assignment of each fuse (fuse layout) and relay.
Fuse box location

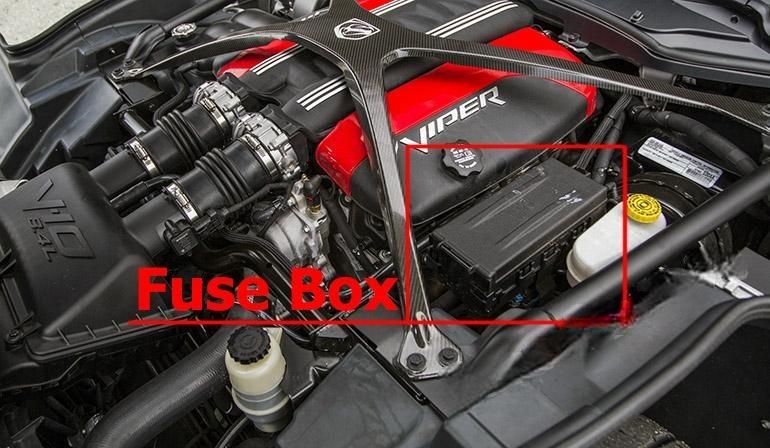

Power Distribution Center is located in the engine compartment on the driver’s side.
Assignment of fuses and relays in the Power Distribution Center
Assignment of fuses and relays in the Power Distribution Center
| № | Relay | Cartridge Fuse | Mini-Fuse | Protected component |
|---|---|---|---|---|
| 3 | — | 40 Amp Green | — | Rad Fan |
| 4 | — | 40 Amp Green | — | Rad Fan Rly High |
| 5 | — | 40 Amp Green | — | ABS/ESP Pump Feed |
| 6 | — | 40 Amp Green | — | Starter |
| 7 | — | 40 Amp Green | — | CBC (Ext. Lighting #1) |
| 8 | — | 40 Amp Green | — | CBC (Ext. Lighting #2) |
| 9 | — | 30 Amp Pink | — | 2014-2015: Washer Pump 2017: CBC (Lighting, Washer Pump) |
| 10 | — | 30 Amp Pink | — | CBC (Power Lock) |
| 11 | — | Jumper Black | — | B+ Jumper |
| 12 | — | 25 Amp Clear | — | ABS/ESP Valve Feed |
| 13 | — | — | 20 Amp Yellow | Horn |
| 14 | — | — | 10 Amp Red | A/C Clutch |
| 15 | — | — | 10 Amp Red | Diagnostic, Fuel Door, Stop Switch |
| 16 | — | — | 15 Amp Blue | KIN, RF Hub |
| 17 | — | — | 25 Amp circuit breaker | Power Seats |
| 18 | — | 30 Amp Pink | — | Driver Door Mod |
| 19 | — | 30 Amp Pink | — | Passenger Door Mod |
| 20 | — | 30 Amp Pink | — | Rear Window Defroster |
| 21 | — | 20 Amp Blue | — | Wiper |
| 22 | — | — | — | B+ Jumper |
| 23 | — | — | 15 Amp Blue | HVAC MOD, Cluster, ICS-Switch Bank |
| 24 | — | — | 25 Amp Clear | PCM-Powertrain Control Module |
| 25 | — | — | 25 Amp Clear | Fuel Pump |
| 26 | — | — | 20 Amp Yellow | ASD #1 |
| 27 | — | — | 20 Amp Yellow | ASD #2 |
| 28 | — | — | — | Spare (Not Used) |
| 29 | — | 40 Amp Green | — | HVAC Blower |
| 30 | — | 20 Amp Yellow | — | RR Power Outlet, Adj. Pedals, UCI |
| 31 | — | — | — | B+ Jumper |
| 32 | — | Jumper Black | — | 2014-2015: B+ Jumper 2017: Not Used |
| 33 | — | 20 Amp Yellow | — | Run Acc relay |
| 34 | — | — | — | B+ Jumper |
| 35 | — | — | — | Spare (Not Used) |
| 36 | — | — | 10 Amp Red | ORC Mod Run |
| 37 | — | — | 15 Amp Blue | Cluster, Camera |
| 38 | — | — | 20 Amp Yellow | Active Damping Suspension |
| 39 | — | — | 10 Amp Red | HVAC Module, In Car Temp, Blower Relay |
| 40 | — | — | — | Spare (Not Used) |
| 41 | G8VA | — | — | Run/Start |
| 42 | G8VA | — | — | Fuel Door |
| 43AC (Forward Fuse) | — | — | 2 Amp Grey | SCCM |
| 43BE (Rearward Fuse) | — | — | 10 Amp Red | 2014-2015: Corax 2017: Tire Pressure Module |
| 44AC (Forward Fuse) | — | — | 10 Amp Red | Rear View Mirror, Aux Port Jumper. |
| 44BE (Rearward Fuse) | — | — | 10 Amp Red | IBS (Intelligent Battery Sensor) |
| 45 | — | — | 10 Amp Red | PCM-Powertrain Control Module, Fuel Pump Relay. |
| 46 | — | — | 10 Amp Red | ESC Module, Stop Lamp Switch |
| 47 | — | — | 10 Amp Red | ORC Module, Passenger Seat OCM |
| 48 | — | — | 10 Amp Red | SCCM |
| 49 | — | — | 25 Amp Clear | Amplifier |
| 50 | HC Micro | — | — | Rad Fan |
| 51 | HC Micro | — | — | Rad Fan Relay SER/PAR |
| 52 | HC Micro | — | — | Starter Relay |
| 53 | HC Micro | — | — | Rear Window Defroster Relay |
| 54 | HC Relay | — | — | Rad Fan Relay High |
| 55 | HC Micro | — | — | Wiper ON/OFF |
| 56 | HC Micro | — | — | Wiper LO/HI |
| 57 | G8VA | — | — | Horn Relay |
| 58 | G8VA | — | — | A/C Clutch Relay |
| 59 | HC Micro | — | — | HVAC Blower |
| 60 | HC Micro | — | — | Fuel Pump |
| 61 | G8VA | — | — | Run Relay #1 |
| 62 | G8VA | — | — | Run Relay #2 |
| 63 | HC Micro | — | — | ASD #1 |
| 64 | HC Micro | — | — | ASD #2 |
| 65 | G8VA | — | — | Run Accy #1, Pop Up, Driver Door Window Switch |
| 66 | — | — | — | Not Used |
