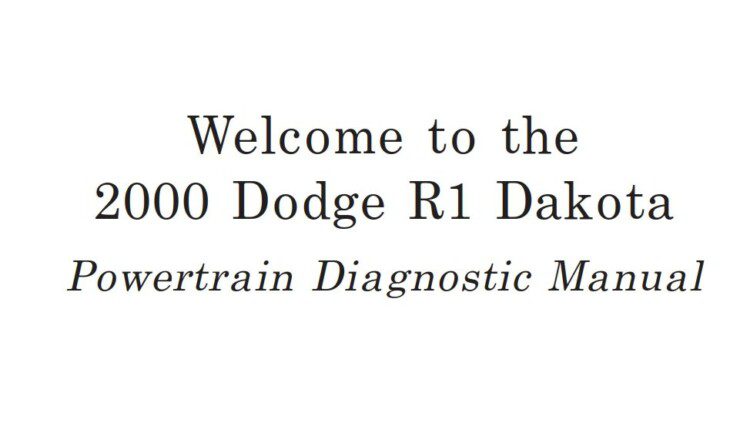

Dodge R1 Dakota 2000 Powertrain Diagnostic Manual

Dodge R1 Dakota 2000 Powertrain Diagnostic Manual PDF free online

This diagnostic procedures manual covers 2000 Dodge Truck vehicles with a JTEC Engine and 4 speed Chrysler Transmission Controller (PCM).

The Dodge Truck engine and Auto Transmission systems have the latest in technical advances. The on-board diagnostics (OBD) incorporated with the PCM controller are intended to assist the field technician in repairing vehicle problems by the quickest means.

The procedures contained in this manual include specifications, instructions, and graphics needed to diagnose the PCM Powertrain System. The diagnostics in this manual are based on the failure condition or symptom being present at the time of diagnosis.

CONTENTS

  • INTRODUCTION
    • SYSTEM COVERAGE
    • SIX-STEP TROUBLESHOOTING PROCEDURE
  • IDENTIFICATION OF SYSTEM
  • SYSTEM DESCRIPTION AND FUNCTIONAL OPERATION
    • GENERAL DESCRIPTION
    • FUNCTIONAL OPERATION
    • DIAGNOSTIC TROUBLE CODES
    • USING THE DRBIII
    • DRBIIIT ERROR MESSAGES AND BLANK SCREEN
  • DISCLAIMERS, SAFETY, WARNINGS
    • DISCLAIMERS
    • SAFETY
    • WARNINGS AND CAUTIONS
  • REQUIRED TOOLS AND EQUIPMENT
  • GLOSSARY OF TERMS
  • DIAGNOSTIC INFORMATION AND PROCEDURES
    • CHARGING
    • COMMUNICATION
    • DRIVEABILITY
    • HEATING & A/C
    • SPEED CONTROL
    • STARTING
    • TRANSMISSION
    • VERIFICATION TESTS
  • COMPONENT LOCATIONS
    • CONTROL MODULES AND PDC
    • CONTROLS AND SOLENOIDS
    • DATA LINK CONNECTOR
    • SENSORS
    • FUEL SYSTEM
    • SWITCHES
    • SPECIFICATIONS
  • CONNECTOR PINOUTS
  • SCHEMATIC DIAGRAMS
    • 2000 DODGE 2.5L JTEC SYSTEM
    • 2000 DODGE 3.9L JTEC SYSTEM
    • 2000 DODGE 5.2L JTEC SYSTEM

Language: English
Format: PDF
Pages: 338
