Dodge Magnum, Car Fuse Box, Dodge

Dodge Magnum 2005-2008 Fuse Box Diagram – Location, Fuses & Relay Assignments

By Todd Mitchell

On: Wednesday, May 28, 2025 12:48 PM

The 5-door hatchback Dodge Magnum was manufactured from 2005 to 2008. In this article you will find the 2005, 2006, 2007 and 2008 Dodge Magnum fuse box images, information on the location of the fuse boxes inside the car and the allocation of each fuse (fuse layout).

The fuses for the cigarette lighter socket are №9 (console socket), №16 (boot socket) and №18 (selector socket) in the rear power distribution centre (boot).

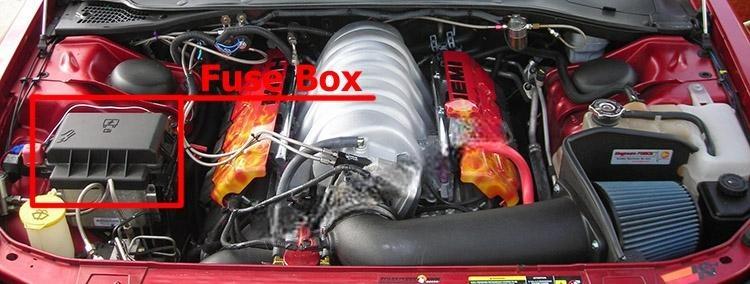

Fuse box location

Front Power Distribution Center

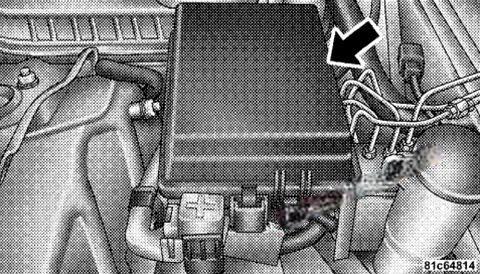

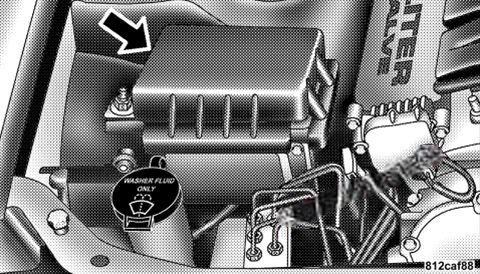

A power distribution center is located in the engine compartment.

dodge magnum 2005 2008 fuse layout 1 2024 11 28 21 56 28

2005-2007

2008

Rear Power Distribution Center

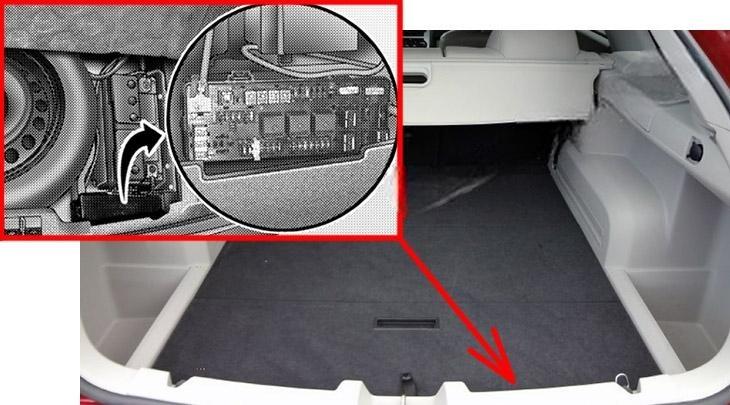

There is also a power distribution center located in the trunk under the spare tire access panel.

Fuse box diagrams

2005

Engine compartment

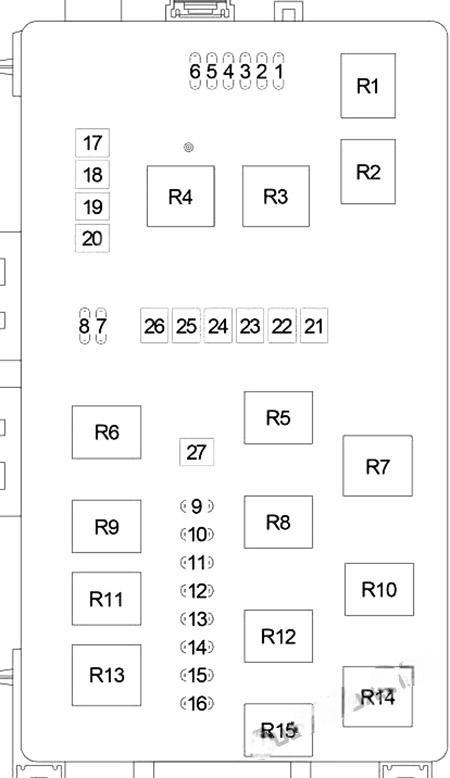

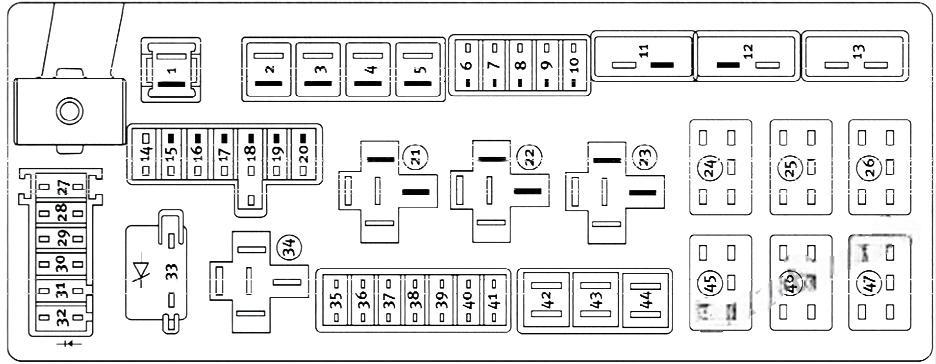

Assignment of fuses in the front PDC (2005)

Cavity	Amp	Circuits
1	20 Amp Yellow	Left High Beam Headlight
2	20 Amp Yellow	Right High Beam Headlight
3	15 Amp Dk. Blue	Adjustable Pedal
4	20 Amp Yellow	Horn
5	25 Amp Clear	Headlamp Washer — If Equipped
6	15 Amp Dk. Blue	Front Control Module (FCM)
7	20 Amp Yellow	Fog Lamp
8	15 Amp Dk. Blue	Park Lamp
9	15 Amp Dk. Blue	Non ABS Brakes
10	5 Amp Orange	Starter
11	15 Amp Dk. Blue	Auto Shutdown/Powertrain Control Module (PCM)
12	—	—
13	—	—
14	20 Amp Yellow	Powertrain Control Module
15	20 Amp Yellow	Injectors, Ignition Coils
16	20 Amp Yellow	Powertrain Control Module
17	30 Amp Pink	Antilock Brake System (ABS) Valves
18	30 Amp Pink	Windshield Wiper/Washer
19	50 Amp Red	Radiator Fan
20	20 Amp Lt. Blue	Starter
21	50 Amp Red	ABS Pump Motor
22	40 Amp Green	Radiator Fan High/Low
23	50 Amp Red	High Intensity Lighting
24	—	—
25	30 Amp Pink	Lighting Left High Beam/ Right Low Beam
26	20 Amp Lt. Blue	Transmission
27	30 Amp Pink	Lighting Left Low Beam/ Right High Beam

Luggage compartment

dodge magnum 2005 2008 fuse layout 6 2024 11 28 21 57 37

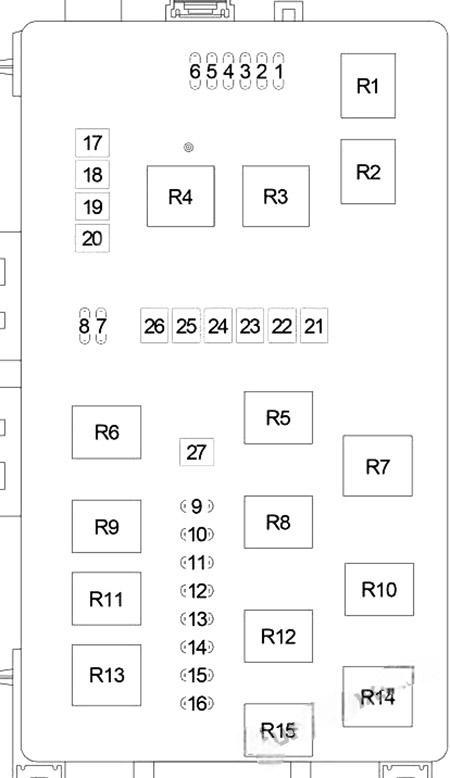

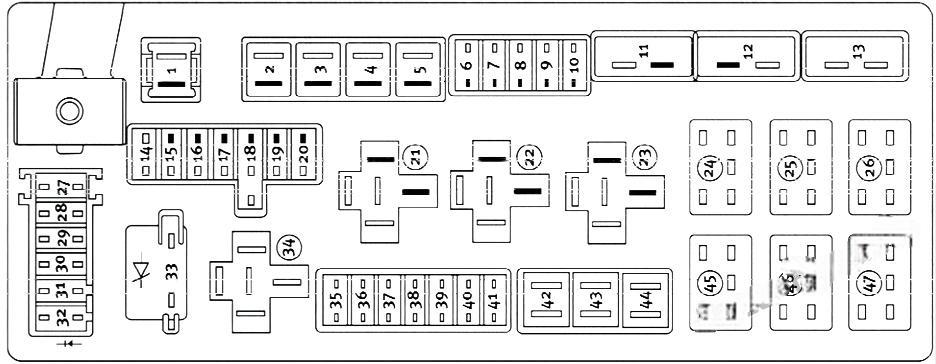

Assignment of fuses in the rear PDC (2005)

Cavity	Amp	Circuits
1	60 Amp Clear	Ignition Off Draw
2	40 Amp Green	Battery
3	—	—
4	40 Amp Green	Battery
5	30 Amp Pink	Heated Seat/Steering Column
6	20 Amp Yellow	Fuel Pump
7	—	—
8	15 Amp Dk. Blue	Ignition Start/Run – Start
9	20 Amp Yellow	Console Power Outlet
10	10 Amp Red	Rear Fog Lamp — If Equipped
11	25 Amp C/BRKR	Memory Module/Door Locks (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
12	25 Amp C/BRKR	Passenger Power Seat (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
13	30 Amp C/BRKR	Door Module Run/Acc/Delay (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
14	10 Amp Red	Sentry Key/Remote Keyless Entry/Cluster
15	20 Amp Yellow	Brake Light (5.7L)
16	20 Amp Yellow	Power Outlet Trunk – if equipped
17	—	—
18	20 Amp Yellow	Selectable Power Outlet
19	10 Amp Red	Stop Lamp
20	20 Amp Yellow	Rear Wiper — If Equipped
21	—	—
22	—	—
23	—	—
24	—	—
25	—	—
26	—	—
27	10 Amp Red	Airbag/Occupant Classification Module
28	10 Amp Red	Curtain Airbag – if equipped
29	5 Amp Orange	Sentry Key/Remote Keyless Entry/Powertrain Control Module Ignition Feed
30	10 Amp Red	Steering Column Module/ Power Mirrors – if equipped
31	—	—
32	—	—
33	—	—
34	—	—
35	5 Amp Orange	Power Antenna/Garage Door Opener/Ignition Delay
36	20 Amp Yellow	Radio/Navigation
37	15 Amp Dk. Blue	Transmission
38	5 Amp Orange	Analog Clock/Garage Door Opener
39	10 Amp Red	Heated Mirror
40	5 Amp Orange	Power Mirror
41	10 Amp Red	Climate Control Module/ Headlamp Leveling — if equipped/Rear Park Assist — if equipped/Tire Pressure Monitoring — if equipped
42	30 Amp Pink	Automatic Temperature Control (ATC) Blower Motor
43	30 Amp Pink	Rear Defroster
44	20 Amp Lt. Blue	Audio Amplifier

2006

Engine compartment

dodge magnum 2005 2008 fuse layout 7 2024 11 28 21 57 49

Assignment of fuses in the front PDC (2006)

Cavity	Amp	Circuits
1	—	—
2	—	—
3	15 Amp Blue	Adjustable Pedals – if equipped
4	20 Amp Yellow	AC Clutch/Horn
5	—	—
6	15 Amp Blue	Front Control Module (FCM)
7	20 Amp Yellow	Fog Lights
8	15 Amp Blue	Lights – License. Park. Side Marker. Stop. Turn
9	15 Amp Blue	Front Control Module (FCM)
10	5 Amp Orange	Powertrain Control Module (PCM)/Starter
11	20 Amp Yellow	Auto Shutdown/Powertrain Control Module (PCM)
12	—	—
13	—	—
14	25 Amp Clear	Powertrain Control Module (PCM)
15	25 Amp Clear	Injectors. Ignition Coils
16	—	—
17	30 Amp Pink	Antilock Brakes System (ABS) Valves/Powertrain Control Module (PCM)
18	30 Amp Pink	Windshield Wiper/Washer
19	50 Amp Red	Radiator Fan
20	20 Amp Blue	Starter
21	50 Amp Red	Antilock Brakes System (ABS) Pump Motor
22	40 Amp Green	AC Clutch/Radiator Fan High — Low
23	—	—
24	60 Amp Yellow	Radiator Fan – AWD
25	30 Amp Pink	Front Control Module (FCM)
26	20 Amp Blue	Transmission – RLE
27	30 Amp Pink	Front Control Module (FCM)

Luggage compartment

dodge magnum 2005 2008 fuse layout 8 2024 11 28 21 58 05

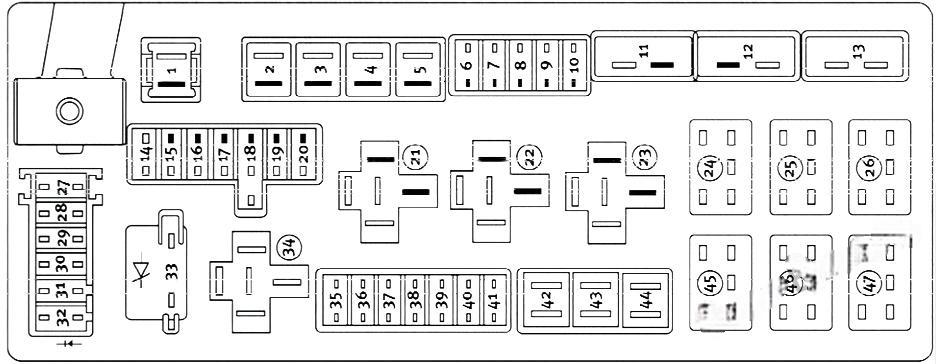

Assignment of fuses in the rear PDC (2006)

Cavity	Amp	Circuits
1	60 Amp Yellow	Ignition Off Draw (IOD)
2	40 Amp Green	Battery
3	—	—
4	40 Amp Green	Battery
5	30 Amp Pink	Heated Seats – if equipped
6	20 Amp Yellow	Fuel Pump
7	—	—
8	15 Amp Blue	Ignition Switch/Occupant Classification Module (OCM)
9	20 Amp Yellow	Console Power Outlet
10	—	—
11	25 Amp C/BRKR	Cluster – without power memory seat/Driver Seat Switch – with power memory seat/Memory Module – if equipped (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer.)
12	25 Amp C/BRKR	Passenger Seat Switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer.)
13	25 Amp C/BRKR	Door Modules – except base/ Driver Door Lock Switch – base/ Driver Express Power Window Switch – if equipped/Passenger Door Lock Switch – base (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer.)
14	10 Amp Red	AC Heater Control/Cluster/ Sentry Key Remote Keyless Entry
15	20 Amp Yellow	Trailer Tow Brake Module – if equipped
16	20 Amp Yellow	Rear Power Outlet
17	20 Amp Yellow	Cluster
18	20 Amp Yellow	Selectable Power Outlet
19	10 Amp Red	Stop Lights
20	20 Amp Yellow	Rear Wiper – if equipped
21	—	—
22	—	—
23	—	—
24	—	—
25	—	—
26	—	—
27	10 Amp Red	Airbag/Occupant Classification Module
28	10 Amp Red	Curtain Airbag – if equipped
29	5 Amp Orange	Antilock Brakes Module/ Cluster/Front Control Module (FCM)/Powertrain Control Module (PCM)/Sentry Key Remote Keyless Entry/Stop Lights
30	10 Amp Red	Door Modules/Power Mirrors -if equipped/Steering Control Module
31	—	—
32	—	—
33	—	—
34	—	—
35	5 Amp Orange	Amplifier – if equipped/ Antenna/Ignition Delay/ Overhead Console – if equipped/ Passenger Door Lock & Express Power Window Switch – if equipped/Power Mirrors – if equipped/Rear Defrost
36	20 Amp Yellow	Hands Free Phone – if equipped/ Media System Monitor DVD – if equipped/Radio/Satellite Receiver – if equipped
37	15 Amp Blue	Transmission – NAG1
38	5 Amp Orange	Analog Clock/Overhead Console – if equipped
39	10 Amp Red	Heated Mirrors – if equipped
40	5 Amp Orange	Heated Seats – if equipped/ Inside Rearview Mirror/Manual Temperature Control (early build) – if equipped
41	10 Amp Red	AC Heater Control (except early build MTC)/Tire Pressure Monitoring – if equipped
42	30 Amp Pink	Front Blower Motor
43	30 Amp Pink	Amplifier – if equipped/ Antenna/Rear Defrost
44	20 Amp Blue	Amplifier – if equipped/Front Control Module (FCM)/Sunroof – if equipped

2007

Engine compartment

dodge magnum 2005 2008 fuse layout 9 2024 11 28 21 58 15

Assignment of fuses in the front PDC (2007)

Cavity	Amp	Circuits
1	—	—
2	—	—
3	15 Amp Blue	Adjustable Pedals – if equipped
4	20 Amp Yellow	AC Clutch/Horn
5	—	—
6	15 Amp Blue	Front Control Module (FCM)
7	20 Amp Yellow	Fog Lights
8	15 Amp Blue	Lights – License. Park. Side Marker. Stop. Turn
9	15 Amp Blue	Front Control Module (FCM)
10	5 Amp Orange	Powertrain Control Module (PCM)/Starter
11	20 Amp Yellow	Auto Shutdown/Powertrain Control Module (PCM)
12	—	—
13	—	—
14	25 Amp Clear	Powertrain Control Module (PCM)
15	25 Amp Clear	Injectors. Ignition Coils
16	—	—
17	30 Amp Pink	Antilock Brakes System (ABS) Valves/Powertrain Control Module (PCM)
18	30 Amp Pink	Windshield Wiper/Washer
19	50 Amp Red	Radiator Fan
20	20 Amp Blue	Starter
21	50 Amp Red	Antilock Brakes System (ABS) Pump Motor
22	40 Amp Green	AC Clutch/Radiator Fan High — Low
23	—	—
24	60 Amp Yellow	Radiator Fan – AWD
25	30 Amp Pink	Front Control Module (FCM)
26	20 Amp Blue	Transmission – RLE
27	30 Amp Pink	Front Control Module (FCM)

Luggage compartment

dodge magnum 2005 2008 fuse layout 10 2024 11 28 21 58 29

Assignment of fuses in the rear PDC (2007)

Cavity	Cartridge Fuse	Mini Fuse	Description
1	60 Amp Yellow	—	Ignition Off Draw (IOD)
2	40 Amp Green	—	Battery
3	—	—	—
4	40 Amp Green	—	Battery
5	30 Amp Pink	—	Heated Seats – if equipped
6	—	20 Amp Yellow	Fuel Pump
7	—	—	—
8	—	15 Amp Blue	Ignition Switch/Airbag Control Module (ACM)
9	—	20 Amp Yellow	Console Power Outlet
10	—	—	—
11	25 Amp C/BRKR	—	The Cluster (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
12	25 Amp C/BRKR	—	The Passenger Seat Switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
13	25 Amp C/BRKR	—	The Door Modules (except base), the Driver Door Lock Switch (base), the Driver Express Power Window Switch (if equipped), and the Passenger Door Lock Switch (base) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
14	—	10 Amp Red	AC Heater Control/ Cluster/Sentry Key Remote Keyless Entry
15	—	20 Amp Yellow	Trailer Tow Brake Module – if equipped
16	—	20 Amp Yellow	Rear Power Outlet
17	—	20 Amp Yellow	Cluster
18	—	20 Amp Yellow	Selectable Power Outlet
19	—	10 Amp Red	Stop Lights
20	—	20 Amp Yellow	Rear Wiper
24	—	—	—
25	—	—	—
26	—	—	—
27	—	10 Amp Red	Airbag/Airbag Control Module (ACM)
28	—	10 Amp Red	Curtain Airbag – if equipped
29	—	5 Amp Orange	Anti-lock Brakes Module – if equipped/Cluster/ Front Control Module (FCM)/Powertrain Control Module (PCM)/ Sentry Key Remote Keyless Entry/Stop Lights
30	—	10 Amp Red	Door Modules/Power Mirrors – if equipped/ Steering Control Module
31	—	—	—
32	—	—	—
33	—	—	—
34	—	—	—
35	—	5 Amp Orange	Amplifier – if equipped/ Antenna/Ignition Delay/Overhead Console/Passenger Door Lock & Express Power Window Switch – if equipped/Power Mirrors – if equipped/Rear Defrost
36	—	20 Amp Yellow	Hands Free Phone – if equipped/Media System Monitor DVD – if equipped/Radio/ Satellite Receiver – if equipped
37	—	15 Amp Blue	Transmission – NAG1
38	—	5 Amp Orange	Overhead Console
39	—	10 Amp Red	Heated Mirrors – if equipped
40	—	5 Amp Orange	Heated Seats – if equipped/Inside Rearview Mirror
41	—	10 Amp Red	AC Heater Control/Tire Pressure Monitoring – if equipped
42	30 Amp Pink	—	Front Blower Motor
43	30 Amp Pink	—	Amplifier – if equipped/ Antenna/Rear Defrost
44	20 Amp Blue	—	Amplifier – if equipped/ Front Control Module (FCM)/Sunroof – if equipped

2008

Engine compartment

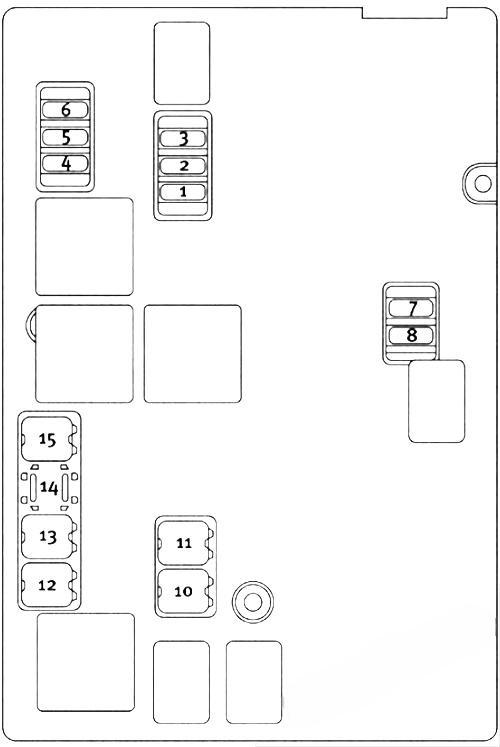

Assignment of fuses in the front PDC (2008)

Cavity	Cartridge Fuse	Mini Fuse	Description
1	—	15 Amp Blue	Washer Motor
2	—	25 Amp Neutral	Powertrain Control Module (PCM)
3	—	25 Amp Neutral	Ignition Run/Start
4	—	25 Amp Neutral	Alternator/EGR Solenoid
5	—	—	—
6	—	25 Amp Neutral	Ignition Coils/Injectors/ Short Runner Valve
7	—	—	—
8	—	25 Amp Neutral	Starter
9	—	—	—
10	30 Amp Pink	—	Windshield Wiper
11	30 Amp Pink	—	Anti-lock Brakes System (ABS) Valves – if equipped
12	40 Amp — Green	—	Radiator Fan
13	50 Amp — Red	—	Anti-lock Brakes System (ABS) Pump Motor – if equipped
14	60 Amp Yellow	—	Radiator Fan
15	50 Amp — Red	—	Radiator Fan
16	—	—	—
17	—	—	—
18	—	—	—
19	—	—	—
20	—	—	—
21	—	—	—
22	—	—	—

Luggage compartment

dodge magnum 2005 2008 fuse layout 12 2024 11 28 21 58 57

Assignment of fuses in the rear PDC (2008)

Cavity	Cartridge Fuse	Mini Fuse	Description
1	60 Amp Yellow	—	Ignition Off Draw (IOD)
2	40 Amp Green	—	Integrated Power Module (IPM)
3	—	—	—
4	40 Amp Green	—	Integrated Power Module (IPM)
5	30 Amp Pink	—	Heated Seats – if equipped
6	—	20 Amp Yellow	Fuel Pump
7	—	—	—
8	—	15 Amp Blue	Diagnostic Link Connector (DLC)/Wireless Control Module (WCM)/ Wireless Ignition Node (WIN)
9	—	20 Amp Yellow	Power Outlet
10	—	—	—
11	25 amp circuit breaker	—	The Cluster and the Driver Seat Switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
12	25 amp circuit breaker	—	The Passenger Seat Switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
13	25 amp circuit breaker	—	The Door Modules, the Driver Power Window Switch, and the Passenger Power Window Switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer)
14	—	10 Amp Red	AC Heater Control/ Cluster/Security Module – if equipped
15	—	20 Amp Yellow	Trailer Tow Brake Module – if equipped
16	—	20 Amp Yellow	Rear Power Outlet
17	—	20 Amp Yellow	Cluster
18	—	20 Amp Yellow	Selectable Power Outlet
19	—	10 Amp Red	Stop Lights
20	—	20 Amp Yellow	Rear Wiper Motor
21	—	—	—
22	—	—	—
23	—	—	—
24	—	—	—
25	—	—	—
26	—	—	—
27	—	10 Amp Red	Occupant Restraint Controller (ORC)
28	—	10 Amp Red	Ignition Run
29	—	5 Amp Orange	Cluster/Electronic Stability Program (ESP) – if equipped/Powertrain Control Module (PCM)/ Stop Light Switch
30	—	10 Amp Red	Door Modules/Power Mirrors/Steering Control Module (SCM)
31	—	—	—
32	—	—	—
33	—	—	—
34	—	—	—
35	—	5 Amp Orange	Antenna Module – if equipped/Power Mirrors
36	—	20 Amp Yellow	Hands Free Phone – if equipped/Video Monitor – if equipped/Radio
37	—	15 Amp Blue	Transmission
38	—	10 Amp Red	Cargo Light/Satellite Receiver (SDARS) Video – if equipped/Vehicle Information Module – if equipped
39	—	10 Amp Red	Heated Mirrors – if equipped
40	—	5 Amp Orange	Auto Inside Rearview Mirror – if equipped/ Heated Seats – if equipped/Switch Bank
41	—	10 Amp Red	AC Heater Control/ Head lights/Tire Pressure Monitoring – if equipped
42	30 Amp Pink	—	Front Blower Motor
43	30 Amp Pink	—	Rear Window Defroster
44	20 Amp Blue	—	Amplifier – if equipped/ Sunroof – if equipped
